Downloaded from www.Manualslib.com manuals search engine 3. If your engine still won’t start (or starts but then
stops), it could be flooded with too much gasoline.
Try pushing your accelerator pedal all the way to the
floor and holding it there as you hold the key in
START for about three seconds. If the Catera starts
briefly but then stops again,
do the same thing.
I NOTICE:
Your engine is designed to work with the
electronics in your vehicle.
If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer.
If you don’t,
your engine might not perform properly.
If you ever have to have your vehicle towed, see
the part of this manual that tells how to do it
without damaging your vehicle.
See “Towing
Your Catera” in the Index.
Engine Coolant Heater (Option)
The electrical cord for the engine coolant heater is in
front of the air cleaner filter and under the headlamp
cover, on
the passenger’s side of the engine.
ENGINE COOLANT
HEATER ELEC AIR CLEANER ASSEMBLY
CORD ////
HE
AS
I
HEADLAMP
COVER
In very cold weather, 0°F (- 18 “C) or
colder, the engine
coolant heater can help. You’ll get easier starting and
better
fuel economy during engine warm-up. Usually,
the coolant heater should be plugged in a minimum of
four hours prior to starting your vehicle.

Downloaded from www.Manualslib.com manuals search engine Ventilation Tips
0
0
0
Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of the windows.
When you enter a vehicle in cold weather, adjust the
fan to the highest speed for a few moments before
driving
off. This helps clear the intake outlets of
snow and moisture, and reduces the chance of
fogging the inside of the windows.
Keep the air path under the front seats clear of
objects. This helps circulate air throughout
your vehicle.
Passenger Compartment Air Filter
This ventilation system includes an air filter that helps to
remove dust, pollen, etc. from the air flowing into your
vehicle. A restriction in the airflow coming into the
passenger compartment could be the result of dirt
in the filter. For information about changing the filter,
see “Passenger Compartment Air Filter Replacement”
in
the Index. See the Maintenance Schedule booklet for
when to change the filter.
Defrosting
Use defrost to remove fog or ice from the windshield
quickly in extremely humid or cold conditions.
Press the defrost button on the control panel and adjust
the fan speed
to the highest position. Make sure that the
side air vents are opened. Rotate both TEMP/AUTO
knobs clockwise as needed to adjust the temperature.
To warm the foot area while in defrost, press the
MODE button until the heateddefrost symbol appears
(see “Manual Operation” earlier in this section).
Note that recirculation is not available in the
defrost mode.
3-8

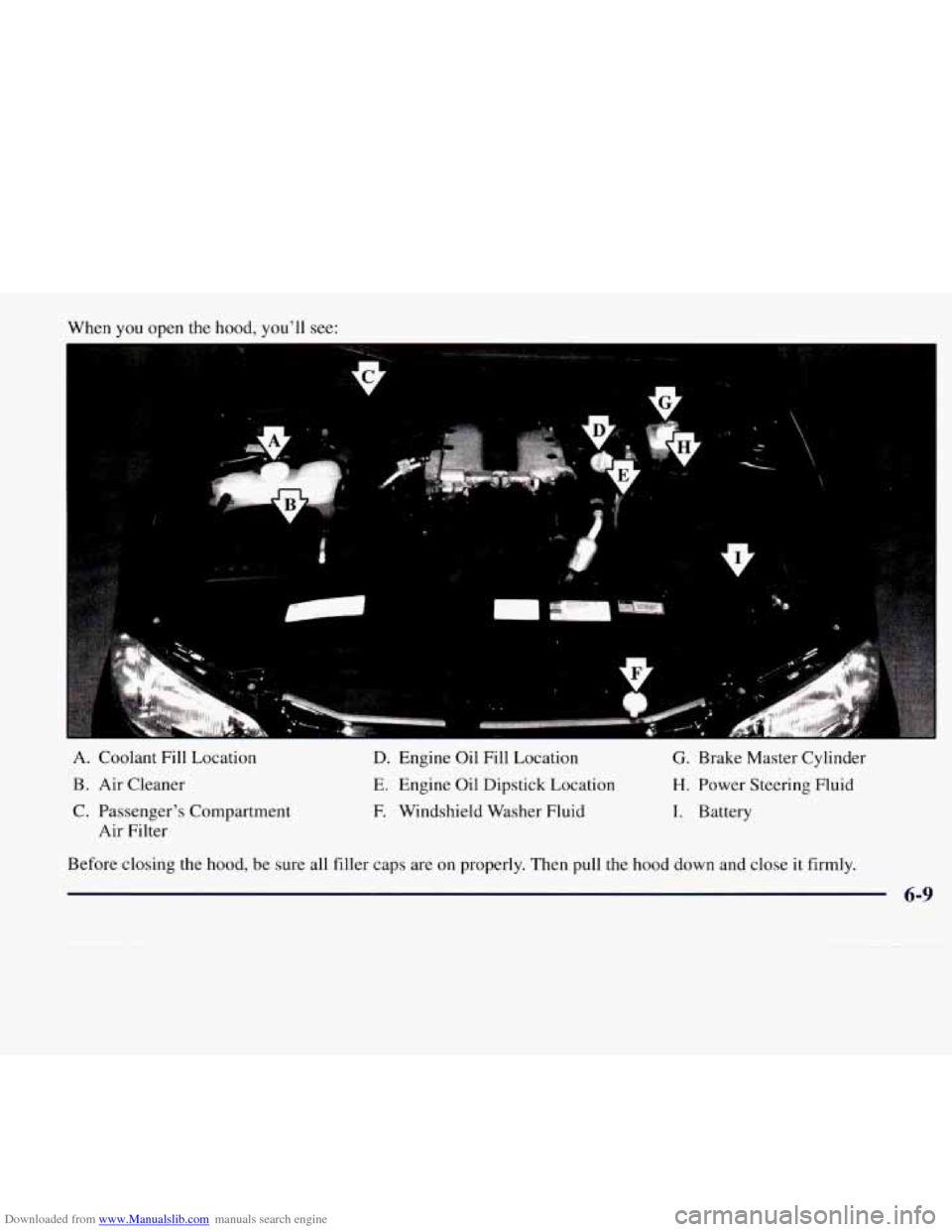

Downloaded from www.Manualslib.com manuals search engine When you open the hood, you’ll see:
1
H
A. Coolant Fill Location D. Engine Oil Fill Location G. Brake Master Cylinder
B. Air Cleaner E. Engine Oil Dipstick Location H. Power Steering Fluid
C. Passenger’s Compartment
F. Windshield Washer Fluid I. Battery
Air Filter
Before closing the hood,
be sure all filler caps are on properly. Then pull the hood down and close it firmly.
6-9

Downloaded from www.Manualslib.com manuals search engine Air Cleaner
L
The air cleaner is located behind the headlamps on the
passenger’s side
of the engine. Be sure the engine has
cooled before following these steps
to replace the air filter.
I
1. Unhook the five clips that attach the air cleaner lid to
the housing.
2. Loosen the retaining clamp on the air intake tube
and then disconnect the tube (as shown by the
arrow above).
3. Move the hose going to the coolant surge tank out
of the way so the air cleaner lid can be lifted.
6-15

Downloaded from www.Manualslib.com manuals search engine 4. Lift the lid, take out the air filter and remove any
loose debris that may be found laying in the air
cleaner base.
5. Install a new air filter element. See “Normal
Maintenance Replacement Parts”
in the Index.
To reinstall the air cleaner assembly, replace the air
cleaner lid, reattach the five clips, replace the air intake
tube and tighten the clamp. Return the coolant surge
tank hose
to its proper position.
Refer
to the Maintenance Schedule to determine when to
replace the air filter. See
“Scheduled Maintenance Services” in the
Maintenance Schedule booklet.
‘
A CAUTION:
Operating the engine with the air cleaner off can
cause you or others to be burned. The air cleaner
not only cleans the air, it stops flames
if the
engine backfires.
If it isn’t there, and the engine
backfires, you could be burned. Don’t drive with
it off, and be careful working on the engine with
the air cleaner off.
NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily get
into your engine, which will damage
it. Always
have the air cleaner in place when you’re driving.
6-16

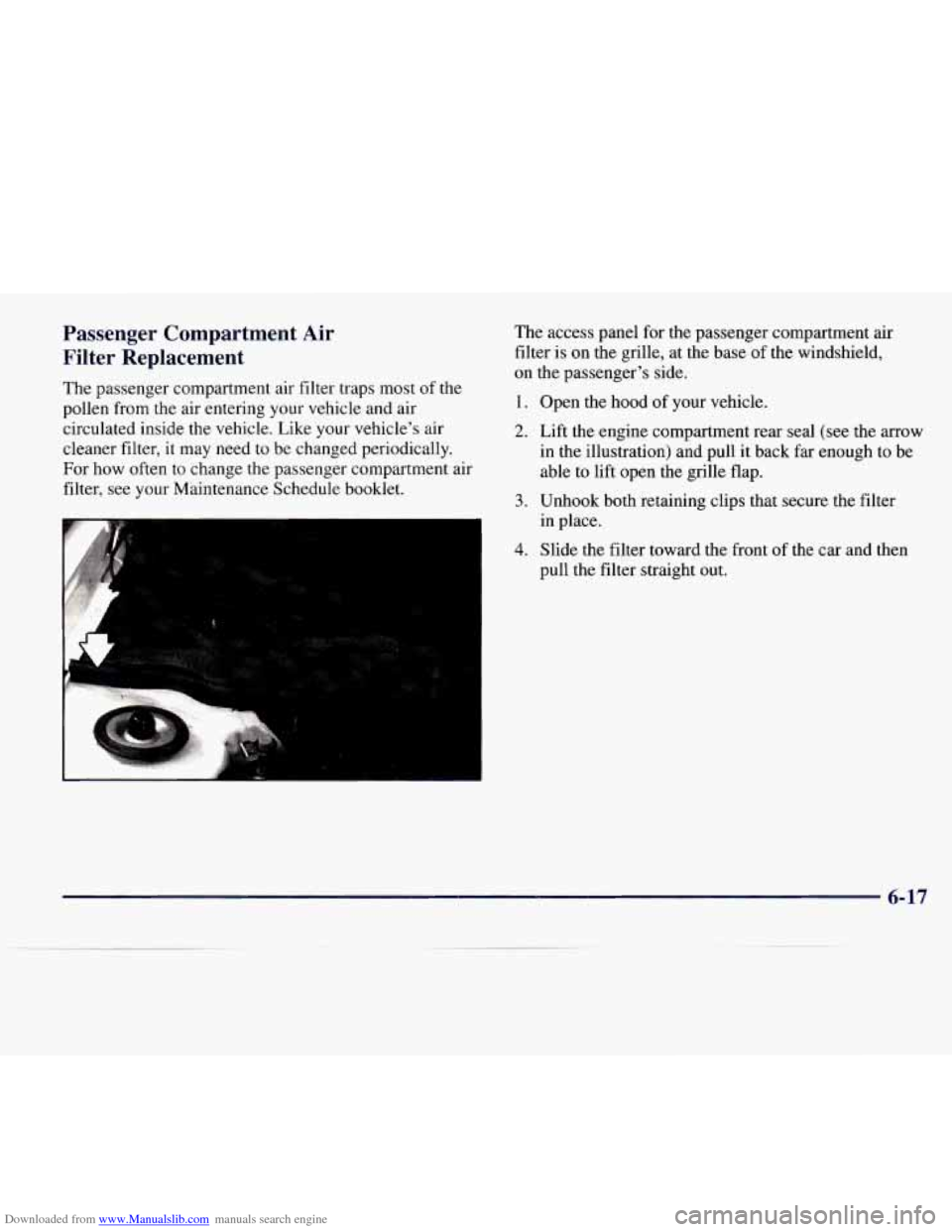

Downloaded from www.Manualslib.com manuals search engine Passenger Compartment Air
Filter Replacement
The passenger compartment air filter traps most of the
pollen from the air entering your vehicle and air
circulated inside the vehicle. Like your vehicle’s air
cleaner filter, it may need to be changed periodically.
For how often to change the passenger compartment air
filter, see your Maintenance Schedule booklet. The access panel
for the passenger compartment
air
filter is on the grille, at the base of the windshield,
on the passenger’s side.
1. Open the hood of your vehicle.
2. Lift the engine compartment rear seal (see the arrow
in the illustration) and pull it back far enough to be
able to lift open the grille flap.
3. Unhook both retaining clips that secure the filter
in place.
4. Slide the filter toward the front of the car and then
pull the filter straight out.
6-17

Downloaded from www.Manualslib.com manuals search engine 5. Replace the filter by sliding it back in, reattaching
6. Replace the engine compartment rear seal.
7. Close the engine hood.
For the type of filter to use, see “Normal Maintenance
Replacement Parts” in the Index. both
retainer clips and closing the grille flap.
Auto-- ’ic Transmission Fluid
It is not necessary to check the transmission fluid level.
A transmission fluid leak is the only reason for fluid
loss. If a leak occurs, take your Catera to a Catera dealership
service department and have it repaired as
soon as possible. You may also have your fluid level
checked by your dealer or service center when
you have
your
oil changed.
Change both the fluid and
filter every 50,000 miles
(83 000 km) if the vehicle is mainly driven under one
or more of
these conditions:
0 In heavy city traffic where the outside temperature
0 In hilly or mountainous terrain.
0 When doing frequent trailer towing.
0 Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require changing.
regularly reaches
90°F (32°C) or
higher.
NOTICE:
We recommend you use only fluid labeled
DEXRON@-111, because fluid with that label is
made especially for your automatic transmission.
Damage caused by fluid other than
DEXRON-I11
is not covered by your new vehicle warranty.
6-18

Downloaded from www.Manualslib.com manuals search engine Capacities
Engine Crankcase
Transmission
................. 7.0 quarts (6.6 L)
Oil Change With Filter* ...... 6.1 quarts (5.75 L)
Engine Cooling System ......... 10.6 quarts ( IO L)
Fuel Tank ................... 18 gallons (68. I L)
R- i 34a
Refrigerant,. ............. 2.9 lbs. (0.95 kg)
Wheel Base ............. 107.4 inches (272.8 cm)
Length ................... 194 inches (492.8 cm)
Height.. ................. 56.3 inches (143.1 cm)
Width ................... 70.3 inches (178.6 cm)
Front Tread
............... 59.3 inches ( 150.6 cm)
Rear Tread ................ .59.8 inches (152 cm)
Wheel Bolt Torque ............ 80 lb-ft (I 10 N-m)
Oil Change Without Filter* .... 5.8 quarts (5.5 L)
Vehicle Dimensions
* Recheck the oil level after filling. See “Engine Oil” in
the Index.
Air Conditioning Refrigerants
Normal Maintenance
Replacement Parts
Air Filter Element ................... 905093 18
Fuel Filter Element
.................. 90437575
Engine
Oil Filter .................... 93 156300
Passenger’s Compartment Air Filter
......................... 90510338
Thermostat
......................... 90502201
Windshield Wiper Blade
.......... 905 12807 (RH)
905 12808
(LH)
Spark Plugs ... 90541059 (Bosch Plug = FLR9LTE)
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant,
be sure the proper refrigerant is used.
If you’re not sure, ask your Catera dealer.
6-63
