Page 16 of 346

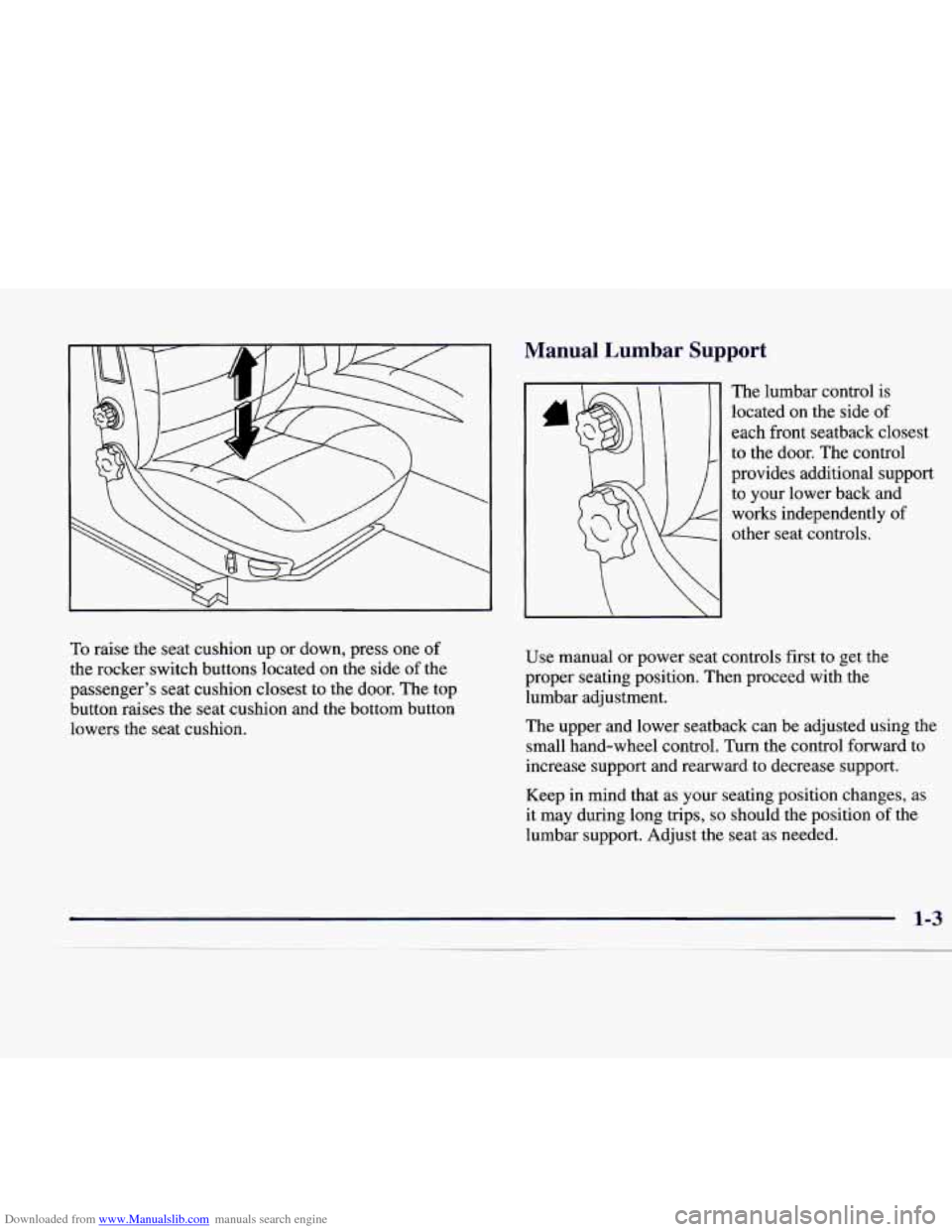

Downloaded from www.Manualslib.com manuals search engine 10 raise the seat cushion up or down, press one of
the rocker switch buttons located on the side of the
passenger’s seat cushion closest to the door. The top
button raises the seat cushion and the bottom button
lowers the seat cushion.
Manual Lumbar Support
The lumbar control is
located on the side
of
each front seatback closest
to the door. The control
provides additional support to your lower back and
works independently
of
other seat controls.
Use manual or power seat controls first to get the
proper seating position. Then proceed with the
lumbar adjustment.
The upper and lower seatback can be adjusted using the
small hand-wheel control. Turn the control forward to
increase support and rearward to decrease support.
Keep
in mind that as your seating position changes, as
it may during long trips, so should the position of the
lumbar support. Adjust the seat as needed.
Page 18 of 346

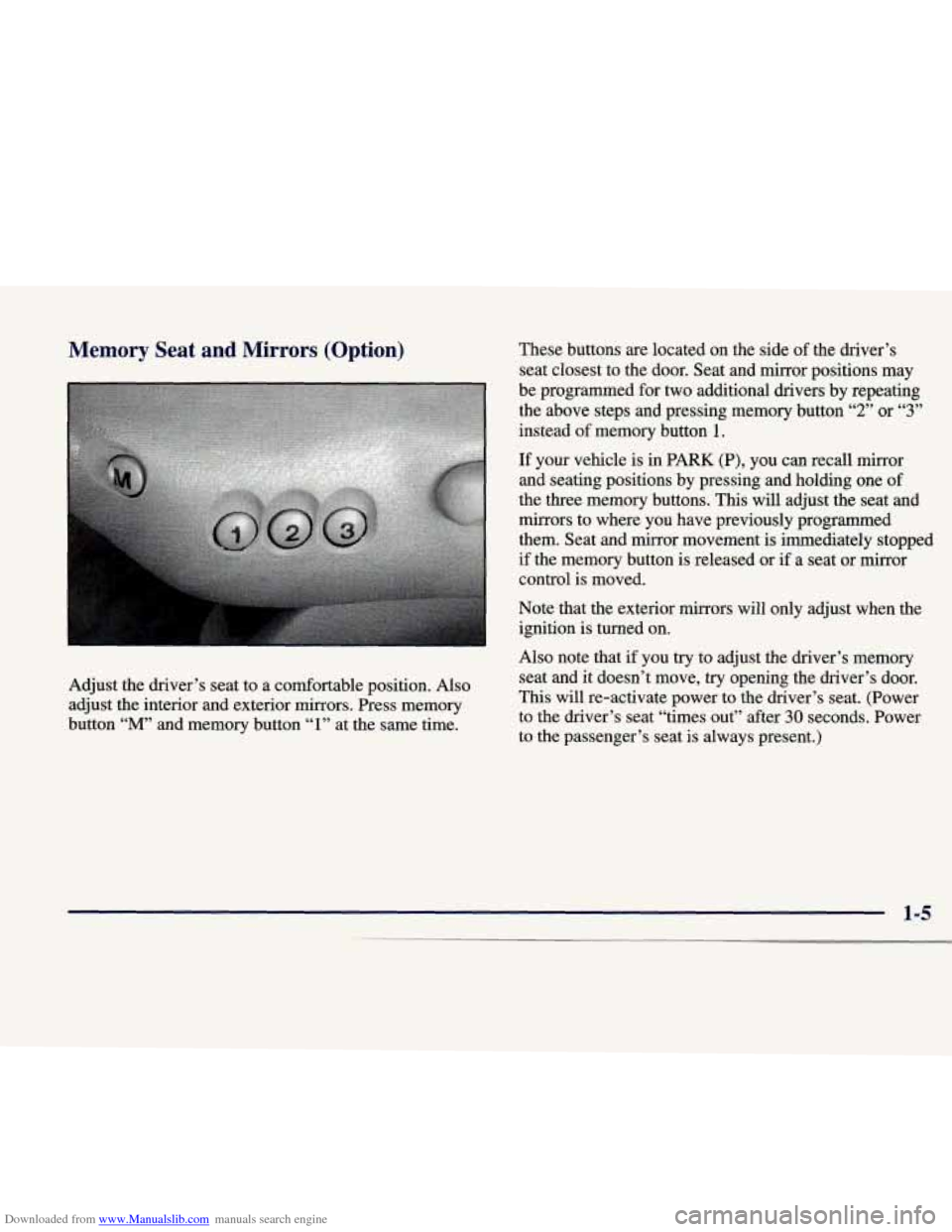

Downloaded from www.Manualslib.com manuals search engine Memory Seat and Mirrors (Option)
Adjust the driver’s seat to a comfortable position. Also
adjust the interior and exterior mirrors. Press memory
button
“M’ and memory button “1” at the same time. These
buttons are located on the side
of the driver’s
seat closest to the door. Seat and mirror positions may
be programmed for two additional drivers by repeating
the above steps and pressing memory button
“2” or “3”
instead of memory button 1.
If your vehicle is in PARK (P), you can recall mirror
and seating positions by pressing and holding one of
the three memory buttons. This will adjust the seat and
mirrors to where you have previously programmed
them. Seat and mirror movement is immediately stopped
if the memory button is released or if a seat or mirror
control is moved.
Note that the exterior mirrors
will only adjust when the
ignition is turned on.
Also note that
if you try to adjust the driver’s memory
seat and it doesn’t move,
try opening the driver’s door.
This will re-activate power to the driver’s seat. (Power
to the driver’s seat “times out” after
30 seconds. Power
to the passenger’s seat is always present.)
1-5
Page 22 of 346

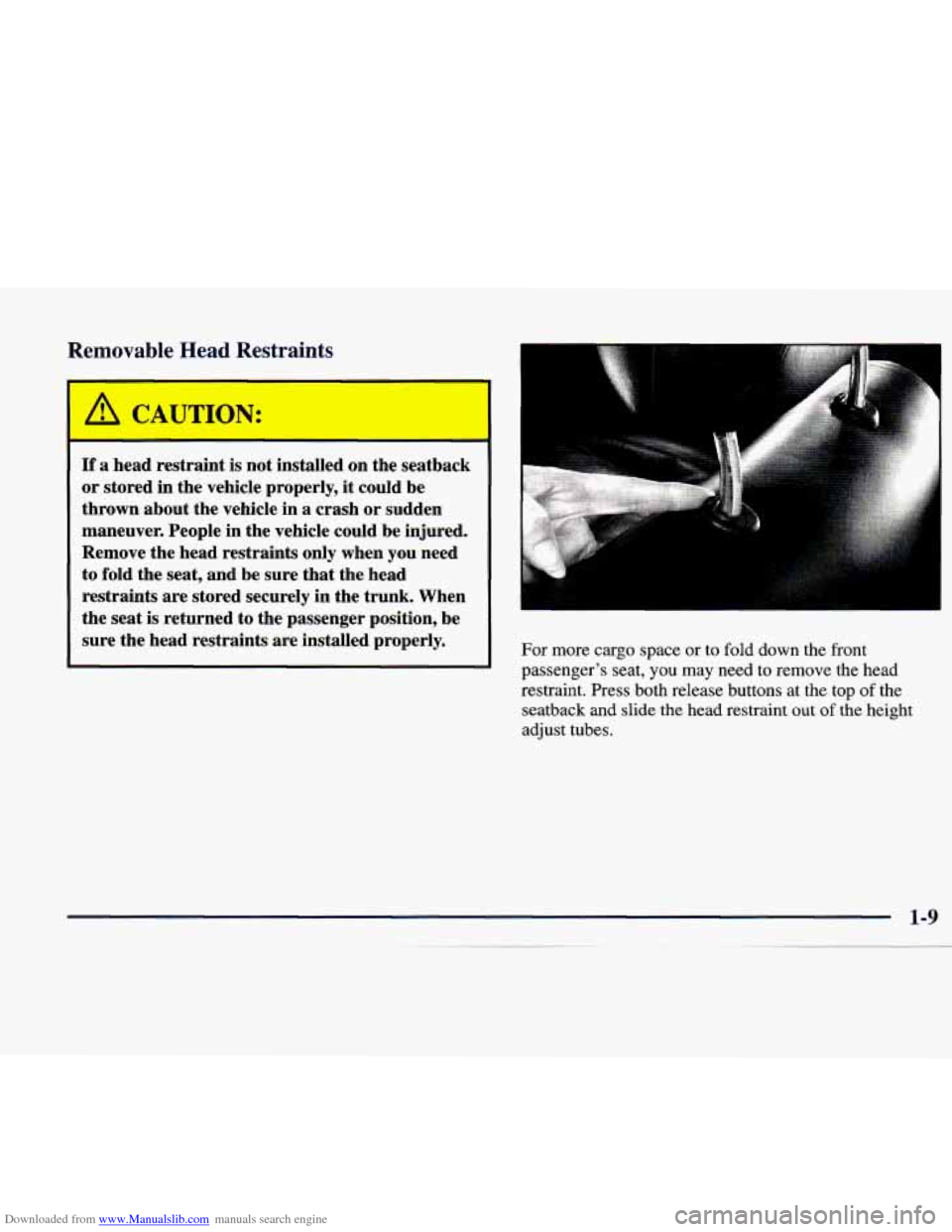

Downloaded from www.Manualslib.com manuals search engine Removable I= ad Restraints
A C * UTION:
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be
thrown about the vehicle in
a crash or sudden
maneuver. People in the vehicle could be injured.
Remove the head restraints only when you need
to fold the seat,
and be sure that the head
restraints are stored securely in the trunk. When
the seat is returned to the passenger position, be
sure the head restraints are installed properly.
For more cargo space or to fold down the front
passenger’s seat,
you may need to remove the head
restraint. Press both release buttons at the top
of the
seatback and slide the head restraint out
of the height
adjust tubes.
Page 80 of 346
Downloaded from www.Manualslib.com manuals search engine Operation
door, the parking lamps on your vehicle will blink twice (the parking lamps and headlamps will remain
on for
about
20 seconds). Pressing this button again within five
seconds will unlock the other doors. Pressing
this button
will
also disarm the optional theft-deterrent system and
turn on the interior lamps (for approximately 20 seconds).
8 When you press this symbol to lock the doors
(including the fuel door), the parking lamps will blink
once. This also
arms the optional theft-deterrent system.
6 Press this symbol to open the trunk.
93 Press this button to unlock the fuel door.
6 When you press ths symbol to unlock the driver’s
Note that pressing the transmitter buttons numerous
times (approximately
500 times) out of the vehicle’s
operating range may cause the transmitter not
to work.
Replacing the battery and pressing the transmitter
buttons
10 or more times out of range will also cause the
transmitter not to work. To reset the transmitter, you
must be within the vehicle’s operating range. Press and
hold the
trunk button and, within one second, press the
lock button. Continue to hold both buttons for
approximately three seconds. See your dealer for service
if your transmitter still doesn’t work properly.
Matching Transmitter@) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Once your dealer has
coded the new transmitter, the lost transmitter will not
unlock your vehicle. Each vehicle can have only two
transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location.
If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
NOTICE:
When replacing the battery, use care not to
touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.
2-9
Page 127 of 346

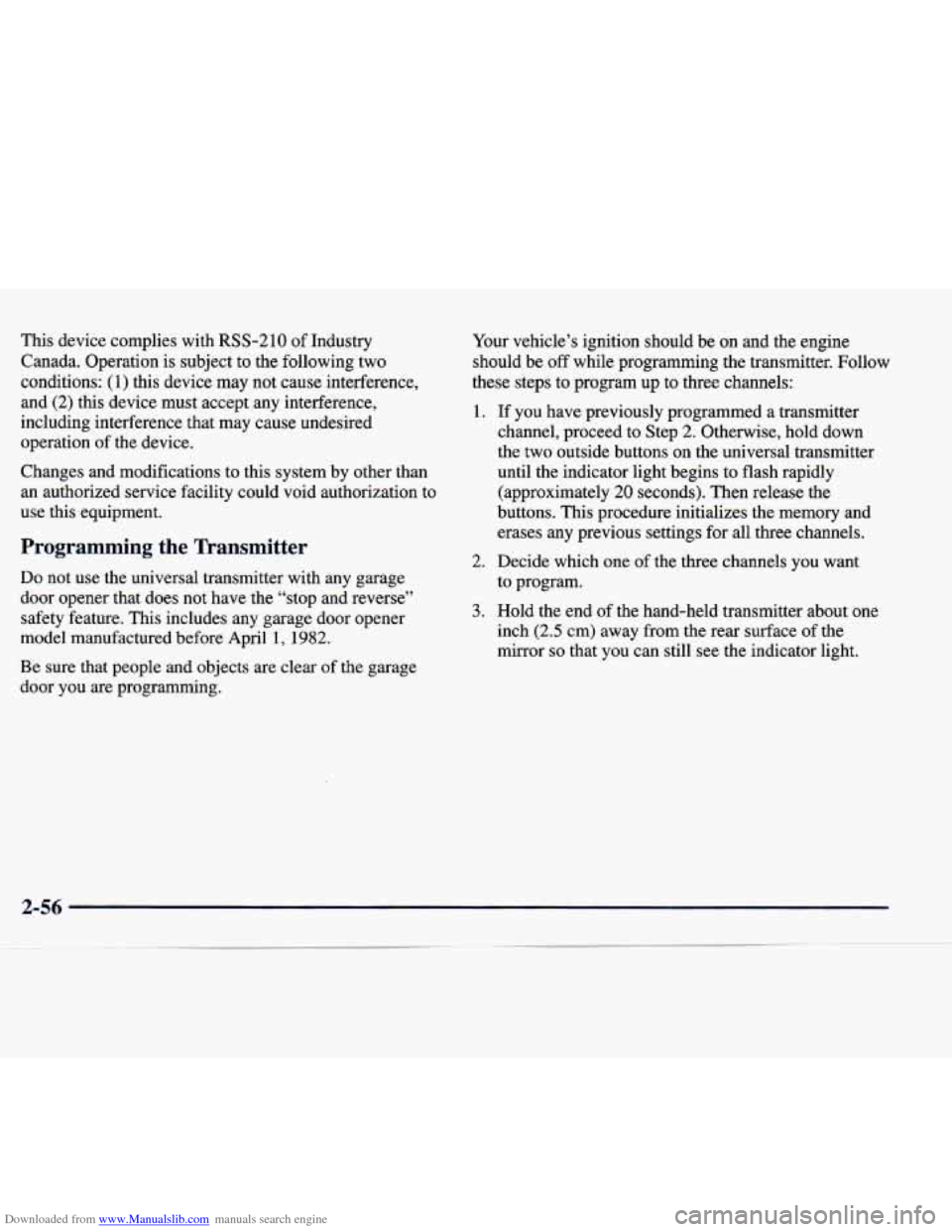

Downloaded from www.Manualslib.com manuals search engine This device complies with RSS-210 of Industry
Canada. Operation is subject to the following two
conditions:
(1) this device may not cause interference,
and
(2) this device must accept any interference,
including interference that may cause undesired
operation of the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the universal transmitter with any garage
door opener that does not have the “stop and reverse”
safety feature. This includes any garage door opener
model manufactured before April
1, 1982.
Be sure that people and objects are clear of the garage
door
you are programming. Your
vehicle’s ignition should be on and the engine
should be off while programming the transmitter. Follow
these steps to program up to three channels:
1. If you have previously programmed a transmitter
channel, proceed to Step
2. Otherwise, hold down
the two outside buttons on the universal transmitter
until the indicator light begins to flash rapidly
(approximately
20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.
2. Decide which one of the three channels you want
to program.
3. Hold the end of the hand-held transmitter about one
inch
(2.5 cm) away from the rear surface of the
mirror
so that you can still see the indicator light.
Page 128 of 346

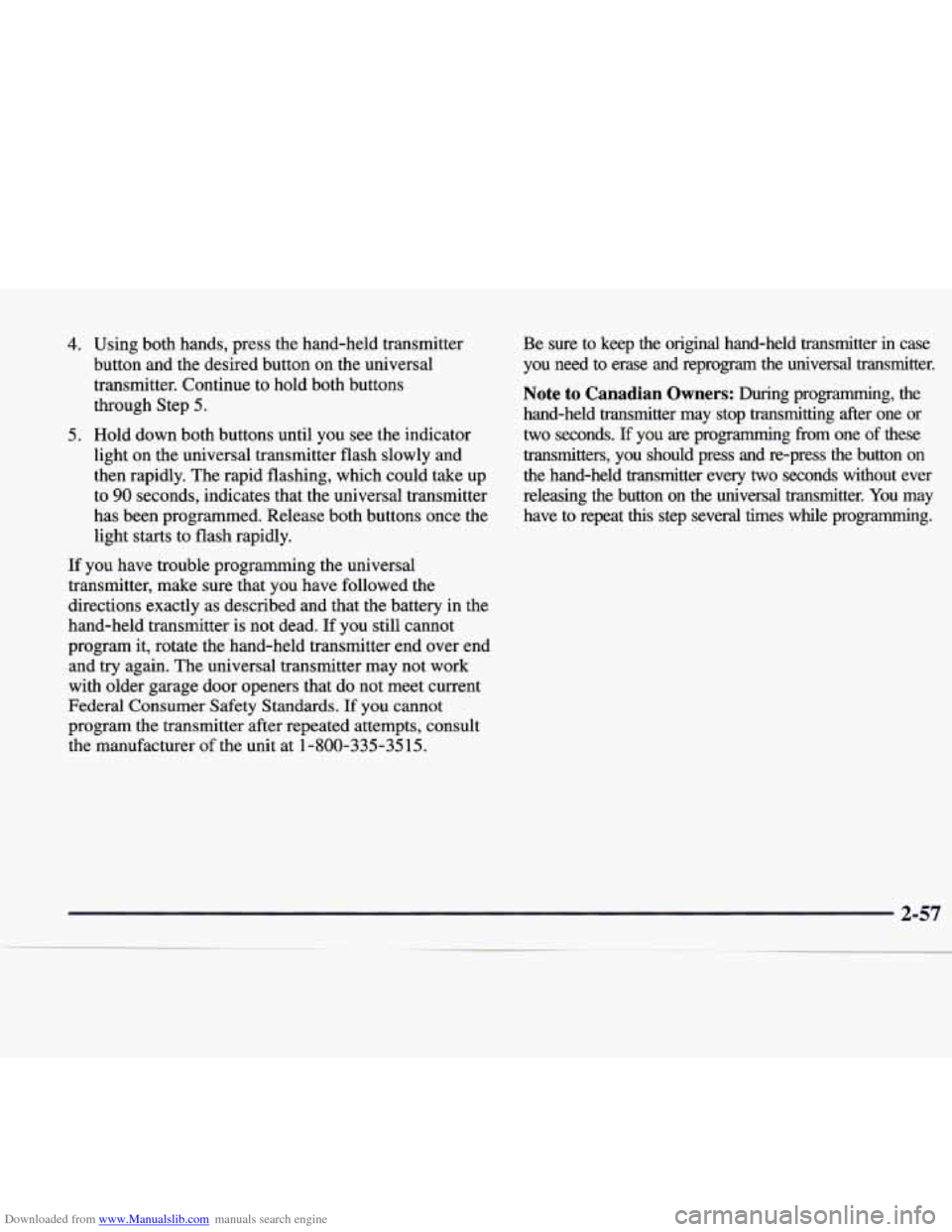

Downloaded from www.Manualslib.com manuals search engine 4. Using both hands, press the hand-held transmitter
button and the desired button on the universal
transmitter. Continue to hold both buttons
through Step
5.
light on the universal transmitter flash slowly and
then rapidly. The rapid flashing, which could take up
to
90 seconds, indicates that the universal transmitter
has been programmed. Release both buttons once the
light starts to flash rapidly.
5. Hold down both buttons until you see the indicator
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand-held transmitter is not dead. If you still cannot
program it, rotate the hand-held transmitter end over end
and
try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards.
If you cannot
program the transmitter after repeated attempts, consult
the manufacturer of the unit at 1-800-335-3515. Be sure
to keep the original hand-held transmitter
in case
you need to erase and reprogram the universal transmitter.
Note to Canadian Owners: During programming, the
hand-held transmitter may stop transmitting after one or
two seconds. If you are programming from one of these
transmitters,
you should press and re-press the button on
the hand-held transmitter every
two seconds without ever
releasing the button on the universal transmitter.
You may
have to repeat
this step several times while programming.
Page 130 of 346
Downloaded from www.Manualslib.com manuals search engine 3. Return to the universal transmitter in your vehicle and
press the universal transmitter button you have already
programmed for
two to three seconds. Press the button
again to make sure that the universal transmitter has
been trained to the garage door opener receiver. Check that the training
was successful. The receiver light
should no longer be
flashing.
The garage door opener should now recognize the
universal transmitter. You may either use the universal
transmitter or the hand-held transmitter to open the
garage door.
If after following these instructions you still have
problems training the garage door opener, consult
your dealer.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons until the indicator light begins to
flash. Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.
Accessories
Accessories for the universal transmitter are available
from the manufacturer
of the unit. If you would like
additional information, please call
1-800-355-35 15.
2-59
Page 157 of 346
Downloaded from www.Manualslib.com manuals search engine Finding a Station
BAND: Press this button to select AM, FM1 or FM2.
SEEK-TUNE: Press and release this button to seek to
the next higher or lower radio station. Pressing and
holding this button until a chime sounds puts the radio
in a tune mode. In
this mode, higher or lower radio
stations
are advanced to in small increments until the
SEEK-TUNE button is released. Tuning stops when you
release this button. If you press and hold the
SEEK-TUNE button again within five seconds of being
in the tune mode, tuning will continue. Waiting longer
than five seconds places the radio back in the
seek mode.
SCAN: Press this button and SCAN will appear on the
display. Use SCAN to listen to stations for a few
seconds. The radio will
go to a station, stop for a few
seconds, then go on to the next station. Press this button
again to stop scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations.
You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on. 2. Press
BAND to select AM, EM1 or FM2.
3. Tune in the desired station.
4. Press and hold
one of the six numbered buttons for
more than two seconds until you hear a beep.
Whenever you press that numbered button for less
than two seconds, the station you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your radio presets because the
radio remembers them.
PRESET SCAN: Press and hold SCAN for two to
three seconds until PRESET
SCAN appears on the
display to listen to each of your preset stations for a few
seconds (factory presets which have not been
reprogrammed with your stations will be ignored). The
radio will go to the fist preset station stored on your
pushbuttons, stop for a few seconds, then go on to the
next preset station. Press SCAN again to stop scanning.
If
a preset station has weak reception, the radio will not
stop at the preset station.
Page 159 of 346

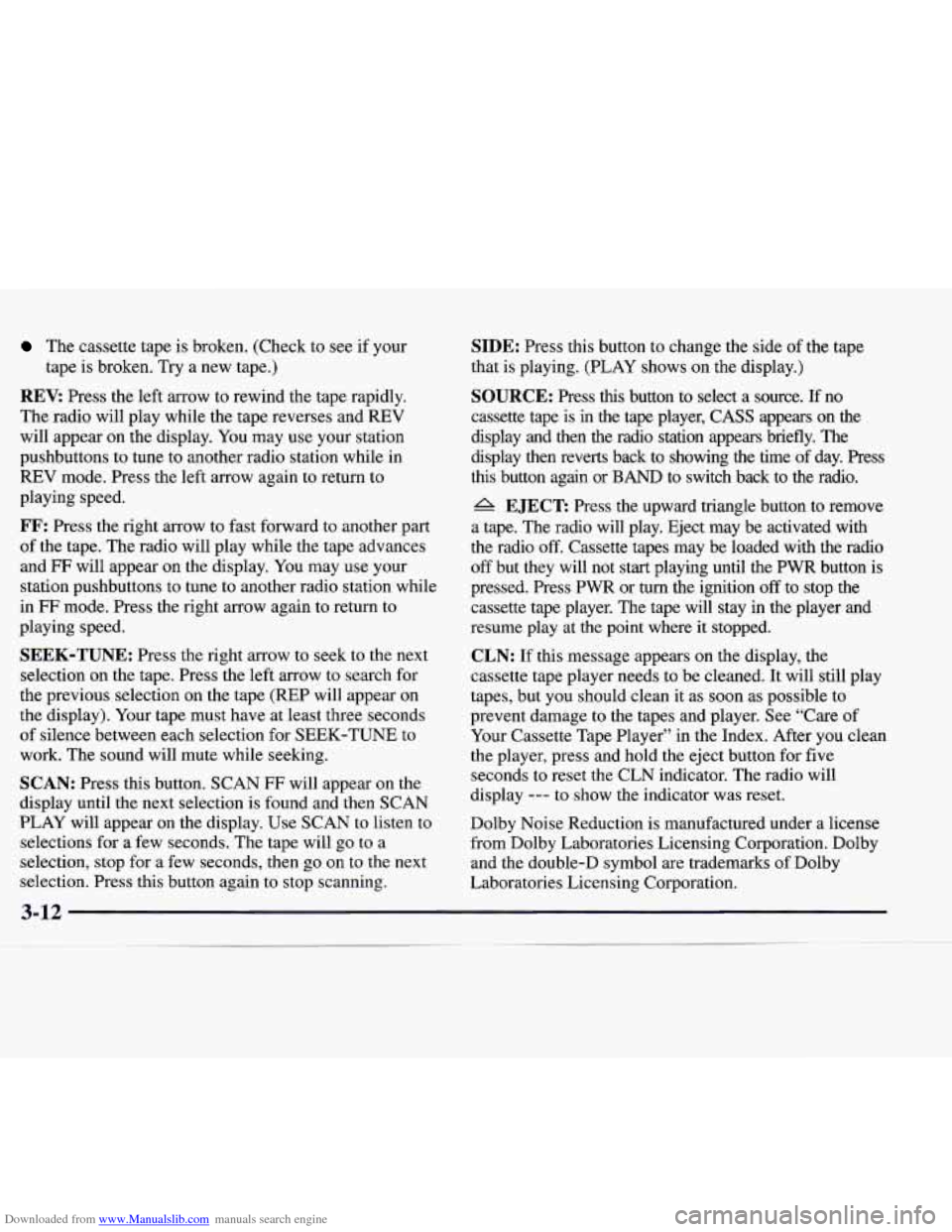

Downloaded from www.Manualslib.com manuals search engine The cassette tape is broken. (Check to see if your
REV: Press the left arrow to rewind the tape rapidly.
The radio will play while the tape reverses and
REV
will appear on the display. You may use your station
pushbuttons to tune to another radio station while in
REV mode. Press the left arrow again to return to
playing speed.
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances
and
FF will appear on the display. You may use your
station pushbuttons to tune to another radio station while
in
FF mode. Press the right arrow again to return to
playing speed.
SEEK-TUNE: Press the right arrow to seek to the next
selection on the tape. Press the left arrow to search for
the previous selection on the tape (REP will appear on
the display). Your tape must have at least three seconds
of silence between each selection for SEEK-TUNE
to
work. The sound will mute while seeking.
SCAN: Press this button. SCAN FF will appear on the
display until the next selection
is found and then SCAN
PLAY will appear
on the display. Use SCAN to listen to
selections for a few seconds. The tape will go to a
selection, stop for a few seconds, then go on to the next
selection. Press this button again to stop scanning. tape
is broken. Try a new tape.)
SIDE: Press this button to change the side of the tape
that is playing. (PLAY shows on the display.)
SOURCE: Press this button to select a source. If no
cassette tape is in the tape player,
CASS appears on the
display and then the radio station appears briefly. The
display then reverts back to showing the time of
day. Press
this button again or
BAND to switch back to the radio.
4 E JECE Press the upward triangle button to remove
a tape. The radio will play. Eject may be activated with
the radio off. Cassette tapes may be loaded with the radio
off but they will not start playing until the PWR button is
pressed. Press PWR or
turn the ignition off to stop the
cassette tape player. The tape will stay in the player
and
resume play at the point where it stopped.
CLN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage
to the tapes and player. See “Care of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold the eject button for five
seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
Dolby Noise Reduction
is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Page 161 of 346
Downloaded from www.Manualslib.com manuals search engine PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. The RDS
PTY
mode must be off to use this mode. You can set up
to
24 stations (six AM, six FM1, six FM2 and six
weather). Just:
1. Turn the radio on.
2. Press BAND to select AM, FM1, FM2 or weather.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons for
more than two seconds. Whenever you press that
numbered button for less than two seconds, the
station you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your radio presets because the
radio remembers them.
PRESET SCAN: Press and hold SCAN for more than
two seconds until you hear a beep to listen to each of
your preset stations for
five seconds. The radio will go
to the first preset station stored on your pushbuttons,
stop for five seconds, then
go on to the next preset
station. Press
SCAN again to stop scanning. If a preset
station has weak reception, the radio will not stop at the
preset station.
Using RDS Mode
Your audio system is equipped with Radio Data Systems
(RDS). RDS mode gives you many useful new features.
When RDS is on, the radio can:
seek only to stations with the types of programs you
want to listen to,
seek to stations with traffic announcements,
0 receive announcements concerning local and
0 receive and display messages from radio stations and
national emergencies,
search
for a stronger station when a station is too
RDS features are only available for use on
FM stations
which broadcast RDS information.
n RDS SELECT Press the orange rectangular
button to use the alternate RDS functions (RDS, TA,
MSG, PTY and
C PTY > ) located on the six numbered
pushbuttons. RDS
SELECT will appear on the display.
The alternate
RDS functions are only available when
you are using the
FM band of your radio.
weak
for listening.
