6-56 Power Distribution Fuse Block
This fuse block is attached to the engine compartment
relay center located on top of the battery. Simply lift the
lid to open. If you have any questions about the power
distribution fuse block, consult your dealer.
Note: If a power loss has occurred, such as
disconnecting the battery or removing the MaxiFuses in
the power distribution fuse block, there are steps that
must be followed to calibrate the Electronic Throttle
Control (ETC). If these steps are not done, the engine
will not run properly. For information regarding these
steps, see ªBatteryº earlier in this section.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don't have a
spare fuse, you can borrow one that has the same
amperage. Pick some feature of your vehicle that you
can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
There are two fuse blocks in your vehicle: the
instrument panel fuse block and the engine compartment
relay center.

yellowblue
6-58
Fuse Usage
4 RH and LH Rear Seat Cushion Heater
Relay, Rear Sunshade Motor
5 Transmission Control Module
6 Radio Speaker Amplifier
7 RH and LH Rear Side Door Window
Regulator Motor
8 Headlamp Switch, Turn Signal Switch,
Horn Relay, CD Changer,
Multifunction Relay
9 Windshield Wiper Motor and Relay,
Windshield Wiper and Windshield
Washer Switch
10 Body Control Module (BCM), Heater
Water Auxiliary Pump, Fan Control
Relays, Auxiliary Water Pump Relay
11 Heater and A/C Control, RH and LH
Outside Rearview Mirrors
12 Hazard Warning Switch, Instrument
Cluster, Data Link Connector (DLC),
Stoplamp Switch, Gage Cluster, Heater
and A/C Control.
13 Remote Control Outside Rearview Mirror
Switch, A/C Compressor Relay, Coolant
Fan Test Connector, A/C Load SwitchFuse Usage
14 Cellular Telephone, RH and LH
Windshield Washer Nozzles, Driver and
Passenger Heated Seat Switch, Heater and
A/C Control, Heated Outside Rearview
Mirror and Rear Window Defogger Relay
15 Rear Suspension Leveling Air
Compressor Relay, Instrument Cluster,
Gage Cluster, Cruise Control Switch,
Headlamp Switch, Multifunction Relay,
Passenger and Driver Heated Seat Relay,
BCM, Sunroof Actuator, Automatic Level
Control Sensor, RH and LH Heated Rear
Seat Switch, RH and LH Heated Rear
Seat Cushion Relay, Driver Seat Adjuster
Memory Module, LH Front Side Door
Window Switch, Inside Rearview Mirror
16 Cigarette Lighter (Front and Console)
17 Horn #1 and #2
18 Fuel Pump
19 Electronic Brake/Traction Control
Module
20 Passenger and Driver Heated Seat Relay
21 Daytime Running Lamp (DRL) Relay,
LH High
-Beam Headlamp Relay

yellowblue
6-59
Fuse Usage
22 Headlamp Switch, LH
Low
-Beam Headlamp
23 LH Parking Lamp and Turn Signal
Lamps, LH Rear Sidemarker Lamp,
Multifunction Relay, LH Stoplamp
and Taillamp
24 Lifting Magnet, BCM, Gage Cluster
25 Sunroof Actuator
26 Headlamp Switch, RH and LH Front
Sidemarker Lamp, Middle Taillamp, RH
and LH Rear License Plate Lamp, Radio,
Automatic Transmission Control
Indicator, Heater and A/C Control
27 Automatic Level Control Sensor, Rear
Suspension Leveling Air Compressor
and RelayFuse Usage
28 Door Lock Relay, OnStar

Connector
29 Multifunction Relay
30 RH Parking Lamp and Turn Signal Lamp,
RH Rear Sidemarker Lamp, RH
Stoplamp and Taillamp
31 RH Low
-Beam Headlamp Turn
Signal Switch
32 RH High
-Beam Headlamp Relay
33 Blower Controller, A/C
Compressor Relay
34 Heated Rear Window Defogger Relay
35 Passenger Seat Adjuster Switch, Driver
Seat Adjuster Memory Module

yellowblue
6-60
Relay Box
The relay box is located on the lower part of the
instrument panel, to the right of the steering column.Relay Usage
I Daytime Running Lamps
II Automatic Level Control
III Rear Window Defogger, Heated Mirrors
IV Hazard Warning Flashers
V High
-Beam Headlamps II (RH)
VI Horn
VII Parking Lamps and Turn Signal Lamps
VIII Low
-Beam Headlamps
IX Not Used
X Not Used
XI High
-Beam Headlamps I (LH)

yellowblue
6-61

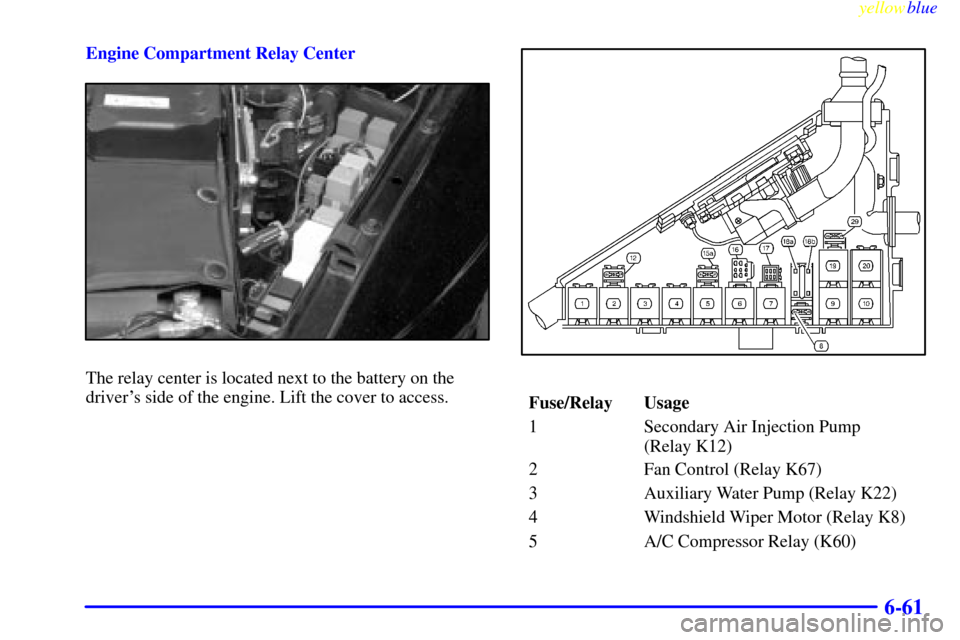

Engine Compartment Relay Center
The relay center is located next to the battery on the
driver's side of the engine. Lift the cover to access.
Fuse/Relay Usage
1 Secondary Air Injection Pump
(Relay K12)
2 Fan Control (Relay K67)
3 Auxiliary Water Pump (Relay K22)
4 Windshield Wiper Motor (Relay K8)
5 A/C Compressor Relay (K60)

yellowblue
6-62
Fuse/Relay Usage
6 Fan Control Relay (K87)
7 Fan Control Relay (K26)
8 Fuse 50
9 Fan Control Relay (K28)
10 Engine Controls Power Relay (K43)
12 Fuse 40
15 Fuse 52
16 Connector C110
17 Coolant Fan Test Connector
Fan Control
18 Fuse 42 (A), Fuse 49 (B)
19 Fan Control Relay (K52)
20 Fuel Pump Relay (K44)
29 Fuse 43Replacement Bulbs
Application Bulb Number
Composite Headlamps
Inner High Beam 90512338. . . . . . . . . . . . . . . . . . .
Outer Low Beam 90512338. . . . . . . . . . . . . . . . . . .
Front Turn Signal Lamp 90487485. . . . . . . . . . . . . . .
Rear Turn Signal Lamp and Taillamp 90002521. . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the
Maintenance Schedule booklet for more information.
Transmission 7.0 quarts (6.6 L). . . . . . . . . . . . . . . . .
Engine Crankcase
Oil Change With Filter 6.0 quarts (5.75 L). . . . . . .
Engine Cooling System 10.57 quarts (10.0 L). . . . . .
Fuel Tank 16.0 gallons (60.56 L). . . . . . . . . . . . . . . . .
R
-134a Refrigerant 2.09 lbs. (0.95 kg). . . . . . . . . . . .
NOTE: All capacities are approximate. When adding, be
sure to fill to the approximate level, as recommended in
this manual. Recheck fluid level after filling.
