Page 11 of 328
ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important for
you and your
passengers
whenever your
vehicle is driven:
CHILD
RESTRAINT
TOP STRAP
ANCHOR
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle. Also see ªWarning Lights and Gagesº in the Index.
Page 12 of 328

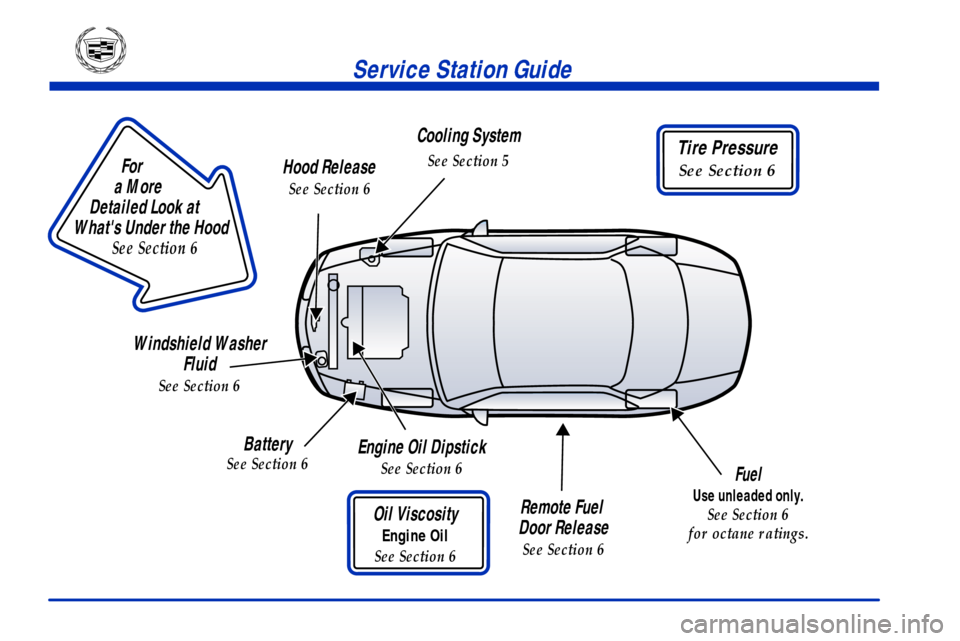

Service Station Guide
For
a More
Detailed Look at
What's Under the Hood
See Section 6
Tire Pressure
See Section 6
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6
Remote Fuel
Door Release
See Section 6
Cooling System
See Section 5Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Battery
See Section 6Fuel
Use unleaded only.
See Section 6
for octane ratings.
Page 13 of 328
1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
- 2 Seats and Seat Controls
1
- 13 Safety Belts: They're for Everyone
1
- 17 Here are Questions Many People Ask
About Safety Belts
-- and the Answers
1
- 18 How to Wear Safety Belts Properly
1
- 18 Driver Position
1
- 25 Safety Belt Use During Pregnancy
1
- 26 Right Front Passenger Position
1
- 26 Air Bag Systems1
- 34 Safety Belt Pretensioners
1
- 34 Rear Seat Passengers
1
- 38 Children
1
- 42 Restraint Systems for Children
1
- 52 Older Children
1
- 55 Checking Your Restraint Systems
1
- 55 Replacing Restraint System Parts After
a Crash
Page 14 of 328
1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, and also about reclining front seatbacks, lumbar
adjustments, heated seats and head restraints.
Manual Front Seat
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
Lift the bar located under the front seat to unlock it.
Slide the seat to where you want it and release the bar.
Try to move the seat with your body to be sure the seat
is locked into place.
To tilt the front portion of the seat cushion up or down,
lift the seat lever located on the outboard side of the seat
cushion. Release the lever to lock the seat into place.
Page 15 of 328
1-3
To raise or lower the seat cushion, press one of the
rocker switch buttons located on the side of the seat
cushion closest to the door. The top button raises
the seat cushion and the bottom button lowers the
seat cushion.
Vehicles with sport seats also include an adjustable seat
cushion which extends outward to provide additional
leg support.
To extend the bottom of the seat cushion, grasp the front
portion of the cushion and pull it towards the front of
the vehicle.When additional support is no longer needed, return the
cushion to its original position by pushing it towards the
rear of the vehicle.
Manual Lumbar Support
The manual lumbar control
is located on the outboard
side of each front seatback.
The control provides
additional support to your
lower back and works
independently of other
seat controls.
Use the seat controls first to get the proper seating
position. Then proceed with the lumbar adjustment.
The upper and lower seatback can be adjusted using the
small hand
-wheel control. Turn the control forward to
increase support and rearward to decrease support.
Keep in mind that as your seating position changes,
as it may during long trips, so should the position
of the lumbar support. Adjust the seat as needed.
Page 16 of 328
1-4 Power Seats (If Equipped)
The power seat controls are located on the outboard side
of each front seat cushion.
Move the front of the control up or down to adjust
the front portion of the cushion up or down.
Move the rear of the control up or down to adjust
the rear portion of the cushion up or down.
To adjust the seat height, lift up or push down on
the center of the control.
To move the seat forward or rearward, slide the
control in the desired direction.
If a failure in the power supply system occurs, the power
seats can be manually adjusted by inserting the crank
handle into the slot located below the seat cushion
(as shown in the above illustration).
The crank handle is provided in the tool kit located in
the trunk (with the jack).
Turn the crank handle clockwise until you've reached
your desired seating position (manually moving the seat
requires turning the crank handle many times).
Page 17 of 328
1-5 Memory Seat and Mirrors (If Equipped)
After adjusting the driver's seat to a comfortable position,
also adjust the interior and exterior mirrors. To program
the memory seat and mirrors, press memory button ªMº
and memory button ª1º at the same time and hold for
five seconds.These buttons are located on the outboard side of
the driver's seat. Seat and mirror positions may be
programmed for two additional drivers by repeating
the above steps and pressing memory button ª2º
or ª3º instead of memory button ª1.º
If your vehicle is in PARK (P), you can recall mirror and
seating positions by pressing and holding one of the
three memory buttons. This will adjust the seat and
mirrors to where you have previously programmed
them. Seat and mirror movement is immediately stopped
if the memory button is released or if a seat or mirror
control is moved.
If you try to adjust the driver's memory seat and it
doesn't move, try opening the driver's door. This
will reactivate power to the driver's seat. (Power to
the driver's seat ªtimes outº after 30 seconds.
Power to the passenger's seat is always present.)
Page 18 of 328
1-6 Heated Front Seats (Option)
The controls for the heated
front seats are located next
to the climate controls on
either side of the center
console. Turning the
driver or passenger side
thumbwheel control
counterclockwise from
the off position activates
the heated seat.
The control can be adjusted to one of five heat settings,
numbered ª1 through 5º, with 1 being the lowest setting
and 5 being the highest setting.
An indicator light in the control reminds you that the
heating system is in use. The heated seats can only be
used when the ignition is turned on.
To turn the heated seat off, turn the thumbwheel control
clockwise to the off position.
Reclining Front Seatbacks
The manual recliner
control is located
on the side of the
seatback closet to
the door, below the
lumbar control.
To move the seatback forward, turn the hand
-wheel control
forward. Turn the control rearward to recline the seatback.
If you have a power
recliner, the power control
is located on the outboard
side of each front seatback.
Press the control forward
or rearward to adjust
the seatback.
Page 19 of 328
1-7
But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Page 20 of 328
1-8 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
The head restraints tilt forward and rearward also.
The rear seat head restraints in your vehicle are
adjustable. They work the same as the front seat head
restraints, except they do not tilt forward or rearward.
Removable Head Restraints
CAUTION:
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be
thrown about the vehicle in a crash or sudden
maneuver. People in the vehicle could be injured.
Remove the head restraints only when you need
to fold the seat, and be sure that the head
restraints are stored securely in the trunk. When
the seat is returned to the passenger position, be
sure the head restraints are installed properly.
