technical data CADILLAC CT4 2020 Owner's Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-13183937) -
2020 - crc - 4/28/20
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Keys, Doors, and Windows . . . . . . . . . . 7
Seats and Restraints . . . . . . . . . . . . . . . 33
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Instruments and Controls . . . . . . . . . . 85
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Infotainment System . . . . . . . . . . . . . 133
Climate Controls . . . . . . . . . . . . . . . . . . 134
Driving and Operating . . . . . . . . . . . . 141
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 233
Service and Maintenance . . . . . . . . . 302
Technical Data . . . . . . . . . . . . . . . . . . . . 317
Customer Information . . . . . . . . . . . . 321
Reporting Safety Defects . . . . . . . . . 331
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Connected Services . . . . . . . . . . . . . . . 341
Index . . . . . . . . . . . . . . . . . . . . . . . . 344

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-13183937) -
2020 - crc - 4/28/20
TECHNICAL DATA 317
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . . . . . 317
Service Parts Identification . . . . . . 317
Vehicle Data
Capacities and Specifications . . . . 318
Engine Drive Belt Routing . . . . . . . 320
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on the
driver side of the vehicle. It can be
seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service Parts
labels and certificates of title and
registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See “EngineSpecifications”
underCapacities and
Specifications 0318 for the vehicle's
engine code.
Service Parts Identification
There may be a large barcode on the
certification label on the center pillar
that you can scan for the following
information:
. Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options
If there is not a large barcode on this
label, then you will find this same
information on a label inside of the
trunk.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-13183937) -
2020 - crc - 4/28/20

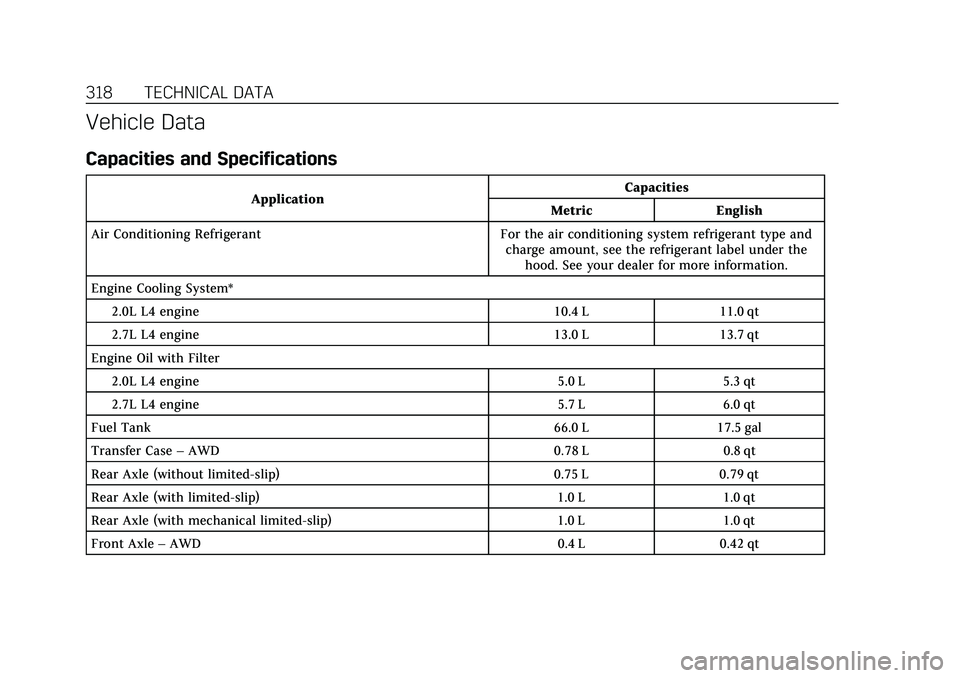

318 TECHNICAL DATA
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System* 2.0L L4 engine 10.4 L 11.0 qt
2.7L L4 engine 13.0 L 13.7 qt
Engine Oil with Filter 2.0L L4 engine 5.0 L 5.3 qt
2.7L L4 engine 5.7 L 6.0 qt
Fuel Tank 66.0 L 17.5 gal
Transfer Case –AWD 0.78 L 0.8 qt
Rear Axle (without limited-slip) 0.75 L 0.79 qt
Rear Axle (with limited-slip) 1.0 L 1.0 qt
Rear Axle (with mechanical limited-slip) 1.0 L 1.0 qt
Front Axle –AWD 0.4 L 0.42 qt

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-13183937) -
2020 - crc - 4/28/20
TECHNICAL DATA 319
ApplicationCapacities
Metric English
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.0L L4 Turbo Engine (LSY) KAutomatic0.65–0.75 mm (0.025–0.030 in)
2.7L L4 Turbo Engine (L3B) LAutomatic0.65–0.75 mm (0.025–0.030 in)
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the
spark plug.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-13183937) -
2020 - crc - 4/28/20
320 TECHNICAL DATA
Engine Drive Belt Routing
2.0L L4 Engine
2.7L L4 Engine
