CADILLAC CT4 2022 Owners Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
340 VEHICLE CARE
Check to see if coolant is visible in the
coolant surge tank. If the coolant
inside the coolant surge tank is
boiling, do not do anything else until
it cools down.
If coolant is visible but the coolant
level is not at or above the indicated
mark, add a 50/50 mixture of clean
drinkable water and DEX-COOL
coolant.
Be sure the cooling system is cool
before this is done.If no coolant is visible in the coolant
surge tank, add coolant as follows:
How to Add Coolant to the
Coolant Surge Tank
{Warning
Spilling coolant on hot engine parts
can burn you. Coolant contains
ethylene glycol and it will burn if
the engine parts are hot enough.
{Warning
Plain water, or other liquids such as
alcohol, can boil before the proper
coolant mixture will. With plain
water or the wrong mixture, the
engine could get too hot but there
would not be an overheat warning.
The engine could catch fire and you
or others could be burned.
{Warning
Steam and scalding liquids from a
hot cooling system are under
pressure. Turning the pressure cap,
even a little, can cause them to
come out at high speed and you
could be burned. Never turn the cap
when the cooling system, including
the pressure cap, is hot. Wait for
the cooling system and pressure
cap to cool.
Caution
Failure to follow the specific
coolant fill procedure could cause
the engine to overheat and could
cause system damage. If coolant is
not visible in the surge tank,
contact your dealer.
If no problem is found, check to see if
coolant is visible in the coolant surge
tank. If coolant is visible but the
coolant level is not at or above the
indicated mark, add a 50/50 mixture
of clean, drinkable water and
DEX-COOL coolant at the coolant

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
VEHICLE CARE 341
surge tank, but be sure the cooling
system, including the coolant surge
tank pressure cap, is cool before you
do it.
2.0L L4 Engine and 3.6L
V6 Engine
Automatic Coolant Service Fill
Instructions
The vehicle is equipped with a service
feature that assists with filling and
removing air from the cooling system
after service of components or when
coolant is added after being to low.To use this feature:1. With a cold system, add coolant to
the indicated line on the
surge tank.
2. Replace the pressure cap on the surge tank.
3. Activate the service feature: 3.1. Connect the vehicle to a battery charger.
3.2. Turn the ignition to Service Mode. See Ignition Positions
0 232.
3.3. Turn off the air conditioning.
3.4. Set the parking brake. 3.5. At the same time, press the
accelerator and the brake
pedal for two seconds, then
release.
3.6. At the end of the cycle, check the coolant level in the surge
tank and add coolant if it is
below the indicated line. Turn
the ignition off, allow the
Electronic Control Module
(ECM) to go to sleep, about
two minutes, and repeat
Steps 3.2 –3.6.
Listen for pump activation and
movement of the control valves while
watching the level of the coolant in
the surge tank. If the tank empties,
turn the ignition off, carefully remove
the pressure cap, refill to the indicated
line, replace the pressure cap, and
repeat steps 3.2 –3.6.
The fill and air removal process will
run for approximately 15 minutes.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
342 VEHICLE CARE
Caution
If the pressure cap is not tightly
installed, coolant loss and engine
damage may occur. Be sure the cap
is properly and tightly secured.
2.7L L4 Engine
Automatic Coolant Service Fill
Instructions
The vehicle is equipped with a service
feature that assists with filling and
removing air from the cooling system
after service of components or when
coolant is added after being to low.
To use this feature:1. With a cold system unscrew the cooling system air bleeder cap.
If coolant can be seen through the
bleeder move to Step 3.
2. Add coolant through the surge tank until it is visible through the air
bleeder.
3. Replace the cooling system air bleeder cap.
4. Add coolant to the indicated line on the surge tank. 5. Replace the pressure cap on the
surge tank.
6. Activate the service feature: 6.1. Connect the vehicle to a battery charger.
6.2. Turn the ignition to Service Mode. See Ignition Positions
0 232.
6.3. Turn off the air conditioning.
6.4. Set the parking brake.
6.5. At the same time, press the accelerator and the brake
pedal for two seconds, then
release.
6.6. At the end of the cycle, check the coolant level in the surge
tank and add coolant if it is
below the indicated line. Turn
the ignition off, carefully
remove the pressure cap, refill
to the indicated line, replace
the pressure cap, and repeat
steps 6.2 –6.6.
Listen for pump activation and
movement of the control valves while
watching the level of the coolant in
the surge tank. If the tank empties,
turn the ignition off, carefully remove the pressure cap, refill to the indicated
line, replace the pressure cap, and
repeat steps 6.2
–6.6.
The fill and air removal process will
run for approximately 15 minutes.
Caution
If the pressure cap is not tightly
installed, coolant loss and engine
damage may occur. Be sure the cap
is properly and tightly secured.
Engine Overheating
The vehicle has an indicator to warn
of the engine overheating.
If the decision is made not to lift the
hood when this warning appears, get
service help right away. See Roadside
Service 0432.
If the decision is made to lift the
hood, make sure the vehicle is parked
on a level surface.
Then check to see if the engine
cooling fan is running. If the engine is
overheating, the fan should be

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
VEHICLE CARE 343
running. If it is not, do not continue
to run the engine. Have the vehicle
serviced.
Caution
Do not run the engine if there is a
leak in the engine cooling system.
This can cause a loss of all coolant
and can damage the system and
vehicle. Have any leaks fixed
right away.
If Steam Is Coming from the
Engine Compartment
{Warning
Steam and scalding liquids from a
hot cooling system are under
pressure. Turning the pressure cap,
even a little, can cause them to
come out at high speed and you
could be burned. Never turn the cap
when the cooling system, including
the pressure cap, is hot. Wait for
the cooling system and pressure
cap to cool.
If No Steam Is Coming from the
Engine Compartment
If an engine overheat warning is
displayed but no steam can be seen or
heard, the problem may not be too
serious. Sometimes the engine can get
a little too hot when the vehicle:
.Climbs a long hill on a hot day.
.Stops after high-speed driving.
.Idles for long periods in traffic.
If the overheat warning is displayed
with no sign of steam: 1. Turn the air conditioning off.
2. Turn the heater on to the highest temperature and to the highest fan
speed. Open the windows as
necessary.
3. When it is safe to do so, pull off the road, shift to P (Park) or
N (Neutral) and let the engine idle.
If the overheat warning no longer
displays, the vehicle can be driven.
Continue to drive the vehicle slowly
for about 10 minutes. Keep a safe
vehicle distance from the vehicle in
front. If the warning does not come back on, continue to drive normally
and have the cooling system checked
for proper fill and function.
If the warning continues, pull over,
stop, and park the vehicle right away.
If there is no sign of steam, idle the
engine for three minutes while parked.
If the warning is still displayed, turn
off the engine until it cools down.Washer Fluid
What to Use
When windshield washer fluid is
needed, be sure to read the
manufacturer's instructions before
use. If operating the vehicle in an area
where the temperature may fall below
freezing, use a fluid that has sufficient
protection against freezing.
Adding Washer Fluid

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
344 VEHICLE CARE
Open the cap with the washer symbol
on it. Add washer fluid until the tank
is full. SeeEngine Compartment
Overview 0326 for reservoir location.
Caution
.Do not use washer fluid that
contains any type of water
repellent coating. This can cause
the wiper blades to chatter
or skip.
.Do not use engine coolant
(antifreeze) in the windshield
washer. It can damage the
windshield washer system and
paint.
.Do not mix water with
ready-to-use washer fluid. Water
can cause the solution to freeze
and damage the washer fluid
tank and other parts of the
washer system.
.When using concentrated washer
fluid, follow the manufacturer
instructions for adding water.
.Fill the washer fluid tank only
three-quarters full when it is very
cold. This allows for fluid
(Continued)
Caution (Continued)
expansion if freezing occurs,
which could damage the tank if
it is completely full.
Brakes
Disc brake linings, except J57 V-Series
Blackwing with carbon ceramic brakes,
have built-in wear indicators that
make a high-pitched warning sound
when the brake linings are worn and
new linings are needed. The sound
can come and go or can be heard all
the time when the vehicle is moving,
except when applying the brake pedal
firmly. The V-Series Blackwing has
electronic pad wear sensors. See Brake
Pad Life System (If Equipped) 0346
{Warning
The brake wear warning sound
means that soon the brakes will not
work well. That could lead to a
crash. When the brake wear
warning sound is heard, have the
vehicle serviced.
Caution
Continuing to drive with worn-out
brake linings could result in costly
brake repairs.
Properly torqued wheel nuts are
necessary to help prevent brake
pulsation. When tires are rotated,
inspect brake linings for wear and
evenly tighten wheel nuts in the
proper sequence to torque
specifications. See Capacities and
Specifications 0424.
Brake linings should be replaced as
complete axle sets.
Brake Squeal and Brake Dust
Some driving conditions or climates
can cause a brake squeal when the
brakes are first applied, clearing up
following several applies. This does
not mean something is wrong with
the brakes.
Vehicles equipped with high
performance brake systems provide
superior fade resistance, but will
produce increased brake squeal and

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
VEHICLE CARE 345

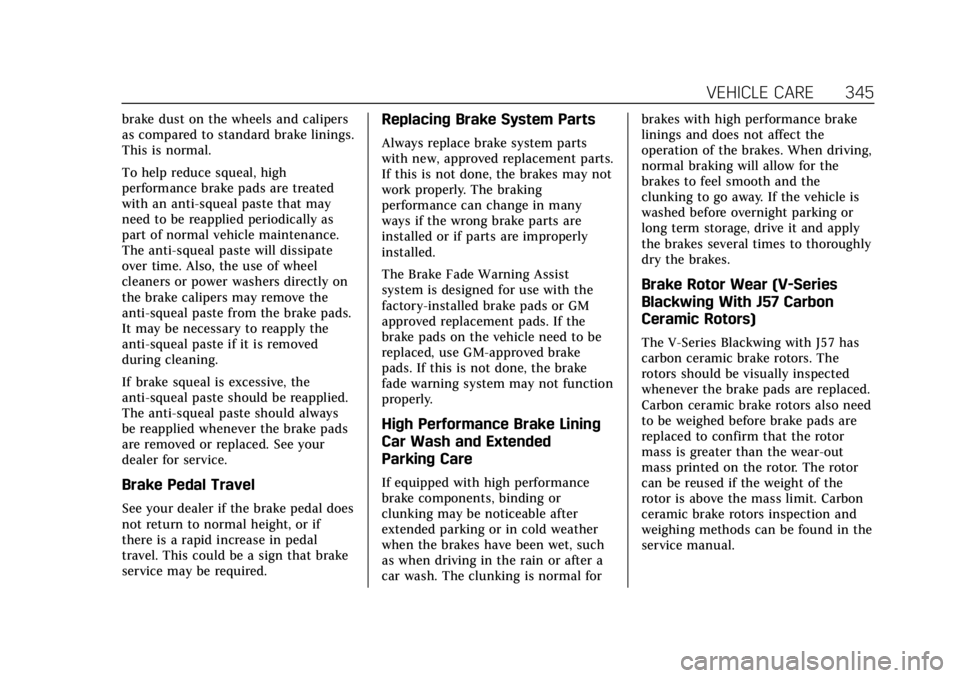

brake dust on the wheels and calipers
as compared to standard brake linings.
This is normal.
To help reduce squeal, high
performance brake pads are treated
with an anti-squeal paste that may
need to be reapplied periodically as
part of normal vehicle maintenance.
The anti-squeal paste will dissipate
over time. Also, the use of wheel
cleaners or power washers directly on
the brake calipers may remove the
anti-squeal paste from the brake pads.
It may be necessary to reapply the
anti-squeal paste if it is removed
during cleaning.
If brake squeal is excessive, the
anti-squeal paste should be reapplied.
The anti-squeal paste should always
be reapplied whenever the brake pads
are removed or replaced. See your
dealer for service.
Brake Pedal Travel
See your dealer if the brake pedal does
not return to normal height, or if
there is a rapid increase in pedal
travel. This could be a sign that brake
service may be required.
Replacing Brake System Parts
Always replace brake system parts
with new, approved replacement parts.
If this is not done, the brakes may not
work properly. The braking
performance can change in many
ways if the wrong brake parts are
installed or if parts are improperly
installed.
The Brake Fade Warning Assist
system is designed for use with the
factory-installed brake pads or GM
approved replacement pads. If the
brake pads on the vehicle need to be
replaced, use GM-approved brake
pads. If this is not done, the brake
fade warning system may not function
properly.
High Performance Brake Lining
Car Wash and Extended
Parking Care
If equipped with high performance
brake components, binding or
clunking may be noticeable after
extended parking or in cold weather
when the brakes have been wet, such
as when driving in the rain or after a
car wash. The clunking is normal forbrakes with high performance brake
linings and does not affect the
operation of the brakes. When driving,
normal braking will allow for the
brakes to feel smooth and the
clunking to go away. If the vehicle is
washed before overnight parking or
long term storage, drive it and apply
the brakes several times to thoroughly
dry the brakes.
Brake Rotor Wear (V-Series
Blackwing With J57 Carbon
Ceramic Rotors)
The V-Series Blackwing with J57 has
carbon ceramic brake rotors. The
rotors should be visually inspected
whenever the brake pads are replaced.
Carbon ceramic brake rotors also need
to be weighed before brake pads are
replaced to confirm that the rotor
mass is greater than the wear-out
mass printed on the rotor. The rotor
can be reused if the weight of the
rotor is above the mass limit. Carbon
ceramic brake rotors inspection and
weighing methods can be found in the
service manual.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
346 VEHICLE CARE
V-Series Blackwing Brake
Burnish Procedure for Corrosion
Cleanup
Corrosion spotting and grooving on
the brake rotor surface may appear
after the vehicle sits for an extended
period of time, especially in high
humidity. This corrosion may result in
brake pulsation and noise. To help
restore optimal braking performance
and reduce noise, complete the
following procedure:
Caution
Performing the brake burnish
procedure on a base brake system
can result in brake damage.
Perform this procedure only on dry
pavement, in a safe manner, and in
compliance with all local and state
ordinances/laws regarding motor
vehicle operation.
Caution
The new vehicle break-in period
should be completed before
performing the brake burnishing (Continued)
Caution (Continued)
procedure or damage may occur to
the powertrain/engine. See New
Vehicle Break-In 0231.
Caution
Brake fade can occur during this
burnish procedure and can cause
brake pedal travel and force to
increase. This could extend
stopping distance until the brakes
are fully burnished.
Completing the following procedure as
instructed will not damage the brakes.
The brake pads may smoke and
produce an odor. The braking force
and pedal travel may increase. After
the procedure, the brake pads may
appear white at the rotor contact. 1. Using the G-Force Gauge in the HUD display, apply the brakes 10
times starting at 100 km/h
(60 mph) to 50 km/h (30 mph)
while decelerating at 0.4g.
SeeHead-Up Display (HUD) 0115. This is a medium brake application.
Drive for at least 0.5 km (0.3 mi)
between applying the brakes.
2. If further cleanup of the brake discs is needed, repeat this
procedure with 0.7g applications.
As with all high performance brake
systems, some amount of brake squeal
is normal.
Brake Pad Life System (If
Equipped)
When to Change Brake Pads
If equipped, this system estimates the
remaining life of the front and rear
brake pads. Brake Pad Life is displayed
in the Driver Information Center
(DIC), along with a percentage for
each axle. The system must be reset
every time the brake pads are
changed.
When the system has determined that
the brake pads need to be replaced, a
message displays, which may include
mileage remaining.
Brake pads should always be replaced
as complete axle sets.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
VEHICLE CARE 347
How to Reset the Brake Pad Life
System
The system will automatically detect
when significantly worn brake pads
are replaced. When the ignition is
turned on after new pads and wear
sensors are installed, a message will
display. Follow the prompts to reset
the system.
The brake pad life system can also be
manually reset:1. Display Brake Pad Life on the DIC. See Driver Information Center (DIC)
(Base Level) 0109 or
Driver Information Center (DIC)
(Uplevel) 0112.
2. Select the Brake Pad Life menu.
3. Select front or rear pads as appropriate.
4. Select YES on the confirmation message. Repeat for the pads on
the other axle if they were also
replaced.
How to Disable the Brake Pad
Life System
The brake pad life system can be
turned off. This may be necessary if
aftermarket brake pads without wear
sensors are installed. When the
system is turned off, the front and
rear brake pad life percentages will
not display. However, the built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn can still determine when the
pads should be replaced. See Brakes
0 344.
To turn off the brake pad life system: 1. Display Brake Pad Life on the DIC. See Driver Information Center (DIC)
(Base Level) 0109 or
Driver Information Center (DIC)
(Uplevel) 0112.
2. Select the Brake Pad Life menu.
3. Select DISABLE.
To turn the brake pad life system back
on, follow the above steps but select
ENABLE in Step 2.
Brake Pad Sensor System
(V-Series Blackwing)
The V-Series Blackwing has electronic
brake pad wear sensors, when the
brake pads need to be replaced, a
message displays in the Driver
Information Center (DIC).
When the message displays, install
new brake pads and brake pad wear
sensors on the vehicle.
When the ignition is turned on after
new brake pads and brake pad wear
sensors are installed, the message
should no longer display.
The brake pad sensor system can only
be reset by replacing the brake pads
and brake pad wear sensors.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
348 VEHICLE CARE
Brake Fluid
The brake/clutch master cylinder
reservoir is filled with GM approved
DOT 4 brake fluid as indicated on the
reservoir cap. SeeEngine Compartment
Overview 0326 for the location of the
reservoir.
Checking Brake Fluid
Place the vehicle in P (Park) or
Neutral with the parking brake applied
if equipped with a manual
transmission. On a level surface, the
brake fluid level should be between
the minimum and maximum marks
on the brake fluid reservoir.
There are only two reasons why the
brake fluid level in the reservoir may
go down:
.Normal brake lining wear. When
new linings are installed, the fluid
level goes back up.
.A fluid leak in the brake/clutch
hydraulic system. Have the brake/
clutch hydraulic system fixed. With
a leak, the brakes will not work well.
Always clean the brake fluid reservoir
cap and the area around the cap
before removing it.
Do not top off the brake/clutch fluid.
Adding fluid does not correct a leak.
If fluid is added when the linings are
worn, there will be too much fluid
when new brake linings are installed.
Add or remove fluid, as necessary,
only when work is done on the brake/
clutch hydraulic system.
{Warning
If too much brake fluid is added, it
can spill on the engine and burn,
if the engine is hot enough. You or
others could be burned, and the
vehicle could be damaged. Add
brake fluid only when work is done
on the brake/clutch hydraulic
system. When the brake/clutch fluid falls to a
low level, the brake warning light
comes on. See
Brake System Warning
Light 0101.
Brake fluid absorbs water over time
which degrades the effectiveness of
the brake fluid. Replace brake fluid at
the specified intervals to prevent
increased stopping distance. See
Maintenance Schedule 0408.
What to Add
Use only GM approved DOT 4 brake
fluid from a clean, sealed container.
See Recommended Fluids and
Lubricants 0417.{Warning
The wrong or contaminated brake
fluid could result in damage to the
brake system. This could result in
the loss of braking leading to a
possible injury. Always use the
proper GM approved brake fluid.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
VEHICLE CARE 349
Caution
If brake fluid is spilled on the
vehicle's painted surfaces, the paint
finish can be damaged. Immediately
wash off any painted surface.
Battery - North America
The original equipment battery is
maintenance free. Do not remove the
cap and do not add fluid.
Refer to the replacement number
shown on the original battery label
when a new battery is needed.
The vehicle has an Absorbed Glass
Mat (AGM) 12-volt battery.
Installation of a standard 12-volt
battery will result in reduced 12-volt
battery life.
When using a 12-volt battery charger
on the 12-volt AGM battery, some
chargers have an AGM battery setting
on the charger. If available, use the
AGM setting on the charger, to limit
charge voltage to 14.8 volts. Follow
the charger manufacturer's
instructions.Stop/Start System
This vehicle has a Stop/Start system
to shut off the engine to help
conserve fuel. See
Stop/Start System
0 235.
{Warning
WARNING: Battery posts,
terminals and related accessories
can expose you to chemicals
including lead and lead compounds,
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling. For
more information go to
www.P65Warnings.ca.gov.
See the warning on the back cover.
Vehicle Storage
{Warning
Batteries have acid that can burn
you and gas that can explode. You
can be badly hurt if you are not (Continued)
Warning (Continued)
careful. SeeJump Starting - North
America 0390 for tips on working
around a battery without
getting hurt.
Infrequent Usage: Remove the black,
negative (−) cable from the battery to
keep the battery from running down.
Extended Storage: Remove the black,
negative (−) cable from the battery or
use a battery trickle charger.
All-Wheel Drive
If the vehicle is equipped with
All-Wheel-Drive (AWD), this is an
additional system that needs
lubrication.
Transfer Case
Under normal driving conditions,
transfer case fluid does not require
maintenance unless there is a fluid
leak or unusual noise. If required,
have the transfer case serviced by
your dealer.
