technical data CADILLAC CT4 2022 Owners Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Keys, Doors, and Windows . . . . . . . . . . 6
Seats and Restraints . . . . . . . . . . . . . . . 29
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Instruments and Controls . . . . . . . . . . 82
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Infotainment System . . . . . . . . . . . . . 136
Climate Controls . . . . . . . . . . . . . . . . . . 202
Driving and Operating . . . . . . . . . . . . 208
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 322
Service and Maintenance . . . . . . . . . 407
Technical Data . . . . . . . . . . . . . . . . . . . . 422
Customer Information . . . . . . . . . . . . 428
Reporting Safety Defects . . . . . . . . . 438
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Connected Services . . . . . . . . . . . . . . . 448
Index . . . . . . . . . . . . . . . . . . . . . . . . 451
Introduction
The names, logos, emblems, slogans,
vehicle model names, and vehicle
body designs appearing in this manual
including, but not limited to, GM, the
GM logo, the CADILLAC Emblem, and
CADILLAC CT4 are trademarks and/or
service marks of General Motors LLC,
its subsidiaries, affiliates, or licensors.
For vehicles first sold in Canada,
substitute the name“General Motors
of Canada Company ”for Cadillac
Motor Car Division wherever it
appears in this manual.
This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country specifications, features/applications that may not be
available in your region, or changes
subsequent to the printing of this
owner’s manual, including changes in
standard or optional content.
Refer to the purchase documentation
relating to your specific vehicle to
confirm the features.
Keep this manual in the vehicle for
quick reference.
Canadian Vehicle Owners
A French language manual can be
obtained from your dealer, at
www.helminc.com, or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de ce
guide en français auprès du
concessionnaire ou à l'adresse
suivante:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Litho in U.S.A.
Part No. 84728178 B Second Printing©2021 General Motors LLC. All Rights Reserved.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
422 TECHNICAL DATA
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . . . . . 422
Vehicle Identification Number (VIN) (V-Series
Blackwing Only) . . . . . . . . . . . . . . . . 423
Service Parts Identification . . . . . . 423
Vehicle Data
Capacities and Specifications . . . . 424
Engine Drive Belt Routing . . . . . . . 427
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on the
driver side of the vehicle. It can be
seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification label and
certificates of title and registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See “Engine
Specifications” underCapacities and
Specifications 0424 for the vehicle's
engine code.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
TECHNICAL DATA 423
Vehicle Identification
Number (VIN) (V-Series
Blackwing Only)
A serialized plate can be found at the
lower portion of the steering wheel.
The plate will correspond to the last
six digits in the VIN.
1. Vehicle Build:2−Advanced Regular Production
3 −Advanced Special Production
4 −Regular Production
5 −Special Production
2. Transmission 6−6-speed Manual
1 −10-speed Automatic
3. Sequence Number
Service Parts Identification
There may be a large barcode on the
certification label on the center pillar
that you can scan for the following
information:
.Vehicle Identification Number (VIN)
.Model designation
.Paint information
.Production options
If there is not a large barcode on this
label, then you will find this same
information on a label inside of the
trunk.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
424 TECHNICAL DATA
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System*
I2.0L L4 Engine 10.4 L 11.0 qt
I2.7L L4 Engine 13.0 L 13.7 qt
I3.6L V6 Engine 13.6 L 14.4 qt
I3.6L V6 Engine Intercoolers (V-Series Blackwing) 2.7 L 2.9 qt

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21

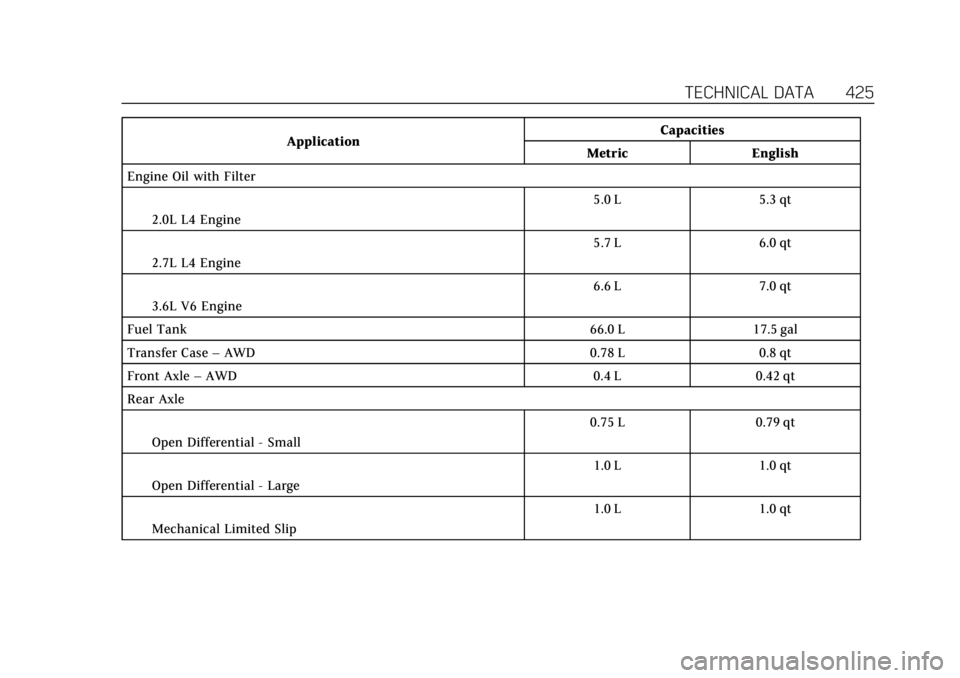

TECHNICAL DATA 425
ApplicationCapacities
Metric English
Engine Oil with Filter
I2.0L L4 Engine 5.0 L
5.3 qt
I2.7L L4 Engine 5.7 L
6.0 qt
I3.6L V6 Engine 6.6 L
7.0 qt
Fuel Tank 66.0 L17.5 gal
Transfer Case –AWD 0.78 L0.8 qt
Front Axle –AWD 0.4 L0.42 qt
Rear Axle
IOpen Differential - Small 0.75 L
0.79 qt
IOpen Differential - Large 1.0 L
1.0 qt
IMechanical Limited Slip 1.0 L
1.0 qt

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
426 TECHNICAL DATA
ApplicationCapacities
Metric English
IElectronic Limited Slip (V-Series Blackwing) 1.3 L
1.3 qt
Wheel Nut Torque (M12) 140Y 100 lb ft
Wheel Nut Torque (M14) (V-Series Blackwing) 190Y 140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.0L L4 Turbo Engine (LSY) KAutomatic0.65–0.75 mm (0.026–0.030 in)
2.7L L4 Turbo Engine (L3B) LAutomatic0.65–0.75 mm (0.026–0.030 in)
3.6L V6 Twin Turbo Engine (LF4) YAutomatic
Manual 0.75–0.90 mm (0.030–0.035 in)
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the
spark plug.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-15283641) -
2022 - CRC - 10/12/21
TECHNICAL DATA 427
Engine Drive Belt Routing
2.0L L4 Engine (LSY)
2.7L L4 Engine (L3B)
3.6L V6 Engine (LF4)
