Seats and Restraints 59
vehicle or while you are
driving. See Airbag Readiness
Light0116.
Airbag System
The vehicle has the following
airbags:
.A frontal airbag for the
driver
.A frontal airbag for the front
outboard passenger
.A knee airbag for the driver.
.A knee airbag for the front
outboard passenger.
.A seat-mounted side impact
airbag for the driver
.A seat-mounted side impact
airbag for the front outboard
passenger
.A roof-rail airbag for the
driver and the passenger
seated directly behind the
driver
.A roof-rail airbag for the
front outboard passenger
and the passenger seated
directly behind the front
outboard passenger All vehicle airbags have the
word AIRBAG on the trim or
on a label near the deployment
opening.
For frontal airbags, the word
AIRBAG is on the center of the
steering wheel for the driver
and on the instrument panel
for the front outboard
passenger.
For knee airbags, the word
AIRBAG is on the lower part of
the instrument panel.
For seat-mounted side impact
airbags, the word AIRBAG is
on the side of the seatback or
side of the seat closest to
the door.
For roof-rail airbags, the word
AIRBAG is on the ceiling
or trim.
Airbags are designed to
supplement the protection
provided by seat belts. Even
though today's airbags are
also designed to help reduce
the risk of injury from the
force of an inflating bag, all
airbags must inflate very
quickly to do their job.
Here are the most important
things to know about the
airbag system:
{Warning
You can be severely injured
or killed in a crash if you are
not wearing your seat belt,
even with airbags. Airbags
are designed to work with
seat belts, not replace them.
Also, airbags are not
designed to inflate in every
crash. In some crashes seat
belts are the only restraint.
See When Should an Airbag
Inflate?
062.
Wearing your seat belt
during a crash helps reduce
your chance of hitting things
inside the vehicle or being
ejected from it. Airbags are
“supplemental restraints” to
the seat belts. Everyone in
(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
60 Seats and Restraints
Warning (Continued)
the vehicle should wear a
seat belt properly, whether
or not there is an airbag for
that person.
{Warning
Because airbags inflate with
great force and faster than
the blink of an eye, anyone
who is up against, or very
close to, any airbag when it
inflates can be seriously
injured or killed. Do not sit
unnecessarily close to any
airbag, as you would be if
sitting on the edge of the
seat or leaning forward.
Seat belts help keep you in
position before and during a
crash. Always wear a seat
belt, even with airbags. The
driver should sit as far back
as possible while still
maintaining control of the(Continued)
Warning (Continued)
vehicle. The seat belts and
the front outboard
passenger airbags are most
effective when you are
sitting well back and upright
in the seat with both feet on
the floor.
Occupants should not lean
on or sleep against the door
or side windows in seating
positions with seat-mounted
side impact airbags and/or
roof-rail airbags.
{Warning
Children who are up against,
or very close to, any airbag
when it inflates can be
seriously injured or killed.
Always secure children
properly in the vehicle.(Continued)
Warning (Continued)
To read how, see Older
Children072 or
Infants and Young Children
0 74.
There is an airbag readiness
light on the instrument cluster,
which shows the airbag
symbol.
The system checks the airbag
electrical system for
malfunctions. The light tells
you if there is an electrical
problem. See Airbag
Readiness Light 0116.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
66 Seats and Restraints
Passenger Sensing
System
The vehicle has a passenger
sensing system for the front
outboard passenger position.
The passenger airbag status
indicator will light on the
overhead console when the
vehicle is started.
The words ON and OFF, and
the symbols for on and off, will
be visible during the system
check. When the system check
is complete, either the word
ON or OFF, and the symbol for
on or off, will be visible. See
Passenger Airbag Status
Indicator0117.
The passenger sensing
system turns off the front
outboard passenger frontal
airbag and knee airbag under certain conditions. No other
airbag is affected by the
passenger sensing system.
The passenger sensing
system works with sensors
that are part of the front
outboard passenger seat and
seat belt. The sensors are
designed to detect the
presence of a properly seated
occupant and determine if the
front outboard passenger
frontal airbag and knee airbag
should be allowed to inflate
or not.
According to accident
statistics, children are safer
when properly secured in a
rear seat in the correct child
restraint for their weight
and size.
Whenever possible, children
aged 12 and under should be
secured in a rear seating
position.
Never put a rear-facing child
seat in the front. This is
because the risk to the
rear-facing child is so great,
if the airbag inflates.
{Warning
A child in a rear-facing child
restraint can be seriously
injured or killed if the
passenger frontal airbag
inflates. This is because the
back of the rear-facing child
restraint would be very
close to the inflating airbag.
A child in a forward-facing
child restraint can be
seriously injured or killed if
the passenger frontal airbag
inflates and the passenger
seat is in a forward position.
Even if the passenger
sensing system has turned
off the front outboard
passenger airbag(s), no
system is fail-safe. No one
can guarantee that an
(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 67
Warning (Continued)
airbag will not deploy under
some unusual circumstance,
even though the airbag(s)
are off.
Never put a rear-facing child
restraint in the front seat,
even if the airbag is off.
If securing a forward-facing
child restraint in the front
outboard passenger seat,
always move the seat as far
back as it will go. It is better
to secure child restraints in
the rear seat. Consider
using another vehicle to
transport the child when a
rear seat is not available.
The passenger sensing
system is designed to turn off
the front outboard passenger
frontal airbag and knee
airbag if:
.The front outboard
passenger seat is
unoccupied.
.The system determines an
infant is present in a child
restraint.
.A front outboard passenger
takes his/her weight off of
the seat for a period of time.
When the passenger sensing
system has turned off the
front outboard passenger
frontal airbag and knee airbag,
the OFF indicator will light and
stay lit as a reminder that the
airbags are off. See Passenger
Airbag Status Indicator 0117.
The passenger sensing
system is designed to turn on
the front outboard passenger
frontal airbag and knee airbag,
anytime the system senses
that a person of adult size is
sitting properly in the front
outboard passenger seat.
When the passenger sensing
system has allowed the
airbags to be enabled, the ON
indicator will light and stay lit
as a reminder that the airbags
are active. For some children, including
children in child restraints, and
for very small adults, the
passenger sensing system
may or may not turn off the
front outboard passenger
frontal airbag and knee airbag,
depending upon the person's
seating posture and body
build. Everyone in the vehicle
who has outgrown child
restraints should wear a seat
belt properly
—whether or not
there is an airbag for that
person.
{Warning
If the airbag readiness light
ever comes on and stays on,
it means that something may
be wrong with the airbag
system. To help avoid injury
to yourself or others, have
the vehicle serviced right
away. See Airbag Readiness
Light 0116 for more
information, including
important safety
information.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
68 Seats and Restraints

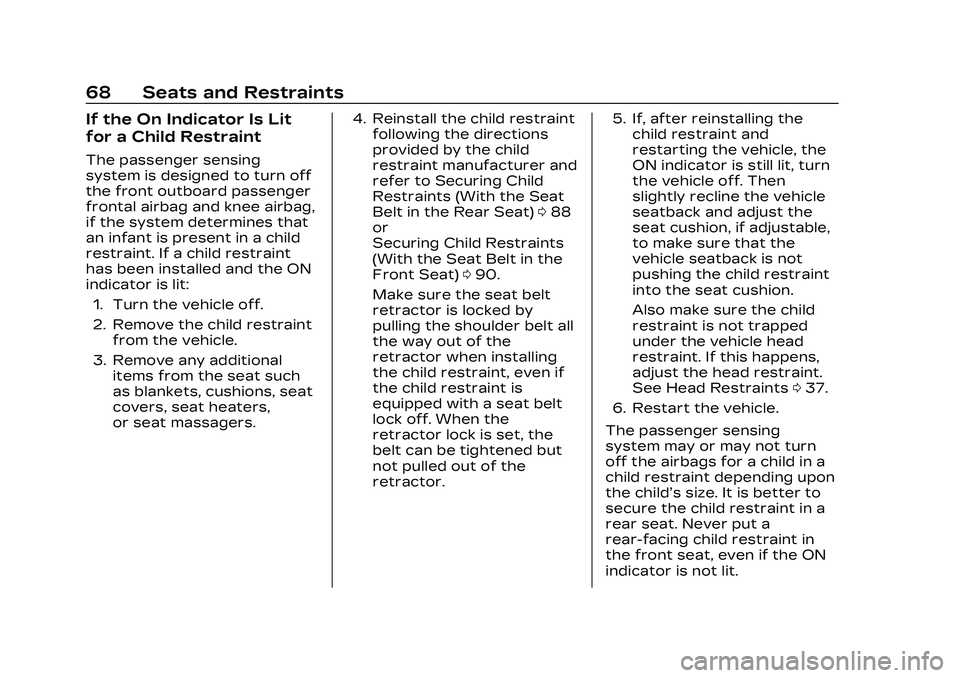

If the On Indicator Is Lit
for a Child Restraint
The passenger sensing
system is designed to turn off
the front outboard passenger
frontal airbag and knee airbag,
if the system determines that
an infant is present in a child
restraint. If a child restraint
has been installed and the ON
indicator is lit:1. Turn the vehicle off.
2. Remove the child restraint from the vehicle.
3. Remove any additional items from the seat such
as blankets, cushions, seat
covers, seat heaters,
or seat massagers. 4. Reinstall the child restraint
following the directions
provided by the child
restraint manufacturer and
refer to Securing Child
Restraints (With the Seat
Belt in the Rear Seat) 088
or
Securing Child Restraints
(With the Seat Belt in the
Front Seat) 090.
Make sure the seat belt
retractor is locked by
pulling the shoulder belt all
the way out of the
retractor when installing
the child restraint, even if
the child restraint is
equipped with a seat belt
lock off. When the
retractor lock is set, the
belt can be tightened but
not pulled out of the
retractor. 5. If, after reinstalling the
child restraint and
restarting the vehicle, the
ON indicator is still lit, turn
the vehicle off. Then
slightly recline the vehicle
seatback and adjust the
seat cushion, if adjustable,
to make sure that the
vehicle seatback is not
pushing the child restraint
into the seat cushion.
Also make sure the child
restraint is not trapped
under the vehicle head
restraint. If this happens,
adjust the head restraint.
See Head Restraints 037.
6. Restart the vehicle.
The passenger sensing
system may or may not turn
off the airbags for a child in a
child restraint depending upon
the child’s size. It is better to
secure the child restraint in a
rear seat. Never put a
rear-facing child restraint in
the front seat, even if the ON
indicator is not lit.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 71
The operation of the airbag
system can also be affected
by changing, including
improperly repairing or
replacing, any parts of the
following:
.Airbag system, including
airbag modules, front or side
impact sensors, sensing and
diagnostic module, or airbag
wiring
.Front seats, including
stitching, seams or zippers
.Seat belts
.Steering wheel, instrument
panel, overhead console,
ceiling trim, or pillar
garnish trim
.Inner door seals, including
speakers
Your dealer and the service
manual have information about
the location of the airbag
modules and sensors, sensing
and diagnostic module, and
airbag wiring along with the
proper replacement
procedures. In addition, the vehicle has a
passenger sensing system for
the front outboard passenger
position, which includes
sensors that are part of the
passenger seat. The
passenger sensing system
may not operate properly if
the original seat trim is
replaced with non-GM covers,
upholstery, or trim; or with GM
covers, upholstery, or trim
designed for a different
vehicle. Any object, such as an
aftermarket seat heater or a
comfort-enhancing pad or
device, installed under or on
top of the seat fabric, could
also interfere with the
operation of the passenger
sensing system. This could
either prevent proper
deployment of the passenger
airbag(s) or prevent the
passenger sensing system
from properly turning off the
passenger airbag(s). See
Passenger Sensing System
0
66. If the vehicle has rollover
roof-rail airbags, see Different
Size Tires and Wheels
0433
for additional important
information.
If the vehicle must be modified
because you have a disability
and have questions about
whether the modifications will
affect the vehicle's airbag
system, or if you have
questions about whether the
airbag system will be affected
if the vehicle is modified for
any other reason, call
Customer Assistance. See
Customer Assistance Offices
0 485.Airbag System Check
The airbag system does not
need regularly scheduled
maintenance or replacement.
Make sure the airbag
readiness light is working. See
Airbag Readiness Light 0116.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
72 Seats and Restraints
Caution
If an airbag covering is
damaged, opened, or broken,
the airbag may not work
properly. Do not open or
break the airbag coverings.
If there are any opened or
broken airbag coverings,
have the airbag covering
and/or airbag module
replaced. For the location of
the airbags, see Where Are
the Airbags?061. See your
dealer for service.
Replacing Airbag
System Parts after a
Crash
{Warning
A crash can damage the
airbag systems in the
vehicle. A damaged airbag
system may not properly
protect you and your
passenger(s) in a crash,
(Continued)
Warning (Continued)
resulting in serious injury or
even death. To help make
sure the airbag systems are
working properly after a
crash, have them inspected
and any necessary
replacements made as soon
as possible.
If an airbag inflates, you will
need to replace airbag system
parts. See your dealer for
service.
If the airbag readiness light
stays on after the vehicle is
started or comes on when you
are driving, the airbag system
may not work properly. Have
the vehicle serviced right
away. See Airbag Readiness
Light 0116.
Child Restraints
Older Children
Older children who have
outgrown booster seats
should wear the vehicle’s seat
belts. Refer to How to Wear
Seat Belts Properly 051.
The manufacturer instructions
that come with the booster
seat state the weight and
height limitations for that

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 91
Warning (Continued)
some unusual circumstance,
even though the airbag(s)
are off.
Secure rear-facing child
restraints in a rear seat,
even if the airbag(s) are off.
If you secure a
forward-facing child
restraint in the front
outboard passenger seat,
always move the seat as far
back as it will go. It is better
to secure the child restraint
in a rear seat.
See Passenger Sensing
System066 for additional
information.
If the child restraint uses a top
tether, see Lower Anchors
and Tethers for Children
(LATCH System) 080 for top
tether anchor locations.
Do not secure a child seat in a
position without a top tether
anchor if a national or local law requires that the top tether be
anchored, or if the instructions
that come with the child
restraint say that the top
tether must be anchored.
In Canada, the law requires
that forward-facing child
restraints have a top tether,
and that the tether be
attached.
When using the lap-shoulder
belt to secure the child
restraint in this position, follow
the instructions that came
with the child restraint and the
following instructions:
1. Move the seat as far back as it will go before
securing the
forward-facing child
restraint. Move the seat
upward or the seatback to
an upright position,
if needed, to get a tight
installation of the child
restraint. There must be
finger clearance between
the push button and the
child restraint. When the passenger
sensing system has turned
off the front outboard
passenger frontal airbag
and knee airbag, the OFF
indicator on the passenger
airbag status indicator
should light and stay lit
when you start the vehicle.
See Passenger Airbag
Status Indicator
0117.
2. Put the child restraint on the seat.
3. Pick up the latch plate and run the lap and shoulder
portions of the vehicle
seat belt through or
around the restraint.
Ensure the seat belt
webbing is routed as direct
as possible and is not
caught on seat handles or
plastic trim. The child
restraint instructions will
show you how.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Instruments and Controls 97
Instruments and
Controls
Controls
Steering WheelAdjustment . . . . . . . . . . . . . . . . . . 98
Heated Steering Wheel . . . 98
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Windshield Wiper/ Washer . . . . . . . . . . . . . . . . . . . . . . . 99
Compass . . . . . . . . . . . . . . . . . . . . . . 101
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Power Outlets . . . . . . . . . . . . . . . 101
Wireless Charging . . . . . . . . . 102
Warning Lights, Gauges,
and Indicators
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . 105
Instrument Cluster (Base Level) . . . . . . . . . . . . . . . . . . . . . . . . 106
Instrument Cluster (Uplevel) . . . . . . . . . . . . . . . . . . . . . 108
Speedometer . . . . . . . . . . . . . . . . 112
Odometer . . . . . . . . . . . . . . . . . . . . . 112
Trip Odometer . . . . . . . . . . . . . . . 112
Tachometer . . . . . . . . . . . . . . . . . . 113
Fuel Gauge . . . . . . . . . . . . . . . . . . . 113 Engine Coolant
Temperature Gauge
(Base Level) . . . . . . . . . . . . . . . . 114
Engine Coolant Temperature Gauge
(Uplevel) . . . . . . . . . . . . . . . . . . . . . 115
Seat Belt Reminders . . . . . . . 115
Airbag Readiness Light . . . 116
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . 117
Charging System Light . . . 117
Malfunction Indicator Lamp (Check Engine
Light) . . . . . . . . . . . . . . . . . . . . . . . . . 118
Brake System Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . 120
Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . 121
Antilock Brake System (ABS) Warning Light . . . . . 121
Performance Shifting Light . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Automatic Vehicle Hold (AVH) Light . . . . . . . . . . . . . . . . . 122
Lane Keep Assist (LKA) Light . . . . . . . . . . . . . . . . . . . . . . . . . . 122 Automatic Emergency
Braking (AEB) Disabled
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . . . . . . 123
Pedestrian Ahead Indicator . . . . . . . . . . . . . . . . . . . . . 123
Traction Off Light . . . . . . . . . 123
StabiliTrak OFF Light . . . . . 124
Traction Control System (TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Engine Coolant Temperature Warning
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Driver Mode Control Light . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Tire Pressure Light . . . . . . . . 126
Engine Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Security Light . . . . . . . . . . . . . . . 128
High-Beam On Light . . . . . . 128
Lamps On Reminder . . . . . . 128
Cruise Control Light . . . . . . 128
Door Ajar Light . . . . . . . . . . . . . 129

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
98 Instruments and Controls
Information Displays
Driver Information Center(DIC) (Base Level) . . . . . . . . . 129
Driver Information Center (DIC) (Uplevel) . . . . . . . . . . . . . . 132
Head-Up Display (HUD) . . . 136
Vehicle Messages
Vehicle Messages . . . . . . . . . 140
Engine Power
Messages . . . . . . . . . . . . . . . . . . . 141
Vehicle Speed Messages . . . . . . . . . . . . . . . . . . . 141
Universal Remote System
Universal RemoteSystem . . . . . . . . . . . . . . . . . . . . . . . 141
Universal Remote System Programming . . . . . . . . . . . . . . . 141
Universal Remote System Operation . . . . . . . . . . . . . . . . . . . 144
Controls
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel up or down.
3. Pull or push the steering wheel closer or away
from you.
4. Pull the lever up to lock the steering wheel in place.
Do not adjust the steering
wheel while driving.
Heated Steering
Wheel
(: If equipped, press to turn
the heated steering wheel on
or off. An indicator light next
to the button displays when
the feature is turned on.
The steering wheel takes
about three minutes to be fully
heated.
Automatic Heated Steering
Wheel
If equipped with remote start,
the heated steering wheel will
turn on automatically during a
