CADILLAC CT5 2023 Workshop Manual

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
50 Seats and Restraints
Memory > Select ON or OFF.
See“Auto Seat Exit Memory
Recall” later in this section.
Auto Seat Entry Memory
Recall
Seat Entry Memory will
automatically begin movement
to the seating positions of the
1 or 2 button corresponding to
the driver’s remote key
number 1 or 2 detected by the
vehicle when:
.The vehicle is turned ON.
.Seating positions have been
previously saved to the
same 1 or 2 button. See
“Saving Seating Positions”
previously in this section.
.Seat Entry Memory is
enabled. See “Enabling
Automatic Recalls”
previously in this section.
.The shift lever is in P (Park).
.If manual transmission
equipped, the parking brake
must be set. Seat Entry Memory Recall will
continue if the vehicle is
shifted out of P (Park) prior to
reaching the saved memory
position.
If manual transmission
equipped, Seat Entry Memory
Recall will continue if the
parking brake is released prior
to reaching the saved memory
position.
If the saved memory seat
position does not
automatically recall, verify the
recall is enabled. See
“Enabling
Automatic Recalls” previously
in this section.
If the memory seat recalls to
the wrong position, the
driver’s remote key number 1
or 2 may not match the
memory button number
positions they were saved to.
Try the other remote key or
try saving the positions to the
other 1 or 2 memory button.
See “Saving Seating Positions”
previously in this section. Automatic Seat Entry Memory
recalls are only available for
driver’s remote key numbers
1 and 2. Remote key 3–8 will
not provide Seat Entry
Memory recalls.
Auto Seat Exit Memory
Recall
Seat Exit Memory will begin
movement to the seating
position of the
B
button when:
.The vehicle is turned off and
the driver door is open or
opened within a short time.
.A seating position has been
previously been saved to the
Bmemory button. See
“Saving Seating Positions”
previously in this section.
.Seat Exit Memory is enabled.
See “Enabling Automatic
Recalls” previously in this
section.
.The shift lever is in P (Park).
.If manual transmission
equipped, the parking brake
must be set.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Seats and Restraints 51
Seat Exit Memory recall will
continue if the vehicle is
shifted out of P (Park) prior to
reaching the saved memory
position.
If manual transmission
equipped, Seat Exit Memory
will continue if the parking
brake is released prior to
reaching the save memory
position.
Seat Exit Memory is not linked
to the driver’s remote key. The
seating position saved to
Bis
used for all drivers.
Cancel Memory Seating
Recalls
.During any memory recall:
Press a power seat control
Press SET memory button
.During Manual memory
recall:
Release 1, 2, or
Bmemory
button
.During Auto Seat Entry
Memory Recall:
Turn vehicle off Press SET, 1, 2, or
B
memory buttons
.During Auto Seat Exit
Memory Recall:
Press SET, 1, 2, or
B
memory buttons
Obstructions
If something has blocked the
seat while recalling a memory
position, the recall may stop.
Remove the obstruction and
try the recall again. If the
memory position still does not
recall, see your dealer.
Heated and
Ventilated Front
Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. To reduce the
risk of burns, use care when
using the seat heater, (Continued)
Warning (Continued)
especially for long periods of
time. Do not place anything
on the seat that insulates
against heat, such as a
blanket, cushion, cover,
or similar item. This may
cause the seat heater to
overheat. An overheated
seat heater may cause a
burn or may damage
the seat.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
52 Seats and Restraints
If equipped, the buttons are
near the climate controls on
the center stack. To operate,
the engine must be running.
Press
Jorzto heat the
driver or passenger seat
cushion and seatback.
Press
Cor{to ventilate the
driver or passenger seat.
Press the button once for the
highest setting. With each
press of the button, the seat
will change to the next lower
setting, and then to the off
setting. The indicator lights
next to the buttons indicate
three for the highest setting
and one for the lowest. If the
front heated seats are on
high, the level may
automatically be lowered after
approximately 30 minutes.
When this feature is off, the
heated and ventilated seat
symbols on the buttons are
white. A ventilated seat has a
fan that pulls air through the
seat. The air is not cooled. When a heated seat is turned
on, the symbol turns red.
When a ventilated seat is
turned on, the symbol
turns blue.
The passenger seat may take
longer to heat up.
Auto Heated and Ventilated
Seats
If the vehicle is equipped with
auto heated or ventilated
seats, and the engine is
running, this feature will
automatically activate the
heated or ventilated seats at
the level required by the
vehicle's interior temperature.
The active high, medium, low,
or off heated or ventilated
seat level will be indicated by
the manual heated and
ventilated seat buttons on the
center stack. Use the manual
heated and ventilated seat
buttons on the center stack to
turn auto heated or ventilated
seats off. If the passenger
seat is unoccupied, the auto
heated or ventilated seatsfeature will not activate that
seat. If equipped with a heated
steering wheel, the auto
heated steering wheel
activation will follow the
heated seat auto activation
and the heated wheel
indicator will follow the state
of the steering wheel heat.
To enable or disable auto
heated or ventilated seats,
select Settings > Vehicle >
Climate and Air Quality >
Auto Cooled or Auto Heated
Seats > ON or OFF.
Remote Start Heated and
Ventilated Seats
If equipped, the heated seats
will turn on automatically
during a remote start if it is
cold outside and the ventilated
seats will turn on automatically
if it is hot outside. If equipped,
the heated steering wheel will
turn on automatically during a
remote start if it is cold
outside. The heated and
ventilated seat indicators and

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Seats and Restraints 53
heated steering wheel
indicator may come on during
this operation.
The heated and ventilated
seats and heated steering
wheel may cancel when the
vehicle is started. These
features can be manually
selected after the ignition is
turned on.
The temperature performance
of an unoccupied seat may be
reduced. This is normal.
To enable or disable remote
start heated or ventilated
seats, select Settings >
Vehicle > Remote Lock,
Unlock, and Start > Remote
Start Auto Heat Seats or
Remote Start Auto Cool
Seats > ON or OFF. See
Remote Vehicle Start016.Rear Seats
Rear Seat Reminder
If equipped, the message
REAR SEAT REMINDER LOOK
IN REAR SEAT displays under
certain conditions indicating
there may be an item or
passenger in the rear seat.
Check before exiting the
vehicle.
This feature will activate when
a second row door is opened
while the vehicle is on or up to
10 minutes before the vehicle
is turned on. There will be an
alert when the vehicle is
turned off. The alert does not
directly detect objects in the
rear seat; instead, under
certain conditions, it detects
when a rear door is opened
and closed, indicating that
there may be something in the
rear seat.
The feature is active only once
each time the vehicle is turned
on and off, and will require
reactivation by opening and closing the second row doors.
There may be an alert even
when there is nothing in the
rear seat; for example, if a
child entered the vehicle
through the rear door and left
the vehicle without the vehicle
being shut off.
The feature can be turned on
or off. Select Settings >
Vehicle > Rear Seat
Reminder > ON or OFF.
Folding the Seatback
Either side of the seatback
can be folded for more cargo
space. Fold a seatback only
when the vehicle is not
moving.
Caution
Folding a rear seat with the
seat belts still fastened may
cause damage to the seat or
the seat belts. Always
unbuckle the seat belts and
return them to their normal
stowed position before
folding a rear seat.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
54 Seats and Restraints
To fold the seatback:
1. Disconnect the rear seatbelt mini-latch using a key
in the slot on the
mini-buckle, and let the belt
retract.
2. Pull the lever on top of theseatback toward you to
unlock the seatback.
A red tab near the
seatback lever raises when
the seatback is unlocked.
3. Fold the seatback forward. Repeat Steps 2 and 3 to
fold the other seatback,
if desired.
Raising the Seatback
{Warning
If either seatback is not
locked, it could move
forward in a sudden stop or
crash. That could cause
injury to the person sitting
there. Always push and pull
on the seatbacks to be sure
they are locked.
{Warning
A seat belt that is
improperly routed, not
properly attached,
or twisted will not provide
the protection needed in a
crash. The person wearing
the belt could be seriously
injured. After raising the rear
seatback, always check to
be sure that the seat belts
are properly routed and
attached, and are not
twisted.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Seats and Restraints 55
To raise a seatback:1. Lift the seatback up. Make sure the center seat belt
and latch do not get
trapped behind the seat.
Push the seatback
rearward to lock it in place.
A red tab near the
seatback lever retracts
when the seatback is
locked in place.
2. Push and pull the top of the seatback to be sure it
is locked into position.
3. Reconnect the center seat belt mini-latch to the
mini-buckle. Do not let the
belt twist.
4. Pull on the center seat belt to make sure the mini-latch
is secure.
5. Repeat the steps to raise the other seatback,
if necessary.
When the seat is not in use, it
should be kept in the upright,
locked position.Seat Belts
This section describes how to
use seat belts properly, and
some things not to do.
{Warning
Do not let anyone ride
where a seat belt cannot be
worn properly. In a crash,
if you or your passenger(s)
are not wearing seat belts,
injuries can be much worse
than if you are wearing seat
belts. You can be seriously
injured or killed by hitting
things inside the vehicle
harder or by being ejected
from the vehicle. In addition,
anyone who is not buckled
up can strike other
passengers in the vehicle.
It is extremely dangerous to
ride in a cargo area, inside or
outside of a vehicle. In a
collision, passengers riding
in these areas are more (Continued)
Warning (Continued)
likely to be seriously injured
or killed. Do not allow
passengers to ride in any
area of the vehicle that is
not equipped with seats and
seat belts.
Always wear a seat belt, and
check that all passenger(s)
are restrained properly too.
This vehicle has indicators as
a reminder to buckle the seat
belts. See Seat Belt
Reminders 0122.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
56 Seats and Restraints
Why Seat Belts Work
When riding in a vehicle, you
travel as fast as the vehicle
does. If the vehicle stops
suddenly, you keep going until
something stops you. It could
be the windshield, the
instrument panel, or the seat
belts!
When you wear a seat belt,
you and the vehicle slow down
together. There is more time
to stop because you stop over
a longer distance and, when
worn properly, your strongest
bones take the forces fromthe seat belts. That is why
wearing seat belts makes such
good sense.
Questions and Answers
About Seat Belts
Q: Will I be trapped in the
vehicle after a crash if I am
wearing a seat belt?
A: You could be —whether you
are wearing a seat belt or
not. Your chance of being
conscious during and after a
crash, so you can unbuckle
and get out, is much greater
if you are belted.
Q: If my vehicle has airbags, why should I have to wear
seat belts?
A: Airbags are supplemental
systems only. They work
with seat belts —not
instead of them. Whether or
not an airbag is provided, all
occupants still have to
buckle up to get the most
protection. Also, in nearly all states and
in all Canadian provinces,
the law requires wearing
seat belts.
Buckle To Drive
If equipped, this feature delays
the vehicle from shifting out of
P (Park) when the driver seat
belt is not buckled. The Buckle
to Drive feature must be
turned ON in the infotainment
system to work. To turn the
Buckle to Drive feature on or
off, select Settings > Vehicle >
Buckle to Drive. See Teen
Driver
0219, if equipped.
If the vehicle is on and the
brake pedal is pressed with
the vehicle in P (Park) but the
driver seat belt is not buckled,
a message displays in the
Driver Information Center (DIC)
and the vehicle will be delayed
from shifting out of P (Park).
Buckle the driver seat belt to
clear the message and shift
out of P (Park). Shifting from

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Seats and Restraints 57
P (Park) will be delayed once
for each time the vehicle is
started.
For some fleet vehicles, the
feature is always ON and
cannot be turned OFF in the
infotainment system. The
vehicle will be delayed from
shifting from P (Park) each
time the driver attempts to do
so while the driver seat belt is
not buckled. Turning the
vehicle off then on will not
change this condition.
On some models, Buckle to
Drive may also delay shifting
out of P (Park) if a front
passenger seat belt is
unbuckled. A message displays
in the DIC. Buckle the front
passenger seat belt to shift
out of P (Park). This feature
may delay the vehicle from
shifting out of P (Park) if an
object, such as a briefcase,
handbag, grocery bag, laptop,
or other electronic device, is
on the front passenger seat.If this happens, remove the
object from the seat or buckle
the seat belt to shift out of
P (Park).
If the driver, or on some
vehicles, the present front
passenger remains unbuckled,
the DIC message will turn off
after several seconds and the
vehicle can be shifted out of
P (Park). See
“Seat Belts”and
“Child Restraints” in the Index
for information about the
importance of proper
restraint use.
If the driver seat belt or the
front passenger seat belt is
unbuckled when driving, the
seat belt reminder chime and
light(s) will come on. See Seat
Belt Reminders 0122. This
feature may not function
properly if the airbag
readiness light is on. See
Airbag Readiness Light 0123.How to Wear Seat
Belts Properly
Follow these rules for
everyone's protection.
There are additional things to
know about seat belts and
children, including smaller
children and infants. If a child
will be riding in the vehicle, see
Older Children 079 or
Infants and Young Children
0 81. Review and follow the
rules for children in addition to
the following rules.
It is very important for all
occupants to buckle up.
Statistics show that unbelted
people are hurt more often in
crashes than those who are
wearing seat belts.
There are important things to
know about wearing a seat
belt properly.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
58 Seats and Restraints
.Sit up straight and always
keep your feet on the floor in
front of you (if possible).
.Wear the lap part of the belt
low and snug on the hips,
just touching the thighs. In a
crash, this applies force to
the strong pelvic bones and
you would be less likely to
slide under the lap belt.
If you slid under it, the belt
would apply force on your
abdomen. This could cause
serious or even fatal injuries.
.Wear the shoulder belt over
the shoulder and across the
chest. These parts of thebody are best able to take
belt restraining forces. The
shoulder belt locks if there is
a sudden stop or crash.
{Warning
You can be seriously injured,
or even killed, by not
wearing your seat belt
properly.
Never allow the lap or
shoulder belt to become loose
or twisted.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22

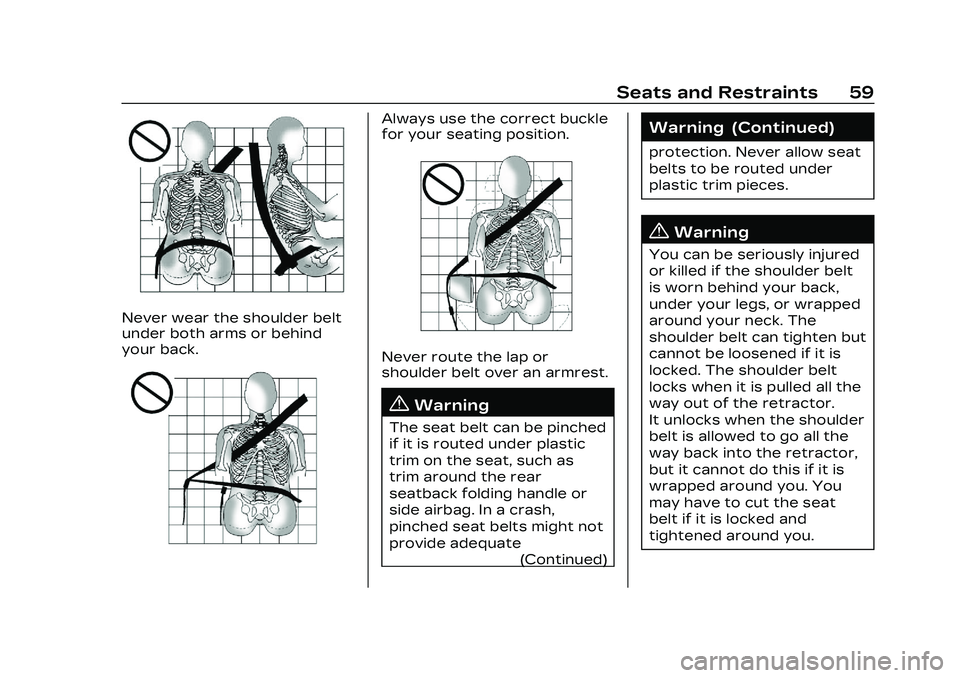

Seats and Restraints 59
Never wear the shoulder belt
under both arms or behind
your back.
Always use the correct buckle
for your seating position.
Never route the lap or
shoulder belt over an armrest.
{Warning
The seat belt can be pinched
if it is routed under plastic
trim on the seat, such as
trim around the rear
seatback folding handle or
side airbag. In a crash,
pinched seat belts might not
provide adequate(Continued)
Warning (Continued)
protection. Never allow seat
belts to be routed under
plastic trim pieces.
{Warning
You can be seriously injured
or killed if the shoulder belt
is worn behind your back,
under your legs, or wrapped
around your neck. The
shoulder belt can tighten but
cannot be loosened if it is
locked. The shoulder belt
locks when it is pulled all the
way out of the retractor.
It unlocks when the shoulder
belt is allowed to go all the
way back into the retractor,
but it cannot do this if it is
wrapped around you. You
may have to cut the seat
belt if it is locked and
tightened around you.
