VEHICLE CARE 333
Without Super Cruise
Fuses Usage F01 –
F02 Auxiliary trunk power outlet
F03 Left window
F04 –
F05 Canister vent Fuses Usage
F06 Right rear memory seat
F07 Body control module 7
F08 Passenger/Rear seat adjustment switch Fuses Usage
F09 Passive entry/Passive start battery
F10 Rear subwoofer
F11 Left front memory seat module
F12 –
F13 –
F14 Rear seat memory/ Heated
F15 Left front subwoofer
F16 Right front memory seat
F17 Rear heated seat
F18 Regulated voltage control battery
F19 Driver passenger door window/Mirror/
Driver seat
adjustment/Fuel door
switch
F20 Electric brake control module–2

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
334 VEHICLE CARE
FusesUsage
F21 Vehicle integration control module
F22 –
F23 Rear closure latch
F24 –
F25 Left front motorized seat belt pretensioner
F26 Rear defogger
F27 Right front subwoofer
F28 Amplifier
F29 Sunroof
F30 Body control module 2
F31 Body control module 6
F32 Exterior heated mirrors
F33 Right window
F34 Power trunk module Fuses
Usage
F35 On-board charging module
F36 Pedestrian friendly alert function
F37 –
F38 Rear blower
F39 Fuel pump power module/Fuel tank
zone module
F40 –
F41 Rear seat auxiliary power outlet
F42 Left rear memory seat
F43 –
F44 Rear closure release switch/Power trunk
module/Integrated
chassis control
module battery
F45 Auxiliary audio/Video Fuses
Usage
F46 External object calculating module/
Side blind zone alert/
Rear center short
range radar sensor/
Long range radar
sensors
F47 –
F48 –
F49 Memory bolster module
F50 Body control module 1
F51 Transmission control module
F52 Park assist
F53 Ventilated seats
F54 Universal garage door opener/Power
sounder module/Rain
sensor
F55 Front memory seat module

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
VEHICLE CARE 335
FusesUsage
F56 Evaporative emissions leak check
module/Rear HVAC
display
F57 Voltage current temperature module
F58 –
F59 Engine control module battery
F60 Right front motorized seat belt pretensioner
F61 –
F62 –
F63 Rear seat infotainment module
F64 Engine control module ignition
F65 Rear window sunshade
F66 Rear vision camera/ Rearview mirror Fuses
Usage
F67 Run/Crank misc/Air quality sensor/
Integrated chassis
control module/
Electronic shifter/DC
DC converter
F68 Damping control module
F69 Television tuner module
F70 –
F71 –
F72 –
F73 –
F74 –
F75 – Relays
Usage
R1 Rear seat auxiliary power outlet
R2 Spare
R3 Run/Crank

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
336 VEHICLE CARE
With Super Cruise
Fuses Usage F01 –
F02 Body control module 2 and 4
F03 Left rear external object calculating
module Fuses Usage
F04 Steering wheel display/Touch sensor
F05 –
F06 – Fuses Usage
F07 Left front and right rear short range
radar sensor/Camera
image processing
module
F08 Driver memory seat module
F09 Column friction device
F10 Left headlamp
F11 –
F12 –
F13 Left front subwoofer
F14 Rear blower
F15 Left window
F16 Canister vent
F17 Rear seat memory/ Heated
F18 Rear subwoofer
F19 Damping control module
F20 –

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
VEHICLE CARE 337

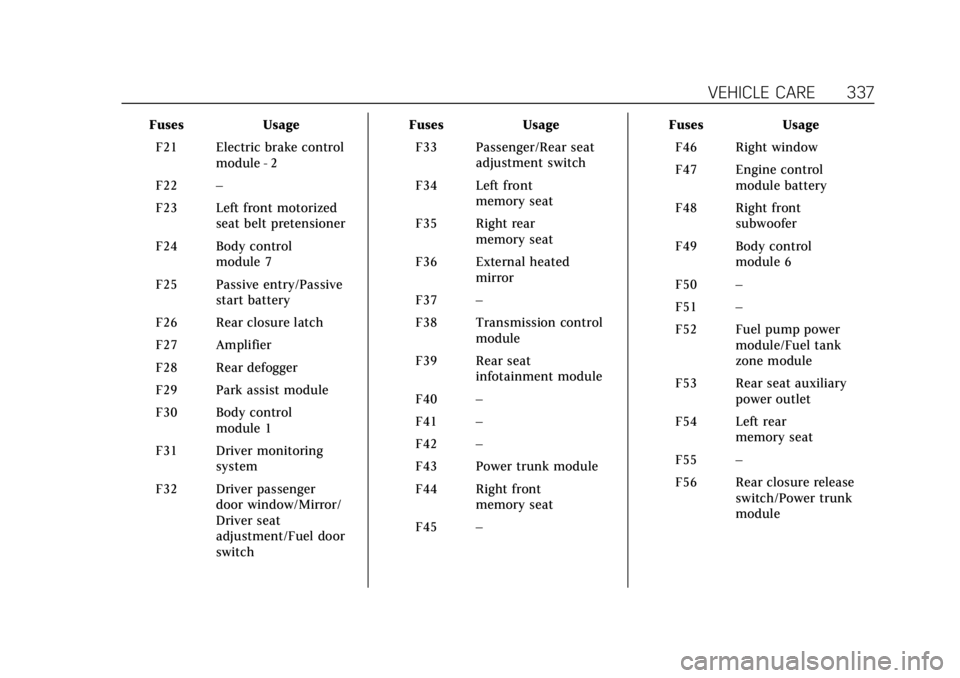

FusesUsage
F21 Electric brake control module - 2
F22 –
F23 Left front motorized seat belt pretensioner
F24 Body control module 7
F25 Passive entry/Passive start battery
F26 Rear closure latch
F27 Amplifier
F28 Rear defogger
F29 Park assist module
F30 Body control module 1
F31 Driver monitoring system
F32 Driver passenger door window/Mirror/
Driver seat
adjustment/Fuel door
switch Fuses
Usage
F33 Passenger/Rear seat adjustment switch
F34 Left front memory seat
F35 Right rear memory seat
F36 External heated mirror
F37 –
F38 Transmission control module
F39 Rear seat infotainment module
F40 –
F41 –
F42 –
F43 Power trunk module
F44 Right front memory seat
F45 – Fuses
Usage
F46 Right window
F47 Engine control module battery
F48 Right front subwoofer
F49 Body control module 6
F50 –
F51 –
F52 Fuel pump power module/Fuel tank
zone module
F53 Rear seat auxiliary power outlet
F54 Left rear memory seat
F55 –
F56 Rear closure release switch/Power trunk
module

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
338 VEHICLE CARE
FusesUsage
F57 Rear left and rear center short range
radar sensors/Long
range radar sensors/
Right rear external
object calculating
module
F58 Auxiliary audio/Video
F59 –
F60 Memory bolster module
F61 –
F62 Ventilated seat
F63 Universal garage door opener/Power
sounder module/Rain
sensor
F64 Passenger memory seat module
F65 Right front short range radar sensor/
Advance driver
assist map Fuses
Usage
F66 Television tuner module
F67 –
F68 –
F69 –
F70 Right front motorized seat belt pretensioner
F71 Rear heated seat module
F72 Sunroof
F73 Rear vision camera/ Rearview mirror/Air
quality sensor
F74 Rear window sunshade
F75 Engine control module ignition
F76 Misc run crank/ Energy storage
control module/DC
DC converter/Rear
external object
calculating module Fuses
Usage
F77 Trunk auxiliary power outlet
F78 Rear HVAC display
F79 –
F80 –
F81 –
F82 –
F83 –
F84 –
F85 –
F86 –
F87 –
Relays Usage
R01 Rear seat auxiliary power outlet
R02 Spare
R03 Run/Crank
