CADILLAC CTS 2003 1.G Owners Manual

2-33
SECOND (2): This position gives you even more
power than THIRD (3). You can use it on very steep
hills, or in deep snow or mud. (If the shift lever is put
in SECOND (2), the transmission won't shift into
SECOND (2) until the vehicle is going slowly enough).
NOTICE:
If the vehicle's wheels can't turn, don't try to
drive. This might happen if you were stuck in
very deep sand or mud or were up against a solid
object. You could damage your transmission.
Also, if you stop when going uphill, don't hold
your vehicle there with only the accelerator
pedal. This could cause overheating and damage
the transmission. Use your brakes to hold your
vehicle in position on a hill.
Shift Lock Release
(Automatic Transmission Only)
If your vehicle has a dead battery or a battery with low
voltage, you can still shift the vehicle into PARK (P) and
remove the ignition key. Use the following procedure to
release the shift lever:
1. Pull up on the rear part of the leather boot that
surrounds the shift lever.
2. Fold the boot upward to expose the mechanism
beneath the shift lever.

2-34
3. Locate and remove the small oval cap near the
forward, right side of the shifter mechanism.4. Using a narrow, pointed tool, press down on the
mechanism under the cap so that you can move the
shift lever.

2-35
Sport Mode Button
(Automatic Transmission Only)
This button allows you to change the driving mode of
the vehicle from the normal driving mode to a sportier
driving mode. In sport mode the vehicle will have firmer
shifting and increased performance.
The sport mode button is
located on the center
console near the
transmission shift lever.
Press the button once to turn on the sport mode.
Press the button again to return to normal driving mode.
This light located on the
instrument panel cluster
will come on when the sport
mode is active.
When you turn off the ignition while driving in sport
mode, the vehicle will remain in sport mode. Press the
sport mode button again to turn off the feature and
return to normal driving mode.

2-36
Winter Driving Mode Button
(Automatic Transmission Only)
This feature provides more traction during slippery
conditions by using THIRD (3) gear instead of
SECOND (2) when you begin to accelerate from a
stopped position.

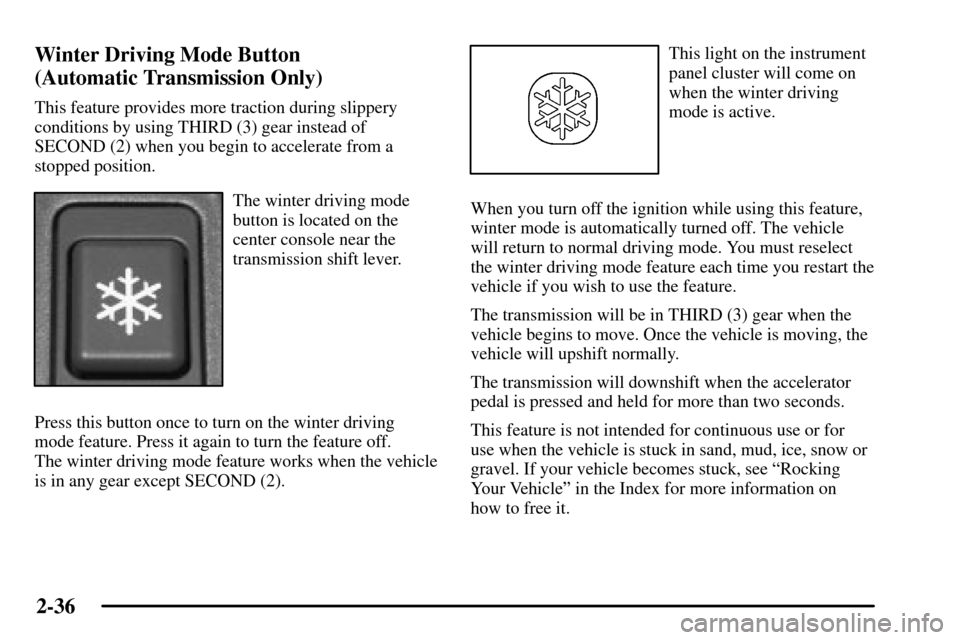

The winter driving mode
button is located on the
center console near the
transmission shift lever.
Press this button once to turn on the winter driving
mode feature. Press it again to turn the feature off.
The winter driving mode feature works when the vehicle
is in any gear except SECOND (2).
This light on the instrument
panel cluster will come on
when the winter driving
mode is active.
When you turn off the ignition while using this feature,
winter mode is automatically turned off. The vehicle
will return to normal driving mode. You must reselect
the winter driving mode feature each time you restart the
vehicle if you wish to use the feature.
The transmission will be in THIRD (3) gear when the
vehicle begins to move. Once the vehicle is moving, the
vehicle will upshift normally.
The transmission will downshift when the accelerator
pedal is pressed and held for more than two seconds.
This feature is not intended for continuous use or for
use when the vehicle is stuck in sand, mud, ice, snow or
gravel. If your vehicle becomes stuck, see ªRocking
Your Vehicleº in the Index for more information on
how to free it.

2-37
Manual Transmission Operation
The following explains how to operate your vehicle's
manual transmission.
This is the shift pattern
for your vehicle.
FIRST (1): Press the clutch and shift into FIRST (1).
Then, slowly let up on the clutch pedal as you press the
accelerator pedal.
You can shift into FIRST (1) when you're going less
than 20 mph (32 km/h). If you've come to a complete
stop and it's hard to shift into FIRST (1), put the shift
lever in NEUTRAL and let up on the clutch. Press the
clutch pedal back down. Then try shifting into
FIRST (1) again.SECOND (2): Press the clutch pedal to the floor
as you let up on the accelerator pedal and shift into
SECOND (2). Then, slowly let up on the clutch pedal
as you press the accelerator pedal.
THIRD (3), FOURTH (4), and FIFTH (5): Shift into
THIRD (3), FOURTH (4) and FIFTH (5) the same way
you do for SECOND (2). Slowly let up on the clutch
pedal as you press the accelerator pedal.
To stop, let up on the accelerator pedal and press the
brake pedal. Before the vehicle comes to a complete
stop, press the clutch pedal and brake pedal, and shift
into NEUTRAL.
NEUTRAL: Use this position when you idle the engine.
REVERSE (R): Use this gear to back up. Press the
clutch pedal and shift into REVERSE (R). Slowly let up
on the clutch pedal as you press the accelerator pedal.
Use REVERSE (R), along with the parking brake, when
you park your vehicle. See ªParking Your Vehicle
(Manual Transmission Only)º later in this section for
more information.
If your vehicle has a manual transmission, in order for
you to remove the key from the ignition, you must press
the key release button on the ignition switch. See ªKey
Release Buttonº in the Index for more information.

2-38
Shift Speeds
CAUTION:
If you skip a gear when you downshift, you could
lose control of your vehicle. You could injure
yourself or others. Don't shift down more than
one gear at a time when you downshift.
NOTICE:
If you skip more than one gear when you
downshift, or if you race the engine when you
release the clutch pedal while downshifting, you
could damage the clutch or the transmission.
If the vehicle speed drops below 20 mph (32 km/h), or
if the engine is not running smoothly, you should
downshift to the next lower gear. You may have to
downshift two or more gears to keep the engine running
smoothly or for good performance.
Parking Brake
The parking brake pedal
is located on the lower
portion of the instrument
panel to the left of the
steering wheel.
To set the parking brake, hold the regular brake pedal
down with your right foot and push the parking brake
pedal down with your left foot.

2-39

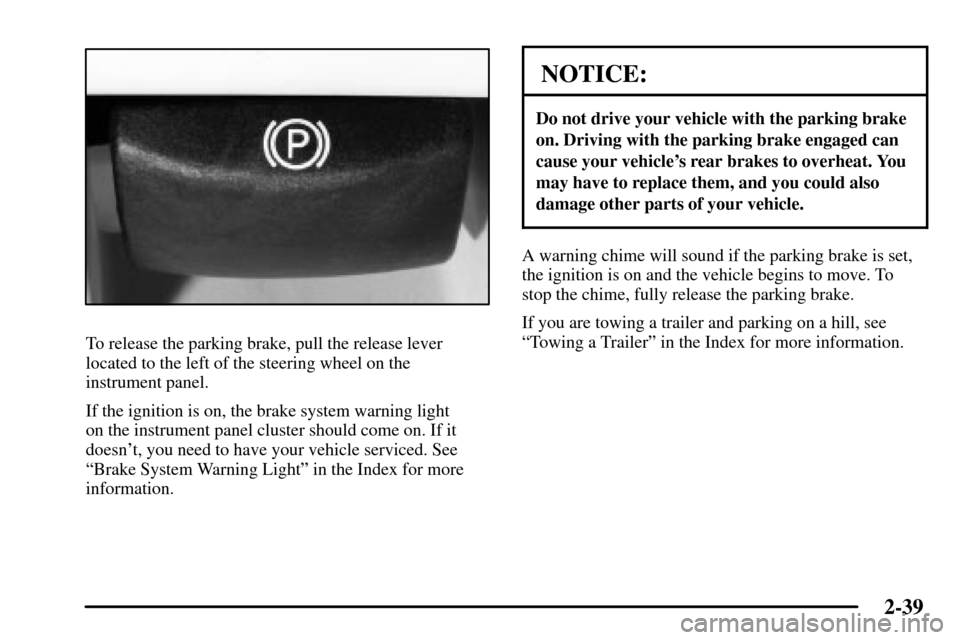

To release the parking brake, pull the release lever
located to the left of the steering wheel on the
instrument panel.
If the ignition is on, the brake system warning light
on the instrument panel cluster should come on. If it
doesn't, you need to have your vehicle serviced. See
ªBrake System Warning Lightº in the Index for more
information.
NOTICE:
Do not drive your vehicle with the parking brake
on. Driving with the parking brake engaged can
cause your vehicle's rear brakes to overheat. You
may have to replace them, and you could also
damage other parts of your vehicle.
A warning chime will sound if the parking brake is set,
the ignition is on and the vehicle begins to move. To
stop the chime, fully release the parking brake.
If you are towing a trailer and parking on a hill, see
ªTowing a Trailerº in the Index for more information.

2-40
Shifting Into PARK (P)
(Automatic Transmission Only)
CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll. If
you have left the engine running, the vehicle can
move suddenly. You or others could be injured.
To be sure your vehicle won't move, even when
you're on fairly level ground, use the steps that
follow. If you're pulling a trailer, see ªTowing a
Trailerº in the Index.
To shift into PARK (P), use the following steps:
1. Hold the brake pedal down with your right foot.2. Move the shift lever into PARK (P) like this:

Press the button on the front of the shift lever as you
push the shift lever all the way toward the front of
your vehicle into PARK (P). Release the button.

With your right foot still holding the brake pedal
down, set the parking brake with your left foot. See
ªParking Brakeº in the Index for more information.
3. Turn the key to OFF.
4. Remove the key from the ignition switch and take it
with you. If you can leave your vehicle with the key
in your hand, the vehicle is in PARK (P).

2-41
Leaving Your Vehicle With the Engine
Running (Automatic Transmission Only)
CAUTION:
It can be dangerous to leave your vehicle with the
engine running. Your vehicle could move
suddenly if the shift lever is not fully in PARK (P)
with the parking brake firmly set. And, if you
leave the vehicle with the engine running, it could
overheat and even catch fire. You or others could
be injured. Don't leave your vehicle with the
engine running unless you have to.
If you have to leave your vehicle with the engine
running, be sure your vehicle is in PARK (P) and your
parking brake is firmly set before you leave it. After
you've moved the shift lever into PARK (P), hold the
regular brake pedal down. Then, see if you can move the
shift lever away from PARK (P) without first pushing
the button on the shift lever. If you can, it means that the
shift lever wasn't fully locked into PARK (P).
Torque Lock (Automatic Transmission)
If you are parking on a hill and you don't shift your
transmission into PARK (P) properly, the weight of the
vehicle may put too much force on the parking pawl in
the transmission. You may find it difficult to pull the
shift lever out of PARK (P). This is called ªtorque lock.º
To prevent torque lock, set the parking brake and then
shift into PARK (P) properly before you leave the
driver's seat. To find out how, see ªShifting Into
PARK (P)º in the Index.
If torque lock does occur, you may need to have another
vehicle push yours a little uphill to take some of the
pressure from the parking pawl in the transmission, so
you can pull the shift lever out of PARK (P).

2-42
Shifting Out of PARK (P)
(Automatic Transmission Only)
Your vehicle has an automatic transmission shift lock
control system. You have to fully apply your regular
brakes before you can shift from PARK (P) when the
ignition is in ON. See ªAutomatic Transmissionº in
the Index.
If you cannot shift out of PARK (P), ease the pressure
on the shift lever. Push the shift lever all the way into
PARK (P) while pushing the button on the shift lever as
you maintain brake application. Then move the shift
lever into the gear you want. If you ever hold the pedal
down but still can't shift out of PARK (P), try the
following:
1. Turn the ignition key to ACCESSORY. Open and
close the driver's door to turn off the RAP feature.
2. Apply and hold the brake until the end of Step 4.
3. Shift to NEUTRAL (N).
4. Start the vehicle and then shift to the drive gear
you want.
5. Have the vehicle fixed as soon as you can.
Parking Your Vehicle
(Manual Transmission Only)
Before you get out of your vehicle firmly apply the
parking brake. Turn the ignition key to OFF, press the
release button and remove the key. See ªManual
Transmission Key Release Buttonº in the Index for
more information.
If you are towing a trailer, see ªTowing a Trailerº in
the Index.
