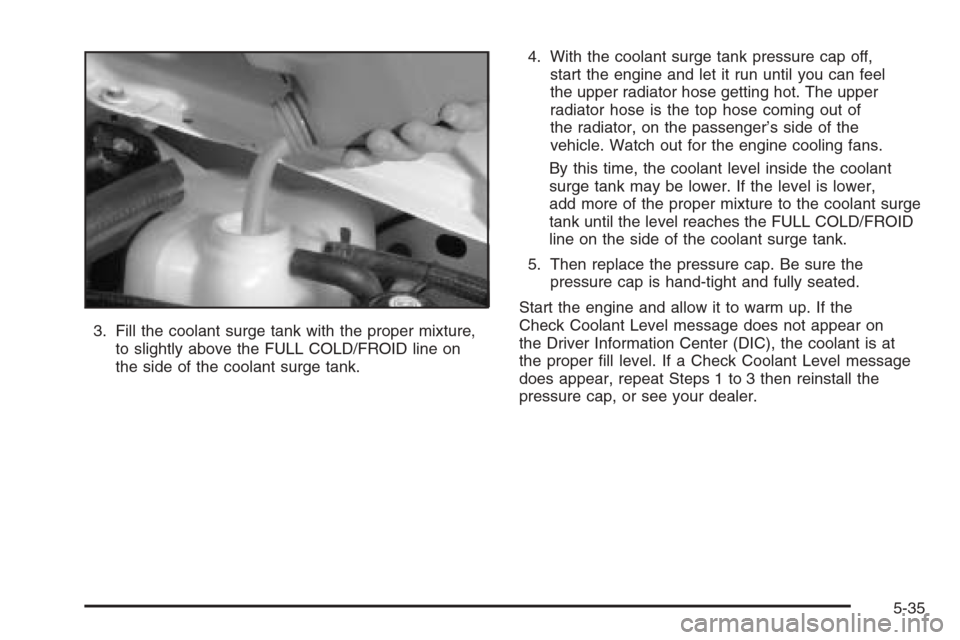

3. Fill the coolant surge tank with the proper mixture,
to slightly above the FULL COLD/FROID line on
the side of the coolant surge tank.4. With the coolant surge tank pressure cap off,
start the engine and let it run until you can feel
the upper radiator hose getting hot. The upper
radiator hose is the top hose coming out of
the radiator, on the passenger’s side of the
vehicle. Watch out for the engine cooling fans.
By this time, the coolant level inside the coolant
surge tank may be lower. If the level is lower,
add more of the proper mixture to the coolant surge
tank until the level reaches the FULL COLD/FROID
line on the side of the coolant surge tank.
5. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
Start the engine and allow it to warm up. If the
Check Coolant Level message does not appear on
the Driver Information Center (DIC), the coolant is at
the proper ll level. If a Check Coolant Level message
does appear, repeat Steps 1 to 3 then reinstall the
pressure cap, or see your dealer.
5-35

Brakes
Brake Fluid
Your brake master
cylinder reservoir is lled
with DOT-3 brake uid.
SeeEngine Compartment
Overview on page 5-12
for the location of the
reservoir.
There are only two reasons why the brake uid level
in the reservoir might go down. The rst is that the brake
uid goes down to an acceptable level during normal
brake lining wear. When new linings are put in, the uid
level goes back up. The other reason is that uid is
leaking out of the brake system. If it is, you should
have your brake system xed, since a leak means that
sooner or later your brakes will not work well, or will
not work at all.So, it is not a good idea to top off your brake uid.
Adding brake uid will not correct a leak. If you add uid
when your linings are worn, then you will have too
much uid when you get new brake linings. You should
add or remove brake uid, as necessary, only when
work is done on the brake hydraulic system.
{CAUTION:
If your vehicle has too much brake uid, it can
spill on the engine. The uid will burn if the
engine is hot enough. You or others could be
burned, and your vehicle could be damaged.
Add brake uid only when work is done on the
brake hydraulic system.
If the ignition is in ON and the brake uid is low, the
“Check Brake Fluid” message will be displayed in
the DIC. See “Check Brake Fluid Message” under
DIC Warnings and Messages on page 3-61.
When your brake uid falls to a low level, your brake
warning light will come on. SeeBrake System Warning
Light on page 3-38.
5-38

{CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing
this, and some have been blinded. Use a
ashlight if you need more light.
Be sure the battery has enough water. You do
not need to add water to the battery installed
in your new vehicle. But if a battery has ller
caps, be sure the right amount of uid is there.
If it is low, add water to take care of that rst.
If you do not, explosive gas could be present.
Battery uid contains acid that can burn you.
Do not get it on you. If you accidentally get it
in your eyes or on your skin, ush the place
with water and get medical help immediately.
{CAUTION:
Fans or other moving engine parts can injure
you badly. Keep your hands away from moving
parts once the engine is running.
5. Check that the jumper cables do not have loose
or missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+) will go
to positive (+) or to a remote positive (+) terminal
if the vehicle has one. Negative (−) will go to a
heavy, unpainted metal engine part or to a remote
negative (−) terminal if the vehicle has one.
Do not connect positive (+) to negative (−)oryou
will get a short that would damage the battery
and maybe other parts too. And do not connect the
negative (−) cable to the negative (−) terminal on
the dead battery because this can cause sparks.
5-45

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your
vehicle and the damage would not be covered by
your warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Add-on equipment can drain your vehicle’s battery,
even if your vehicle is not operating.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-67.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker. If the wiper motor overheats due to
heavy snow, the wipers will stop until the motor cools
and will then restart.
Power Windows and Other
Power Options
Circuit breakers protect the power windows and power
seats. When the current load is too heavy, the circuit
breaker opens and closes, protecting the circuit until the
problem is xed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of res
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating. If a fuse blows, see your dealer
for service immediately.
If you ever have a problem on the road and don’t
have a spare fuse, you can “borrow” one that has the
same amperage. Pick some feature of your vehicle that
you can get along without — like the radio or cigarette
lighter — and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
The fuses are located in three fuse blocks, one located
in the engine compartment on the passenger’s side
and the other two under the rear seat.
5-104

Audio System(s) (cont.)
Radio with CD............................................3-85
Setting the Time..........................................3-85
Theft-Deterrent Feature...............................3-101
Understanding Radio Reception...................3-102
XM™ Satellite Radio Antenna System...........3-104
Automatic Transmission
Fluid..........................................................5-23
Operation...................................................2-27
B
Battery..........................................................5-41
Exterior Lighting Battery Saver......................3-20
Before Leaving on a Long Trip.........................4-24
Brake
Anti-Lock Brake System (ABS)........................ 4-7
Emergencies................................................ 4-9
Panic Assist................................................4-13
Parking......................................................2-33
System Warning Light..................................3-38
Brakes..........................................................5-38
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-9
Break-In, New Vehicle.....................................2-22
Bulb Replacement...........................................5-52
Back-Up and License Plate Lamps.................5-54
Front Turn Signal and Fog Lamps..................5-53
Halogen Bulbs............................................5-52Bulb Replacement (cont.)
Headlamp Aiming........................................5-49
High Intensity Discharge (HID) Lighting...........5-52
Replacement Bulbs......................................5-55
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps...................................5-53
Buying New Tires...........................................5-73
C
Calibration.....................................................2-39
California Fuel.................................................. 5-6
California Proposition 65 Warning....................... 5-3
Canadian Owners................................................ ii
Capacities and Specications..........................5-115
Carbon Monoxide...................2-12, 2-37, 4-27, 4-39
Care of
Safety Belts................................................5-97
Your CD Player.........................................3-104
Your CDs .................................................3-103
Center Console Storage Area...........................2-49
Chains, Tire...................................................5-78
Charging System Light....................................3-37
Check
Engine Light...............................................3-41
Engine Oil Pressure Message.......................3-51
Checking Things Under the Hood......................5-10
Chemical Paint Spotting.................................5-101
2

Customer Assistance Information (cont.)
Reporting Safety Defects to General Motors.......7-16
Reporting Safety Defects to the
Canadian Government...............................7-15
Reporting Safety Defects to the
United States Government..........................7-15
Roadside Service.......................................... 7-7
Service Publications Ordering Information........7-16
D
Daytime Running Lamps..................................3-17
Defensive Driving............................................. 4-2
Delayed Locking............................................... 2-9
Diversity Antenna System...............................3-104
Doing Your Own Service Work........................... 5-4
Door
Central Door Unlocking System....................... 2-9
Delayed Locking........................................... 2-9
Locks.......................................................... 2-8
Power Door Locks......................................... 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-10
Driver
Position, Safety Belt.....................................1-16
Driver Information Center (DIC).........................3-53
DIC Main Menu ...........................................3-57
DIC Vehicle Personalization..........................3-70
DIC Warnings and Messages........................3-61Driver Information Center (DIC) (cont.)
Status of Vehicle Systems............................3-54
System Controls..........................................3-53
Driving
At Night.....................................................4-19
City ...........................................................4-22
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-23
Hill and Mountain Roads..............................4-25
In Rain and on Wet Roads...........................4-20
Rocking Your Vehicle to Get it Out.................4-32
Winter........................................................4-27
Dual Climate Control System............................3-23
E
Electrical System
Add-On Equipment.....................................5-104
Fuses and Circuit Breakers.........................5-104
Power Windows and Other Power Options.......5-104
Rear Underseat Fuse Block.........................5-109
Underhood Fuse Block...............................5-105
Windshield Wiper Fuses.............................5-104
Engine
Air Cleaner/Filter.........................................5-21
Battery.......................................................5-41
Check and Service Engine Soon Light............3-41
4

Engine (cont.)
Check Oil Pressure Message........................3-51
Coolant......................................................5-26
Coolant Heater............................................2-26
Coolant Temperature Gage...........................3-40
Coolant Temperature Warning Light................3-40
Drive Belt Routing.......................................6-16
Engine Compartment Overview......................5-12
Exhaust.....................................................2-37
Oil .............................................................5-16
Oil Life System...........................................5-20
Oil Temperature Warning Message.................3-51
Overheated Protection Operating Mode...........5-30
Overheating................................................5-28
Speed Limiter.............................................3-33
Starting......................................................2-25
Entry Lighting.................................................3-21
Event Data Recorders (EDR)............................7-11
Extender, Safety Belt.......................................1-29
Exterior Lighting Battery Saver..........................3-20
F
Filter
Engine Air Cleaner......................................5-21
Finish Damage.............................................5-101
Flashers, Hazard Warning.................................. 3-6Flash-to-Pass.................................................3-10
Flat Tire........................................................5-82
Flat Tire, Changing.........................................5-84
Flat Tire, Storing.............................................5-93
Fluid
Automatic Transmission................................5-23
Manual Transmission....................................5-24
Power Steering...........................................5-36
Windshield Washer......................................5-37
Fog Lamp Light..............................................3-45
Fog Lamps ....................................................3-19
Folding Rear Seat............................................ 1-9
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-10
Filling Your Tank........................................... 5-8
Fuels in Foreign Countries.............................. 5-7
Gage .........................................................3-46
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-6
Fuses
Fuses and Circuit Breakers.........................5-104
Rear Underseat Fuse Block.........................5-109
Underhood Fuse Block...............................5-105
Windshield Wiper.......................................5-104
5

G
Gage
Engine Coolant Temperature.........................3-40
Fuel..........................................................3-46
Speedometer..............................................3-33
Tachometer.................................................3-33
Garage Door Opener.......................................2-45
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-6
Glove Box.....................................................2-49
GM Mobility Reimbursement Program.................. 7-7
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-8
Headlamp
Aiming .......................................................5-49
Headlamps....................................................3-16
Bulb Replacement.......................................5-52
Daytime Running Lamps...............................3-17
Flash-to-Pass..............................................3-10
Front Turn Signal and Fog Lamps..................5-53
Halogen Bulbs............................................5-52
High Intensity Discharge (HID) Lighting...........5-52
High/Low Beam Changer..............................3-10
On Reminder..............................................3-17Headlamps (cont.)
Washer......................................................3-12
Wiper Activated...........................................3-17
Heated Seats................................................... 1-4
Heater...........................................................3-23
Highbeam On Light.........................................3-46
Highway Hypnosis...........................................4-25
Hill and Mountain Roads..................................4-25
Hood
Checking Things Under................................5-10
Release.....................................................5-11
Horn ............................................................... 3-6
Hot Coolant Temperature Warning Message........3-50
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-16
Hydraulic Clutch.............................................5-25
I
Ignition Positions.............................................2-22
Immobilizer....................................................2-20
Immobilizer Operation......................................2-20
Infants and Young Children, Restraints...............1-32
Ination - Tire Pressure...................................5-65
Instrument Panel
Overview..................................................... 3-4
Instrument Panel (I/P)
Brightness..................................................3-20
Cluster.......................................................3-31
6

M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill.........................................6-10
At Least Once a Month................................6-10
At Least Once a Year..................................6-11
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-8
Maintenance Record....................................6-17
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-15
Owner Checks and Services........................... 6-9
Recommended Fluids and Lubricants.............6-13
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-3
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-41
Manual Seats................................................... 1-2
Manual Transmission
Fluid..........................................................5-24
Operation...................................................2-30
Map Pocket...................................................2-49
Memory Mirrors..............................................2-52
Memory Seat.................................................2-52
Message
Center.......................................................3-47
Check Engine Oil Pressure...........................3-51
DIC Warnings and Messages........................3-61Message (cont.)
Hot Coolant Temperature Warning..................3-50
Oil Temperature Warning..............................3-51
One-to-Four Shift.........................................3-52
Tire Pressure Warning..................................3-52
Transmission Fluid Hot.................................3-50
Mirrors
Automatic Dimming Rearview with OnStar
®.....2-39
Automatic Dimming Rearview with OnStar®
and Compass..........................................2-39
Memory .....................................................2-52
Outside Convex Mirror.................................2-43
Outside Curb View Assist Mirror....................2-42
Outside Heated Mirrors................................2-43
Outside Power Mirrors..................................2-42
MyGMLink.com................................................ 7-4
N
Navigation/Radio System, see Navigation
Manual.....................................................3-101
New Vehicle Break-In......................................2-22
Normal Maintenance Replacement Parts............6-15
O
Odometer......................................................3-33
Odometers, Trip..............................................3-33
Off-Road Recovery..........................................4-16
8

Oil
Engine.......................................................5-16
Pressure Light.............................................3-44
Oil, Engine Oil Life System..............................5-20
Oil Temperature Warning Message....................3-51
Older Children, Restraints................................1-30
One-to-Four Shift Message...............................3-52
Online Owner Center........................................ 7-4
OnStar
®System, see OnStar®Manual...............2-43
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-28
Outlet(s), Accessory Power...............................3-21
Outside
Convex Mirror.............................................2-43
Curb View Assist Mirror................................2-42
Heated Mirrors............................................2-43
Power Mirrors.............................................2-42
Overheated Engine Protection
Operating Mode..........................................5-30
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
P
Paint, Damage..............................................5-101
Panic Brake Assist..........................................4-13
Parade Dimming.............................................3-21Park (P)
Shifting Into................................................2-34
Shifting Out of............................................2-36
Parking
Brake........................................................2-33
Over Things That Burn.................................2-37
Parking Your Vehicle.......................................2-36
Passenger Airbag Status Indicator.....................3-35
Passenger Compartment Air Filter.....................3-29
Passenger Sensing System..............................1-63
Passing.........................................................4-16
Power
Accessory Outlet(s)......................................3-21
Door Locks.................................................. 2-9
Electrical System.......................................5-104
Lumbar Controls........................................... 1-3
Retained Accessory (RAP)............................2-24
Seat............................................................ 1-3
Steering Fluid.............................................5-36
Windows....................................................2-15
Pretensioners, Safety Belt................................1-29
Programmable Automatic Door Locks.................2-10Q
Questions and Answers About Safety Belts.........1-15
9
