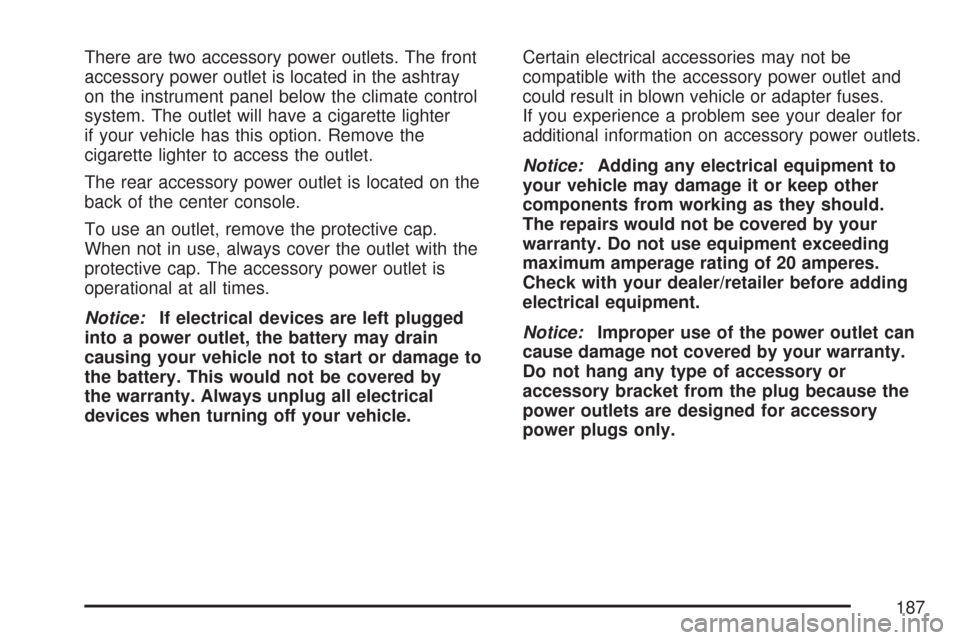

There are two accessory power outlets. The front
accessory power outlet is located in the ashtray
on the instrument panel below the climate control
system. The outlet will have a cigarette lighter
if your vehicle has this option. Remove the
cigarette lighter to access the outlet.
The rear accessory power outlet is located on the
back of the center console.
To use an outlet, remove the protective cap.
When not in use, always cover the outlet with the
protective cap. The accessory power outlet is
operational at all times.
Notice:If electrical devices are left plugged
into a power outlet, the battery may drain
causing your vehicle not to start or damage to
the battery. This would not be covered by
the warranty. Always unplug all electrical
devices when turning off your vehicle.Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem see your dealer for
additional information on accessory power outlets.
Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer/retailer before adding
electrical equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
187

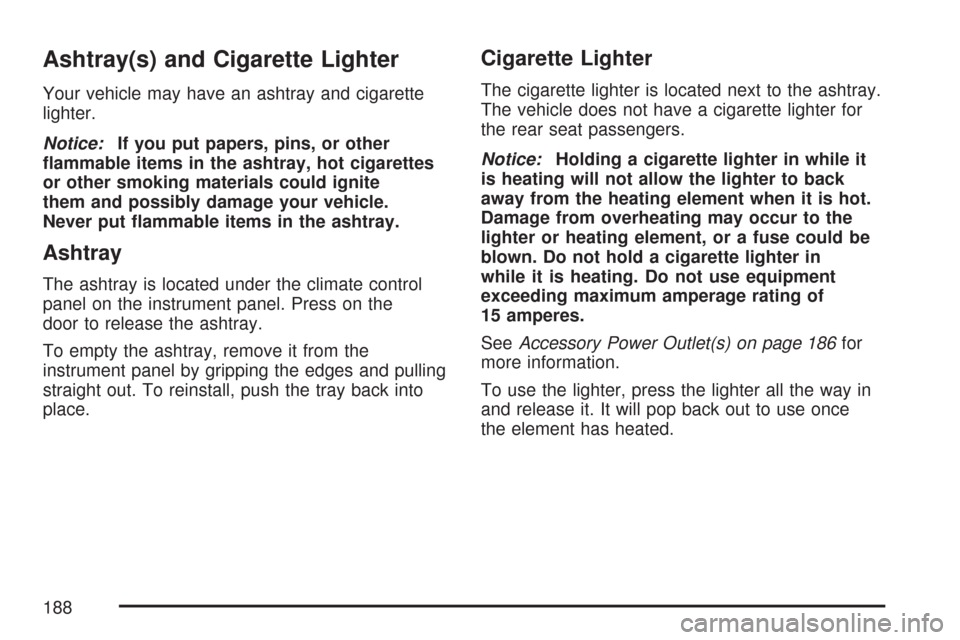

Ashtray(s) and Cigarette Lighter
Your vehicle may have an ashtray and cigarette
lighter.
Notice:If you put papers, pins, or other
ammable items in the ashtray, hot cigarettes
or other smoking materials could ignite
them and possibly damage your vehicle.
Never put ammable items in the ashtray.
Ashtray
The ashtray is located under the climate control
panel on the instrument panel. Press on the
door to release the ashtray.
To empty the ashtray, remove it from the
instrument panel by gripping the edges and pulling
straight out. To reinstall, push the tray back into
place.
Cigarette Lighter
The cigarette lighter is located next to the ashtray.
The vehicle does not have a cigarette lighter for
the rear seat passengers.
Notice:Holding a cigarette lighter in while it
is heating will not allow the lighter to back
away from the heating element when it is hot.
Damage from overheating may occur to the
lighter or heating element, or a fuse could be
blown. Do not hold a cigarette lighter in
while it is heating. Do not use equipment
exceeding maximum amperage rating of
15 amperes.
SeeAccessory Power Outlet(s) on page 186for
more information.
To use the lighter, press the lighter all the way in
and release it. It will pop back out to use once
the element has heated.
188

Climate Controls
Dual Climate Control System
With this system you can control the heating,
cooling, and ventilation for the vehicle.
Automatic Operation
AUTO (Automatic):When this button is pressed
and the temperature is set, the system will
automatically control the inside temperature, the air
delivery mode, the air conditioning compressor, and
the fan speed. AUTO will appear on the display.
1. Press the AUTO button.
2. Adjust the temperature to a comfortable
setting between 70°F (21°C) and 80°F (27°C).Choosing the coldest or warmest temperature
setting will not cause the system to heat or cool
any faster. If you set the system at the warmest
temperature setting, the system will remain in
manual mode at that temperature and it will not
go into automatic mode.
In cold weather, the system will start at
reduced fan speeds to avoid blowing cold air
into your vehicle until warmer air is available.
The system will start out blowing air at
the oor but may change modes automatically
as the vehicle warms up to maintain the
chosen temperature setting. The length of time
needed for warm up will depend on the
outside temperature and the length of time
that has elapsed since your vehicle was
last driven.
3. Wait for the system to regulate. This may take
from 10 to 30 minutes. Then adjust the
temperature, if necessary.
You can switch from English to metric units through
the Driver Information Center (DIC). If you have the
Base audio system, seeDIC Main Menu on
page 228. If you have the Navigation system, see
“Setup Menu” in the Index of the Navigation System
Owner Manual.
Uplevel Version Shown, Base Similar
189

If the airow seems low when the fan speed is at
the highest setting, the passenger compartment air
lter may need to be replaced. For more
information, seePassenger Compartment Air Filter
on page 195andScheduled Maintenance on
page 462.
h(Recirculation):This mode keeps outside
air from coming in the vehicle. It can be used
to prevent outside air and odors from entering your
vehicle or to help heat or cool the air inside your
vehicle more quickly. Press this button to
switch between recirculation and fresh air. Press
the auto button to have the system select the best
air delivery mode for your temperature setting.
Recirculation is not available in the defrost mode
and will automatically turn off after 10 minutes
when defog is selected.
Using recirculation for long periods of time may
cause the air inside your vehicle to become too dry
or stuffy. To prevent this from happening, after
the air in your vehicle has cooled, turn the
recirculation mode off or press the auto button.
((Heated Seats):Press this button to turn on
the heated seats. The button on the left controls
the driver’s seat and the button on the right
controls the passenger’s seat. SeeHeated Seats
on page 10.
QPWRR(Power/Driver’s Temperature):Press
the PWR button located on the driver’s side of
the climate control panel to turn the entire climate
control system on or off. Press the up or down
arrow on the switch to increase or decrease
the automatic temperature setting.
QPWRR(Power/Passenger’s Temperature):
Press the PWR button located on the passenger’s
side of the climate control panel to allow the
passenger’s climate control setting to be different
than the driver’s. Press the up or down arrow on the
switch to increase or decrease the automatic
temperature setting for the front passenger.
A/C OFF (Air Conditioning):Press this button to
manually turn off the air conditioning compressor.
Press AUTO to return to automatic operation
or press the A/C OFF button again.
191

Sensors
There is a solar sensor located on the instrument
panel, near the windshield.There is also an interior
temperature sensor
located to the right of
the steering wheel
on the instrument panel.
These sensors monitor the solar radiation and the
air inside your vehicle, they use the information to
maintain the selected temperature by adjusting to
the temperature, the fan speed, and the air delivery
system. The system may also supply cooler air to
the side of the vehicle facing the sun. The
recirculation mode will also be activated, as
necessary. Do not cover the sensors or the
automatic climate control system will not work
properly.
192

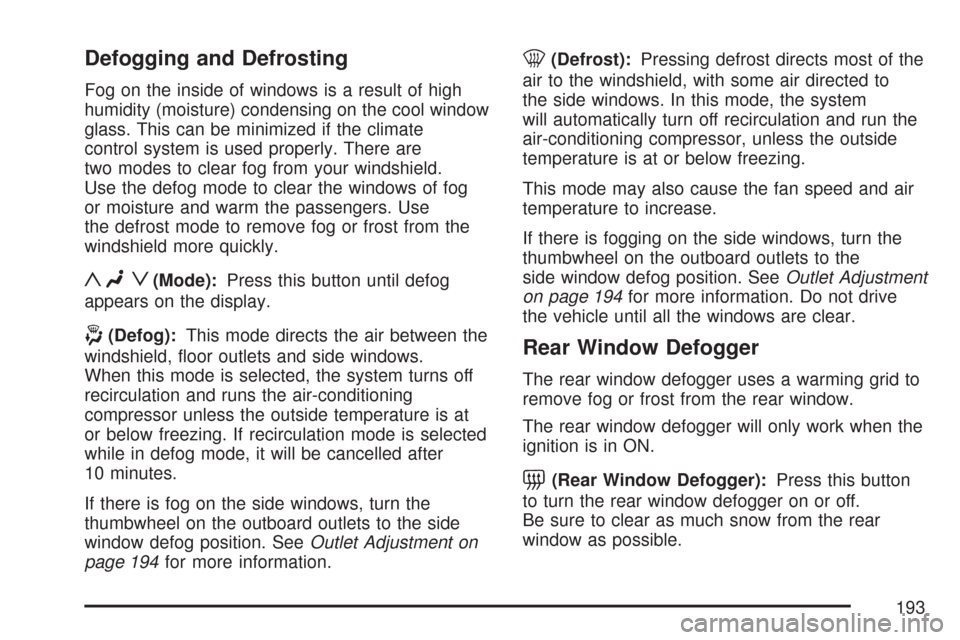

Defogging and Defrosting
Fog on the inside of windows is a result of high
humidity (moisture) condensing on the cool window
glass. This can be minimized if the climate
control system is used properly. There are
two modes to clear fog from your windshield.
Use the defog mode to clear the windows of fog
or moisture and warm the passengers. Use
the defrost mode to remove fog or frost from the
windshield more quickly.
yNz(Mode):Press this button until defog
appears on the display.
-(Defog):This mode directs the air between the
windshield, oor outlets and side windows.
When this mode is selected, the system turns off
recirculation and runs the air-conditioning
compressor unless the outside temperature is at
or below freezing. If recirculation mode is selected
while in defog mode, it will be cancelled after
10 minutes.
If there is fog on the side windows, turn the
thumbwheel on the outboard outlets to the side
window defog position. SeeOutlet Adjustment on
page 194for more information.
0(Defrost):Pressing defrost directs most of the
air to the windshield, with some air directed to
the side windows. In this mode, the system
will automatically turn off recirculation and run the
air-conditioning compressor, unless the outside
temperature is at or below freezing.
This mode may also cause the fan speed and air
temperature to increase.
If there is fogging on the side windows, turn the
thumbwheel on the outboard outlets to the
side window defog position. SeeOutlet Adjustment
on page 194for more information. Do not drive
the vehicle until all the windows are clear.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
The rear window defogger will only work when the
ignition is in ON.
=(Rear Window Defogger):Press this button
to turn the rear window defogger on or off.
Be sure to clear as much snow from the rear
window as possible.
193

Operation Tips

Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the
system.
Keep the path under the front seats clear of
objects to help circulate the air inside of
your vehicle more effectively.
Passenger Compartment Air Filter
The passenger compartment air lter traps most of
the pollen from the air entering your vehicle.
Like your vehicle’s engine air cleaner/lter, it needs
to be changed periodically. SeeScheduled
Maintenance on page 462.
Using the climate control system without the
passenger air lter installed may allow water or
other debris to enter the system. This could cause
a water leak or noises. Make sure to install a
new air lter after removing the old one.The passenger compartment air lter is located
underneath the hood below the windshield
wiper arm on the passenger’s side of the vehicle.
SeeEngine Compartment Overview on page 342
for more information on location.
Use the procedure listed below to replace the
passenger compartment air lter:
1. Turn the ignition to ON with the engine off.
2. Turn on the windshield wipers and turn them
off again when the wipers are straight on the
windshield.
This allows you access to the leaf screen.
The passenger compartment air lter is
located under the leaf screen.
195

3. Open the hood to access the engine
compartment. SeeHood Release on page 341
for more information.
4. Remove the four screws that hold the leaf
screen in place and lift off the screen by
lifting and sliding toward the center of
the vehicle.
5. Pull out on the two tabs located on each end
of the lter cover.
6. Lift the lter cover off by pulling it straight
upward.
7. Remove the old lter and insert a new one.
Make sure the arrow on the lter is pointing
toward the passenger compartment.
SeeNormal Maintenance Replacement Parts
on page 475for the correct part number
for the lter.
8. Reverse Steps 1 through 6 to reinstall
the cover.Steering Wheel Climate
Controls (CTS)
Your vehicle may have four controls that can be
programmed for use with the climate control
system.
The controls are located
on the left side of the
steering wheel.
SeeRecongurable Steering Wheel Controls
(SWC) (CTS) on page 169for more information on
programming these controls.
196

See “Activating Category (CAT) Stations (RDS
and XM™)” underRadio with CD on page 260for
more information.
ASEEK LOCAL/DISTANT:This feature instructs
the audio system to seek only local radio stations
with the strongest signal or to seek all radio stations
with a strong signal in a large area. Use LOCAL
when you are in urban areas where there are
several strong radio station signals and you want to
limit the number of stations to those with the
strongest signals only. Use DISTANT when you are
in rural areas where there are fewer radio station
signals available.
To switch between LOCAL and DISTANT, press
the TUNE/SEL knob. Once your choice is
displayed, turn the knob to set your choice and
continue scrolling through the main menu.
9(English/Metric Units):Use this menu item
to adjust the measurement units.
You can choose between ENGLISH UNITS and
METRIC UNITS. To switch between the two, press
the TUNE/SEL knob. Once your choice is
displayed, turn the knob to set your choice and
continue scrolling through the main menu.The measurement units that you choose will be
reected on all the vehicle system displays,
not just the DIC information. For example, the
climate control panel will display degrees Celsius
if you choose METRIC UNITS.
TCS (Traction Control System):You can enable
or disable the Traction Control System (TCS)
using this menu item. Press the TUNE/SEL knob
to switch between on and off.
You can also turn the TCS off using the traction
control button located in the glove box (CTS) or on
the steering wheel (CTS-V), or by programming
one of the steering wheel controls (1, 2, 3, or 4) or
audio system soft keys to enable/disable the
TCS. SeeRecongurable Steering Wheel Controls
(SWC) (CTS) on page 169and “Congurable
Radio Display Keys” underRadio with CD
on page 260for more information.
When you disable the TCS, the traction control
system warning light on the instrument panel
cluster will come on. SeeTraction Control System
(TCS) Warning Light on page 206for more
information.
231

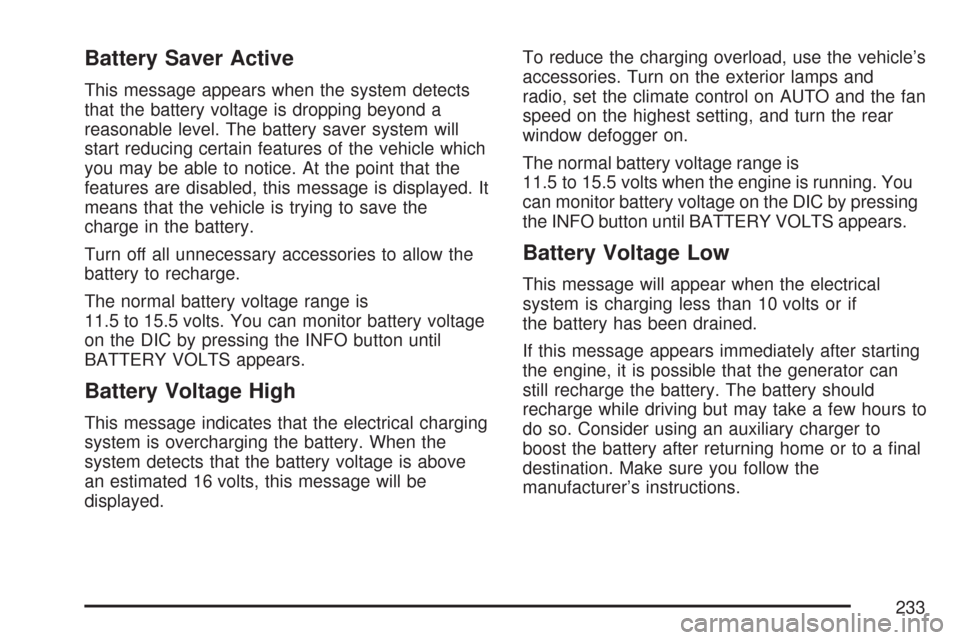

Battery Saver Active
This message appears when the system detects
that the battery voltage is dropping beyond a
reasonable level. The battery saver system will
start reducing certain features of the vehicle which
you may be able to notice. At the point that the
features are disabled, this message is displayed. It
means that the vehicle is trying to save the
charge in the battery.
Turn off all unnecessary accessories to allow the
battery to recharge.
The normal battery voltage range is
11.5 to 15.5 volts. You can monitor battery voltage
on the DIC by pressing the INFO button until
BATTERY VOLTS appears.
Battery Voltage High
This message indicates that the electrical charging
system is overcharging the battery. When the
system detects that the battery voltage is above
an estimated 16 volts, this message will be
displayed.To reduce the charging overload, use the vehicle’s
accessories. Turn on the exterior lamps and
radio, set the climate control on AUTO and the fan
speed on the highest setting, and turn the rear
window defogger on.
The normal battery voltage range is
11.5 to 15.5 volts when the engine is running. You
can monitor battery voltage on the DIC by pressing
the INFO button until BATTERY VOLTS appears.
Battery Voltage Low
This message will appear when the electrical
system is charging less than 10 volts or if
the battery has been drained.
If this message appears immediately after starting
the engine, it is possible that the generator can
still recharge the battery. The battery should
recharge while driving but may take a few hours to
do so. Consider using an auxiliary charger to
boost the battery after returning home or to a nal
destination. Make sure you follow the
manufacturer’s instructions.
233
