coolant CADILLAC CTS 2007 1.G User Guide

Engine Coolant Hot – Idle Engine
Notice:If you drive your vehicle while the
engine is overheating, severe engine damage
may occur. If an overheat warning appears
on the instrument panel cluster and/or
DIC, stop the vehicle as soon as possible. Do
not increase the engine speed above normal
idling speed. SeeEngine Overheating on
page 360for more information.
This message will appear when the engine coolant
temperature is too hot. Stop and allow the
vehicle to idle until it cools down.
Engine Power Reduced
This message informs you that the vehicle is
reducing engine power to try to protect the engine
or transmission from damage due to extreme
operating conditions. Reduced engine power can
affect the vehicle’s ability to accelerate. If this
message is on, but there is no reduction in
performance, proceed to your destination. The
performance may be reduced the next time
the vehicle is driven. The vehicle may be driven at
a reduced speed while this message is on, but
acceleration and speed may be reduced.Anytime this message stays on, the vehicle should
be taken to your dealer for service as soon as
possible.
Fuel Level Low
When this message appears on the display, it
means that your vehicle is low on fuel. You should
rell the fuel tank as soon as possible. A single
chime will sound when this message is displayed.
Headlamps Suggested
This message will appear when the amount of
available light outside the vehicle is low and
the exterior lamp control is off. This message
informs the driver that turning on the exterior lamps
is recommended even though the daytime
running lamps (DRL) are still illuminated and it has
become dark enough outside to require the
headlamps and/or other exterior lamps.
This message will also appear when the
windshield wipers have been on for more than
six seconds and the exterior lamp control is off or
in the parking lamp position.
237

Service........................................................ 332
Accessories and Modications................... 332
California Proposition 65 Warning.............. 333
Doing Your Own Service Work.................. 333
Adding Equipment to the Outside of
Your Vehicle.......................................... 334
Fuel............................................................. 334
Gasoline Octane........................................ 334
Gasoline Specications.............................. 335
California Fuel........................................... 335
Additives................................................... 336
Fuels in Foreign Countries........................ 336
Filling the Tank......................................... 337
Filling a Portable Fuel Container............... 339
Checking Things Under the Hood.............. 340
Hood Release........................................... 341
Engine Compartment Overview.................. 342
Engine Oil................................................. 346
Engine Oil Life System.............................. 349
Engine Air Cleaner/Filter............................ 351
Automatic Transmission Fluid.................... 353
Manual Transmission Fluid........................ 354Hydraulic Clutch........................................ 356
Engine Coolant.......................................... 356
Coolant Surge Tank Pressure Cap............ 360
Engine Overheating................................... 360
Overheated Engine Protection
Operating Mode..................................... 362
Cooling System......................................... 363
Power Steering Fluid................................. 368
Windshield Washer Fluid........................... 369
Brakes...................................................... 371
Battery...................................................... 375
Jump Starting............................................ 376
Rear Axle.................................................... 382
Headlamp Aiming........................................ 383
Bulb Replacement....................................... 386
High Intensity Discharge (HID) Lighting..... 386
Halogen Bulbs........................................... 386
Front Turn Signal and Fog Lamps............. 387
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps................................. 388
Back-Up and License Plate Lamps............ 389
Replacement Bulbs................................... 389
Section 5 Service and Appearance Care
329

Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing, and tools
away from any underhood electric fan.
{CAUTION:
Things that burn can get on hot engine
parts and start a re. These include
liquids like fuel, oil, coolant, brake uid,
windshield washer and other uids, and
plastic or rubber. You or others could be
burned. Be careful not to drop or spill
things that will burn onto a hot engine.
340

A. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 447.
B. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 369.
C. Battery. SeeBattery on page 375.
D. Passenger Compartment Air Filter. See
Passenger Compartment Air Filter on page 195.
E. Power Steering Fluid Reservoir (Under
Engine Cover). SeePower Steering Fluid on
page 368.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 346.G. Engine Oil Dipstick (Out of View). See
“Checking Engine Oil” underEngine Oil on
page 346.
H. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 371.
I. Hydraulic Clutch Reservoir (If Equipped) (Not
Shown). See “When to Check and What to Use”
underHydraulic Clutch on page 356.
J. Engine Coolant Surge Tank and Pressure Cap.
SeeCoolant Surge Tank Pressure Cap on
page 360andCooling System on page 363.
K. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 351.
343

A. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 447.
B. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 369.
C. Battery. SeeBattery on page 375.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 346.
E. Passenger Compartment Air Filter. See
Passenger Compartment Air Filter on page 195.
F. Engine Oil Fill Cap. See “When to Add
Engine Oil” underEngine Oil on page 346.G. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 368.
H. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 371.
I. Hydraulic Clutch Reservoir. See “When to
Check and What to Use” underHydraulic
Clutch on page 356.
J. Engine Coolant Surge Tank and Pressure Cap.
SeeCoolant Surge Tank Pressure Cap on
page 360andCooling System on page 363.
K. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 351.
345

Hydraulic Clutch
It is not necessary to regularly check clutch uid
unless you suspect there is a leak in the system.
Adding uid will not correct a leak.
A uid loss in this system could indicate a
problem. Have the system inspected and repaired.
When to Check and What to Use
The hydraulic clutch
uid reservoir cap has
this symbol on it.
SeeEngine
Compartment Overview
on page 342for
reservoir location.
Refer to the Maintenance Schedule to determine
how often you should check the uid level in
your clutch master cylinder reservoir and for the
proper uid to use. SeeOwner Checks and
Services on page 469andRecommended Fluids
and Lubricants on page 473.
How to Check and Add Fluid
Make sure the uid level is at the MIN (Minimum)
line on the side of the reservoir. If it is not,
remove the cap and add the proper uid until the
level reaches the MIN line.
Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years or
150,000 miles (240 000 km), whichever occurs
rst, if you add only DEX-COOL
®extended
life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 360.
356

A 50/50 mixture of clean, drinkable water and
DEX-COOL®coolant will:
Give freezing protection down to
−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Allow the warning lights and gages to work as
they should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core, or
radiator corrosion. In addition, the engine
coolant may require changing sooner, at the
rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would not
be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
What to Use
Use a mixture of one-half clean, drinkable water
and one-half DEX-COOL®coolant which will
not damage aluminum parts. If you use this coolant
mixture, you do not need to add anything else.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant.
Notice:If you use an improper coolant
mixture, your engine could overheat and be
badly damaged. The repair cost would not be
covered by your warranty. Too much water
in the mixture can freeze and crack the engine,
radiator, heater core, and other parts.
357

If you have to add coolant more than once or
twice a year, have your dealer check your cooling
system.
Notice:If you use extra inhibitors and/or
additives in your vehicle’s cooling system, you
could damage your vehicle. Use only the
proper mixture of the engine coolant listed in
this manual for the cooling system. See
Recommended Fluids and Lubricants on
page 473for more information.Checking Coolant
The coolant surge tank and pressure cap are
located on the driver’s side of the vehicle, toward
the rear of the engine compartment. See
Engine Compartment Overview on page 342for
more information on location.
358

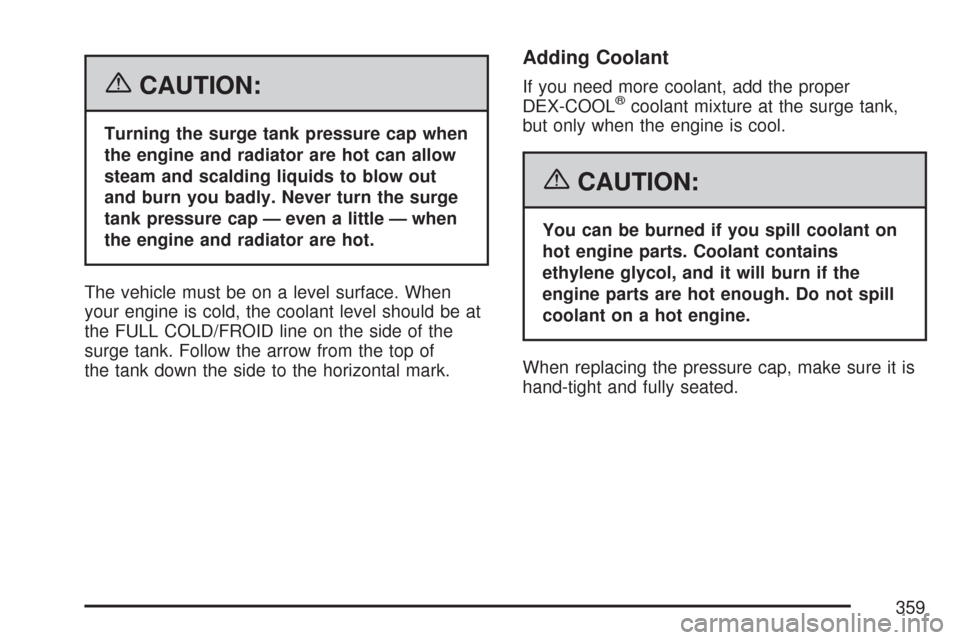

{CAUTION:
Turning the surge tank pressure cap when
the engine and radiator are hot can allow
steam and scalding liquids to blow out
and burn you badly. Never turn the surge
tank pressure cap — even a little — when
the engine and radiator are hot.
The vehicle must be on a level surface. When
your engine is cold, the coolant level should be at
the FULL COLD/FROID line on the side of the
surge tank. Follow the arrow from the top of
the tank down the side to the horizontal mark.
Adding Coolant
If you need more coolant, add the proper
DEX-COOL®coolant mixture at the surge tank,
but only when the engine is cool.
{CAUTION:
You can be burned if you spill coolant on
hot engine parts. Coolant contains
ethylene glycol, and it will burn if the
engine parts are hot enough. Do not spill
coolant on a hot engine.
When replacing the pressure cap, make sure it is
hand-tight and fully seated.
359

Coolant Surge Tank Pressure Cap
Notice:If the pressure cap is not tightly
installed, coolant loss and possible engine
damage may occur. Be sure the cap is properly
and tightly secured.
The coolant surge tank pressure cap must be fully
installed on the coolant surge tank. SeeEngine
Compartment Overview on page 342for more
information on location.
Engine Overheating
There are two engine hot messages that may be
displayed in the Driver Information Center
(DIC). SeeDIC Warnings and Messages on
page 232for more information.
If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can
burn you badly, even if you just open the
hood. Stay away from the engine if you
see or hear steam coming from it. Turn it
off and get everyone away from the
vehicle until it cools down. Wait until
there is no sign of steam or coolant
before you open the hood.
CAUTION: (Continued)
360
