CADILLAC CTS 2007 1.G Owners Manual

XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and Canada.
XM™ offers a large variety of coast-to-coast
channels including music, news, sports, talk,
traffic/weather (U.S. subscribers), and children’s
programming. XM™ provides digital quality
audio and text information that includes song title
and artist name. A service fee is required in
order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
CLOCK/INFO DISP (Clock/Information Display):
Press the CLOCK/INFO DISP button to switch
between the clock display, the XM™ screen, and
the XM™ information display.Press this button while in XM™ mode to retrieve
three different categories of information related
to the current song or channel: Artist, Song Title,
and Category. To view this information, perform
the following:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until CLOCK/INFO
DISP appears on the display.
3. Press the TUNE/SEL knob to select
CLOCK/INFO DISP. The display changes to
show the additional XM™ information.
4. To return to the original display, press the
CLR (clear) button or wait for the display to
time out.
If the CLOCK/INFO DISP is congured into one of
the congurable keys, pressing the key switches
the display between the radio station frequency
and the time. See “Congurable Radio Display
Keys” later in this section for more information.
261

Playing the Radio
PWR (Power):Press this knob to turn the system
on and off.
VOL (Volume):Turn this knob to increase or to
decrease the volume.
AVC (Automatic Volume Compensation):
Available only with the premium Bose
®audio
system. AVC, which utilizes Bose AudioPilot®
noise compensation technology, continuously
adjusts the audio system equalization, to
compensate for background noise, so that your
music always sounds the same at the set volume
level. This feature is most effective at lower
radio volume settings where background noise
can affect how well you hear the music being
played through your vehicle’s audio system.
At higher volume settings, where the music is
much louder than the background noise, there may
be little or no adjustments by AVC. To turn AVC
on and off, perform the following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until AUTO
VOLUME COMP. appears on the display.3. Press the TUNE/SEL knob to turn AVC on or
off. An X appears in the box when AVC is
selected on.
4. Press the CLR button to exit the display.
To return to the original display, repeatedly
press the CLR button or wait for the display to
time out.
For additional information on AudioPilot
®, please
visit www.bose.com/audiopilot.
SOURCE:Press this button to select a source,
either radio or CD. The CD must be loaded to select
the source and to play. CD appears on the display if
a CD is loaded. If a CD is not loaded the display
does not change from the radio source.
Finding a Station
BAND:Press this button to select FM1, FM2, AM,
or XM1 or XM2 (if equipped).
QSEEKR:Press the up or the down arrow to
go to the next or to the previous station and
stay there. SEEK appears on the display.
The sound mutes while seeking.
The radio only seeks stations with a strong signal
that are in the selected band.
262

QSCANR:Press the SCAN button to enter
scan mode. SCAN appears on the display.
Press the up arrow to scan to the next station.
The radio goes to a station, plays for ve seconds,
then goes to the next station. Press this button
again to stop scanning.
To scan preset stations, press and hold SCAN for
more than two seconds until you hear a beep
and PSCAN appears on the display. The radio
goes to the rst preset station stored on your rm
keys, plays for ve seconds, then goes to the
next preset station. Press SCAN again to
stop scanning presets.
The radio only scans stations with a strong signal
that are in the selected band.
LOCAL/DISTANT Selection:With this feature you
can set the radio to search for local stations or
stations that are further away for a larger selection.To set this feature to LOCAL or DISTANT, perform
the following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until SEEK LOCAL
or SEEK DISTANT appears on the display.
3. Press the TUNE/SEL knob to select either
LOCAL or DISTANT.
4. Press the CLR button to exit the display.
To return to the original display, repeatedly
press the CLR button or wait for the display to
time out.
To search for stations, press the SEEK up or down
arrows. If the system is set to LOCAL, SEEK
appears in the display and seeks to stations with
strong signals only. If the system is set to
DISTANT, D-SEEK appears in the display and
seeks to stations with weak and strong signals.
263

Setting Preset Stations
Up to 30 stations (six FM1, six FM2, and six AM,
six XM1 and six XM2 (if equipped)), can be
programmed on the six numbered rm keys, by
performing the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, or AM, or
XM1 or XM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered rm
keys for two seconds until you hear a beep.
The set preset station number appears on the
display above the rm key that it is set to.
Whenever that numbered rm key is pressed
for less than two seconds, the station that
was set returns.
5. Repeat the steps for each rm key.
To set the preset stations with an equalization
setting, DSP (digital signal processing)
setting, or a program type (PTY) setting, see
each of these features later in this section.
When a preset station is selected, once one of
these additional settings is selected, the
preset station remembers each setting and it
remains active, until the setting is selected
off for that preset station.AUTOSTORE PRESETS:To set the preset
stations automatically, perform the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, or AM.
3. Press the TUNE/SEL knob to enter the
main menu.
4. Turn the TUNE/SEL knob until AUTOSTORE
PRESETS appears on the display.
5. Press the TUNE/SEL knob to select.
AUTOSTORE appears on the display.
The radio automatically searches the band
and selects and stores the six radio stations
with the strongest signal. The stations are
stored by signal strength, not sequential order.
The set preset station number appears on
the display above the rm key that it is set to.
Whenever that numbered rm key is
pressed for less than two seconds, the station
that was set returns.
6. Press the CLR button to exit the display.
To return to the original display, repeatedly
press the CLR button or wait for the display to
time out.
When battery power is removed and later applied,
you do not have to reset your radio presets.
264

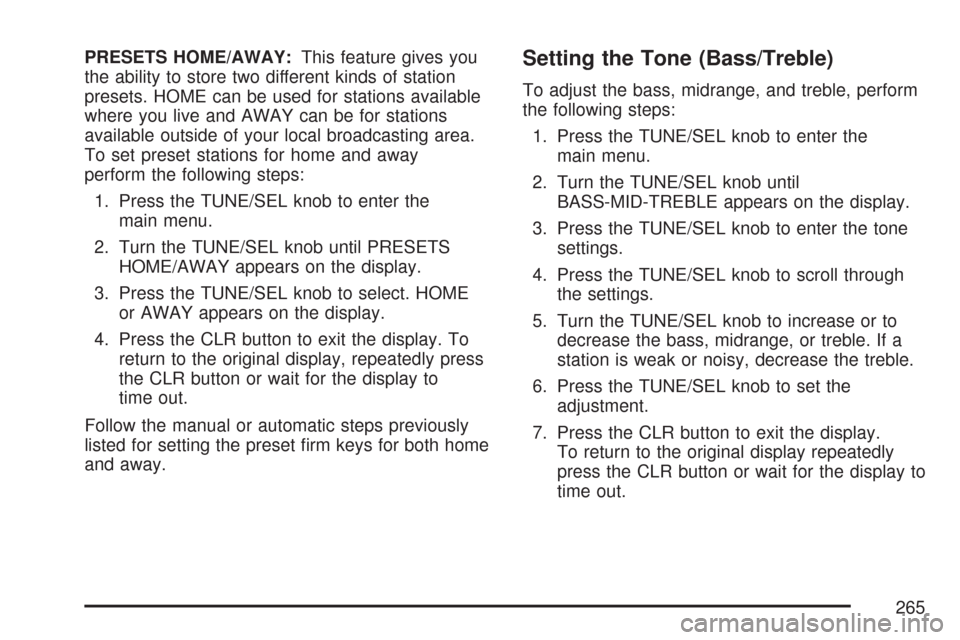

PRESETS HOME/AWAY:This feature gives you
the ability to store two different kinds of station
presets. HOME can be used for stations available
where you live and AWAY can be for stations
available outside of your local broadcasting area.
To set preset stations for home and away
perform the following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until PRESETS
HOME/AWAY appears on the display.
3. Press the TUNE/SEL knob to select. HOME
or AWAY appears on the display.
4. Press the CLR button to exit the display. To
return to the original display, repeatedly press
the CLR button or wait for the display to
time out.
Follow the manual or automatic steps previously
listed for setting the preset rm keys for both home
and away.Setting the Tone (Bass/Treble)
To adjust the bass, midrange, and treble, perform
the following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until
BASS-MID-TREBLE appears on the display.
3. Press the TUNE/SEL knob to enter the tone
settings.
4. Press the TUNE/SEL knob to scroll through
the settings.
5. Turn the TUNE/SEL knob to increase or to
decrease the bass, midrange, or treble. If a
station is weak or noisy, decrease the treble.
6. Press the TUNE/SEL knob to set the
adjustment.
7. Press the CLR button to exit the display.
To return to the original display repeatedly
press the CLR button or wait for the display to
time out.
265

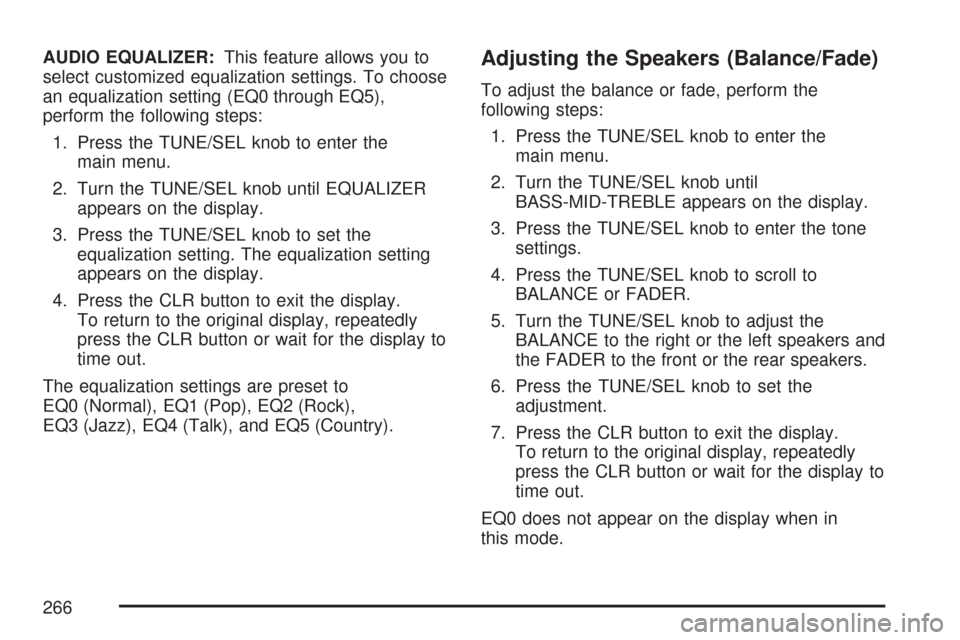

AUDIO EQUALIZER:This feature allows you to
select customized equalization settings. To choose
an equalization setting (EQ0 through EQ5),
perform the following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until EQUALIZER
appears on the display.
3. Press the TUNE/SEL knob to set the
equalization setting. The equalization setting
appears on the display.
4. Press the CLR button to exit the display.
To return to the original display, repeatedly
press the CLR button or wait for the display to
time out.
The equalization settings are preset to
EQ0 (Normal), EQ1 (Pop), EQ2 (Rock),
EQ3 (Jazz), EQ4 (Talk), and EQ5 (Country).Adjusting the Speakers (Balance/Fade)
To adjust the balance or fade, perform the
following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until
BASS-MID-TREBLE appears on the display.
3. Press the TUNE/SEL knob to enter the tone
settings.
4. Press the TUNE/SEL knob to scroll to
BALANCE or FADER.
5. Turn the TUNE/SEL knob to adjust the
BALANCE to the right or the left speakers and
the FADER to the front or the rear speakers.
6. Press the TUNE/SEL knob to set the
adjustment.
7. Press the CLR button to exit the display.
To return to the original display, repeatedly
press the CLR button or wait for the display to
time out.
EQ0 does not appear on the display when in
this mode.
266

Using Digital Signal Processing (DSP)
Available only with the premium Bose®audio
system, this feature is used to provide a choice of
ve different listening experiences: DSP normal,
talk, spacious, rear seat, and driver seat. DSP can
be used while listening to the radio or the CD
player. The radio keeps separate DSP settings for
each band, preset, and source. To select a
DSP choice, perform the following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until one of the
ve settings appears on the display.
3. Press the TUNE/SEL knob to select a
DSP setting.
4. Press the CLR button to exit the display. To
return to the original display, repeatedly press
the CLR button or wait for the display to
time out.DSP NORMAL:This setting provides the best
overall audio performance for all passengers.
DSP NORMAL does not appear on the display
when in this mode.
TALK:This setting should be used when listening
to non-musical material such as news, talk
shows, sports broadcasts, and books on tape.
Talk makes spoken words sound very clear.
SPACIOUS:This setting is used to make the
listening space seem larger.
REAR SEAT:This setting adjusts the audio to
give the rear seat passenger(s) the best possible
sound quality. Sound quality for the front seat
passengers may be different when this setting
is used.
DRIVER SEAT:This setting adjusts the audio to
give the driver the best possible sound quality.
Sound quality for the front and rear seat
passenger(s) may be different when this setting
is used.
267

RDS Messages
The RDS message feature is available only on
FM stations that broadcast RDS information.
See Radio Data System (RDS) for more
information earlier in this section.
ALERT:Alert warns of local and national
emergencies. When, an alert announcement
comes on the current radio station or a related
network station, ALERT appears on the display.
You will hear the announcement, even if the
volume is low or a CD is playing. If a CD
is playing, play stops during the announcement.
Alert announcements cannot be turned off. If
the radio tunes to a related network station for the
announcement, it returns to the original station
when the announcement is nished.
ALERT is not affected by tests of the emergency
broadcast system. This feature is not supported
by all RDS stations.
MSG (Message):If the current RDS station has a
message, MSG appears on the display. The
message may display the artist, song title, call in
phone numbers, etc. If the entire message
does not appear on the display, parts of themessage appears every three seconds until the
message is completed. Once the completed
message has displayed, MSG disappears from the
display until another new message is received.
To display the last message, perform the
following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until CLOCK/INFO
DISP appears on the display.
3. Press the TUNE/SEL knob. The message
appears on the display.
Once the message has displayed, MSG
disappears from the display until another new
message is received.
TP (Traffic Program):TP appears on the display
when the radio detects a signal from an RDS
station that has traffic announcement broadcast
capability.
TA (Traffic Announcement):If TA appears on
the display, the tuned radio station broadcasts
traffic announcements and when a traffic
announcement comes on the tuned station you
will hear it.
268

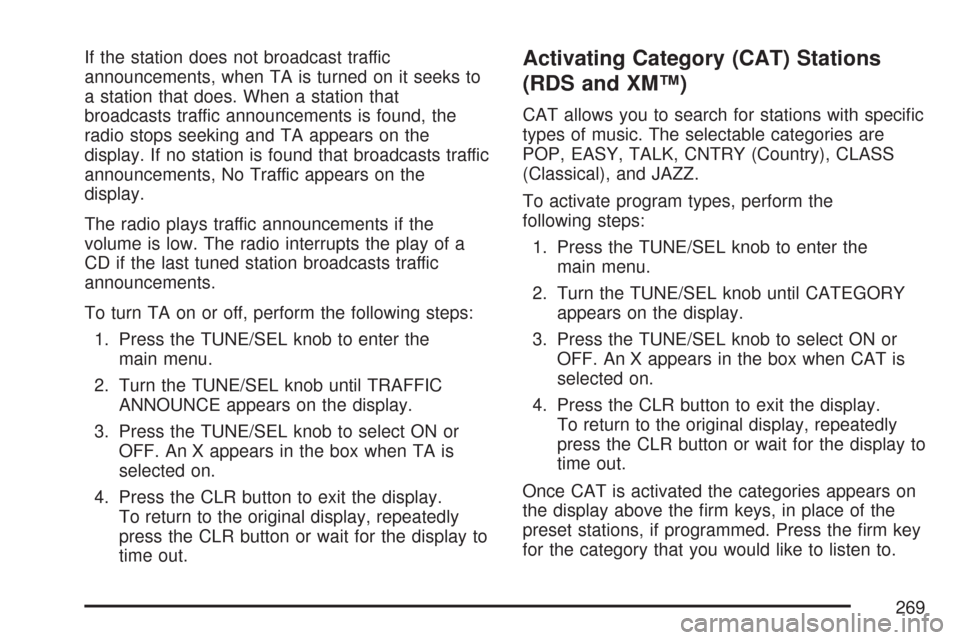

If the station does not broadcast traffic
announcements, when TA is turned on it seeks to
a station that does. When a station that
broadcasts traffic announcements is found, the
radio stops seeking and TA appears on the
display. If no station is found that broadcasts traffic
announcements, No Traffic appears on the
display.
The radio plays traffic announcements if the
volume is low. The radio interrupts the play of a
CD if the last tuned station broadcasts traffic
announcements.
To turn TA on or off, perform the following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until TRAFFIC
ANNOUNCE appears on the display.
3. Press the TUNE/SEL knob to select ON or
OFF. An X appears in the box when TA is
selected on.
4. Press the CLR button to exit the display.
To return to the original display, repeatedly
press the CLR button or wait for the display to
time out.Activating Category (CAT) Stations
(RDS and XM™)
CAT allows you to search for stations with specic
types of music. The selectable categories are
POP, EASY, TALK, CNTRY (Country), CLASS
(Classical), and JAZZ.
To activate program types, perform the
following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until CATEGORY
appears on the display.
3. Press the TUNE/SEL knob to select ON or
OFF. An X appears in the box when CAT is
selected on.
4. Press the CLR button to exit the display.
To return to the original display, repeatedly
press the CLR button or wait for the display to
time out.
Once CAT is activated the categories appears on
the display above the rm keys, in place of the
preset stations, if programmed. Press the rm key
for the category that you would like to listen to.
269

Not all stations support CAT. The radio may not
go to all of the stations with that music type when
pressing the rm key.
AF (Alternate Frequency):Alternate frequency
allows the radio to switch to a stronger station with
the same category.
To turn AF on or off, perform the following steps:
1. Press the TUNE/SEL knob to enter the
main menu.
2. Turn the TUNE/SEL knob until ALTERNATE
FREQ. appears on the display.
3. Press the TUNE/SEL knob to select AF OFF,
AF ON, or AF REG. An X appears in the box
when AF is selected on.
4. Press the CLR button to exit the display. To
return to the original display, repeatedly press
the CLR button or wait for the display to
time out.
This function does not apply for XM™ Satellite
Radio Service.Radio Message
THEFTLOCK:This message is displayed when
the THEFTLOCK®system has been activated.
Take the vehicle to the dealer for service.
Radio Messages for XM™ Only
SeeXM Radio Messages on page 277later in this
section for further detail.
Using the Single CD Player
Insert a CD partway into the slot, label side up.
The player pulls it in. If the ignition and the
radio are on the CD begins playing. A CD may be
loaded with the radio off but it does not start
playing until the radio is on.
If the ignition or radio is turned off with a CD in
the player, it stays in the player. When the ignition
or radio is turned on, the CD starts to play
where it stopped, if it was the last selected
audio source.
When the CD is inserted, CD appears on the
display. As each new track starts to play, the track
number appears on the display.
270
