brake light CADILLAC CTS 2007 1.G Owners Manual

DRIVE (D):This position is for normal driving.
It provides the best fuel economy for your vehicle.
If you need more power for passing, and you are:
Going less than 35 mph (55 km/h), push the
accelerator pedal about halfway down.
Going about 35 mph (55 km/h) or more,
push the accelerator all the way down.
The transmission will shift down to a lower gear
and have more power.
Downshifting the transmission in slippery road
conditions could result in skidding, see Skidding
underLoss of Control on page 303
Notice:Spinning the tires or holding the
vehicle in one place on a hill using only
the accelerator pedal may damage the
transmission. If you are stuck, do not spin
the tires. When stopping on a hill, use
the brakes to hold the vehicle in place.
Driver Shift Control (DSC)
Notice:If you drive your vehicle at high RPMs
without upshifting while using Driver Shift
Control (DSC), you could damage your
vehicle. Always upshift when necessary while
using DSC.
Your automatic transmission has a Driver Shift
Control (DSC) feature that allows you to change
gears similar to a manual transmission. To use the
DSC feature:
1. Slide the shift lever over from DRIVE (D) to
the right into the DSC area.
The sport mode light in
the instrument panel
cluster will come on.
If you do not move the shift lever forward or
rearward, the vehicle will be in sport mode.
When you are in the sport mode the
vehicle will still shift automatically.
124

Skip Shift (CTS-V)
1r4:This message may appear in the message
center in the speedometer during light throttle, low
speed maneuvers (15 to 19 mph (24 to 31 km/h)).
When this message appears, you can only shift
from FIRST (1) to FOURTH (4) instead of
FIRST (1) to SECOND (2).
SeeOne-to-Four Shift Message (CTS-V Only) on
page 222for more information.
During the shift from FIRST (1) to FOURTH (4),
pull the shift lever straight back using light force on
the shift lever. You must complete the shift into
FOURTH (4) to turn off this feature. This helps get
the best possible fuel economy. The skip shift
feature is turned backed on when the vehicle is at
a complete stop and the digital speedometer
reads 0 mph (0 km/h).
Notice:Forcing the shift lever into any gear
except FOURTH (4), when the One – to – Four
Shift message comes on, may damage the
transmission. Shift only from FIRST (1) to
FOURTH (4) when the One – to – Four Shift
message comes on.The One – to – Four Shift message comes on when:The engine coolant temperature is higher than
169°F (76°C) and you are going 15 to 19 mph
(24 to 31 km/h).
You are pressing the accelerator pedal less
then a quarter of the way down.
Parking Brake
The parking brake pedal
is located on the lower
portion of the instrument
panel to the left of the
steering wheel.
To set the parking brake, hold the regular brake
pedal down with your right foot and push the
parking brake pedal down with your left foot.
128

If the ignition is on, the brake system warning light
on the instrument panel cluster should come
on. If it does not, you need to have your vehicle
serviced. SeeBrake System Warning Light
on page 205for more information.
To release the parking brake, pull the release
lever located to the left of the steering wheel on
the instrument panel.Notice:Driving with the parking brake on
can overheat the brake system and cause
premature wear or damage to brake system
parts. Verify that the parking brake is fully
released and the brake warning light is
off before driving.
A warning chime will sound if the parking brake
is set, the ignition is on, and the vehicle begins
to move. To stop the chime, fully release the
parking brake.
If you are towing a trailer and parking on a hill,
seeTowing a Trailer on page 328for more
information.
129

Instrument Panel Overview........................ 166
Hazard Warning Flashers.......................... 168
Other Warning Devices............................. 168
Horn.......................................................... 168
Tilt Wheel.................................................. 169
Recongurable Steering Wheel
Controls (SWC) (CTS)........................... 169
Turn Signal/Multifunction Lever.................. 171
Turn and Lane-Change Signals................. 171
Headlamp High/Low-Beam Changer.......... 172
Flash-to-Pass............................................ 172
Windshield Wipers..................................... 173
Windshield Washer.................................... 174
Headlamp Washer..................................... 175
Cruise Control........................................... 176
Headlamps................................................ 180
Wiper Activated Headlamps....................... 180
Headlamps on Reminder........................... 181
Daytime Running Lamps (DRL)................. 181
Fog Lamps................................................ 183
Exterior Lighting Battery Saver.................. 183
Instrument Panel Brightness...................... 184
Entry Lighting............................................ 184Parade Dimming........................................ 185
Reading Lamps......................................... 185
Electric Power Management...................... 185
Battery Run-Down Protection..................... 186
Accessory Power Outlet(s)........................ 186
Ashtray(s) and Cigarette Lighter................ 188
Climate Controls......................................... 189
Dual Climate Control System..................... 189
Outlet Adjustment...................................... 194
Passenger Compartment Air Filter............. 195
Steering Wheel Climate Controls (CTS)..... 196
Warning Lights, Gages, and Indicators..... 197
Instrument Panel Cluster........................... 198
Speedometer and Odometer...................... 200
Trip Odometers......................................... 200
Tachometer............................................... 200
Engine Speed Limiter................................ 201
Safety Belt Reminder Light........................ 201
Airbag Readiness Light............................. 201
Passenger Airbag Status Indicator............. 202
Charging System Light.............................. 204
Brake System Warning Light..................... 205
Section 3 Instrument Panel
163

Anti-Lock Brake System Warning Light...... 206
Traction Control System (TCS)
Warning Light........................................ 206
Engine Coolant Temperature Warning
Light (CTS)............................................ 207
Engine Coolant Temperature Gage............ 208
Tire Pressure Light (CTS-V Only).............. 208
Malfunction Indicator Lamp........................ 209
Oil Pressure Light..................................... 212
Sport Mode Light (Automatic
Transmission/CTS)................................. 213
Security Light............................................ 213
Fog Lamp Light......................................... 213
Lights On Reminder.................................. 213
Cruise Control Light.................................. 214
Highbeam On Light................................... 214
Fuel Gage................................................. 214
Message Center.......................................... 215
Message Center (CTS-V).......................... 215
Transmission Fluid Hot Message............... 219
Hot Coolant Temperature Warning
Message................................................ 219
Check Engine Oil Pressure Message......... 220Oil Temperature Warning Message............ 220
Tire Pressure Warning Message................ 221
One-to-Four Shift Message
(CTS-V Only)......................................... 222
Driver Information Center (DIC).................. 222
System Controls........................................ 223
Status of Vehicle Systems......................... 223
DIC Main Menu......................................... 228
DIC Warnings and Messages.................... 232
DIC Vehicle Personalization....................... 242
Audio System(s)......................................... 258
Setting the Time........................................ 259
Radio with CD........................................... 260
XM Radio Messages................................. 277
Navigation/Radio System........................... 279
Theft-Deterrent Feature............................. 279
Audio Steering Wheel Controls (CTS)........ 279
Audio Steering Wheel Controls (CTS-V).... 280
Radio Reception........................................ 282
Care of Your CDs..................................... 283
Care of the CD Player.............................. 283
Diversity Antenna System.......................... 284
XM™ Satellite Radio Antenna System....... 284
Section 3 Instrument Panel
164

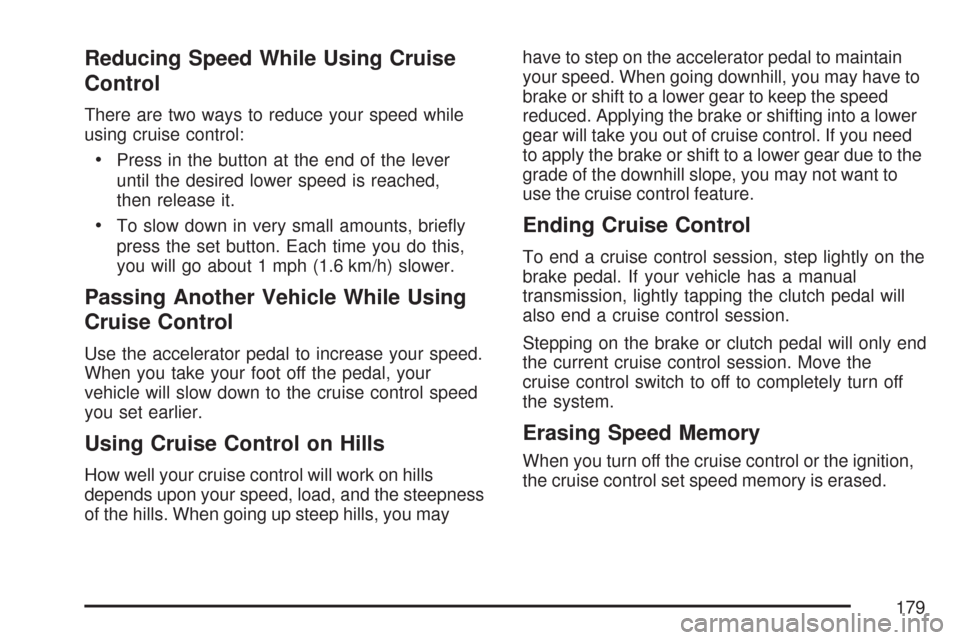

Reducing Speed While Using Cruise
Control
There are two ways to reduce your speed while
using cruise control:
Press in the button at the end of the lever
until the desired lower speed is reached,
then release it.
To slow down in very small amounts, briey
press the set button. Each time you do this,
you will go about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase your speed.
When you take your foot off the pedal, your
vehicle will slow down to the cruise control speed
you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills
depends upon your speed, load, and the steepness
of the hills. When going up steep hills, you mayhave to step on the accelerator pedal to maintain
your speed. When going downhill, you may have to
brake or shift to a lower gear to keep the speed
reduced. Applying the brake or shifting into a lower
gear will take you out of cruise control. If you need
to apply the brake or shift to a lower gear due to the
grade of the downhill slope, you may not want to
use the cruise control feature.
Ending Cruise Control
To end a cruise control session, step lightly on the
brake pedal. If your vehicle has a manual
transmission, lightly tapping the clutch pedal will
also end a cruise control session.
Stepping on the brake or clutch pedal will only end
the current cruise control session. Move the
cruise control switch to off to completely turn off
the system.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
the cruise control set speed memory is erased.
179

If it is dark enough outside and the exterior lamp
control is off, a Headlamps Suggested message
will appear on the Driver’s Information Center
(DIC) display. This message informs the driver that
turning on the exterior lamps is recommended
even though the DRL are still on. Turning the
exterior lamp control to AUTO or to the low-beam
headlamp position will turn off the DRL and
cancel the Headlamps Suggested message.
If the parking lamps or the fog lamps were turned
on instead, the DRL will still turn off and the
Headlamps Suggested message will be displayed.
You can turn it off by pressing the OK button if
you have the Navigation audio system or the
CLR (Clear) button if you have the base audio
system.
To drive your vehicle with the DRL off, turn the
exterior lamp control off. Then turn on the fog lamps
or parking lamps, and the DRL will turn off.
The Headlamps Suggested message will appear on
the DIC display. This will work regardless of gear
position and whether or not the parking brake is set.
As with any vehicle, you should turn on the
regular headlamp system when you need it.Light Sensor
The light sensor for the DRL and AUTO headlamp
feature is located on top of the instrument panel.
If you cover the sensor, it will prevent it from
sensing light, and the exterior lamps or the
Headlamps Suggested message will appear on
the DIC whenever the ignition is on.
182

Brake System Warning Light
Your vehicle’s hydraulic brake system is divided
into two parts. If one part is not working, the other
part can still work and stop you. For good
braking, though, you need both parts working well.
If the warning light comes on, there is a brake
problem. Have your brake system inspected
right away.
This light should come on briey when you turn
the ignition key to ON. If it does not come on then,
have it xed so it will be ready to warn you if
there is a problem.When the ignition is on, the brake system warning
light will also come on when you set your
parking brake. The light will stay on if your parking
brake does not release fully. If it stays on after
your parking brake is fully released, it means you
have a brake problem.
If the light comes on while you are driving, pull off
the road and stop carefully. You may notice
that the pedal is harder to push, or the pedal may
go closer to the oor. It may take longer to
stop. If the light is still on, have the vehicle towed
for service. SeeTowing Your Vehicle on
page 326.
{CAUTION:
Your brake system may not be working
properly if the brake system warning light
is on. Driving with the brake system
warning light on can lead to an accident.
If the light is still on after you have pulled
off the road and stopped carefully, have
the vehicle towed for service.
United StatesCanada
205

Anti-Lock Brake System
Warning Light
With the Anti-Lock
Brake System (ABS),
the light will come
on when your engine is
started and stay on
for several seconds.
This is normal.
If the ABS warning light comes on and stays on,
there may be a problem with the anti-lock
portion of the brake system. If the brake system
warning light is not on, you still have brakes,
but you do not have anti-lock brakes. SeeBrake
System Warning Light on page 205for more
information.
If the light stays on, turn the ignition to OFF. If the
light comes on when you are driving, stop as
soon as possible and turn the ignition off. Then
start the engine again to reset the system. If
the light still stays on, or comes on again while
you are driving, your vehicle needs service.If the regular brake system warning light is not on,
you still have brakes, but you do not have
anti-lock brakes. If the regular brake system
warning light is also on, you do not have anti-lock
brakes and there is a problem with your regular
brakes. SeeBrake System Warning Light on
page 205for more information.
The ABS warning light should come on briey
when you turn the ignition key to ON. If the light
does not come on then, have it xed so it will
be ready to warn you if there is a problem.
Traction Control System (TCS)
Warning Light
If the TC (traction
control) warning light
comes on and stays on,
there may be a
problem with the traction
control system.
206

Change Engine Oil
This message indicates that the life of the engine
oil has expired and it should be changed and
that your vehicle is due for service. See your
dealer. SeeEngine Oil on page 346and
Scheduled Maintenance on page 462for more
information.
When you reset the Change Engine Oil message
by clearing it from the display, you still must
reset the engine oil life system separately. For
more information on resetting the engine oil
life system, seeEngine Oil Life System on
page 349. If you clear this message from the
display, it will not re-appear.
Change Trans (Transmission) Fluid
(Automatic Transmission)
This message indicates that the life of the
transmission uid has expired and it should be
changed. SeeScheduled Maintenance on
page 462andRecommended Fluids and
Lubricants on page 473for the proper uid and
change intervals.When you reset the Change Trans Fluid message
by clearing it from the display, you still must
reset the transmission uid life monitor separately.
For more information on resetting the transmission
uid life monitor, seeAutomatic Transmission
Fluid on page 353.
Check Brake Fluid
This message will display if the ignition is in ON to
inform the driver that the brake uid level is low.
Have the brake system serviced by your dealer as
soon as possible. SeeBrake System Warning
Light on page 205andBrakes on page 371
for more information.
Check Gas Cap
When this message appears on the display, the
gas cap has not been fully tightened. You
should recheck the gas cap to ensure that it is on
and tightened properly. See “If the Light Is On
Steady” underMalfunction Indicator Lamp
on page 209for more information.
235
