Page 291 of 490

CADILLAC CTS 2008 2.G Owners Manual Tire and Loading Information Label
A vehicle speci�c Tire and Loading Information
label is attached to the vehicle’s center pillar
(B-pillar). With the driver’s door open, you will �nd
the label a

Page 292 of 490

CADILLAC CTS 2008 2.G Owners Manual Steps for Determining Correct
Load Limit
1.Locate the statement “The combined weight of
occupants and cargo should never exceed
XXX kg or XXX lbs” on your vehicle’s placard.
2.Determine the comb

Page 293 of 490

CADILLAC CTS 2008 2.G Owners Manual Item Description Total
AVehicle Capacity
Weight for
Example 1 =1,000 lbs
(453 kg)
BSubtract Occupant
Weight 150 lbs
(68 kg)×2=300 lbs (136 kg)
CAvailable Occupant
and Cargo Weight =700 lbs (317 kg)It

Page 294 of 490

CADILLAC CTS 2008 2.G Owners Manual Item Description Total
AVehicle Capacity
Weight for
Example 3=1,000 lbs
(453 kg)
BSubtract Occupant
Weight 200 lbs
(91 kg)×5=1,000 lbs
(453 kg)
CAvailable Cargo
Weight =0 lbs (0 kg)
Refer to your veh

Page 295 of 490

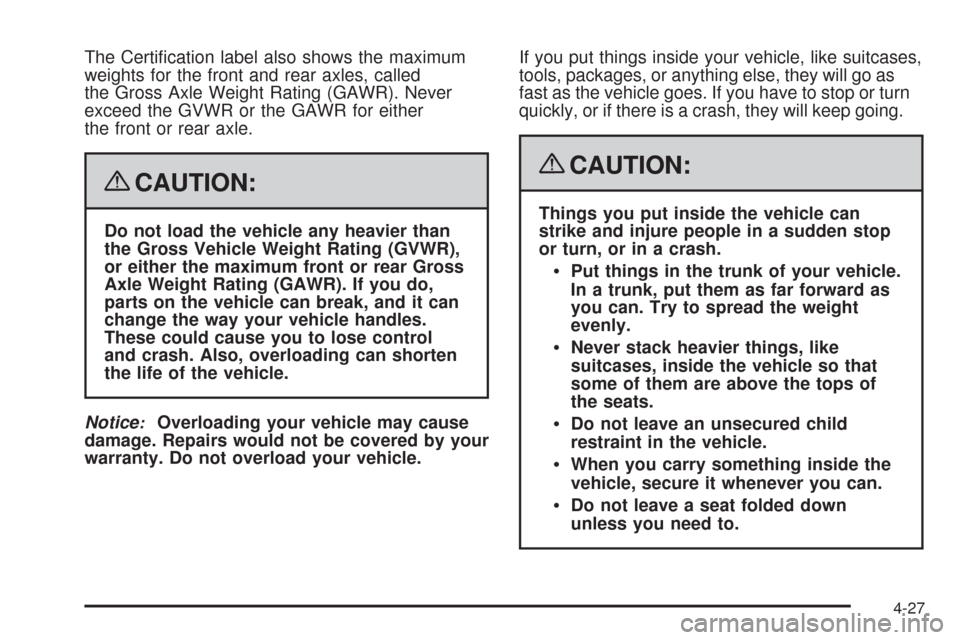

CADILLAC CTS 2008 2.G Owners Manual The Certi�cation label also shows the maximum
weights for the front and rear axles, called
the Gross Axle Weight Rating (GAWR). Never
exceed the GVWR or the GAWR for either
the front or rear axle.
{CA

Page 296 of 490

CADILLAC CTS 2008 2.G Owners Manual Towing
Towing Your Vehicle
Consult your dealer/retailer or a professional towing
service if you need to have your disabled vehicle towed.
SeeRoadside Service on page 7-7.
If you want to tow your vehic

Page 297 of 490

CADILLAC CTS 2008 2.G Owners Manual Dolly Towing (Rear-Wheel-Drive
Vehicles)
Your rear-wheel-drive vehicle can be towed using a
dolly. To tow your vehicle using a dolly:
1. Put the rear wheels on the dolly.
2. Securely attach the vehicl

Page 298 of 490

CADILLAC CTS 2008 2.G Owners Manual Towing a Trailer
{CAUTION:
If you do not use the correct equipment and
drive properly, you can lose control when you
pull a trailer. For example, if the trailer is too
heavy, the brakes may not work w

Page 299 of 490

CADILLAC CTS 2008 2.G Owners Manual If You Do Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will b

Page 300 of 490

CADILLAC CTS 2008 2.G Owners Manual Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important weight
to measure because it affects the total or gross weight
of your vehicle. The Gross Vehicle Weight (GVW)
includes
