Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit
Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by
electrical problems.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
you can.
To identify and check fuses, circuit
breakers, and relays, seeEngine
Compartment Fuse Block (CTS
Coupe and Sedan) on page 10‑40 or
Engine Compartment Fuse Block
(CTS V Coupe and Sedan) on
page 10‑44 orEngine Compartment
Fuse Block (CTS Wagon) on
page 10‑47 orEngine Compartment
Fuse Block (CTS V Wagon) on
page 10‑51 andRear Compartment
Fuse Block (CTS Coupe and
Sedan) on page 10‑54 orRear
Compartment Fuse Block (CTS-V
Coupe and Sedan) on page 10‑56
or Rear Compartment Fuse Block
(CTS Wagon) on page 10‑58 or
Rear Compartment Fuse Block
(CTS-V Wagon) on page 10‑60.
Engine Compartment
Fuse Block (CTS Coupe
and Sedan)
The underhood fuse block is located
on the left side of the engine
compartment.
Page 354 of 496
Black plate (42,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
10-42 Vehicle Care
Mini‐Fuses Usage27 Body Control
Module 4
28 Navigation Motor
29 All-Wheel Drive
30 Transmission
Control Module
Battery
31 Horn
33 Left Low‐Beam
Headlamp
(Domestic
Non‐HID Only)
34 Pedestrian
Protection System
(Export Only)
35 Body Control
Module 3
36 Body Control
Module 2
38 Headlamp Washer
(HID Only) Mini‐Fuses Usage
40 Right Low‐Beam
Headlamp
(Domestic
Non‐HID Only)
41 Air Conditioning
Compressor Clutch
43 Low‐Beam Daytime
Running Lamps
(non‐HID), Left
Daytime Running
Lamps (HID), Left
Trailer Turn Signal
(Export Only)
46 Left High‐Beam
Headlamp
47 Right High‐Beam
Headlamp
50 Right Daytime
Running Lamp,
Windshield
Washer Pump
51 Airbag System
Ignition Switch Mini‐Fuses Usage
52 Engine Control
Module Ignition,
Transmission
Control Module
Ignition
54 Power Moding
(Immobilizer
Module, Ignition
Switch)
55 Not Used
56 Windshield Wipers
57 Right Low‐Beam
(HID Only)
58 Daytime Running
Lamps (non‐HID),
Left Low‐Beam
(HID Only)
59 Right Daytime
Running Lamp
(HID Only), Right
Trailer Turn Signal
(Export Only)
Page 356 of 496
Black plate (44,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
10-44 Vehicle Care
RelaysUsage
12 Horn
20 Headlamp Washer
(HID Only)
21 Cooling Fan
(Series/Parallel)
32 Air Conditioning
Compressor Clutch
39 Windshield
Washer Pump
42 Right Daytime
Running Lamp,
Trailer Turn Signal
44 Low‐Beam
(non‐HID), Left
Daytime Running
Lamps (HID), Left
Trailer Turn Signal
(Export Only)
45 Front Fog Lamps
(HID Only)
48 High‐Beam
Headlamps Relays
Usage
49 Daytime Running
Lamps (Non‐HID),
Low‐Beam
Headlamps (HID)
53 Not Used
63 Main Ignition
66 Windshield Wipers
67 Powertrain
68 Windshield Wipers
High Speed
Engine Compartment
Fuse Block (CTS V Coupe
and Sedan)
This fuse block is on the left side of
the engine compartment.
Lift the fuse block cover to access
the fuses.
The vehicle may not be equipped
with all of the fuses and relays
shown.
Notice:
Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Page 357 of 496
Black plate (45,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Vehicle Care 10-45
Mini‐Fuses Usage11 Not Used
19 Antilock Braking
System (ABS)
22 Display
23 Sunroof Mini‐Fuses Usage
24 Body Control
Module 1
25 Automatic Forward
Lighting System
(HID Only)
26 Body Control
Module 5 Mini‐Fuses Usage
27 Body Control
Module 4
28 Navigation Motor
29 Not Used
30 Transmission
Control Module
Battery
31 Horn
33 Not Used
34 Pedestrian
Protection System
(Export Only)
35 Body Control
Module 3
36 Body Control
Module 2
38 Headlamp Washer
(HID Only)
40 Not Used
41 Air Conditioning
Compressor Clutch
Page 358 of 496
Black plate (46,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
10-46 Vehicle Care
Mini‐Fuses Usage43 Left Daytime
Running
Lamps (HID)
46 Left High‐Beam
Headlamp
47 Right High‐Beam
Headlamp
50 Right Daytime
Running Lamp,
Windshield
Washer Pump
51 Airbag System
Ignition Switch
52 Engine Control
Module Ignition,
Transmission
Control Module
Ignition
54 Power Moding
(Immobilizer
Module, Ignition
Switch) Mini‐Fuses Usage
55 Intercooler Pump
56 Windshield Wipers
57 Right Low‐Beam
(HID Only)
58 Left Low‐Beam
(HID Only)
59 Right Daytime
Running Lamp
(HID Only)
60 Instrument Panel
Auxiliary Power
Outlet
61 Air Quality Sensor,
Inside Rear View
Mirror, Rear
Camera
62 Ignition
64 Steering Wheel
Illumination
65 Front Fog Lamps
(HID Only) Mini‐Fuses Usage
69 Body Control
Module 6, Body
Control Module 7
70 Emissions 1
71 Even Ignition Coils
72 Odd Ignition Coils
73 Emissions 2
74 Engine Control
Module
75 Not Used
76 Spare
77 Spare
78 Spare
79 Spare
80 Spare
81 Spare
Page 359 of 496
Black plate (47,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Vehicle Care 10-47
J-CaseFuses Usage
6 Cooling Fan 2
7 Cooling Fan 1
8 Starter
9 Not Used
10 Antilock Brake
System Motor
13 Not Used
14 Electric Parking
Brake
15 Not Used
16 Not Used
17 Blower Motor
18 Rear Window
Defogger
37 Magnetic Ride/
Suspension Control Relays Usage
1 Cooling Fan 2
2 Cooling Fan 1
3 Starter
4 Rear Window
Defogger
5 Instrument Panel
Auxiliary Power
Outlet
12 Horn
20 Headlamp Washer
(HID Only)
21 Cooling Fan (Series/
Parallel)
32 Air Conditioning
Compressor Clutch
39 Windshield
Washer Pump
42 Right Daytime
Running Lamp
44 Left Daytime
Running Lamp (HID) Relays Usage
45 Front Fog Lamps
(HID Only)
48 High‐Beam
Headlamps
49 Low‐Beam
Headlamps (HID)
53 Not Used
63 Main Ignition
66 Windshield Wipers
67 Powertrain
68 Windshield Wipers
High Speed
Engine Compartment
Fuse Block (CTS Wagon)
This fuse block is on the left side of
the engine compartment.
Page 361 of 496
Black plate (49,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Vehicle Care 10-49
Mini‐Fuses Usage27 Body Control
Module 4
28 Navigation Motor
29 All-Wheel Drive
30 Transmission
Control Module
Battery
31 Horn
33 Left Low‐Beam
Headlamp
(Domestic
Non‐HID Only)
34 Pedestrian
Protection System
(Export Only)
35 Body Control
Module 3
36 Body Control
Module 2
38 Headlamp Washer
(HID Only) Mini‐Fuses Usage
40 Right Low‐Beam
Headlamp
(Domestic
Non‐HID Only)
41 Air Conditioning
Compressor Clutch
43 Low‐Beam Daytime
Running Lamps
(non‐HID), Left
Daytime Running
Lamps (HID), Left
Trailer Turn Signal
(Export Only)
46 Left High‐Beam
Headlamp
47 Right High‐Beam
Headlamp
50 Right Daytime
Running Lamp
51 Airbag System
Ignition Switch Mini‐Fuses Usage
52 Engine Control
Module Ignition,
Transmission
Control Module
Ignition
54 Power Moding
(Immobilizer
Module, Ignition
Switch)
55 Not Used
56 Windshield Wipers
57 Right Low‐Beam
(HID Only)
58 Daytime Running
Lamps (non‐HID),
Left Low‐Beam
(HID Only)
59 Right Daytime
Running Lamp
(HID Only), Right
Trailer Turn Signal
(Export Only)
Page 363 of 496
Black plate (51,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Vehicle Care 10-51
RelaysUsage
12 Horn
20 Headlamp Washer
(HID Only)
21 Cooling Fan
(Series/Parallel)
32 Air Conditioning
Compressor Clutch
39 Not Used
42 Right Daytime
Running Lamp,
Trailer Turn Signal
44 Low‐Beam
(non‐HID), Left
Daytime Running
Lamps (HID), Left
Trailer Turn Signal
(Export Only)
45 Front Fog Lamps
(HID Only)
48 High‐Beam
Headlamps Relays
Usage
49 Daytime Running
Lamps (Non‐HID),
Low‐Beam
Headlamps (HID)
53 Not Used
63 Main Ignition
66 Windshield Wipers
67 Powertrain
68 Windshield Wipers
High Speed
Engine Compartment
Fuse Block (CTS V
Wagon)
The underhood fuse block is located
on the left side of the engine
compartment.
Lift the fuse block cover to access
the fuses.
The vehicle may not be equipped
with all of the fuses and relays
shown.
Notice:
Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Page 364 of 496
Black plate (52,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
10-52 Vehicle Care
Mini‐Fuses Usage11 Not Used
19 Antilock Braking
System (ABS)
22 Display
23 Sunroof Mini‐Fuses Usage
24 Body Control
Module 1
25 Automatic Forward
Lighting System
(HID Only)
26 Body Control
Module 5 Mini‐Fuses Usage
27 Body Control
Module 4
28 Navigation Motor
29 Not Used
30 Transmission
Control Module
Battery
31 Horn
33 Not Used
34 Pedestrian
Protection System
(Export Only)
35 Body Control
Module 3
36 Body Control
Module 2
38 Headlamp Washer
(HID Only)
40 Not Used
41 Air Conditioning
Compressor Clutch
Page 365 of 496
Black plate (53,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Vehicle Care 10-53
Mini‐Fuses Usage43 Left Daytime
Running
Lamp (HID)
46 Left High‐Beam
Headlamp
47 Right High‐Beam
Headlamp
50 Right Daytime
Running Lamp
51 Airbag System
Ignition Switch
52 Engine Control
Module Ignition,
Transmission
Control Module
Ignition
54 Power Moding
(Immobilizer
Module, Ignition
Switch)
55 Intercooler Pump
56 Windshield Wipers Mini‐Fuses Usage
57 Right Low‐Beam
(HID Only)

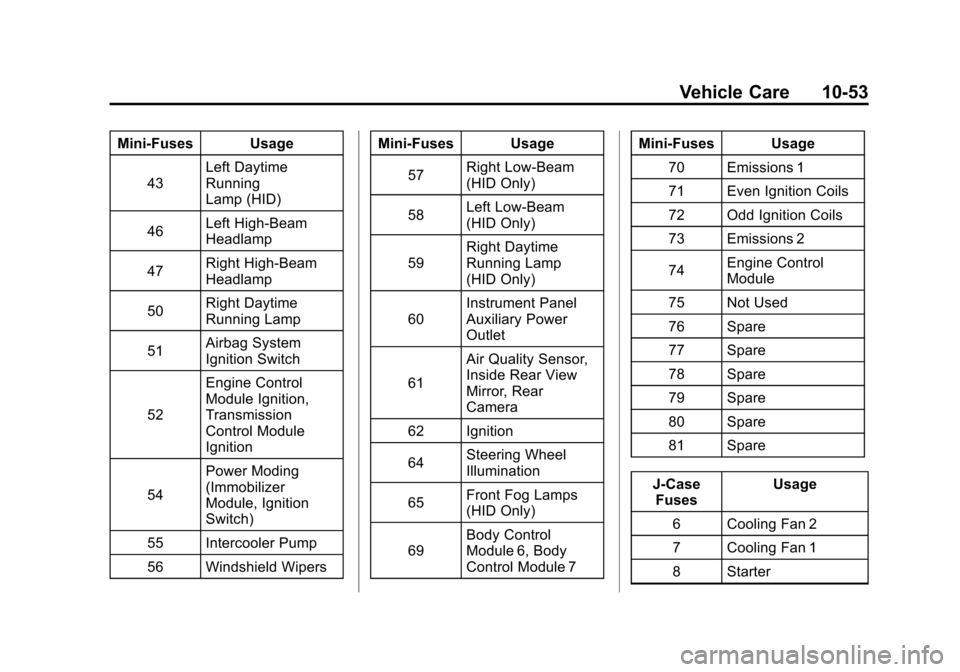

58 Left Low‐Beam
(HID Only)
59 Right Daytime
Running Lamp
(HID Only)
60 Instrument Panel
Auxiliary Power
Outlet
61 Air Quality Sensor,
Inside Rear View
Mirror, Rear
Camera
62 Ignition
64 Steering Wheel
Illumination
65 Front Fog Lamps
(HID Only)
69 Body Control
Module 6, Body
Control Module 7 Mini‐Fuses Usage
70 Emissions 1
71 Even Ignition Coils
72 Odd Ignition Coils
73 Emissions 2
74 Engine Control
Module
75 Not Used
76 Spare
77 Spare
78 Spare
79 Spare
80 Spare
81 Spare
J-Case Fuses Usage
6 Cooling Fan 2
7 Cooling Fan 1
8 Starter
