Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
VEHICLE CARE 295
All-Season Tires
This vehicle may come with all-season
tires. These tires are designed to
provide good overall performance on
most road surfaces and weather
conditions. Original equipment tires
designed to GM's specific tire
performance criteria have a TPC
specification code molded onto the
sidewall. Original equipment
all-season tires can be identified by
the last two characters of this TPC
code, which will be“MS.”
Consider installing winter tires on the
vehicle if frequent driving on snow or
ice-covered roads is expected.
All-season tires provide adequate
performance for most winter driving
conditions, but they may not offer the
same level of traction or performance
as winter tires on snow or ice-covered
roads. See Winter Tires 0295.
Winter Tires
This vehicle was not originally
equipped with winter tires. Winter
tires are designed for increased
traction on snow and ice-covered roads. Consider installing winter tires
on the vehicle if frequent driving on
ice or snow covered roads is expected.
See your dealer for details regarding
winter tire availability and proper tire
selection. Also, see
Buying New Tires
0 309.
With winter tires, there may be
decreased dry road traction, increased
road noise, and shorter tread life.
After changing to winter tires, be alert
for changes in vehicle handling and
braking.
If using winter tires:
. Use tires of the same brand and
tread type on all four wheel
positions.
. Use only radial ply tires of the
same size, load range, and speed
rating as the original equipment
tires.
Winter tires with the same speed
rating as the original equipment tires
may not be available for H, V, W, Y,
and ZR speed rated tires. If winter
tires with a lower speed rating are
chosen, never exceed the tire's
maximum speed capability.
Run-Flat Tires
This vehicle, when new, may have had
run-flat tires. There is no spare tire,
no tire changing equipment, and no
place to store a tire in the vehicle.
The vehicle also has a Tire Pressure
Monitor System (TPMS) that indicates
a loss of tire pressure in any of the
tires.
{Warning
If the low tire warning light displays
on the instrument cluster, the
handling capabilities will be
reduced during severe maneuvers.
Driving too fast could cause loss of
control and you or others could be
injured. Do not drive over 90 km/h
(55 mph) when the low tire warning
light is displayed. Drive cautiously
and check the tire pressures as
soon as possible.
Run-flat tires can be driven on with
no air pressure. There is no need to
stop on the side of the road to change
the tire. Continue driving; however, do

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
VEHICLE CARE 309

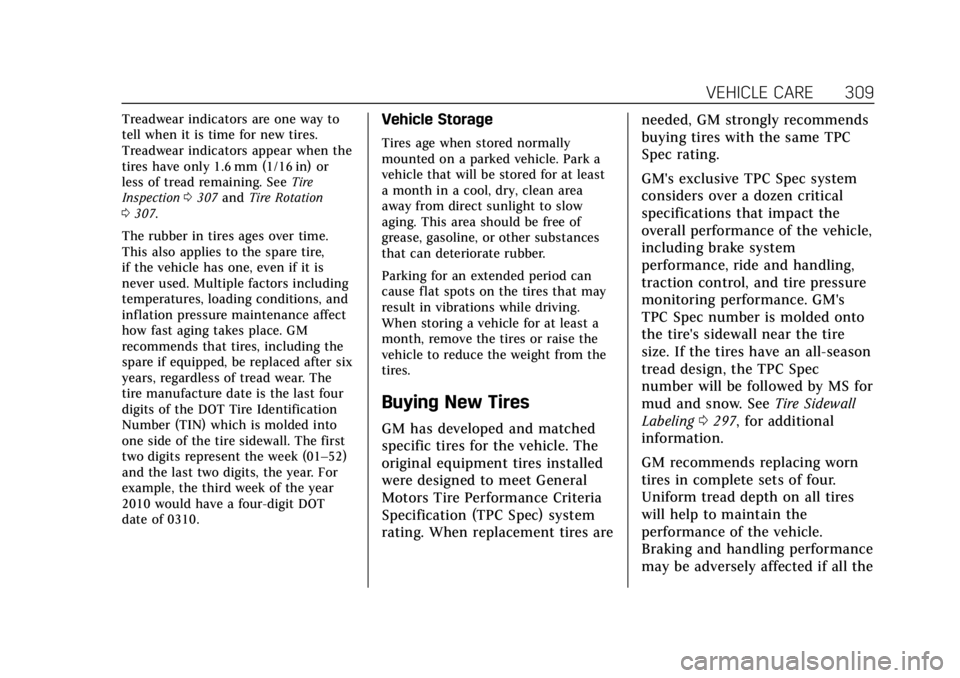

Treadwear indicators are one way to
tell when it is time for new tires.
Treadwear indicators appear when the
tires have only 1.6 mm (1/16 in) or
less of tread remaining. SeeTire
Inspection 0307 and Tire Rotation
0 307.
The rubber in tires ages over time.
This also applies to the spare tire,
if the vehicle has one, even if it is
never used. Multiple factors including
temperatures, loading conditions, and
inflation pressure maintenance affect
how fast aging takes place. GM
recommends that tires, including the
spare if equipped, be replaced after six
years, regardless of tread wear. The
tire manufacture date is the last four
digits of the DOT Tire Identification
Number (TIN) which is molded into
one side of the tire sidewall. The first
two digits represent the week (01–52)
and the last two digits, the year. For
example, the third week of the year
2010 would have a four-digit DOT
date of 0310.Vehicle Storage
Tires age when stored normally
mounted on a parked vehicle. Park a
vehicle that will be stored for at least
a month in a cool, dry, clean area
away from direct sunlight to slow
aging. This area should be free of
grease, gasoline, or other substances
that can deteriorate rubber.
Parking for an extended period can
cause flat spots on the tires that may
result in vibrations while driving.
When storing a vehicle for at least a
month, remove the tires or raise the
vehicle to reduce the weight from the
tires.
Buying New Tires
GM has developed and matched
specific tires for the vehicle. The
original equipment tires installed
were designed to meet General
Motors Tire Performance Criteria
Specification (TPC Spec) system
rating. When replacement tires are needed, GM strongly recommends
buying tires with the same TPC
Spec rating.
GM's exclusive TPC Spec system
considers over a dozen critical
specifications that impact the
overall performance of the vehicle,
including brake system
performance, ride and handling,
traction control, and tire pressure
monitoring performance. GM's
TPC Spec number is molded onto
the tire's sidewall near the tire
size. If the tires have an all-season
tread design, the TPC Spec
number will be followed by MS for
mud and snow. See
Tire Sidewall
Labeling 0297, for additional
information.
GM recommends replacing worn
tires in complete sets of four.
Uniform tread depth on all tires
will help to maintain the
performance of the vehicle.
Braking and handling performance
may be adversely affected if all the

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
VEHICLE CARE 311
Different Size Tires and
Wheels
If wheels or tires are installed that are
a different size than the original
equipment wheels and tires, vehicle
performance, including its braking,
ride and handling characteristics,
stability, and resistance to rollover
may be affected. If the vehicle has
electronic systems such as antilock
brakes, rollover airbags, traction
control, electronic stability control,
or All-Wheel Drive, the performance
of these systems can also be affected.
{Warning
If different sized wheels are used,
there may not be an acceptable
level of performance and safety if
tires not recommended for those
wheels are selected. This increases
the chance of a crash and serious
injury. Only use GM specific wheel
and tire systems developed for the
vehicle, and have them properly
installed by a GM certified
technician.See
Buying New Tires 0309 and
Accessories and Modifications 0254.
Uniform Tire Quality
Grading
The following information relates
to the system developed by the
United States National Highway
Traffic Safety Administration
(NHTSA), which grades tires by
treadwear, traction, and
temperature performance. This
applies only to vehicles sold in the
United States. The grades are
molded on the sidewalls of most
passenger car tires. The Uniform
Tire Quality Grading (UTQG)
system does not apply to deep
tread, winter tires, compact spare
tires, tires with nominal rim
diameters of 10 to 12 inches
(25 to 30 cm), or to some
limited-production tires.
While the tires available on
General Motors passenger cars
and light trucks may vary with respect to these grades, they must
also conform to federal safety
requirements and additional
General Motors Tire Performance
Criteria (TPC) standards.
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
Treadwear 200 Traction AA
Temperature A
All Passenger Car Tires Must
Conform to Federal Safety
Requirements In Addition To
These Grades.
Treadwear
The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded
150 would wear one and one-half
(1½) times as well on the

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
312 VEHICLE CARE
government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of
their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences
in road characteristics and
climate.
Traction
The traction grades, from highest
to lowest, are AA, A, B, and C.
Those grades represent the tire's
ability to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance. Warning: The
traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does notinclude acceleration, cornering,
hydroplaning, or peak traction
characteristics.
Temperature
The temperature grades are A (the
highest), B, and C, representing
the tire's resistance to the
generation of heat and its ability
to dissipate heat when tested
under controlled conditions on a
specified indoor laboratory test
wheel. Sustained high temperature
can cause the material of the tire
to degenerate and reduce tire life,
and excessive temperature can
lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Safety Standard
No. 109. Grades B and A represent
higher levels of performance on
the laboratory test wheel than the
minimum required by law.
Warning: The temperature grade
for this tire is established for a tirethat is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
alignment and tire balancing are not
necessary on a regular basis. Consider
an alignment check if there is unusual
tire wear or the vehicle is significantly
pulling to one side or the other. Some
slight pull to the left or right,
depending on the crown of the road
and/or other road surface variations
such as troughs or ruts, is normal.
If the vehicle is vibrating when driving
on a smooth road, the tires and
wheels may need to be rebalanced.
See your dealer for proper diagnosis.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
VEHICLE CARE 313
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nuts
should be replaced. If the wheel leaks
air, replace it. Some aluminum wheels
can be repaired. See your dealer if any
of these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the same
load-carrying capacity, diameter,
width, offset, and be mounted the
same way as the one it replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor System
(TPMS) sensors with new GM original
equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the(Continued)
Warning (Continued)
vehicle. Tires can lose air, and
cause loss of control, causing a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may(Continued)
Warning (Continued)
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.
Tire Chains
{Warning
If the vehicle has P245/40R18,
245/40R18, 275/35R18, 255/35R19,
265/35ZR19, or 295/30ZR19 size
tires, do not use tire chains. There
is not enough clearance. Tire chains
used on a vehicle without the
proper amount of clearance can
cause damage to the brakes,
suspension, or other vehicle parts.
The area damaged by the tire
chains could cause loss of control
and a crash. Use another type of
traction device only if its
manufacturer recommends it for
the vehicle's tire size combination(Continued)

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
384 INDEX
Climate Control Systems (cont'd)Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Cluster, Instrument . . . . . . . . . . . . . . . . . 118
Collision Damage Repair . . . . . . . . . . . 364
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Competitive Driving Mode . . . . . . . . . 211
Composite Materials . . . . . . . . . . . . . . . . 192
Compressor Kit, Tire Sealant . . . . . . . 315
Connections OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Control
Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Control of a Vehicle . . . . . . . . . . . . . . . . 178
Convenience Net . . . . . . . . . . . . . . . . . . . . 108
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . 47
Coolant Engine Temperature Gauge . . . . . . 124
Engine Temperature WarningLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Cooling . . . . . . . . . . . . . . . . . . . . . . . . .167, 172
Cooling System . . . . . . . . . . . . . . . . . . . . . 269
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . 158
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363 Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 214
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Cruise Control, Adaptive . . . . . . . . . . . 217
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Customer Assistance . . . . . . . . . . . . . . . 359 Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
Text Telephone (TTY) Users . . . . . 359
Customer Information Service Publications OrderingInformation . . . . . . . . . . . . . . . . . . . . . . 366
Customer Satisfaction
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 357
D
Damage Repair, Collision . . . . . . . . . . . 364
Danger, Warning, and Caution . . . . . . . . 3
Data CollectionInfotainment System . . . . . . . . . . . . . 370
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Data Recorder Performance . . . . . . . . . . . . . . . . . . . . . . . 161
Data Recorders, Event . . . . . . . . . . . . . . 369
Daytime Running Lamps (DRL) . . . 155
Defensive Driving . . . . . . . . . . . . . . . . . . . 178
Delayed Locking . . . . . . . . . . . . . . . . . . . . . 40
Diagnostics OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Differential, Limited-Slip . . . . . . . . . . . 214 Distracted Driving . . . . . . . . . . . . . . . . . . 177
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . 158
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . 136
Delayed Locking . . . . . . . . . . . . . . . . . . . . 40
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear Seat Pass-Through . . . . . . . . . . . . 69
Drive Belt Routing, Engine . . . . . . . . . 356
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . 203, 279
Driver Assistance Systems . . . . . . . . . 225
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . . 137
Driver Mode Control . . . . . . . . . . . . . . . . 208
Driver Mode Control Light . . . . . . . . . 133
Driving Assistance Systems . . . . . . . . . . . . . . . 232
Characteristics andTowing Tips . . . . . . . . . . . . . . . . . . . . . 246
Competitive . . . . . . . . . . . . . . . . . . . . . . . 211
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
For Better Fuel Economy . . . . . . . . . . . 28
Hill and Mountain Roads . . . . . . . . 185
If the Vehicle is Stuck . . . . . . . . . . . . 187
Loss of Control . . . . . . . . . . . . . . . . . . . . 180
Off-Road Recovery . . . . . . . . . . . . . . . . 179

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
INDEX 387
K
Keyless EntryRemote (RKE) System . . . . . . . . . . . . . . 30
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
L
Labeling, Tire Sidewall . . . . . . . . . . . . . 297
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Daytime Running (DRL) . . . . . . . . . . 155
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Exterior Controls . . . . . . . . . . . . . . . . . . 153
Exterior Lamps Off Reminder . . . . 155
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
License Plate . . . . . . . . . . . . . . . . . . . . . . 284
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . 128
On Reminder . . . . . . . . . . . . . . . . . . . . . . 136
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Lane Change Alert (LCA) . . . . . . . . . . . 236
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . . . . 238
Lane Keep Assist (LKA) . . . . . . . . . . . . 239
Lane Keep Assist Light . . . . . . . . . . . . . 131
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . 71
LATCH System
Replacing Parts after a Crash . . . . 100 LATCH, Lower Anchors and
Tethers for Children . . . . . . . . . . . . . . . 95
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . 283
Light, Auto Stop Mode . . . . . . . . . . . . . 135
Lighting Adaptive Forward . . . . . . . . . . . . . . . . . 156
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Illumination Control . . . . . . . . . . . . . . 158
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Lights
Adaptive Forward Lighting(AFL) Light . . . . . . . . . . . . . . . . . . . . . . 135
Airbag Readiness . . . . . . . . . . . . . . . . . 126
Antilock Brake System (ABS) Warning . . . . . . . . . . . . . . . . . . . . . . . . . 131
Brake System Warning . . . . . . . . . . . 129
Charging System . . . . . . . . . . . . . . . . . . 127
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . 128
Cruise Control . . . . . . . . . . . . . . . . . . . . . 136
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Driver Mode Control . . . . . . . . . . . . . . 133
Electric Parking Brake . . . . . . . . . . . . 130
Engine Coolant Temperature
Warning . . . . . . . . . . . . . . . . . . . . . . . . . 133
Engine Oil Pressure . . . . . . . . . . . . . . . 134
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 155 Lights (cont'd)
High-Beam On . . . . . . . . . . . . . . . . . . . . 135
High/Low Beam Changer . . . . . . . . . 155
Lane Keep Assist . . . . . . . . . . . . . . . . . . 131
Low Fuel Warning . . . . . . . . . . . . . . . . 134
Seat Belt Reminders . . . . . . . . . . . . . . 125
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Service Electric Parking Brake . . . 130
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . 132
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 133
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . 132
Traction Off . . . . . . . . . . . . . . . . . . . . . . . 132
Limited-Slip Differential . . . . . . . . . . . . 214
Locks
Automatic Door . . . . . . . . . . . . . . . . . . . . . 41
Delayed Locking . . . . . . . . . . . . . . . . . . . . 40
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lockout Protection . . . . . . . . . . . . . . . . . 41
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Loss of Control . . . . . . . . . . . . . . . . . . . . . . 180
Low Fuel Warning Light . . . . . . . . . . . 134
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . 296
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . 95
Lumbar Adjustment . . . . . . . . . . . . . . . . . 60 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
INDEX 389
PersonalizationVehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Protection, Battery . . . . . . . . . . . . . . . . 160
Retained Accessory (RAP) . . . . . . . . 197
Seat Adjustment . . . . . . . . . . . . . . . . . . . . 57
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Pregnancy, Using Seat Belts . . . . . . . . . 74
Premium Care Maintenance
Cadillac . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Privacy Vehicle Data Recording . . . . . . . . . . 369
Program
Courtesy Transportation . . . . . . . . . 363
Proposition 65 Warning,
California . . . . . . . . . . . . . . .253, 277, 323, Back Cover
R
Radio Frequency Statement . . . . . . . . 367
Reading Lamps . . . . . . . . . . . . . . . . . . . . . 158
Rear Camera Mirror . . . . . . . . . . . . . . . . . 48
Rear Climate Control System . . . . . . 172
Rear Seat Pass-Through Door . . . . . . . 69 Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Rear Vision Camera (RVC) . . . . . . . . . 226
Rear Window Sunshade . . . . . . . . . . . . . 52
Rearview Mirrors Automatic Dimming . . . . . . . . . . . . . . . . 48
Reclining Seatbacks . . . . . . . . . . . . . . . . . 61
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . 348
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . 351
Recreational Vehicle Towing . . . . . . . 326
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Remote Vehicle Start . . . . . . . . . . . . . . . . 37
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Maintenance . . . . . . . . . . . . . . . . . . . . . . 349
Replacing Airbag System . . . . . . . . . . . . 88
Replacing LATCH System Parts
after a Crash . . . . . . . . . . . . . . . . . . . . . . . 100
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . . . . . 76
Reporting Safety Defects Canadian Government . . . . . . . . . . . . 368
General Motors . . . . . . . . . . . . . . . . . . . 368 Reporting Safety Defects (cont'd)
U.S. Government . . . . . . . . . . . . . . . . . . 367
Restraints Where to Put . . . . . . . . . . . . . . . . . . . . . . . . 94
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . . . . . . 197
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . 48
Ride Control Systems Enhanced Traction
System (ETS) . . . . . . . . . . . . . . . . . . . . 214
Roads Driving, Wet . . . . . . . . . . . . . . . . . . . . . . . 185
Roadside Service . . . . . . . . . . . . . . . . . . . . 361
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . 307
Routing, Engine Drive Belt . . . . . . . . . 356
Run-Flat Tires . . . . . . . . . . . . . . . . . . . . . . . 295
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
S
Safety Defects ReportingCanadian Government . . . . . . . . . . . . 368
General Motors . . . . . . . . . . . . . . . . . . . 368

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
INDEX 391
SunshadeRear Window . . . . . . . . . . . . . . . . . . . . . . . . 52
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward Collision Alert (FCA) . . . . 232
Infotainment . . . . . . . . . . . . . . . . . 161, 370
Systems
Driver Assistance . . . . . . . . . . . . . . . . . 225
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 122
Text Telephone (TTY) Users . . . . . . . 359
Theft-Deterrent Systems . . . . . . . . . . . . 46Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . 46
Thigh Support Adjustment . . . . . . . . . . 60
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . 295
Buying New Tires . . . . . . . . . . . . . . . . . 309
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Designations . . . . . . . . . . . . . . . . . . . . . . 298
Different Size . . . . . . . . . . . . . . . . . . . . . . 311
If a Tire Goes Flat . . . . . . . . . . . . . . . . 314
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . 307
Low Profile . . . . . . . . . . . . . . . . . . . . . . . . 296
Pressure . . . . . . . . . . . . . . . . . . . . . . 301, 302
Pressure Light . . . . . . . . . . . . . . . . . . . . . 133
Pressure Monitor Operation . . . . . . 304 Tires (cont'd)
Pressure Monitor System . . . . . . . . 303
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Run-Flat . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Sealant and Compressor Kit . . . . . 315
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Sidewall Labeling . . . . . . . . . . . . . . . . . 297
Terminology and Definitions . . . . 299
Uniform Tire Quality Grading . . . . 311
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Wheel Replacement . . . . . . . . . . . . . . 313
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Towing Driving Characteristics . . . . . . . . . . . 246
Equipment . . . . . . . . . . . . . . . . . . . 250, 251
General Information . . . . . . . . . . . . . . 246
Recreational Vehicle . . . . . . . . . . . . . . 326
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 249–251
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Track Events and Competitive Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Traction Control System (TCS)/StabiliTrak Light . . . . . . . . . . . . . . . . 132 Traction (cont'd)
Limited-Slip Differential . . . . . . . . . . 214
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . . . . . . 206
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . 249–251
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 200
Fluid, Automatic . . . . . . . . . . . . . . . . . . 266
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . 122
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Turn and Lane-Change Signals . . . . 157
U
Uniform Tire Quality Grading . . . . . . 311
Universal Remote System . . . . . . . . . . 149 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Programming . . . . . . . . . . . . . . . . . . . . . . 149
Using This Manual . . . . . . . . . . . . . . . . . . . . 3
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . 44
Canadian Owners . . . . . . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Identification Number (VIN) . . . . . 352
