Page 244 of 394

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
DRIVING AND OPERATING 243
87 or higher. Do not use gasoline with
a posted octane rating of less than 87,
as this may cause engine knock and
will lower fuel economy.
If the vehicle has an LTG 2.0L L4
Turbo engine, premium unleaded
gasoline meeting ASTM specification
D4814 with a posted octane rating of
93 is highly recommended for best
performance and fuel economy.
Unleaded gasoline with an octane
rated as low as 87 can be used. Using
unleaded gasoline rated below
93 octane, however, will lead to
reduced acceleration and fuel
economy. If knocking occurs, use a
gasoline rated at 93 octane as soon as
possible, otherwise, the engine could
be damaged. If heavy knocking is
heard when using gasoline with a
93 octane rating, the engine needs
service.
If the vehicle has an LF3 3.6L V6 Twin
Turbo or the LT4 V8 engine, use
premium unleaded gasoline meeting
ASTM specification D4814 with a
posted octane rating of 93.
If unavailable, unleaded gasoline with
a posted octane rating of 91 may beused, but with reduced performance
and fuel economy. If the octane is less
than 91, the engine could be damaged
and the repairs would not be covered
by the vehicle warranty. If heavy
knocking is heard when using gasoline
rated at 93 octane, the engine needs
service.
Prohibited Fuels
Caution
Do not use fuels with any of the
following conditions; doing so may
damage the vehicle and void its
warranty:
. For vehicles which are not
FlexFuel, fuel labeled greater
than 15% ethanol by volume,
such as mid-level ethanol
blends (16 –50% ethanol),
E85, or FlexFuel.
. Fuel with any amount of
methanol, methylal, and
aniline. These fuels can
(Continued)
Caution (Continued)
corrode metal fuel system
parts or damage plastic and
rubber parts.
. Fuel containing metals such
as methylcyclopentadienyl
manganese tricarbonyl
(MMT), which can damage
the emissions control system
and spark plugs.
. Fuel with a posted octane
rating of less than the
recommended fuel. Using this
fuel will lower fuel economy
and performance, and may
decrease the life of the
emissions catalyst.
California Fuel
Requirements
If the vehicle is certified to meet
California Emissions Standards, it is
designed to operate on fuels that meet
California specifications. See the
underhood emission control label.
If this fuel is not available in states
Page 342 of 394

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
SERVICE AND MAINTENANCE 341
Maintenance Schedule
Additional Required Services -
Normal12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi
180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires, if recommended for the vehicle, and
perform Required Services. Check engine oil level
and oil life percentage. Change engine oil and filter,
if needed. (1)@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (2)@ @@@@@
Inspect evaporative control system. (3)@ @@
Replace engine air cleaner filter. (4)@@@
Replace spark plugs. Inspect spark plug wires. (2.0L
LTG and 3.6L LF3 Turbo Engines)@ @
Replace spark plugs. Inspect spark plug wires. (3.6L
LGX and 6.2L LT4 Engines)@
Change rear axle fluid, if equipped with electronic
limited slip differential. (5)@@@
Change rear axle fluid, without electronic limited slip
differential. (5)@
Change transfer case fluid, if equipped with
AWD. (5)@
Drain and fill engine cooling system. (6)@
Visually inspect accessory drive belts. (7)@
Replace brake fluid. (8)
Page 344 of 394

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
SERVICE AND MAINTENANCE 343
Maintenance Schedule
Additional Required Services -
Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi
180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires, if recommended for the vehicle, and
perform Required Services. Check engine oil level
and oil life percentage. Change engine oil and filter,
if needed. (1)@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (2)@ @@@@@
Inspect evaporative control system. (3)@ @@
Replace engine air cleaner filter. (Except 6.2L
V8 Engine) (4)@@@
Replace engine air cleaner filter. (6.2L V8 Engine) (4)@@@@@@
2.0L LTG and 3.6L LF3 Engines: Replace spark plugs.
Inspect spark plug wires.@ @
3.6L LFX Engine Only: Replace spark plugs. Inspect
spark plug wires.@
Change automatic transmission fluid and filter.@@@
Change transfer case fluid, if equipped with
AWD. (5)@@@
Change rear axle fluid, if equipped with limited slip
differential. (5)@@@
Change rear axle fluid, without limited slip
differential. (5)@ @
Change front axle fluid, if equipped with limited slip
differential. (5)@@@
Drain and fill engine cooling system. (6)@
Visually inspect accessory drive belts. (7)@
Replace brake fluid. (8)
Page 351 of 394

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
350 SERVICE AND MAINTENANCE

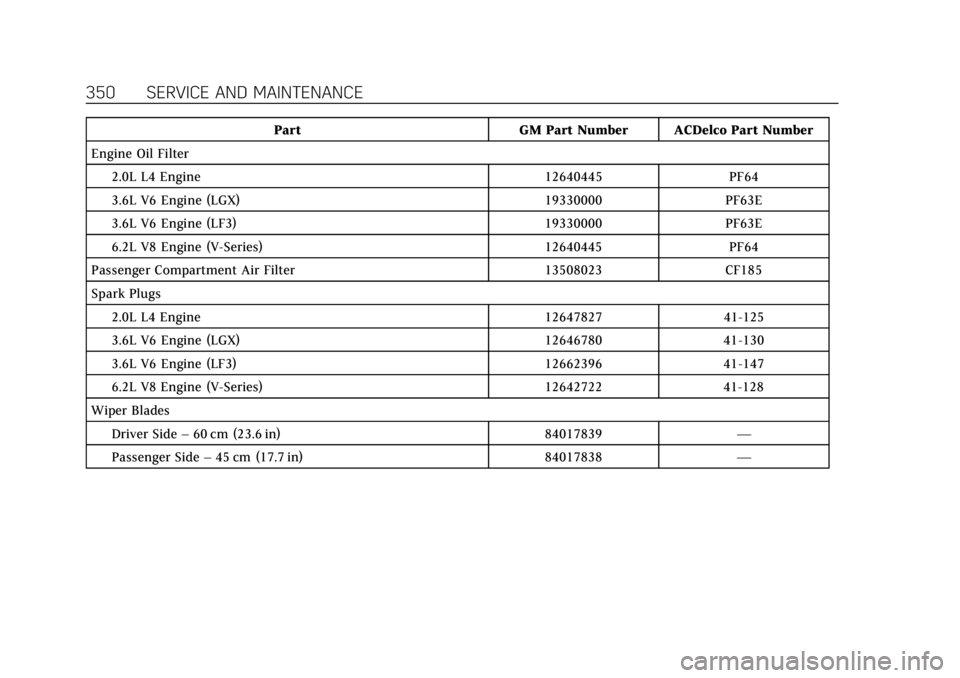

PartGM Part Number ACDelco Part Number
Engine Oil Filter 2.0L L4 Engine 12640445PF64
3.6L V6 Engine (LGX) 19330000PF63E
3.6L V6 Engine (LF3) 19330000PF63E
6.2L V8 Engine (V-Series) 12640445PF64
Passenger Compartment Air Filter 13508023CF185
Spark Plugs 2.0L L4 Engine 1264782741-125
3.6L V6 Engine (LGX) 1264678041-130
3.6L V6 Engine (LF3) 1266239641-147
6.2L V8 Engine (V-Series) 1264272241-128
Wiper Blades Driver Side –60 cm (23.6 in) 84017839—
Passenger Side –45 cm (17.7 in) 84017838—
