352 TECHNICAL DATA
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . . . . . 352
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Vehicle Data
Capacities and Specifications . . . . 353
Engine Drive Belt Routing . . . . . . . 356
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on the
driver side of the vehicle. It can be
seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service Parts
labels and certificates of title and
registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See “EngineSpecifications”
underCapacities and
Specifications 0353 for the vehicle's
engine code.
Service Parts Identification
Label
There may be a label on the inside of
the trunk that contains the following
information:
. Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options and special
equipment
If there is no label, there is a barcode
on the certification label on the
center (B) pillar to scan for this same
information.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
TECHNICAL DATA 353
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and Lubricants
0 348 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System –Engine
2.0L L4 Engine 8.8 L 9.3 qt
3.6L V6 Engine (LF3) 13.0 L 13.8 qt
3.6L V6 Engine (LF3) Low Temperature Radiator 1.6 L 1.7 qt
3.6L V6 Engine (LGX) 10.0 L 10.6 qt
3.6L V6 Engine (LGX) with KC4 Oil Cooler 10.6 L 11.2 qt
6.2L V8 Engine (V-Series) 10.4 L 12.9 qt
6.2L V8 Engine (V-Series) Low Temperature Radiator 2.0 L 2.2 qt

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
TECHNICAL DATA 355

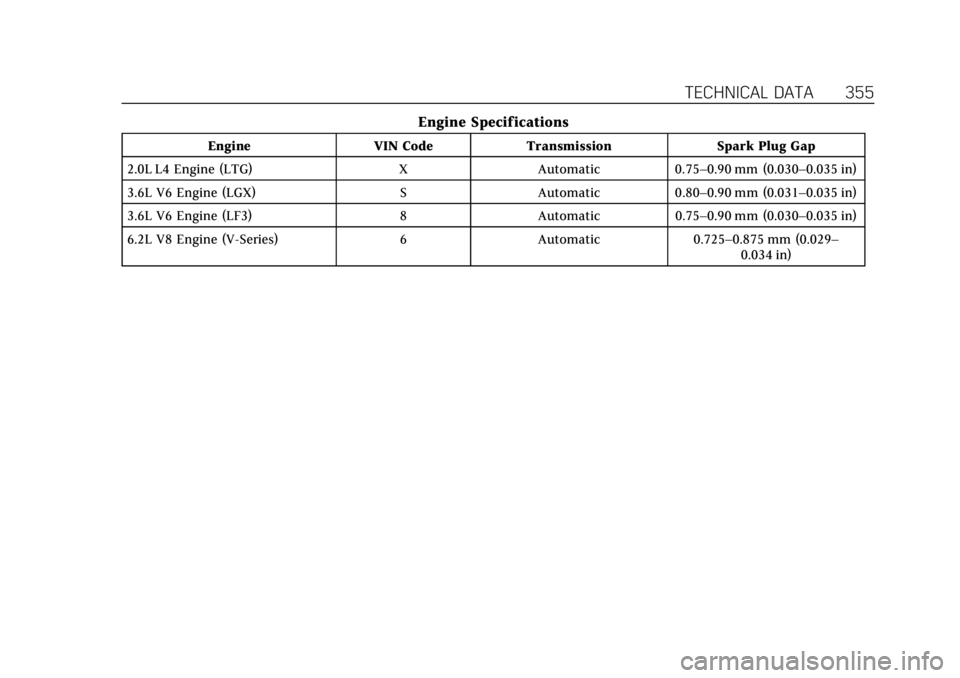

Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
2.0L L4 Engine (LTG) XAutomatic0.75–0.90 mm (0.030–0.035 in)
3.6L V6 Engine (LGX) SAutomatic0.80–0.90 mm (0.031–0.035 in)
3.6L V6 Engine (LF3) 8Automatic0.75–0.90 mm (0.030–0.035 in)
6.2L V8 Engine (V-Series) 6Automatic 0.725–0.875 mm (0.029–
0.034 in)
