Page 328 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/16/18
VEHICLE CARE 327
5. Attach the air only hose (7) ontothe tire valve stem by turning it
clockwise until it is tight.
6. Plug the power plug (8) into the accessory power outlet in the
vehicle. Unplug all items from
other accessory power outlets.
See Power Outlets 0113.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a cigarette
lighter, use the cigarette lighter.
Do not pinch the power plug
cord in the door or window.
7. Start the vehicle. The vehicle must be running while using the
air compressor.
8. Press and turn the selector switch (1) clockwise to the Air
Only position.
9. Press the on/off button (2) to turn the compressor on.
The compressor will inflate the
tire with air only. 10. Inflate the tire to the
recommended inflation pressure
using the pressure gauge (3). The
recommended inflation pressure
can be found on the Tire and
Loading Information label. See
Tire Pressure 0307.
The pressure gauge (3) may read
higher than the actual tire
pressure while the compressor is
on. Turn the compressor off to
get an accurate reading. The
compressor may be turned on/off
until the correct pressure is
reached.
If you inflate the tire higher than
the recommended pressure you
can adjust the excess pressure by
pressing the pressure deflation
button (4) until the proper
pressure reading is reached. This
option is only functional when
using the air only hose (7).
11. Press the on/off button (2) to turn the tire sealant and
compressor kit off. Be careful while handling the tire
sealant and compressor kit as it
could be warm after usage.
12. Unplug the power plug (8) from the accessory power outlet in the
vehicle.
13. Disconnect the air only hose (7) from the tire valve stem, by
turning it counterclockwise, and
replace the tire valve stem cap.
14. Replace the air only hose (7) and the power plug (8) and cord back
in its original location.
15. Place the equipment in the original storage location in the
vehicle.
Page 336 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/16/18
VEHICLE CARE 335
Appearance Care
Exterior Care
Locks
Locks are lubricated at the factory.
Use a de-icing agent only when
absolutely necessary, and have the
locks greased after using. See
Recommended Fluids and Lubricants
0354.
Washing the Vehicle
To preserve the vehicle's finish, wash
it often and out of direct sunlight.
Caution
Do not use petroleum-based, acidic,
or abrasive cleaning agents as they
can damage the vehicle's paint,
metal, or plastic parts. If damage
occurs, it would not be covered by
the vehicle warranty. Approved
cleaning products can be obtained
from your dealer. Follow all
manufacturer directions regarding
(Continued)
Caution (Continued)
correct product usage, necessary
safety precautions, and appropriate
disposal of any vehicle care
product.
Caution
Avoid using high-pressure washes
closer than 30 cm (12 in) to the
surface of the vehicle. Use of power
washers exceeding 8,274 kPa
(1,200 psi) can result in damage or
removal of paint and decals.
Caution
Do not power wash any component
under the hood that has this
e
symbol.
This could cause damage that
would not be covered by the vehicle
warranty. If using an automatic car wash, follow
the car wash instructions. The
windshield wiper and rear window
wiper, if equipped, must be off.
Remove any accessories that may be
damaged or interfere with the car
wash equipment.
Rinse the vehicle well, before washing
and after, to remove all cleaning
agents completely. If they are allowed
to dry on the surface, they could stain.
Dry the finish with a soft, clean
chamois or an all-cotton towel to
avoid surface scratches and water
spotting.
Finish Care
Application of aftermarket clearcoat
sealant/wax materials is not
recommended. If painted surfaces are
damaged, see your dealer to have the
damage assessed and repaired. Foreign
materials such as calcium chloride
and other salts, ice melting agents,
road oil and tar, tree sap, bird
droppings, chemicals from industrial
chimneys, etc., can damage the
vehicle's finish if they remain on
painted surfaces. Wash the vehicle as
Page 340 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/16/18
VEHICLE CARE 339
Original manufacturer replacement
parts will provide the corrosion
protection while maintaining the
vehicle warranty.
Finish Damage
Quickly repair minor chips and
scratches with touch-up materials
available from your dealer to avoid
corrosion. Larger areas of finish
damage can be corrected in your
dealer's body and paint shop.
Chemical Paint Spotting
Airborne pollutants can fall upon and
attack painted vehicle surfaces
causing blotchy, ring-shaped
discolorations, and small, irregular
dark spots etched into the paint
surface. See“Finish Care”previously in
this section.
Interior Care
To prevent dirt particle abrasions,
regularly clean the vehicle's interior.
Immediately remove any soils.
Newspapers or dark garments can
transfer color to the vehicle’s interior. Use a soft bristle brush to remove
dust from knobs and crevices on the
instrument cluster. Using a mild soap
solution, immediately remove hand
lotions, sunscreen, and insect
repellent from all interior surfaces or
permanent damage may result.
Use cleaners specifically designed for
the surfaces being cleaned to prevent
permanent damage. Apply all cleaners
directly to the cleaning cloth. Do not
spray cleaners on any switches or
controls. Remove cleaners quickly.
Before using cleaners, read and follow
all safety instructions on the label.
While cleaning the interior, open the
doors and windows to get proper
ventilation.
To prevent damage, do not clean the
interior using the following cleaners
or techniques:
.
Never use a razor or any other
sharp object to remove soil from
any interior surface.
. Never use a brush with stiff
bristles. .
Never rub any surface aggressively
or with too much pressure.
. Do not use laundry detergents or
dishwashing soaps with
degreasers. For liquid cleaners, use
approximately 20 drops per 3.8 L
(1 gal) of water. A concentrated
soap solution will create streaks
and attract dirt. Do not use
solutions that contain strong or
caustic soap.
. Do not heavily saturate the
upholstery when cleaning.
. Do not use solvents or cleaners
containing solvents.
Interior Glass
To clean, use a terry cloth fabric
dampened with water. Wipe droplets
left behind with a clean dry cloth.
If necessary, use a commercial glass
cleaner after cleaning with plain water.
Page 341 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/16/18
340 VEHICLE CARE
Caution
To prevent scratching, never use
abrasive cleaners on automotive
glass. Abrasive cleaners or
aggressive cleaning may damage
the rear window defogger.
Cleaning the windshield with water
during the first three to six months of
ownership will reduce tendency to fog.
Speaker Covers
Vacuum around a speaker cover
gently, so that the speaker will not be
damaged. Clean spots with water and
mild soap.
Coated Moldings
Coated moldings should be cleaned.
. When lightly soiled, wipe with a
sponge or soft, lint-free cloth
dampened with water.
. When heavily soiled, use warm
soapy water.
Fabric/Carpet/Suede
Start by vacuuming the surface using
a soft brush attachment. If a rotating
vacuum brush attachment is being
used, only use it on the floor carpet.
Before cleaning, gently remove as
much of the soil as possible:
.
Gently blot liquids with a paper
towel. Continue blotting until no
more soil can be removed.
. For solid soils, remove as much as
possible prior to vacuuming.
To clean: 1. Saturate a clean, lint-free colorfast cloth with water.
Microfiber cloth is recommended
to prevent lint transfer to the
fabric or carpet.
2. Remove excess moisture by gently wringing until water does
not drip from the cleaning cloth.
3. Start on the outside edge of the soil and gently rub toward the
center. Fold the cleaning cloth to
a clean area frequently to
prevent forcing the soil in to the
fabric. 4. Continue gently rubbing the
soiled area until there is no
longer any color transfer from
the soil to the cleaning cloth.
5. If the soil is not completely removed, use a mild soap
solution followed only by plain
water.
If the soil is not completely removed,
it may be necessary to use a
commercial upholstery cleaner or spot
lifter. Test a small hidden area for
colorfastness before using a
commercial upholstery cleaner or spot
lifter. If ring formation occurs, clean
the entire fabric or carpet.
After cleaning, use a paper towel to
blot excess moisture.
Cleaning High Gloss Surfaces
and Vehicle Information and
Radio Displays
Use a microfiber cloth on high gloss
surfaces or vehicle displays. First, use
a soft bristle brush to remove dirt that
can scratch the surface. Then gently
clean by rubbing with a microfiber
cloth. Never use window cleaners or

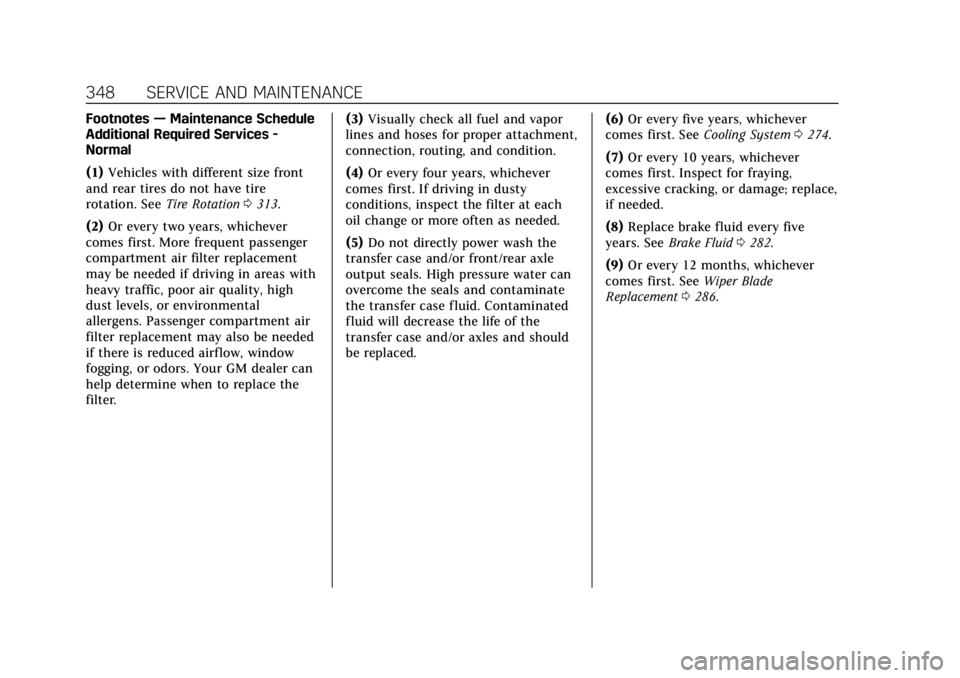

Page 349 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/8/18
348 SERVICE AND MAINTENANCE
Footnotes—Maintenance Schedule
Additional Required Services -
Normal
(1) Vehicles with different size front
and rear tires do not have tire
rotation. See Tire Rotation0313.
(2) Or every two years, whichever
comes first. More frequent passenger
compartment air filter replacement
may be needed if driving in areas with
heavy traffic, poor air quality, high
dust levels, or environmental
allergens. Passenger compartment air
filter replacement may also be needed
if there is reduced airf low, window
fogging, or odors. Your GM dealer can
help determine when to replace the
filter. (3)
Visually check all fuel and vapor
lines and hoses for proper attachment,
connection, routing, and condition.
(4) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(5) Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate
the transfer case fluid. Contaminated
fluid will decrease the life of the
transfer case and/or axles and should
be replaced. (6)
Or every five years, whichever
comes first. See Cooling System0274.
(7) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage; replace,
if needed.
(8) Replace brake fluid every five
years. See Brake Fluid 0282.
(9) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0286.
Page 351 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/8/18
350 SERVICE AND MAINTENANCE
Maintenance Schedule
Additional Required Services -
Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi
180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Replace brake fluid. (8)
Replace windshield wiper blades. (9)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas struts.@ @
Footnotes—Maintenance Schedule
Additional Required Services -
Severe
(1) Vehicles with different size front
and rear tires do not have tire
rotation. See Tire Rotation0313.
(2) Or every two years, whichever
comes first. More frequent passenger
compartment air filter replacement
may be needed if driving in areas with
heavy traffic, poor air quality, high
dust levels, or environmental
allergens. Passenger compartment air
filter replacement may also be needed
if there is reduced airf low, window fogging, or odors. Your GM dealer can
help determine when to replace the
filter.
(3)
Visually check all fuel and vapor
lines and hoses for proper attachment,
connection, routing, and condition.
(4) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(5) Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate
the transfer case fluid. Contaminated fluid will decrease the life of the
transfer case and/or axles and should
be replaced.
(6)
Or every five years, whichever
comes first. See Cooling System0274.
(7) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage; replace,
if needed.
(8) Replace brake fluid every five
years. See Brake Fluid 0282.
(9) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0286.
Page 397 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/8/18
396 INDEX
Parking or BackingAssistance Systems . . . . . . . . . . . . . . . 227
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Passenger Sensing System . . . . . . . . . . 82
Perchlorate Materials
Requirements, California . . . . . . . . . 259
Performance Data Recorder (PDR) . . . . . . . . . . . . . . . . . . . . 162
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Protection, Battery . . . . . . . . . . . . . . . . 161
Retained Accessory (RAP) . . . . . . . . 198
Seat Adjustment . . . . . . . . . . . . . . . . . . . . 56
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Pregnancy, Using Seat Belts . . . . . . . . . 74
Privacy Vehicle Data Recording . . . . . . . . . . 374
Program
Courtesy Transportation . . . . . . . . . 369
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . 245 Proposition
65 Warning,
California . . . . . . . . . . . . . . .258, 283, 329,
Back Cover
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . 372
R
Radio Frequency Statement . . . . . . . . 373
Reading Lamps . . . . . . . . . . . . . . . . . . . . . 159
Rear Camera Mirror . . . . . . . . . . . . . . . . . 47
Rear Climate Control System . . . . . . 173
Rear Seat Pass-Through Door . . . . . . . 68
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Rear Vision Camera (RVC) . . . . . . . . . 227
Rear Window Sunshade . . . . . . . . . . . . . 51
Rearview Mirrors Automatic Dimming . . . . . . . . . . . . . . . . 47
Reclining Seatbacks . . . . . . . . . . . . . . . . . 60
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . 354
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . 357
Recreational Vehicle Towing . . . . . . . 332 Reimbursement Program, GM
Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Remote Vehicle Start . . . . . . . . . . . . . . . . 35
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Maintenance . . . . . . . . . . . . . . . . . . . . . . 355
Replacing Airbag System . . . . . . . . . . . . 88
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . 100
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . . . . . 76
Reporting Safety Defects Canadian Government . . . . . . . . . . . . 373
General Motors . . . . . . . . . . . . . . . . . . . 374
U.S. Government . . . . . . . . . . . . . . . . . . 373
Restraints Where to Put . . . . . . . . . . . . . . . . . . . . . . . . 94
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . . . . . . 198
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . 47
Ride Control Systems Enhanced TractionSystem (ETS) . . . . . . . . . . . . . . . . . . . . 215
Roads Driving, Wet . . . . . . . . . . . . . . . . . . . . . . . 186
Roadside Service . . . . . . . . . . . . . . . . . . . . 367
Page 399 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/8/18
398 INDEX
Storage Compartments . . . . . . . . . . . . . 106
Storing the Tire Sealant andCompressor Kit . . . . . . . . . . . . . . . . . . . . 328
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . 188
Summer Tires . . . . . . . . . . . . . . . . . . . . . . . 302
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Sunshade Rear Window . . . . . . . . . . . . . . . . . . . . . . . . 51
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward Collision Alert (FCA) . . . . 234
Infotainment . . . . . . . . . . . . . . . . . 162, 376
Systems
Driver Assistance . . . . . . . . . . . . . . . . . 226
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 123
Text Telephone (TTY) Users . . . . . . . 365
Theft-Deterrent Systems . . . . . . . . . . . . 45Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . 45
Thigh Support Adjustment . . . . . . . . . . 59
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . 301
Buying New Tires . . . . . . . . . . . . . . . . . 315 Tires (cont'd)
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Designations . . . . . . . . . . . . . . . . . . . . . . 304
Different Size . . . . . . . . . . . . . . . . . . . . . . 317
If a Tire Goes Flat . . . . . . . . . . . . . . . . 320
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . 313
Low Profile . . . . . . . . . . . . . . . . . . . . . . . . 302
Pressure . . . . . . . . . . . . . . . . . . . . . . 307, 308
Pressure Light . . . . . . . . . . . . . . . . . . . . . 135
Pressure Monitor Operation . . . . . . 310
Pressure Monitor System . . . . . . . . 309
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Run-Flat . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Sealant and Compressor Kit . . . . . 321
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Sidewall Labeling . . . . . . . . . . . . . . . . . 303
Terminology and Definitions . . . . 305
Uniform Tire Quality Grading . . . . 317
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Wheel Replacement . . . . . . . . . . . . . . 319
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . 244
Towing Driving Characteristics . . . . . . . . . . . 248 Towing (cont'd)
Equipment . . . . . . . . . . . . . . . . . . . 254, 255
General Information . . . . . . . . . . . . . . 248
Recreational Vehicle . . . . . . . . . . . . . . 332
Trailer . . . . . . . . . . . . . . . . . . 252, 254, 255
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Track Events and Competitive Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Traction
Control System(TCS)/StabiliTrak Light . . . . . . . . . 133
Limited-Slip Differential . . . . . . . . . . 215
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . . . . . . 207
Trailer Towing . . . . . . . . . . . . . . . . . 252, 254, 255
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 201
Fluid, Automatic . . . . . . . . . . . . . . . . . . 272
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . 123
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Turn and Lane-Change Signals . . . . 158
Page 400 of 401

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12460273) - 2019 - CRC - 5/8/18
INDEX 399
U
Uniform Tire Quality Grading . . . . . . 317
Universal Remote System . . . . . . . . . . 150Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Programming . . . . . . . . . . . . . . . . . . . . . . 150
Using This Manual . . . . . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . 43
Canadian Owners . . . . . . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Identification Number (VIN) . . . . . 358
Load Limits . . . . . . . . . . . . . . . . . . . . . . . 189
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Personalization . . . . . . . . . . . . . . . . . . . 145
Remote Start . . . . . . . . . . . . . . . . . . . . . . . . 35
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Speed Messages . . . . . . . . . . . . . . . . . . . 145
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Vehicle Ahead Indicator . . . . . . . . . . . . 132
Vehicle Care Storing the Tire Sealant andCompressor Kit . . . . . . . . . . . . . . . . . . 328
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 307
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Vehicle-to-Vehicle . . . . . . . . . . . . . . . . . . 242 Ventilation, Air . . . . . . . . . . . . . . . . . . . . . 175
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
W
Warning
Brake System Light . . . . . . . . . . . . . . . 131
Caution and Danger . . . . . . . . . . . . . . . . . 2
Lane Departure (LDW) . . . . . . . . . . . 240
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Warnings Hazard Flashers . . . . . . . . . . . . . . . . . . . 158
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . 280
Wheels Alignment and Tire Balance . . . . . 318
Different Size . . . . . . . . . . . . . . . . . . . . . . 317
Replacement . . . . . . . . . . . . . . . . . . . . . . 319
When It Is Time for New Tires . . . . 314
Where to Put the Restraint . . . . . . . . . 94
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Windshield Replacement . . . . . . . . . . . . . . . . . . . . . . 287
Wiper/Washer . . . . . . . . . . . . . . . . . . . . . 111 Winter
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Winter Tires . . . . . . . . . . . . . . . . . . . . . . . . . 301
Wiper Blade Replacement . . . . . . . . . . 286
Wireless Charging . . . . . . . . . . . . . . . . . . 115
