CADILLAC CTS SEDAN 2015 3.G User Guide

Black plate (4,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
1-4 In Brief
21. Shift Lever. SeeAutomatic
Transmission on page 9-23.
Manual Mode Button. See
Automatic Transmission on
page 9-23.
22. MODE Switch. See Driver
Mode Control on page 9-31.
23. Traction Control/Electronic
Stability Control on page 9-30.
24. Instrument Panel Storage on
page 4-1.
25. Dual Automatic Climate Control

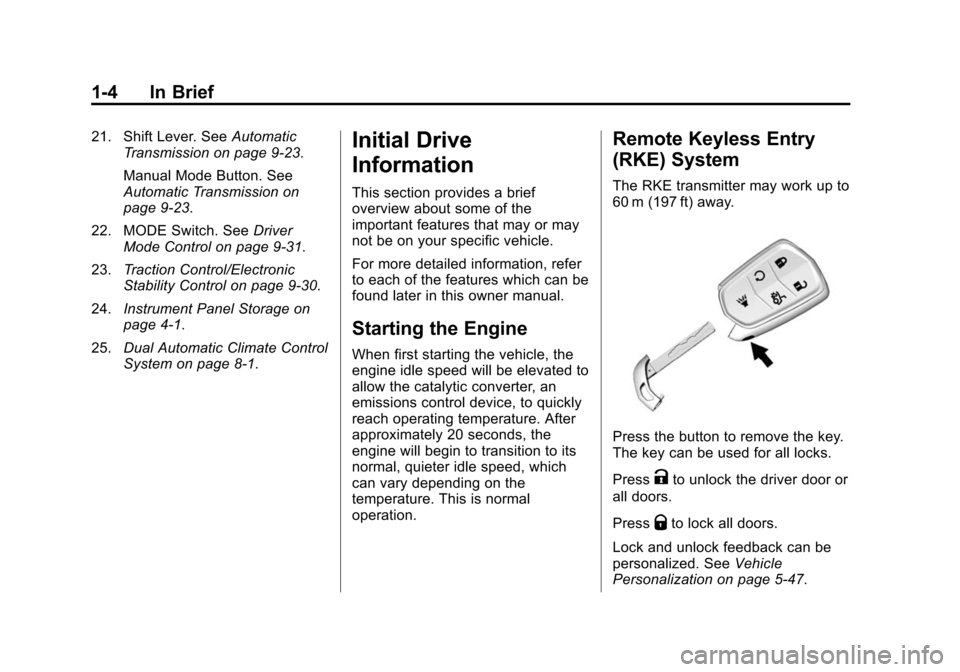

System on page 8-1.Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Starting the Engine
When first starting the vehicle, the
engine idle speed will be elevated to
allow the catalytic converter, an
emissions control device, to quickly
reach operating temperature. After
approximately 20 seconds, the
engine will begin to transition to its
normal, quieter idle speed, which
can vary depending on the
temperature. This is normal
operation.
Remote Keyless Entry
(RKE) System
The RKE transmitter may work up to
60 m (197 ft) away.
Press the button to remove the key.
The key can be used for all locks.
Press
Kto unlock the driver door or
all doors.
Press
Qto lock all doors.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization on page 5-47.

Black plate (5,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
In Brief 1-5
PressXtwice quickly to release
the trunk.
Press
7and release to initiate
vehicle locator.
Press and hold
7for more than
three seconds to sound the panic
alarm.
Press
7again to cancel the panic
alarm.
Press and release
Qand then press
and hold
/for at least
four seconds to start the engine
from outside the vehicle using the
RKE transmitter.
See Keys on page 2-1 andRemote
Keyless Entry (RKE) System
Operation on page 2-2.
Remote Vehicle Start
The engine can be started from
outside of the vehicle.
Starting the Vehicle
1. Press and releaseQon the
transmitter.
2. Immediately after completing Step 1, press and hold
/for at
least four seconds or until the
turn signal lamps flash.
3. Press the brake pedal and select ON/RUN/START ignition mode
to drive the vehicle.
When the vehicle starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. After 30 seconds,
repeat the steps if a 10-minute
extension is desired. Remote start
can be extended only once.
Canceling a Remote Start
To cancel a remote start do any of
the following:
.Press and hold/until the
parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2-9.
Door Locks
Keyless Access
Press the button on the door handle
and pull the handle when the
Remote Keyless Entry (RKE)
transmitter is within range. See
Remote Keyless Entry (RKE)
System Operation on page 2-2.
Manual Operation
From outside, use the key in the
driver door. The key cylinder is
covered by a cap. See Door Locks
on page 2-10.

Black plate (6,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
1-6 In Brief

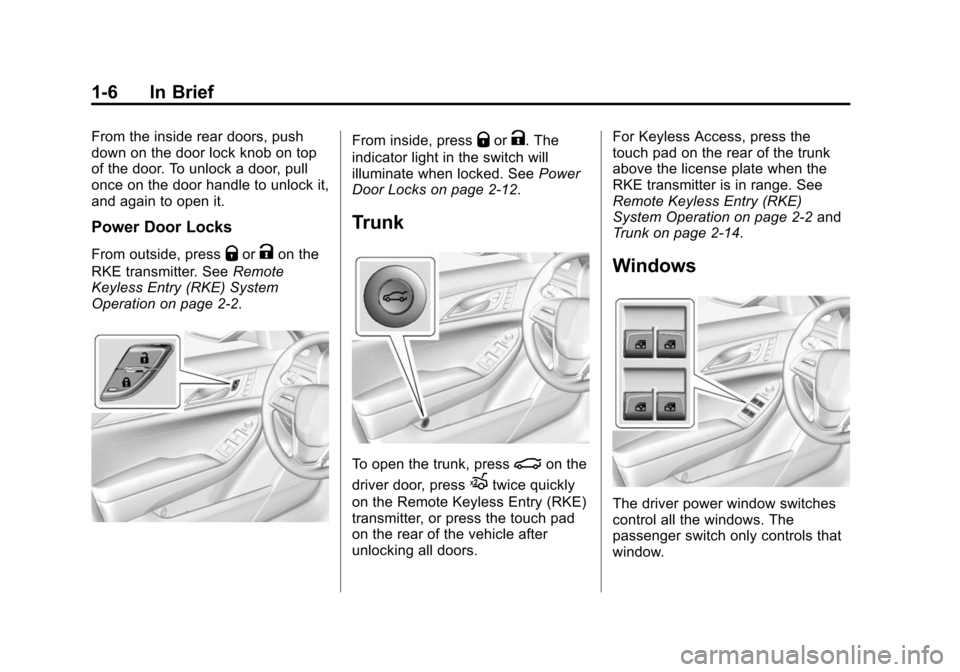

From the inside rear doors, push
down on the door lock knob on top
of the door. To unlock a door, pull
once on the door handle to unlock it,
and again to open it.
Power Door Locks
From outside, pressQorKon the
RKE transmitter. See Remote
Keyless Entry (RKE) System
Operation on page 2-2.
From inside, pressQorK. The
indicator light in the switch will
illuminate when locked. See Power
Door Locks on page 2-12.
Trunk
To open the trunk, press|on the
driver door, press
Xtwice quickly
on the Remote Keyless Entry (RKE)
transmitter, or press the touch pad
on the rear of the vehicle after
unlocking all doors. For Keyless Access, press the
touch pad on the rear of the trunk
above the license plate when the
RKE transmitter is in range. See
Remote Keyless Entry (RKE)
System Operation on page 2-2
and
Trunk on page 2-14.
Windows
The driver power window switches
control all the windows. The
passenger switch only controls that
window.

Black plate (7,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
In Brief 1-7
Press the switch down to lower the
window. Pull the switch up to raise
it. SeePower Windows on
page 2-21.
Seat Adjustment
Power Seats
To adjust the seat:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the seat by
moving the rear of the control up
or down.
.If equipped, raise or lower the
front part of the seat cushion by
moving the front of the control
up or down.
See Power Seat Adjustment on
page 3-3.
Lumbar Adjustment
If equipped, to adjust the lumbar
support, press and hold the control
forward or rearward or up and down. See
Lumbar Adjustment on
page 3-4.
Bolster Adjustment
If equipped, to adjust the bolster
support, press and hold the recliner
control up and down.
See Lumbar Adjustment on
page 3-4.

Black plate (8,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
1-8 In Brief
Reclining Seatbacks
To adjust the seatback:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
See Reclining Seatbacks on
page 3-5.
Memory Features
The SET, "1," "2," andB(Exit)
buttons on the driver door are used
to manually save and recall memory
settings for the driver seat, outside
mirrors, and power tilt and
telescoping steering column (if
equipped).
See Memory Seats on page 3-6 and
Vehicle Personalization on
page 5-47.
Heated and Ventilated
Seats
Front Seats
If equipped, the buttons are near the
climate controls on the center stack.
To operate, the ignition must be in
ON/RUN/START.
Press
Jorzto heat the driver or
passenger seat cushion and
seatback.

Black plate (9,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
In Brief 1-9

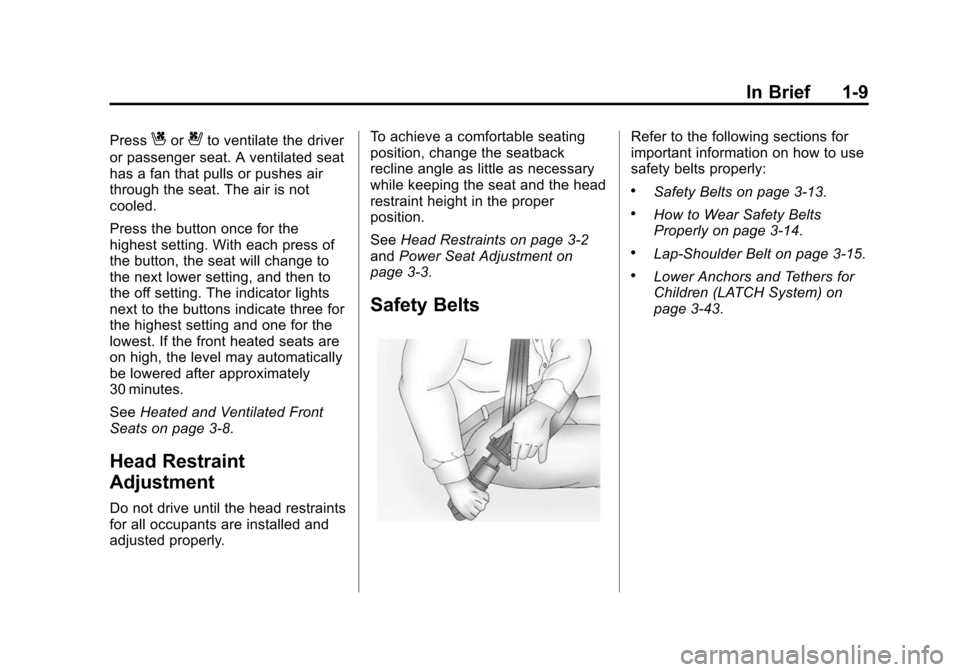

PressCor{to ventilate the driver
or passenger seat. A ventilated seat
has a fan that pulls or pushes air
through the seat. The air is not
cooled.
Press the button once for the
highest setting. With each press of
the button, the seat will change to
the next lower setting, and then to
the off setting. The indicator lights
next to the buttons indicate three for
the highest setting and one for the
lowest. If the front heated seats are
on high, the level may automatically
be lowered after approximately
30 minutes.
See Heated and Ventilated Front
Seats on page 3-8.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly. To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See
Head Restraints on page 3-2
and Power Seat Adjustment on
page 3-3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3-13.
.How to Wear Safety Belts
Properly on page 3-14.
.Lap-Shoulder Belt on page 3-15.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3-43.

Black plate (10,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
1-10 In Brief
Passenger Sensing
System
United States
Canada and Mexico
The passenger sensing system will
turn off the front outboard
passenger frontal airbag and knee
airbag under certain conditions. No
other airbag is affected by the
passenger sensing system. See
Passenger Sensing System on
page 3-29. The passenger airbag status
indicator lights on the overhead
console are visible when the vehicle
is started. See
Passenger Airbag
Status Indicator on page 5-18.
Mirror Adjustment
Exterior
Controls for the outside power
mirrors are on the driver door.
To adjust each mirror:
1. Press (L) or (R) to select the driver or passenger side mirror. 2. Press the arrows on the control
pad to move the mirror up,
down, right, or left.
3. Adjust each mirror so that a little of the vehicle and the area
behind it can be seen.
4. Return the selector switch to the center position.
See Power Mirrors on page 2-19.
Interior
The vehicle has an automatic
dimming inside rearview mirror.
Automatic dimming reduces the
glare of headlamps from behind.
The dimming feature comes on
when the vehicle is started.
SeeAutomatic Dimming Rearview
Mirror on page 2-20.

Black plate (11,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
In Brief 1-11
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel upor down.
3. Pull or push the steering wheel closer or away from you.
4. Pull the lever up to lock the steering wheel in place. Power Tilt and Telescoping Wheel
If equipped, the control is on the left
side of the steering column.
.Push the control up or down to
tilt the steering wheel up
or down.
.Push the control forward or
rearward to move the steering
wheel toward the front or rear of
the vehicle.
Do not adjust the steering wheel
while driving. To set the power tilt wheel memory
position, see
Memory Seats on
page 3-6.
Interior Lighting
Dome Lamp
To change the dome lamp settings,
press the following:
OFF: Turns the lamp off, even
when a door is open.
DOOR: The lamp comes on when
a door is opened.
ON: Turns the lamp on.

Black plate (12,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
1-12 In Brief
Reading Lamps
There are front and rear reading
lamps on the overhead console and
over the rear passenger doors.
These lamps come on when any
door is opened.
To manually turn the reading lamps
on or off:
Pressmornnext to each
overhead console reading lamp.
Press the button next to each rear
passenger reading lamp.
For more information on interior
lighting, see Instrument Panel
Illumination Control on page 6-6.
Exterior Lighting
There are four positions:
O: Turns off the exterior lamps.
The knob returns to the AUTO
position after it is released. Turn
to
Oagain to reactivate the AUTO
mode. In Canada, the headlamps
will automatically reactivate when
the vehicle is shifted out of P (Park).
AUTO: Automatically turns the
exterior lamps on and off,
depending on outside lighting.
;: Turns on the parking lamps
including all lamps, except the
headlamps.

Black plate (13,1)Cadillac CTS Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707478) - 2015 - crc - 10/1/14
In Brief 1-13
5:Turns on the headlamps
together with the parking lamps and
instrument panel lights.
See Exterior Lamp Controls on
page 6-1 andDaytime Running
Lamps (DRL) on page 6-4.
Windshield Wiper/Washer
With the ignition in ACC/
ACCESSORY or ON/RUN/START,
move the lever to select the wiper
speed.
HI: Use for fast wipes.
LO: Use for slow wipes.
INT: Move the windshield wiper
lever to INT. Turn the
xINT band
up for more frequent wipes or down
for less frequent wipes. If equipped
with Rainsense, turn the
xINT
band to adjust the sensitivity. To turn
the Rainsense feature on or off, see
“Rain Sense Wipers” underVehicle
Personalization on page 5-47. OFF:
Use to turn the wipers off.
1X : For a single wipe, briefly move
the lever down. For several wipes,
hold the lever down.
n L: Pull the lever toward you to
spray windshield washer fluid and
activate the wipers.
See Windshield Wiper/Washer on
page 5-3.
