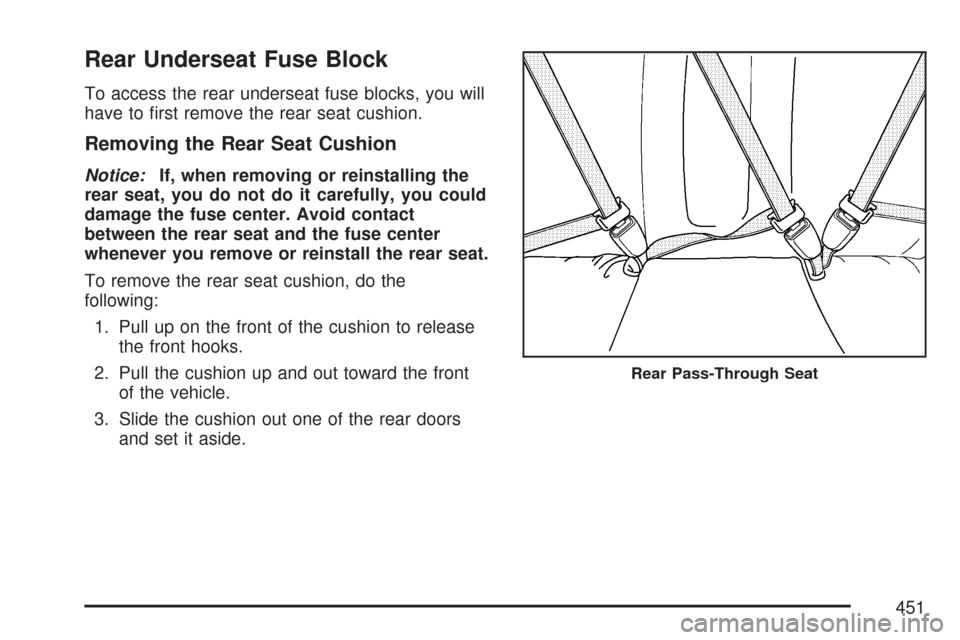

Rear Underseat Fuse Block
To access the rear underseat fuse blocks, you will
have to rst remove the rear seat cushion.
Removing the Rear Seat Cushion
Notice:If, when removing or reinstalling the
rear seat, you do not do it carefully, you could
damage the fuse center. Avoid contact
between the rear seat and the fuse center
whenever you remove or reinstall the rear seat.
To remove the rear seat cushion, do the
following:
1. Pull up on the front of the cushion to release
the front hooks.
2. Pull the cushion up and out toward the front
of the vehicle.
3. Slide the cushion out one of the rear doors
and set it aside.
Rear Pass-Through Seat
451

{CAUTION:
A safety belt that is not properly routed
through the seat cushion or is twisted will
not provide the protection needed in a
crash. If the safety belt has not been
routed through the seat cushion at all, it
will not be there to work for the next
passenger. The person sitting in that
position could be badly injured. After
reinstalling the seat cushion, always
check to be sure that the safety belts are
properly routed and are not twisted.
To reinstall the rear seat cushion, do the following:
1. Position the seat cushion so that you can
route the safety belts through the proper
slots in the seat cushion.
2. Slide the rear of the cushion up and under the
seatback so the rear-locating guides hook into
the wire loops on the back frame.
Split-Folding Rear Seat
452

3. With the seat cushion lowered, push rearward
and then press down on the seat cushion until
the seat cushion snaps into place.
4. Push and pull on the seat cushion to make
sure it is locked into place.
5. Check to make sure the safety belts are
properly routed and that no portion of any
safety belt is trapped under the seat cushion.
Rear Underseat Fuse Block
(Driver’s Side)
The driver’s side rear fuse block is located under
the rear seat on the driver’s side of the vehicle.
The rear seat cushion must be removed to access
the rear fuse block. See “Removing the Rear
Seat Cushion” listed previously.To access the fuse block, push in the two tabs
located at each end of the fuse block cover.
Then lift the cover off.
Fuses Usage
SPARE Not Used
SPARE Not Used
AUDIO Radio, OnStar Module
SPARE Not Used
REAR DR MOD Rear Door Modules
SPARE Not Used
DRIVER
DR MODDriver’s Door Module
BASTaillamps, Center High-Mounted
Stoplamp, Flasher Module, ABS
Module, Trailer Lamps
HDLP
LEVELINGHeadlamp Leveling System Chassis
Sensors (Export Only)
453

Fuses Usage
SPARE Not Used
CCP CCP (Climate Control Panel)
IGN 3Heated Seat Modules, Air Inlet
Motor, Shifter Assembly
SPARE Not Used
SPARE Not Used
FUSE PULLER Fuse Puller
L FRT HTD
SEAT MODDriver’s Heated Seat Module
MEM/ADAPT
SEATDriver’s Power Seat Switch, Memory
Seat Module
TRUNK
DR RELEASETrunk Release Motor
REVERSE
LAMPISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
SPARE Not Used
POSITION
LAMPTaillamp Assemblies, Front Position
Lamp Assemblies (Export Only)
J Cases Usage
AMP Audio Amplier
PUSHER FAN Pusher Fan (Export Only)
Relays Usage
BAS RELAY
MINIBrake Apply Sensor
PUSHER FAN Pusher Fan (Export Only)
L POSITION
RELAY MICRODriver’s Side Position Lamp
(Export Only)
TRK DR REL
SOL RELAY
MICROTrunk Release Motor
REV LAMP
RELAY MICROISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
R POSITION
RELAY MICROPassenger’s Side Position Lamp
(Export Only)
IGN 3 RELAY
MICROHeated Seat Modules, Air Inlet
Motor, Shifter Assembly
STANDING
LAMP
RLY MICROControl for Position Lamp Relays
(Export Only)
Circuit
BreakersUsage
SEAT C/BPower Seat Switches, Memory Seat
Module
Misc. Usage
JOINT
CONNECTORJoint Connector
454

Rear Underseat Fuse Block
(Passenger’s Side)
The passenger’s side rear fuse block is located
under the rear seat on the passenger’s side of the
vehicle. The rear seat cushion must be removed
to access the rear fuse block. See “Removing
the Rear Seat Cushion” listed previously.
To access the fuse block, push in the two tabs
located at each end of the fuse block cover. Then
lift the cover off.
Fuses Usage
TRUNK DIODE Trunk Lamp
POWER
SOUNDERPower Sounder, Inclination Sensor
(Export Only)
SPARE Not Used
CANISTER
VENTCanister Vent Solenoid
FUEL
PUMP MTRFuel Pump Motor
SPARE Not Used
R FRT HTD
SEAT MODPassenger’s Side Heated Seat
Module
SPARE Not Used
AIR BAG SDM (Sensing Diagnostic Module)
RIMISRVM (Inside Rearview Mirror),
Power Sounder, RIM
ABS Anti-Lock Brake System
SPARE Not Used
SPARE Not Used
SPARE Not Used
FUSE PULLER Fuse Puller
INTERIOR
LAMPHush Panel Lamps, Puddle Lamps,
Overhead Courtesy Lamp Assembly
455

Fuses Usage
PSGR DR MOD Right Front Passenger Door Module
RIM/IGN SWRIM (Rear Integration Module),
Ignition Switch, Key Lock Cylinder
REAR FOG
LAMPRear Fog Lamps (Export Only)
SPARE Not Used
TV/VICSTV Tuner Assembly (Export Only),
VICS (Vehicle Information
Communication System) Module
J Cases Usage
REAR DEFOG Rear Window Defogger Element
SUNROOF
MODPower Sunroof Module
Relays Usage
SPARE Not Used
REAR DEFOG
RELAY MINIRear Window Defogger
SPARE Not Used
Relays Usage
REAR FOG
LAMP
RLY MICRORear Fog Lamps (Export Only)
FUEL PUMP
MOTOR
RLY MICROFuel Pump Motor
INT LAMP
RELAY MICROHush Panel Lamps, Puddle Lamps,
Overhead Courtesy Lamp Assembly
IGN 1 RELAY
MICROIgnition Switch
SPARE Not Used
Circuit
BreakersUsage
DR MOD
PWR C/BDoor Modules
Misc. Usage
JOINT
CONNECTORJoint Connector
456

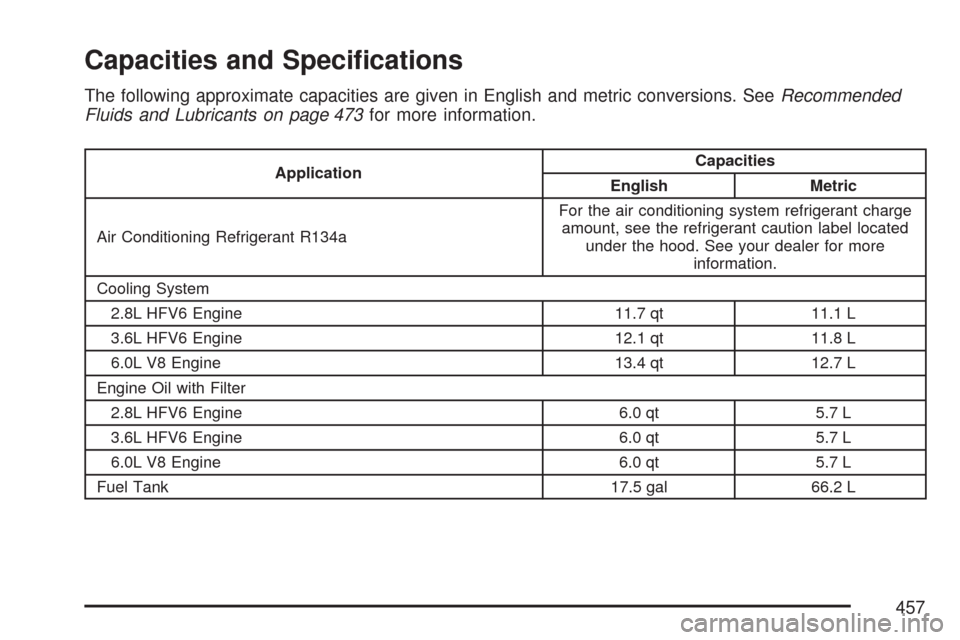

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended
Fluids and Lubricants on page 473for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System
2.8L HFV6 Engine 11.7 qt 11.1 L
3.6L HFV6 Engine 12.1 qt 11.8 L
6.0L V8 Engine 13.4 qt 12.7 L
Engine Oil with Filter
2.8L HFV6 Engine 6.0 qt 5.7 L
3.6L HFV6 Engine 6.0 qt 5.7 L
6.0L V8 Engine 6.0 qt 5.7 L
Fuel Tank 17.5 gal 66.2 L
457

ApplicationCapacities
English Metric
Transmission (Pan Removal and Replacement)
Automatic 7.4 qt 7.0 L
6-Speed Manual – CTS 1.9 qt 1.8 L
6-Speed Manual – CTS-V 3.7 qt 3.5 L
Wheel Nut Torque 100 lb ft
(140Y
)
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
2.8L HFV6 T Automatic Manual 0.043 inches (1.1 mm)
3.6L HFV6 7Automatic
Manual0.043 inches (1.1 mm)
6.0L V8 U Manual 0.040 inches (1.02 mm)
CTS-V Engine Data
Engine Horsepower Torque Displacement Compression Ratio
6.0L V8 (LS2)400 hp (298 kW)@
6000 rpm395 ft lb (536 Nm)@
4400 rpm6.0 L 10.9:1
458

Maintenance Schedule................................ 460
Introduction............................................... 460
Maintenance Requirements........................ 460
Your Vehicle and the Environment............ 460
Using the Maintenance Schedule............... 461
Scheduled Maintenance............................. 462
Additional Required Services..................... 465
Maintenance Footnotes.............................. 467
Owner Checks and Services..................... 469At Each Fuel Fill....................................... 469
At Least Once a Month............................. 470
At Least Once a Year............................... 470
Recommended Fluids and Lubricants........ 473
Normal Maintenance
Replacement Parts................................. 475
Engine Drive Belt Routing......................... 476
Maintenance Record.................................. 477
Section 6 Maintenance Schedule
459

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan?
The Plan supplements your new vehicle
warranties. See your Warranty and Owner
Assistance booklet or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance might not be covered
by warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
460
