service schedule CADILLAC CTS V 2007 1.G Owners Manual

Service and Appearance Care
.................. 329
Service
................................................. 332
Fuel
...................................................... 334
Checking Things Under
the Hood
........................................... 340
Rear Axle
............................................. 382
Headlamp Aiming
................................. 383
Bulb Replacement
................................ 386
Windshield Wiper Blade
Replacement
..................................... 390
Tires
..................................................... 392
Appearance Care
.................................. 435Vehicle Identication
............................. 445
Electrical System
.................................. 446
Capacities and Specications
................ 457
Maintenance Schedule
.............................. 459
Maintenance Schedule
.......................... 460
Customer Assistance Information
............. 481
Customer Assistance and Information
... 482
Reporting Safety Defects
...................... 500
Index
.......................................................... 503
2

Oil Pressure Light
{CAUTION:
Do not keep driving if the oil pressure is
low. If you do, your engine can become so
hot that it catches re. You or others could
be burned. Check your oil as soon as
possible and have your vehicle serviced.
Notice:Lack of proper engine oil maintenance
may damage the engine. The repairs would
not be covered by your warranty. Always follow
the maintenance schedule in this manual for
changing engine oil.If your vehicle has this
light, it will come on
when there is a problem
with your engine oil
pressure.
This light will come on when you turn your key to
ON or START. It goes off once you start the
engine. That is a check to be sure the light works.
If it does not come on, be sure to have it xed
so it will be there to warn you if there is a problem.
When the light comes on and stays on, it means
that oil is not owing through your engine properly.
You could be low on oil and you might have
some other system problem. SeeEngine Oil on
page 346for more information.
212

When the oil life is depleted, the Change Engine
Oil message will appear on the display. See
your dealer for service. In addition to the engine
oil life system monitoring the oil life, additional
maintenance is recommended in the Maintenance
Schedule in this manual. SeeScheduled
Maintenance on page 462andEngine Oil on
page 346for more information.
When you reset the Change Engine Oil message
by clearing it from the display, you still must reset
the engine oil life system separately. For more
information on resetting the engine oil life system,
see “How to Reset the Engine Oil Life System
and the Oil Life Indicator” underEngine Oil
Life System on page 349. If you clear the Change
Engine Oil message from the display, it will not
re-appear.
TRANS FLUID LIFE (Automatic Transmission):
If you select this item, the percentage of
remaining transmission uid life is displayed.
If you see 99% TRANS FLUID LIFE on the display,
that means that 99% of the current transmission
uid life remains.When the transmission uid life is depleted, the
Change Trans Fluid message will appear on
the display. You should change the transmission
uid as soon as possible. Be sure to keep a written
record of the mileage and date of the uid
change so you will have it for future reference.
SeeScheduled Maintenance on page 462
andRecommended Fluids and Lubricants on
page 473for more information.
When you reset the Change Trans Fluid message
by clearing it from the display, you still must
reset the transmission uid life monitor separately.
For more information on resetting the transmission
uid life monitor, seeAutomatic Transmission
Fluid on page 353.
LF TIRE:If you select this item, the driver’s side
front tire pressure will be displayed. If the tire
pressure is low, LOW will be displayed with this
item. The pressure can be displayed in pounds per
square inch (PSI) or kilopascals (KPA). To change
the units, seeDIC Main Menu on page 228
DIC Main Menu.
227

Change Engine Oil
This message indicates that the life of the engine
oil has expired and it should be changed and
that your vehicle is due for service. See your
dealer. SeeEngine Oil on page 346and
Scheduled Maintenance on page 462for more
information.
When you reset the Change Engine Oil message
by clearing it from the display, you still must
reset the engine oil life system separately. For
more information on resetting the engine oil
life system, seeEngine Oil Life System on
page 349. If you clear this message from the
display, it will not re-appear.
Change Trans (Transmission) Fluid
(Automatic Transmission)
This message indicates that the life of the
transmission uid has expired and it should be
changed. SeeScheduled Maintenance on
page 462andRecommended Fluids and
Lubricants on page 473for the proper uid and
change intervals.When you reset the Change Trans Fluid message
by clearing it from the display, you still must
reset the transmission uid life monitor separately.
For more information on resetting the transmission
uid life monitor, seeAutomatic Transmission
Fluid on page 353.
Check Brake Fluid
This message will display if the ignition is in ON to
inform the driver that the brake uid level is low.
Have the brake system serviced by your dealer as
soon as possible. SeeBrake System Warning
Light on page 205andBrakes on page 371
for more information.
Check Gas Cap
When this message appears on the display, the
gas cap has not been fully tightened. You
should recheck the gas cap to ensure that it is on
and tightened properly. See “If the Light Is On
Steady” underMalfunction Indicator Lamp
on page 209for more information.
235

Hydraulic Clutch
It is not necessary to regularly check clutch uid
unless you suspect there is a leak in the system.
Adding uid will not correct a leak.
A uid loss in this system could indicate a
problem. Have the system inspected and repaired.
When to Check and What to Use
The hydraulic clutch
uid reservoir cap has
this symbol on it.
SeeEngine
Compartment Overview
on page 342for
reservoir location.
Refer to the Maintenance Schedule to determine
how often you should check the uid level in
your clutch master cylinder reservoir and for the
proper uid to use. SeeOwner Checks and
Services on page 469andRecommended Fluids
and Lubricants on page 473.
How to Check and Add Fluid
Make sure the uid level is at the MIN (Minimum)
line on the side of the reservoir. If it is not,
remove the cap and add the proper uid until the
level reaches the MIN line.
Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years or
150,000 miles (240 000 km), whichever occurs
rst, if you add only DEX-COOL
®extended
life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 360.
356

Federal Communications Commission
(FCC) and Industry and Science Canada
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
Tire Inspection and Rotation
Tires should be rotated every 5,000 to 8,000 miles
(8 000 to 13 000 km).
If your vehicle has P245/45ZR18 96W size tires,
GM recommends rotating these tires at 3,000 mile
(4 800 km) intervals. These tires are optimized for
dry traction and handling performance. Tread life
may be 15,000 miles (24 140 km) or less for these
tires, depending on how and where you drive.
Any time you notice unusual wear, rotate your
vehicle’s tires as soon as possible and check
wheel alignment. Also check for damaged tires or
wheels. SeeWhen It Is Time for New Tires on
page 411andWheel Replacement on page 416for
more information.
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The
rst rotation is the most important. SeeScheduled
Maintenance on page 462.
409

Maintenance Schedule................................ 460
Introduction............................................... 460
Maintenance Requirements........................ 460
Your Vehicle and the Environment............ 460
Using the Maintenance Schedule............... 461
Scheduled Maintenance............................. 462
Additional Required Services..................... 465
Maintenance Footnotes.............................. 467
Owner Checks and Services..................... 469At Each Fuel Fill....................................... 469
At Least Once a Month............................. 470
At Least Once a Year............................... 470
Recommended Fluids and Lubricants........ 473
Normal Maintenance
Replacement Parts................................. 475
Engine Drive Belt Routing......................... 476
Maintenance Record.................................. 477
Section 6 Maintenance Schedule
459

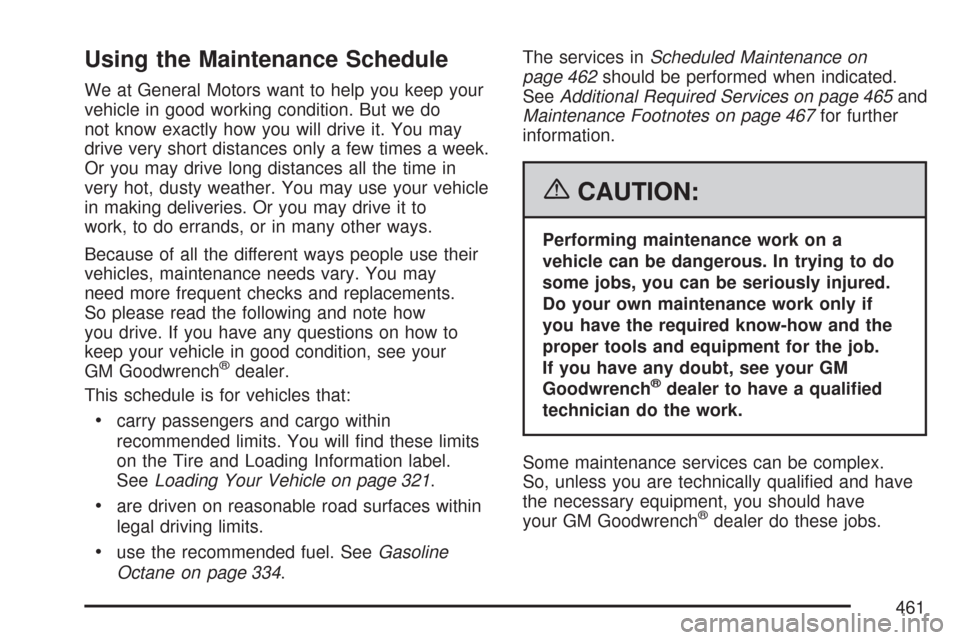

Using the Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we do
not know exactly how you will drive it. You may
drive very short distances only a few times a week.
Or you may drive long distances all the time in
very hot, dusty weather. You may use your vehicle
in making deliveries. Or you may drive it to
work, to do errands, or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may
need more frequent checks and replacements.
So please read the following and note how
you drive. If you have any questions on how to
keep your vehicle in good condition, see your
GM Goodwrench
®dealer.
This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 321.
are driven on reasonable road surfaces within
legal driving limits.
use the recommended fuel. SeeGasoline
Octane on page 334.The services inScheduled Maintenance on
page 462should be performed when indicated.
SeeAdditional Required Services on page 465and
Maintenance Footnotes on page 467for further
information.
{CAUTION:
Performing maintenance work on a
vehicle can be dangerous. In trying to do
some jobs, you can be seriously injured.
Do your own maintenance work only if
you have the required know-how and the
proper tools and equipment for the job.
If you have any doubt, see your GM
Goodwrench
®dealer to have a qualied
technician do the work.
Some maintenance services can be complex.
So, unless you are technically qualied and have
the necessary equipment, you should have
your GM Goodwrench
®dealer do these jobs.
461

When you go to your GM Goodwrench®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
If you want to purchase service information,
seeService Publications Ordering Information
on page 501.
Owner Checks and Services on page 469tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 473andNormal
Maintenance Replacement Parts on page 475.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.Scheduled Maintenance
When the Change Engine Oil message in the
Driver Information Center (DIC) comes on,
it means that service is required for your vehicle.
Have your vehicle serviced as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions,
the engine oil life system may not indicate
that vehicle service is necessary for over a year.
However, your engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your GM Goodwrench
®
dealer has GM-trained service technicians who will
perform this work using genuine GM parts and
reset the system.
If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 349for information on the Engine Oil Life
System and resetting the system.
462

When the Change Engine Oil message appears,
certain services, checks, and inspections are
required. Required services are described in the
following for “MaintenanceI” and “MaintenanceII.”
Generally, it is recommended that your rst
service be MaintenanceI, your second service
be MaintenanceII, and that you alternate
MaintenanceIand MaintenanceIIthereafter.
However, in some cases, MaintenanceIImay be
required more often.MaintenanceI— Use MaintenanceIif the
change engine oil message comes on within
10 months since the vehicle was purchased or
MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at all
for one year.
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 346. Reset oil life system.
SeeEngine Oil Life System on page 349.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (k).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 351.See footnote (n).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 409and “Tire Wear Inspection” inAt Least Once a Month on
page 470.••
463
