RF TIRE:If you select this item, the passenger’s
side front tire pressure will be displayed. If the
tire pressure is low, LOW will be displayed
with this item. The pressure can be displayed in
pounds per square inch (PSI) or kilopascals (KPA).
To change the units, seeDIC Main Menu on
page 228DIC Main Menu.
RR TIRE:If you select this item, the passenger’s
side rear tire pressure will be displayed. If the
tire pressure is low, LOW will be displayed
with this item. The pressure can be displayed in
pounds per square inch (PSI) or kilopascals (KPA).
To change the units, seeDIC Main Menu on
page 228DIC Main Menu.
LR TIRE:If you select this item, the driver’s side
rear tire pressure will be displayed. If the tire
pressure is low, LOW will be displayed with this
item. The pressure can be displayed in pounds per
square inch (PSI) or kilopascals (KPA). To change
the units, seeDIC Main Menu on page 228
DIC Main Menu.
BLANK LINE:If you select this item, nothing is
displayed at the top of the screen.DIC Main Menu
Accessing the DIC Main Menu
To access the main menu of the DIC, do the
following:
1. Press the PWR/VOL knob to turn the radio on.
2. Press the TUNE/SEL knob once.
3. Turn the TUNE/SEL knob clockwise or
counterclockwise to scroll through the
menu items.
The DIC main menu consists of the following
menu items:
eBASS - MID - TREBLE
eEQ
DSP (Bose®Audio System)
AVC (Bose®Audio System)
H/A
AUTOSTORE PRESETS
CAT
TA
MSG RECALL RDS MESSAGE
228

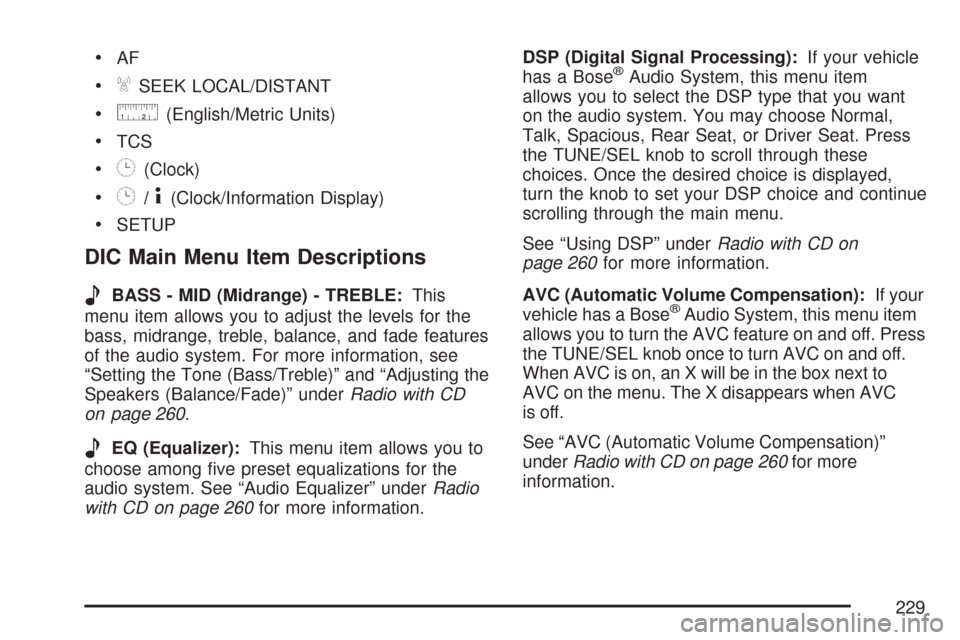

AF
ASEEK LOCAL/DISTANT
9(English/Metric Units)
TCS
8(Clock)
8/4(Clock/Information Display)
SETUP
DIC Main Menu Item Descriptions
e
BASS - MID (Midrange) - TREBLE:This
menu item allows you to adjust the levels for the
bass, midrange, treble, balance, and fade features
of the audio system. For more information, see
“Setting the Tone (Bass/Treble)” and “Adjusting the
Speakers (Balance/Fade)” underRadio with CD
on page 260.
eEQ (Equalizer):This menu item allows you to
choose among ve preset equalizations for the
audio system. See “Audio Equalizer” underRadio
with CD on page 260for more information.DSP (Digital Signal Processing):If your vehicle
has a Bose
®Audio System, this menu item
allows you to select the DSP type that you want
on the audio system. You may choose Normal,
Talk, Spacious, Rear Seat, or Driver Seat. Press
the TUNE/SEL knob to scroll through these
choices. Once the desired choice is displayed,
turn the knob to set your DSP choice and continue
scrolling through the main menu.
See “Using DSP” underRadio with CD on
page 260for more information.
AVC (Automatic Volume Compensation):If your
vehicle has a Bose
®Audio System, this menu item
allows you to turn the AVC feature on and off. Press
the TUNE/SEL knob once to turn AVC on and off.
When AVC is on, an X will be in the box next to
AVC on the menu. The X disappears when AVC
is off.
See “AVC (Automatic Volume Compensation)”
underRadio with CD on page 260for more
information.
229

8(Clock):Use this menu item to set the time on
the clock.
SeeSetting the Time on page 259for more
information.
8/4(Clock/Information Display):Use this
menu item to toggle between the clock display and
the XM™ Information (Song, Artist, Album), if
available.
SeeSetting the Time on page 259and “XM™
Satellite Radio Service” underRadio with CD on
page 260for more information.
SETUP:When you select this menu item, the
following submenu is available:
LANGUAGE
PERSONALIZATION
CONFIGURE DISPLAY KEYS
CONFIGURE SWC (Steering Wheel
Control) KEYS
To change the language displayed on the radio,
select LANGUAGE by pressing the TUNE/SEL
knob. Turn the TUNE/SEL knob to scroll through
the available languages and press the knob tomake your selection. If you accidentally select a
language that you did not want, ENGLISH is
always at the top of the language list.
For more information on the other items in the
SETUP menu, seeDIC Vehicle Personalization on
page 242andRecongurable Steering Wheel
Controls (SWC) (CTS) on page 169.
DIC Warnings and Messages
These messages will appear if there is a problem
detected in one of your vehicle’s systems.
You must acknowledge a message to clear it from
the screen for further use. To clear a message,
press the CLR button.
Be sure to take any message that appears on the
screen seriously and remember that clearing
the message will only make the message
disappear, not the problem.
Battery Not Charging
When this message appears on the display, there
is a problem with the generator and battery
charging systems. Have the electrical system
checked by your dealer as soon as possible.
232

Notice:Before adding any sound equipment to
your vehicle, such as an audio system, CD
player, CB radio, mobile telephone, or two-way
radio, make sure that it can be added by
checking with your dealer/retailer. Also, check
federal rules covering mobile radio and
telephone units. If sound equipment can be
added, it is very important to do it properly.
Added sound equipment can interfere with the
operation of your vehicle’s engine, radio, or
other systems, and even damage them. Your
vehicle’s systems can interfere with the
operation of sound equipment that has
been added.
Your vehicle has a feature called Retained
Accessory Power (RAP). With RAP, the audio
system can be played even after the ignition
is turned off. SeeRetained Accessory Power
(RAP) on page 119for more information.Setting the Time
1. Press the TUNE/SEL (select) knob to enter
the main menu.
2. Turn the TUNE/SEL knob until SET CLOCK
appears on the display.
3. Press the TUNE/SEL knob to select
SET CLOCK.
4. Turn the TUNE/SEL knob to adjust the time.
5. Press the TUNE/SEL knob to update the
time. VEHICLE TIME UPDATED will appear
on the display.
If the CLOCK/RADIO DISP (display) is congured
into one of the congurable keys, pressing the key
will switch the display between the radio station
frequency and the time. See “Congurable Radio
Display Keys” underRadio with CD on page 260for
more information on conguring the keys.
259

{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can boil
before the proper coolant mixture will. Your
vehicle’s coolant warning system is set for
the proper coolant mixture. With plain
water or the wrong mixture, your engine
could get too hot but you would not get the
overheat warning. Your engine could catch
re and you or others could be burned. Use
a 50/50 mixture of clean, drinkable water
and DEX-COOL
®coolant.
Notice:In cold weather, water can freeze and
crack the engine, radiator, heater core and
other parts. Use the recommended coolant and
the proper coolant mixture.
{CAUTION:
You can be burned if you spill coolant on
hot engine parts. Coolant contains
ethylene glycol and it will burn if the
engine parts are hot enough. Do not spill
coolant on a hot engine.
If no coolant is visible in the surge tank, add
coolant as follows:
1. Remove the coolant surge tank pressure cap
when the cooling system, including the
coolant surge tank pressure cap and upper
radiator hose, is no longer hot. Turn the
pressure cap slowly counterclockwise about
one-quarter turn and then stop.
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.
366
