CADILLAC DEVILLE 1993 7.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine NOTICE:
After you’ve u
was before, to keep it away from moving engine parts. If you
don’t, it could be damaged.
How long should you keep the block heater plugged in? The answer
depends on
the weather, the kind of oil you have, and some other things.
Instead
of trying to list everything here, we ask that you contact a Cadillac
dealer
in the area where you’ll be parking your vehicle. The dealer can
give you the best advice for that particular area.

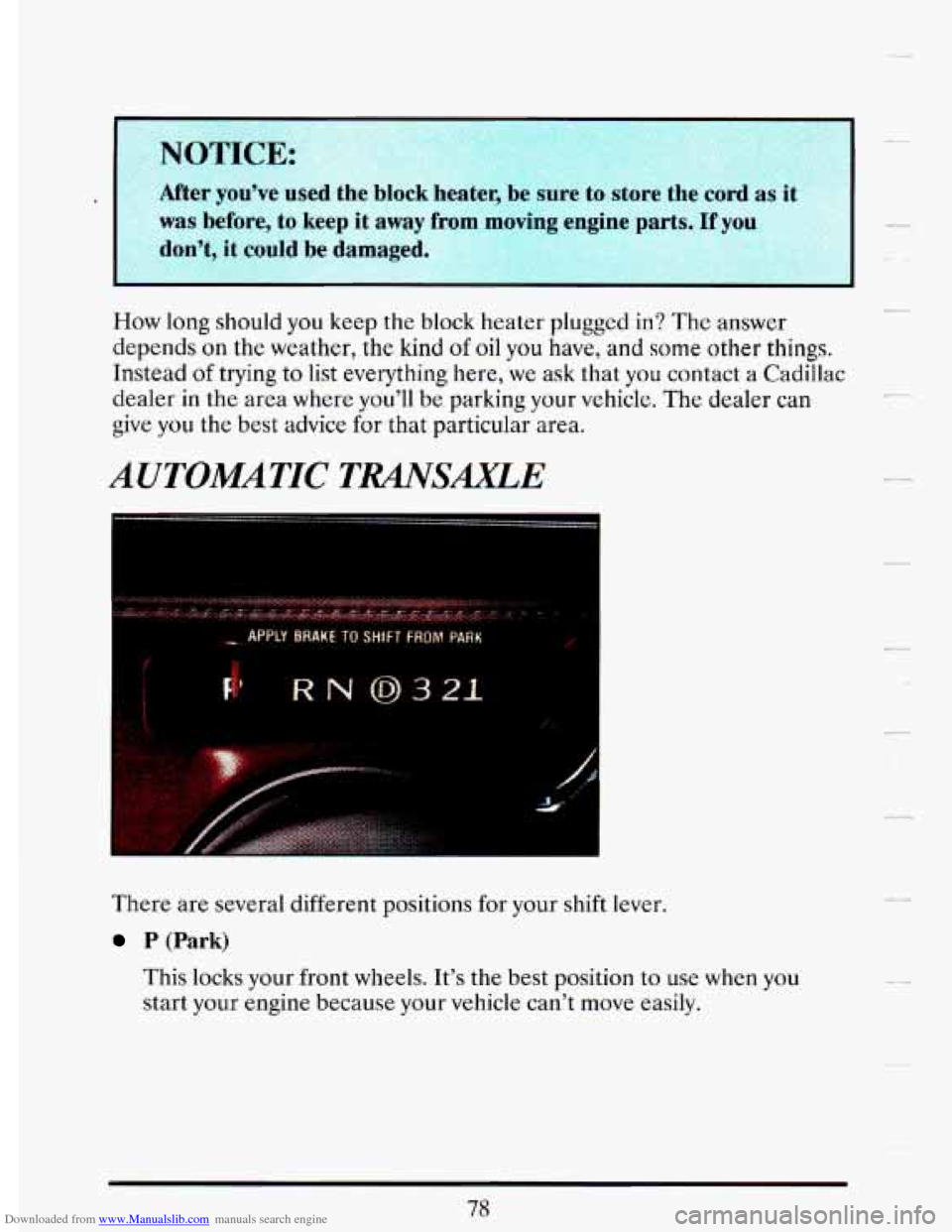

AUTOMATIC TRANSAXLE
There are several different positions for your shift lever.
P (Park)
This locks your front wheels. It’s the best position to use when you
start your engine because your vehicle can’t move easily.
78

Downloaded from www.Manualslib.com manuals search engine - I
’
A CAUTION:
It can be dangerous to get out of ---ur vehicle if the shift lever is
not fully in
“P” (Park) with the parking brake firmly set. Your
vehicle can roll.
s-4 W$&I
Don’t leave your vehicle when the engine is running unless y
have to. If you have left the engine running, the vehicle can
move suddenly.
You or others could be injured. To be sure yo
vehicle won’t move, when you’re
on fairly level ground, always
set your parking brake and move the shift lever to
“P” (Park).
See “Shifting Into “P” (Park)” in the Index. If you are parking
on
a hill, or, if you’re pulling a trailer, also see, “Parking on
Hills” or “Towing
a nailer” in the Index.
Ensure the shift lever is fully in
“P” (Park) range before starting the
engine. Your Cadillac has a brake-transaxle shift interlock.
You have to
fully amlv your regular brakes before you can shift from “P” (Park) when
the ignition key is in the “Run” position.
If you cannot shift out of “P”
(Park), ease pressure on the shift lever
- push the shift lever all the way
into
“P” (Park) as you maintain brake application. Then move the shift
lever into the gear you wish. See “Shifting Out
of ‘P’ (Park)” in this part.
R (Reverse)
Use this gear to bacK
up.
hifting to “R” (Reverse) while your vehicle is m
ould damage your t
To rock your vehicle back and forth to get out of snow, ice or sand
without damaging your transaxle, see “If You’re Stuck
in Sand, Mud, Ice
or Snow” in the Index.
79

Downloaded from www.Manualslib.com manuals search engine N (Neutral)
In this position, your engine doesn’t connect with the wheels. To
restart when you’re already moving, use “N” (Neutral) only. Also, use
“N” when your vehicle is being towed.
A CAUTION:
Shifting out of “P” (Park) or “N” (Neutral) while your engine is
“racing” (running at high speed) is dangerous. Unless your
foot
is firmly on the brake pedal, your vehicle could move very
rapidly.
You could lose control and hit people or objects. Don’t
shift out of
“P” (Park) or “N” (Neutral) while your engine is
racing.
@ Automatic Overdrive
This position is for normal driving. If you need more power for
passing, and you’re:
- Going less than about 35 mph (56 km/h), push your accelerator
pedal about halfway down.
- Going about 35 mph (56 km/h) or more, push the accelerator all
the way down.
You’ll shift down to the next gear and have more power.

Downloaded from www.Manualslib.com manuals search engine 3 (Third Gear)
This is like a, but you never go into Overdrive.
Here are some times you might choose
“3” instead of a:
- When driving on hilly, winding roads
- When towing a trailer, so there is less shifting between gears
- When going down a steep hill
2 (Second Gear)
This position gives you more power but lower fuel economy. You can
use
2 on hills. It can help control your speed as you go down steep
mountain roads, but then you would also want to use your brakes off
and on. (6 77
81

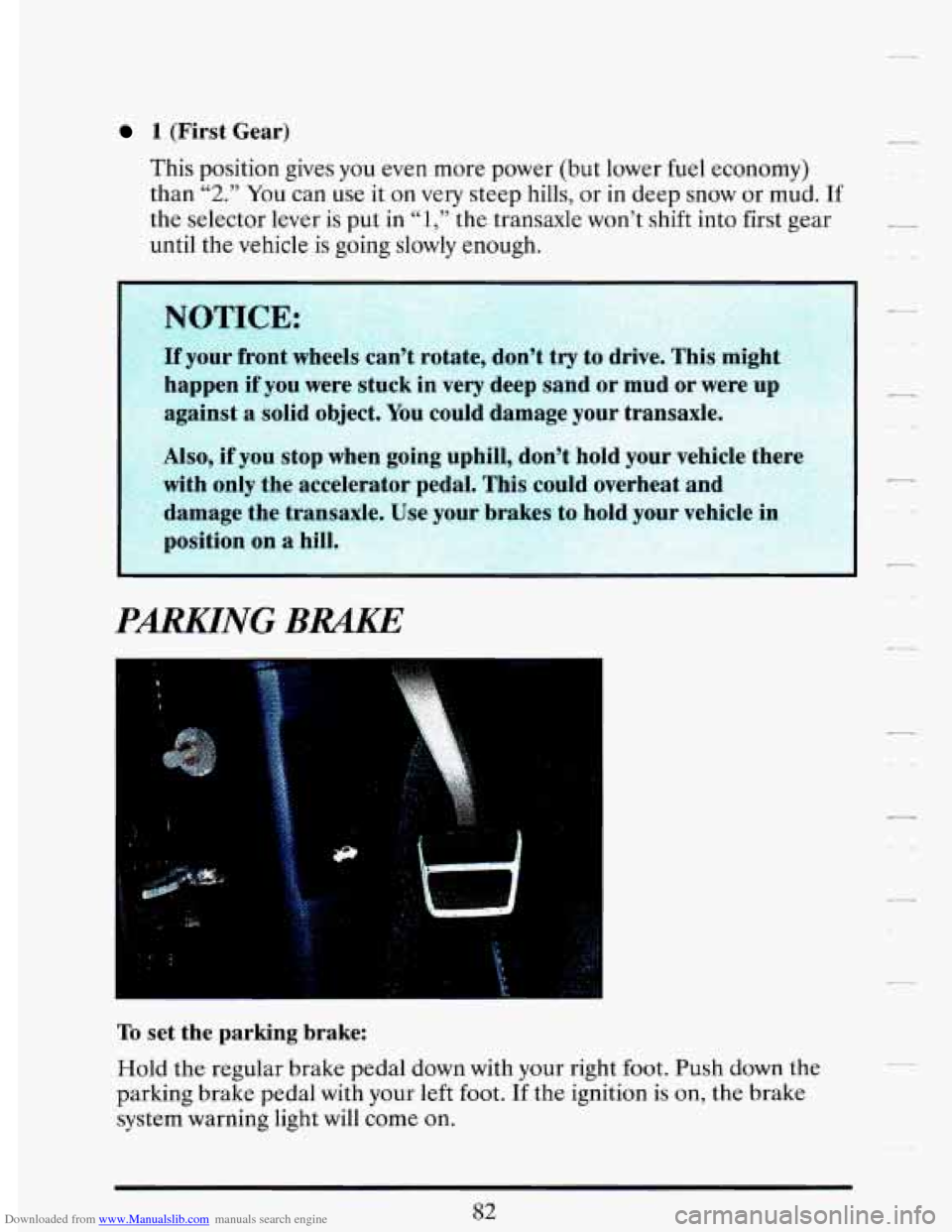

Downloaded from www.Manualslib.com manuals search engine 1 (First Gear)
This position gives
you even more power (but lower fuel economy)
than
“2.” You can use it on very steep hills, or in deep snow or mud. If
the selector lever is put in “1,” the transaxle won’t shift into first gear
until the vehicle
is going slowly enough.
7
..
~ If your front wheels can’t rotate, don’t try to drive. This might
~ happen if you were stuck in very deep sand or mud or were up
against
a solid object. You could damage your transaxlc.
Also, if you stop when going uphill, don’t hold your vehicle the]
j with only the accelerator pedal. This could overheat and
~ damage the transaxle.
position on a hillm
I Jse your brakes to hold your.vehic
.. .. ~ -
--
P-NG BRAKE
To set the parking brake:
Hold the regular brake pedal down with your right foot. Push down the
parking brake pedal with your left
foot. If the ignition is on, the brake
system warning light will come on.

Downloaded from www.Manualslib.com manuals search engine r
r

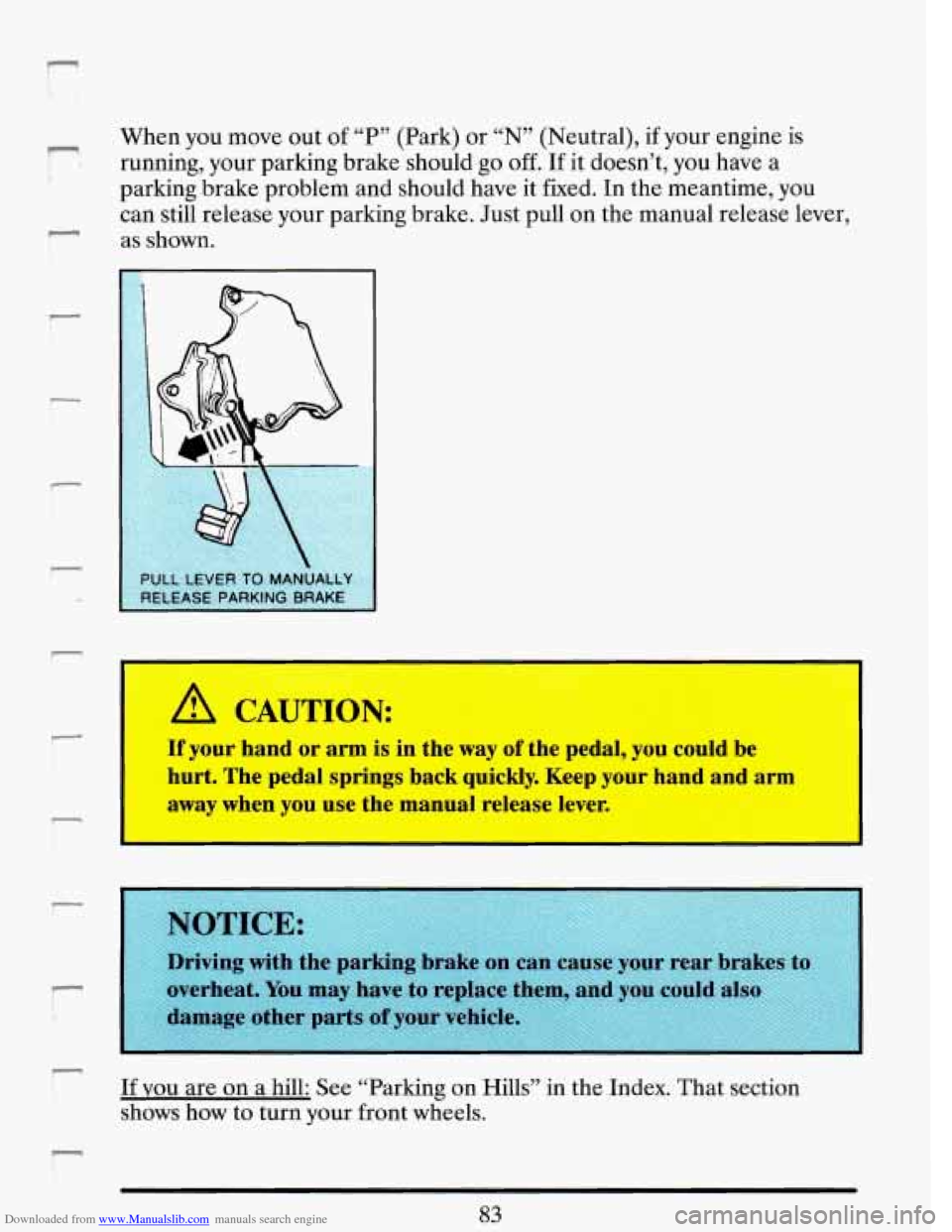

When you move out of “P” (Park) or “N” (Neutral), if your engine is
running, your parking brake should go
off. If it doesn’t, you have a
parking brake problem and should have it fixed. In the meantime, you
can still release your parking brake. Just pull on the manual release lever,
as shown.
-
A CAUTION:
r If your hand or arm is in the way of the pedal, you could be I
hurt. The pedal springs back quickly. Keep your hand and arm
-- se thr -1anual r -’ - - -e lever. r
r
r
* See “Parking on Hills” in the Index. That section
shows how to turn your front wheels.

Downloaded from www.Manualslib.com manuals search engine If YOU are towinn a trailer and are parking; on any hill: See “Towing a
Trailer” in the Index. That section
shows what to do first to keep the
trailer from moving.
SHIFTING INTO “P” (PARK)
I A CAUTION:
I It can be dangerous to get out of your vehicle if the shift lever is
not fully in
“P” (Park) with the parking brake firmly set. Your
vehicle can roll.
If you have left the engine running, the vehicle can move
suddenly. You or others could be injured. To be sure your vehicle
won’t move, when you’re on fairly level ground, use the steps
that follow.
If you are parking on a hill, or if you’re pulling a
trailer, also see “Parking On Hills” or “Towing a Trailer” in the
Index.
I
I
Steering Column Shi! Lever
1. Hold the brake pedal down with your right foot.
7
b.
84

Downloaded from www.Manualslib.com manuals search engine 2. Move the shift lever into “P” (Park) position like this: -
f 1
Pull the lever
toward you.
Move the lever
up as far as it
will go.
3. With your right foot still holding the brake pedal down, set the
4. Move the ignition key to “Lock.”
parking
brake.
-
5. Remove the key and take it with you. If you can walk away from your
vehicle with the ignition key in your hand, your vehicle is in
“P7’
(Park).
85
-

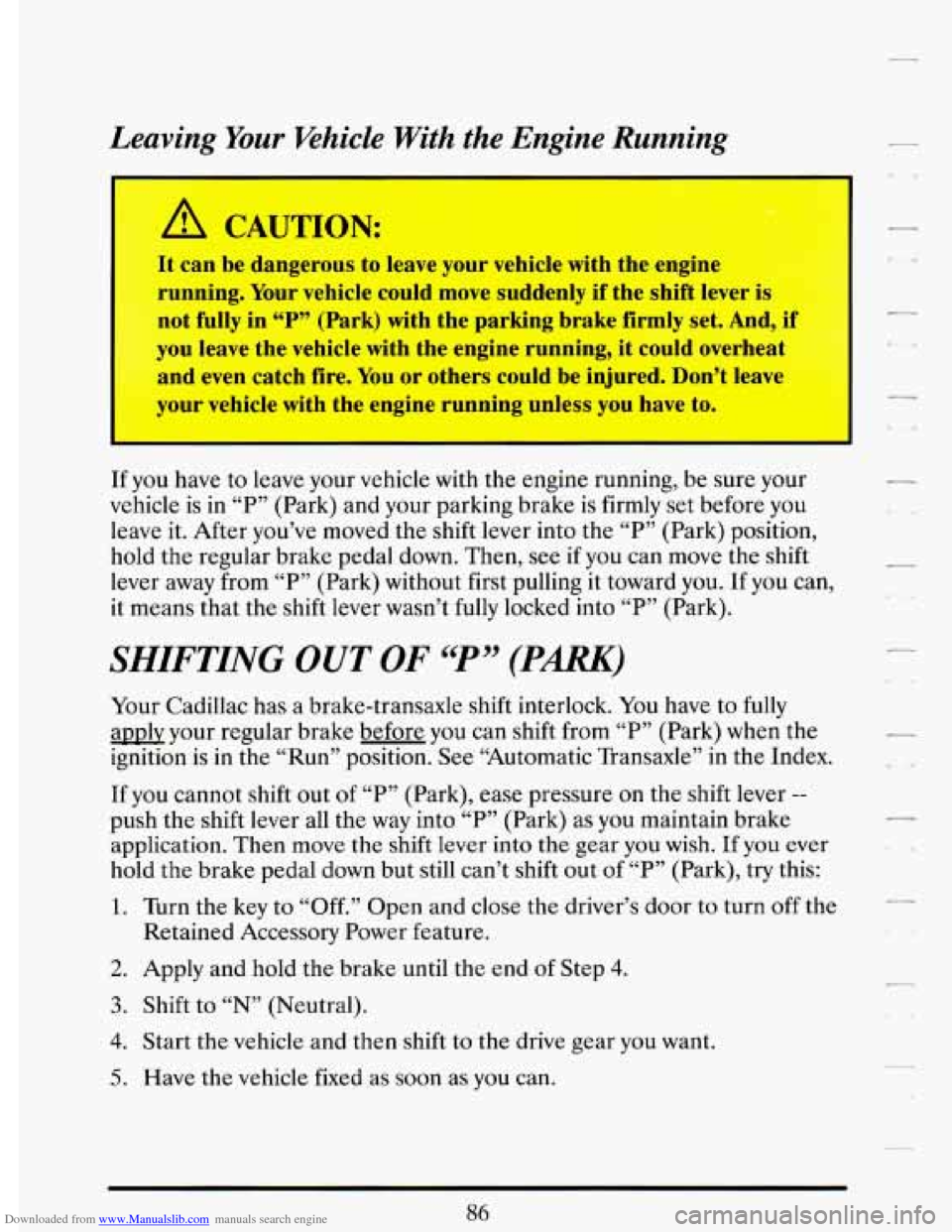

Downloaded from www.Manualslib.com manuals search engine It can be dangerous to leave your vehicle with the engine
running. Your vehicle could move suddenly if the shift lever is
not fully in
“P” (Park) with the parking brake firmly set. And, if
you leave the vehicle with the engine running,
it could overheat
and even catch fire.
You or others could be injured. Don’t leave
your vehicle with the engine running unless you have to.
If you have to leave your vehicle with the engine running, be sure your
vehicle is
in “P” (Park) and your parking brake is firmly set before you
leave it. After you’ve moved the shift
lever into the “P” (Park) position,
hold the regular brake pedal down. Then, see if you can move the shift
lever away from “P” (Park) without first pulling it toward you.
If you can,
it means that the shift lever wasn’t fully locked into “P” (Park).
SHIFTING OUT OF “P” (PARK)
Your Cadillac has a brake-transaxle shift interlock. You have to fully
apply your regular brake before you can shift from “P” (Park) when the
ignition
is in the “Run” position. See “Automatic Transaxle” in the Index.
If you cannot shift out of “P” (Park), ease pressure on the shift lever --
push the shift lever all the way into “P” (Park) as you maintain brake
application. Then move the shift lever into the gear you wish.
If you ever
hold the brake pedal down but still can’t shift out of “P” (Park), try this:
1. Turn the key to “Off.” Open and close the driver’s door to turn off the
2. Apply and hold the brake until the end of Step 4.
3. Shift to “N” (Neutral).
Retained
Accessory Power feature.
4. Start the vehicle and then shift to the drive gear you want.
5. Have the vehicle fixed as soon as you can.
86

Downloaded from www.Manualslib.com manuals search engine - PmNG OVER THINGS THAT BURN
-
1 I
I A CAUTION:
I
Things that can burn could touch hot exhaust parts under your
vehicle and ignite. Don't park over papers, leaves, dry grass \
or
ather things that can burn.
-
87
