Downloaded from www.Manualslib.com manuals search engine How to Add Coolant to the Radiator

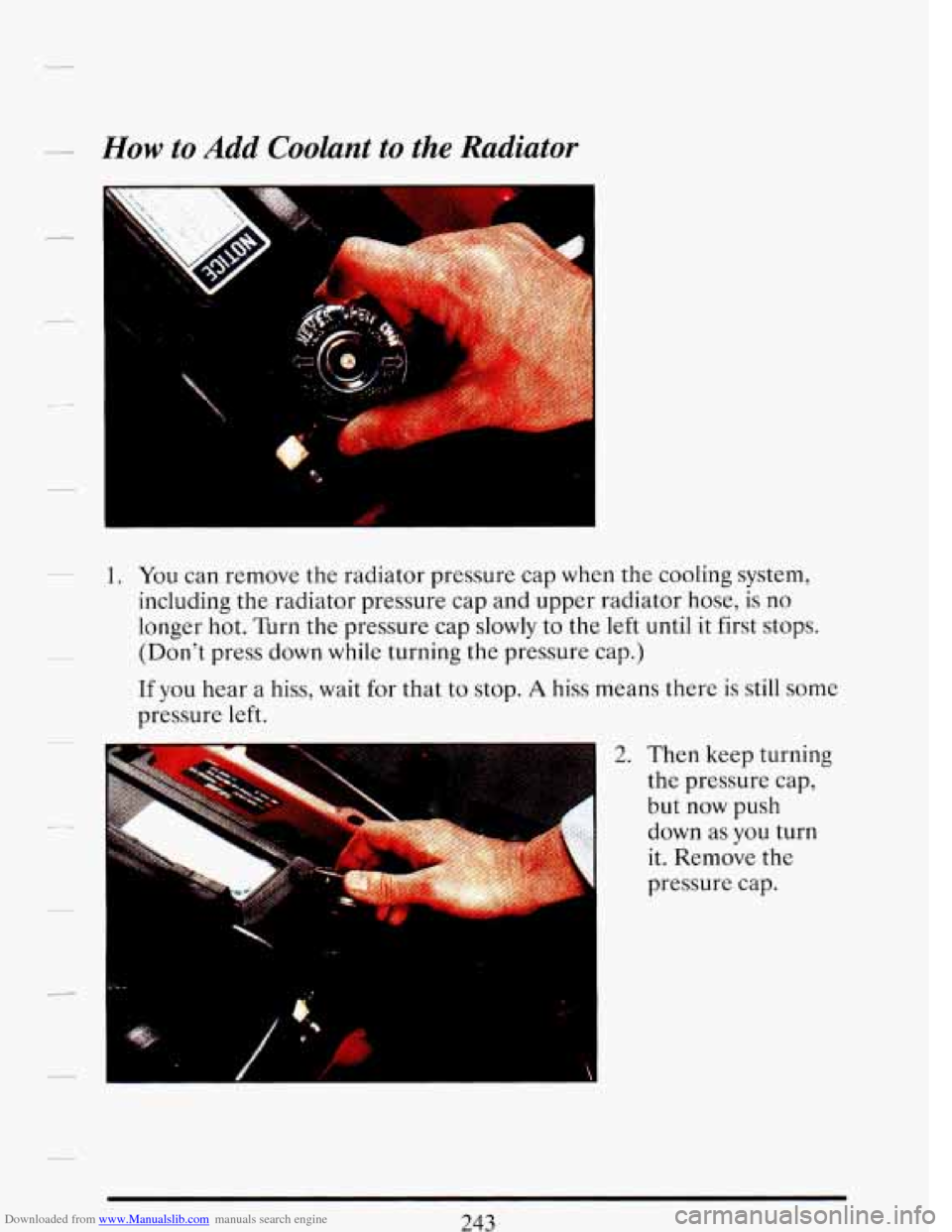

1. You can remove the radiator pressure cap when the cooling system,
including the radiator pressure cap and upper radiator hose, is
no
longer hot. Turn the pressure cap slowly to the left until it first stops.
(Don’t press down
while turning the pressure cap.)
If you hear a hiss, wait
for that to stop. A hiss means there is still some
pressure left.
1
i
2. Then keep turning
the pressure cap,
but
now push
down
as you turn
it. Remove the
pressure cap.
243
Page 257 of 406

Downloaded from www.Manualslib.com manuals search engine i .& . 1-

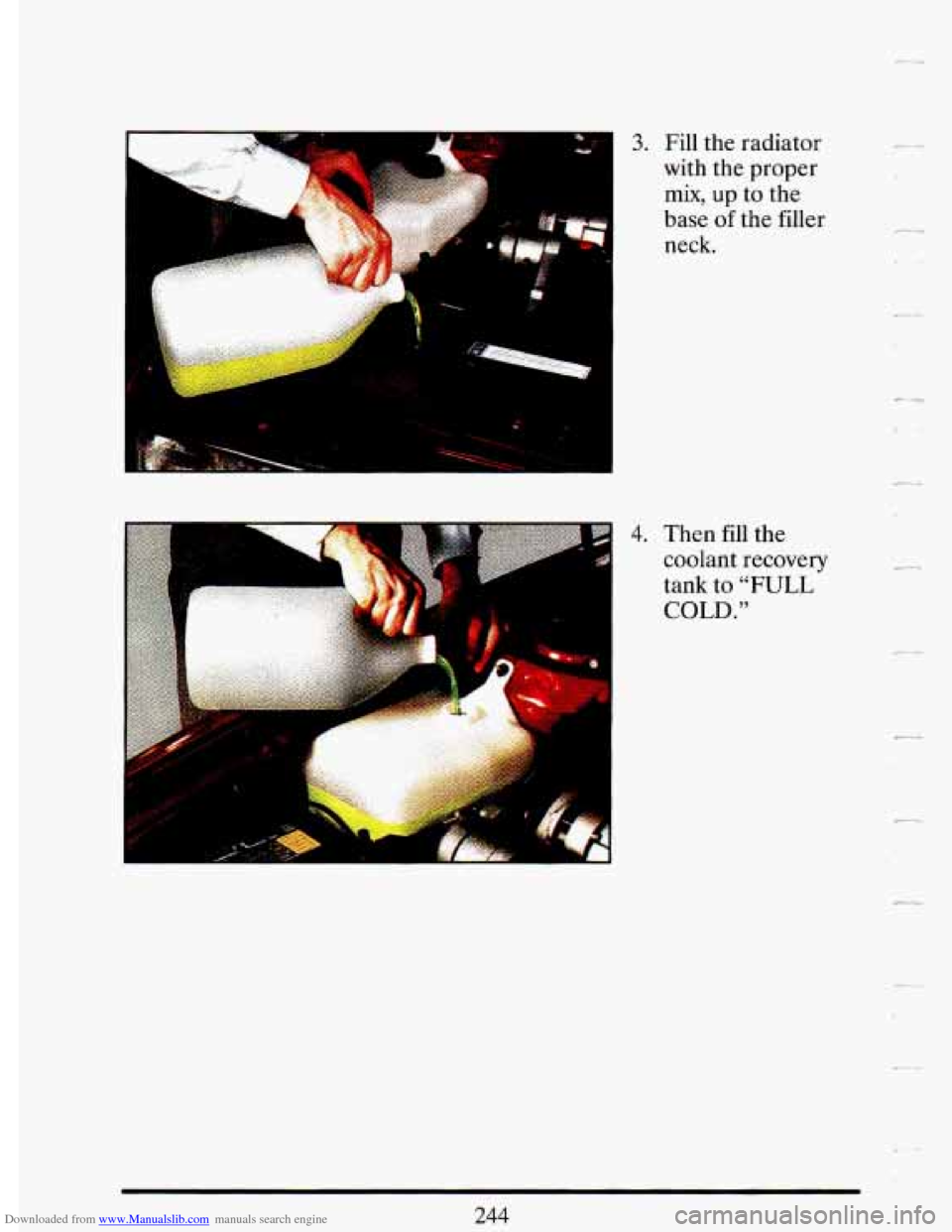

3. Fill the radiator
with the proper
mix, up to the
base of
the filler
neck.
c-
kr
4. Then fill the
coolant recovery
tank
to “FULL
COLD. ”
Page 258 of 406

Downloaded from www.Manualslib.com manuals search engine 7

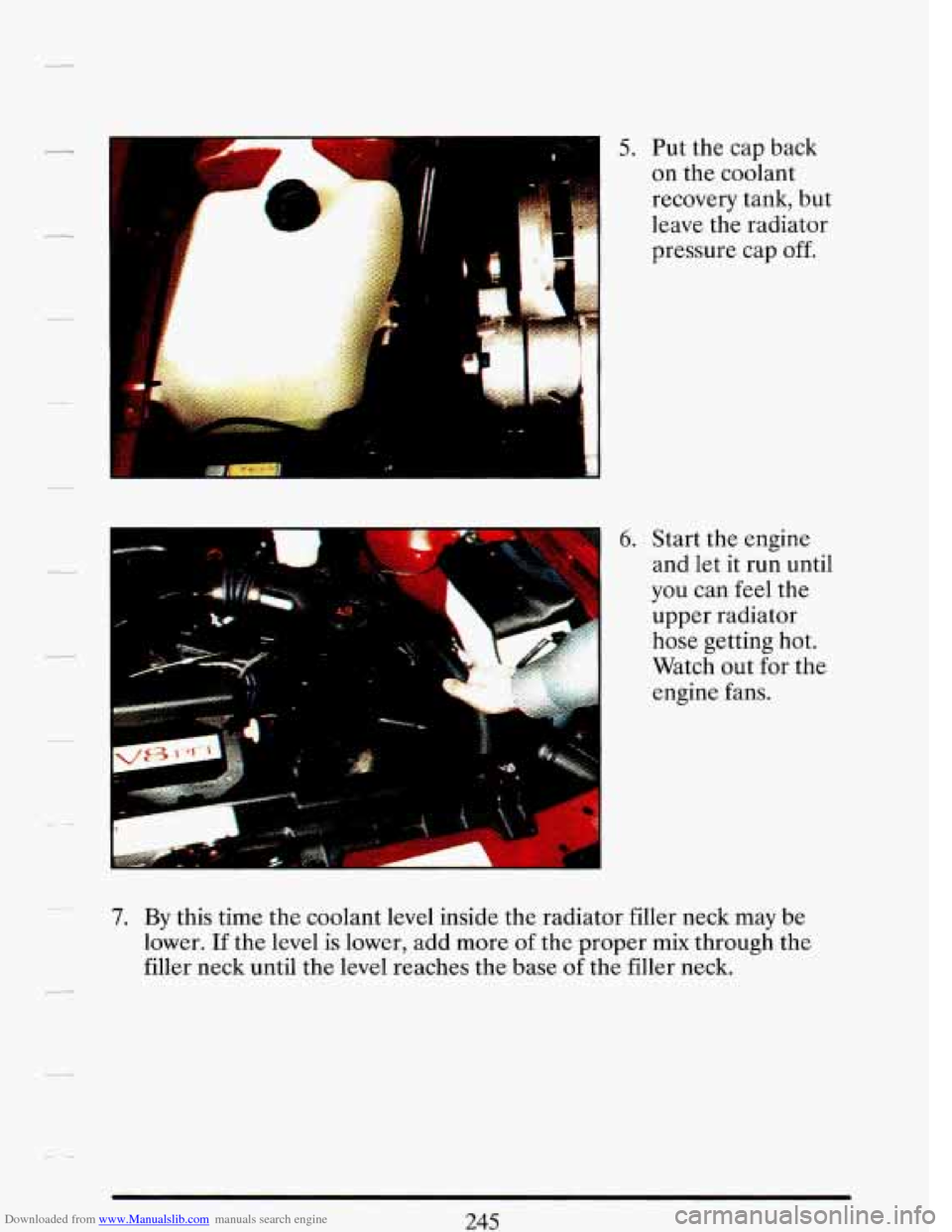

5. Put the cap back
on the coolant
recovery tank, but
leave the radiator
pressure cap
off.
6. Start the engine
and let it run
until
you can feel the
upper radiator
hose getting hot.
Watch out for the
engine fans.
7. By this time the coolant level inside the radiator filler neck may be
lower. If the level is lower, add more of the proper mix through the
filler neck until the
level reaches the base of the filler neck.
245
Page 280 of 406

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
An electric fan under the hood can start up and injure you even
when the engine is not running. Keep hands, clothing and tools
away from any underhood electric fan.
-.. :. -- -2.:
A CAUTION:
Things that burn can get on hot engine parts and start a fire.
These include liquids like gasoline, oil, coolant, brake fluid,
windshield washer and other fluids, and plastic or rubber. You
or others could be burned. Be careful not to drop or spill things
that will burn onto
a hot engine.
Before closing the hood,
be sure all the filler caps are on properly.
Then just pull the
hood down until it’s about 15 inches (38 cm) from
closing. Then close it firmly.
FLUID USAGE LABEL
Use the fluid usage label to identify the correct fluid you want to check.
267
Page 291 of 406

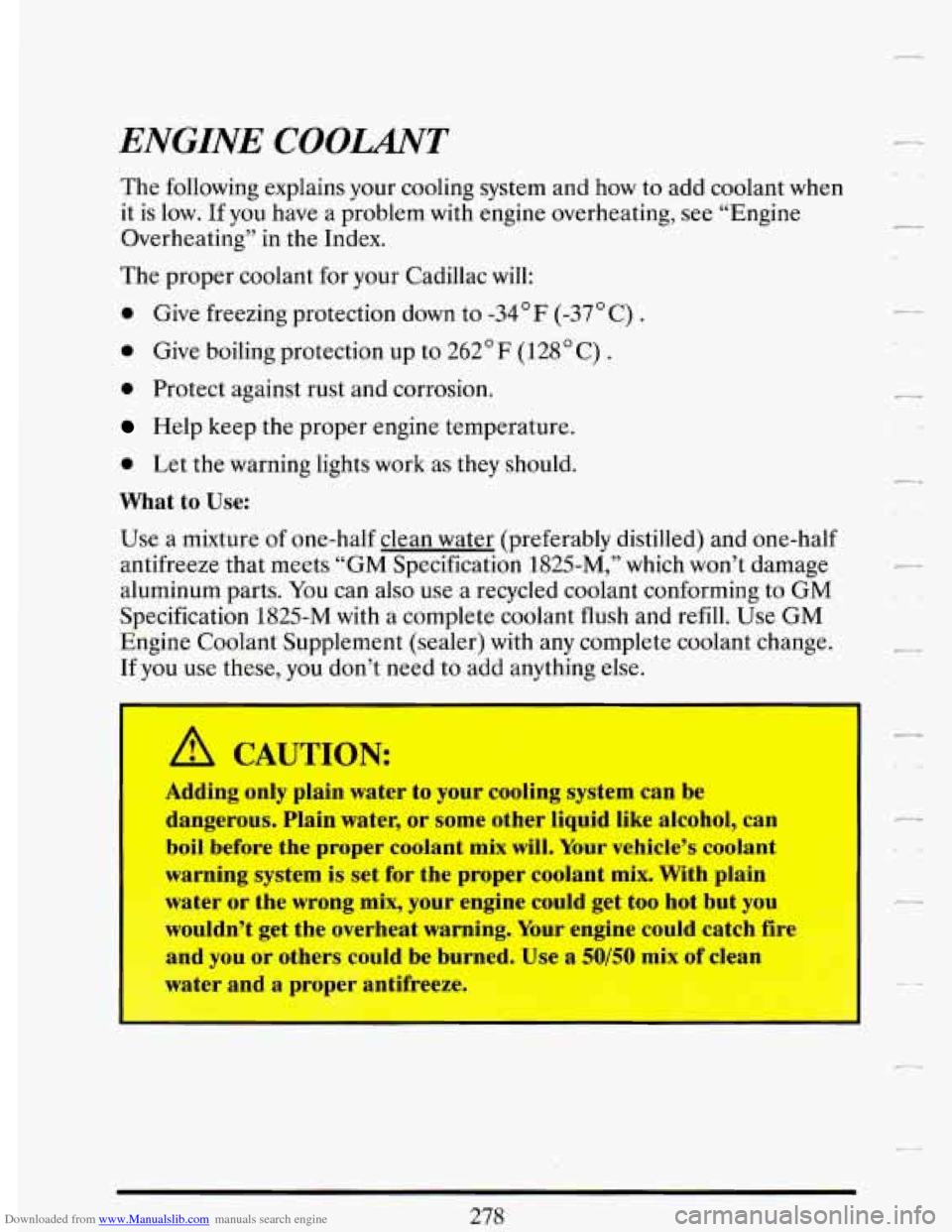

Downloaded from www.Manualslib.com manuals search engine ENGINE COOLANT
The following explains your cooling system and how to add coolant when
it is
low. If you have a problem with engine overheating, see “Engine
Overheating” in the Index.
The proper coolant for your Cadillac will:
0 Give freezing protection down to -34°F (-37°C) .
0 Give boiling protection up to 262°F (128” C) .
0 Protect against rust and corrosion.
Help keep the proper engine temperature.
0 Let the warning lights work as they should.
What to Use:
Use a mixture
of one-half clean water (preferably distilled) and one-half
antifreeze that meets “GM Specification 1825-M,” which won’t damage
aluminum parts.
You can also use a recycled coolant conforming to GM
Specification 1825-M with a complete coolant flush and refill. Use GM
Engine Coolant Supplement (sealer) with any complete coolant change.
If you use these, you don’t need to add anything else.
A CAUTION:
Adding only plain water to your cooling system can be
dangerous. Plain water,
or some other liquid like alcohol, can
boil before the proper coolant mix
will. Your vehicle’s coolant
warning system is set for the proper coolant mix. With plain
water or the wrong mix, your engine could get too hot but you
wouldn’t get the overheat warning. Your engine could catch fire
and
you or others could be burned. Use a 50/50 mix of clean
Waf--- and
a proper anti” e. .-
e
Page 292 of 406

Downloaded from www.Manualslib.com manuals search engine Adding Coolant

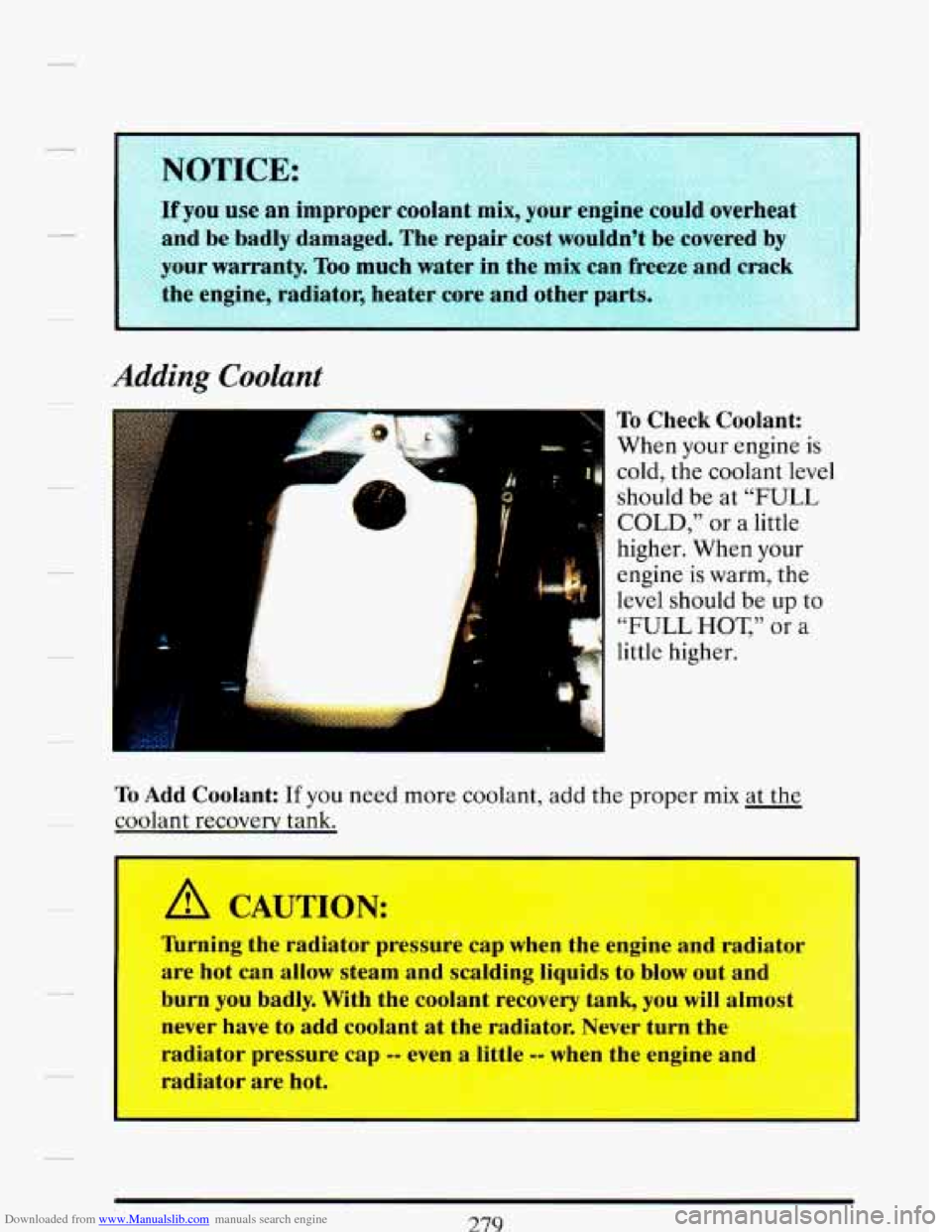

To Check Coolant:
When your engine
is
cold, the coolant level
should be at “FULL
COLD,” or a little
higher. When your
engine is
warm, the
level should be
up to
“FULL
HOT,” or a
little higher.
To Add Coolant: If you need more coolant, add the proper mix at the
coolant recovery tank.
A CAUTION: I
lhrning the radiator pressure cap when the engine and radiator si:;
-z. *?’
are hot can allow steam and scalding liquids to blow out and
burn you badly. With the coolant recovery tank, you will almost
never have to add coolant at the radiator. Never turn the
radiator pressure cap
-- even q little -- when tken le and
radiator are hot.
w -_. sz. -.
.. .
279
Page 293 of 406

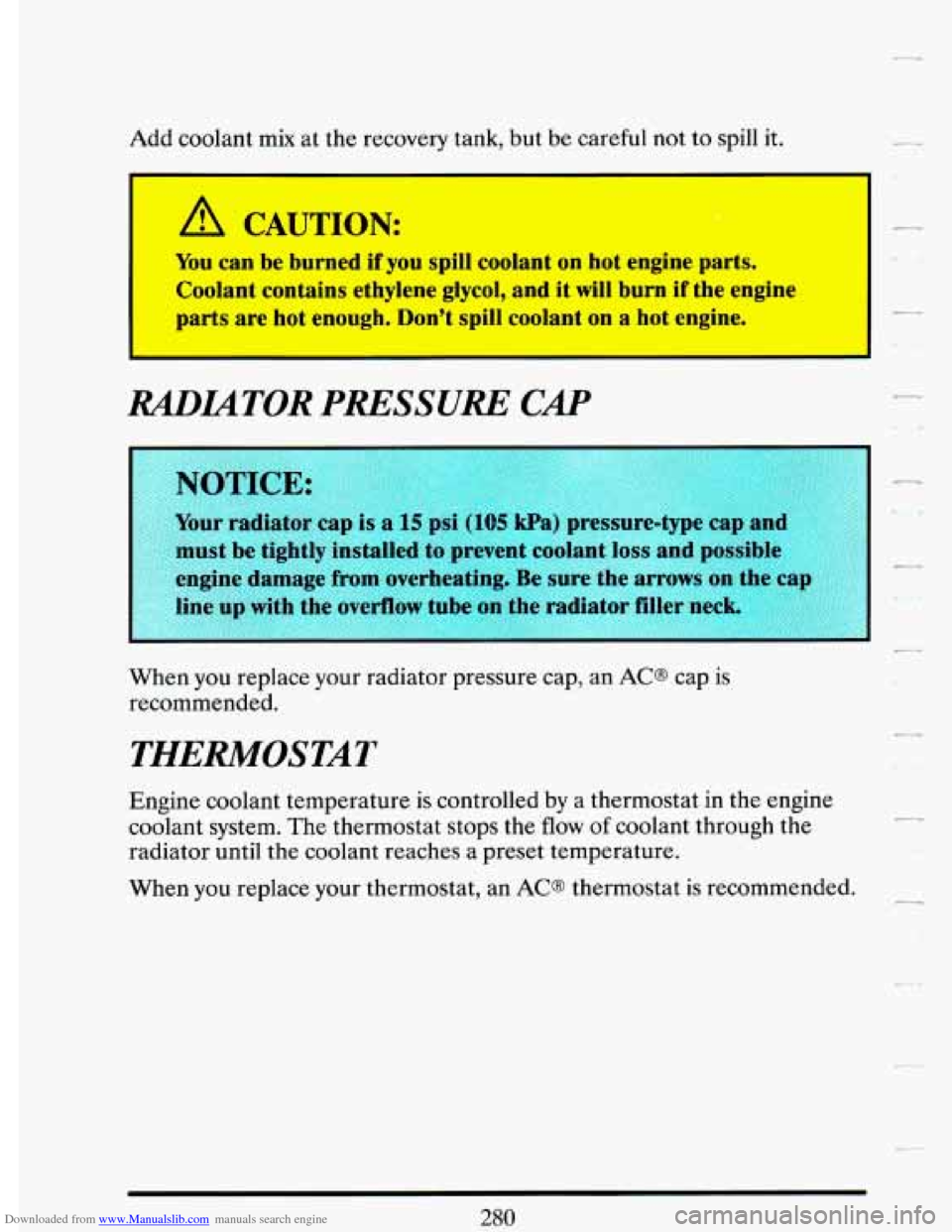

Downloaded from www.Manualslib.com manuals search engine Add coolant mix at the recovery tank, but be careful not to spill it.
-
A CAUTION:
You can be burned if you spill coolant on hot engine parts.
Coolant contains ethylene glycol, and it
will burn if the engine
parts are hot enougl- spill coolant on
a hot e-yine.
RADUTOR PRESSURE CAP
I-
_I
must be tightly Installed to prevent coolant loss and possible
engine
damage from overheating. Be sure the arrows on the c
line up with the overflow tube on the radiator filler neck .L
When you replace your radiator pressure cap, an ACS cap is
recommended.
THERMOSTAT
Engine coolant temperature is controlled by a thermostat in the engine
coolant system. The thermostat stops the
flow of coolant through the
radiator until the coolant reaches a preset temperature.
When you replace your thermostat, an
AC@ thermostat is recommended.
c
Lr
Page 338 of 406

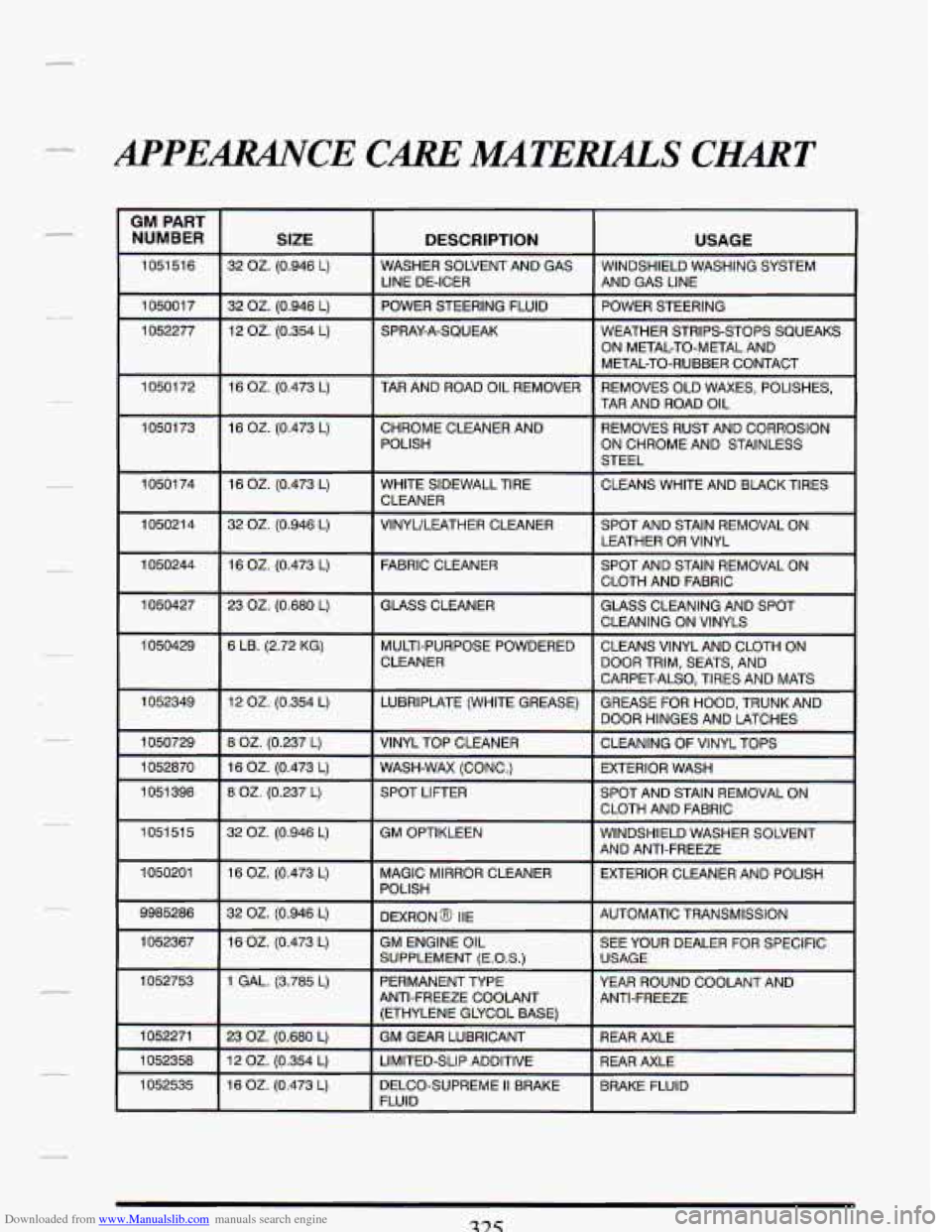

Downloaded from www.Manualslib.com manuals search engine APPEARANCE CARE MATEMLS CHIGRT
GM PART
NUMBER
SIZE DESCRIPTION USAGE
1051516 32 OZ. (0.946 L) WASHER SOLVENT AND GAS
WINDSHIELD WASHING SYSTEM
I I LINE DE-ICER I AND GAS LINE
1050017 I 32 OZ. 10.946 L) I POWER STEERING FLUID f POWER STEERING I
1052277 12 02. (0.354 L) SPRAY-A-SQUEAK
WEATHER STRIPS-STOPS SQUEAKS
ON METAL-TO-METAL AND
METAL-TO-RUBBER CONTACT
10501 72 16 OZ. (0.473 L) TAR AND ROAD OIL REMOVER REMOVES OLD WAXES, POLISHES,
TAR AND ROAD OIL
1050173 16 02. (0.473 L) CHROME CLEANER, 1 REMOVES RUST AND CORROSION
POLISH ON CHROME AND STAINLESS
STEEL
10501 74 16 OZ. (0.473 L) WHITE SIDEWALL TIRE CLEANS WHITE AND BLACK TIRES
CLEANER
1050214 32 OZ. (0.946 L) VINYIJLEATHER CLEANER SPOT AND STAIN REMOVAL ON
LEATHER OR VINYL
1050244 16 OZ. (0.473 L) FABRIC CLEANER SPOT AND STAIN REMOVAL ON
CLOTH AND FABRIC
1050427 23 OZ. (0.680 L) GLASS CLEANER
~~
~ ~-
GLASS CLEANING AND SPOT
CLEANING ON VINYLS
1050429 6 LB. (2.72 KG) MULTI-PURPOSE POWDERED CLEANS VINYL AND CLOTH ON
CLEANER DOOR TRIM, SEATS, AND
CARPET-ALSO, TIRES AND MATS
1052349 12 OZ. (0.354 L) LUBRIPLATE (WHITE GREASE) GREASE FOR HOOD, TRUNKAND
ND ANTI-FREEZE
NTI-FREEZE COOLANT
ETHYLENE GLYCOL BASE
I . . -_ . . . . - I
1052535 I 16 02. (0.473 L) I DELCO-SUPREME II BRAKE I BRAKE FLUID I
Page 343 of 406

Downloaded from www.Manualslib.com manuals search engine - 7
0-0 4 9
Ezl no 5 10
14 I!
15 20
24
1 25

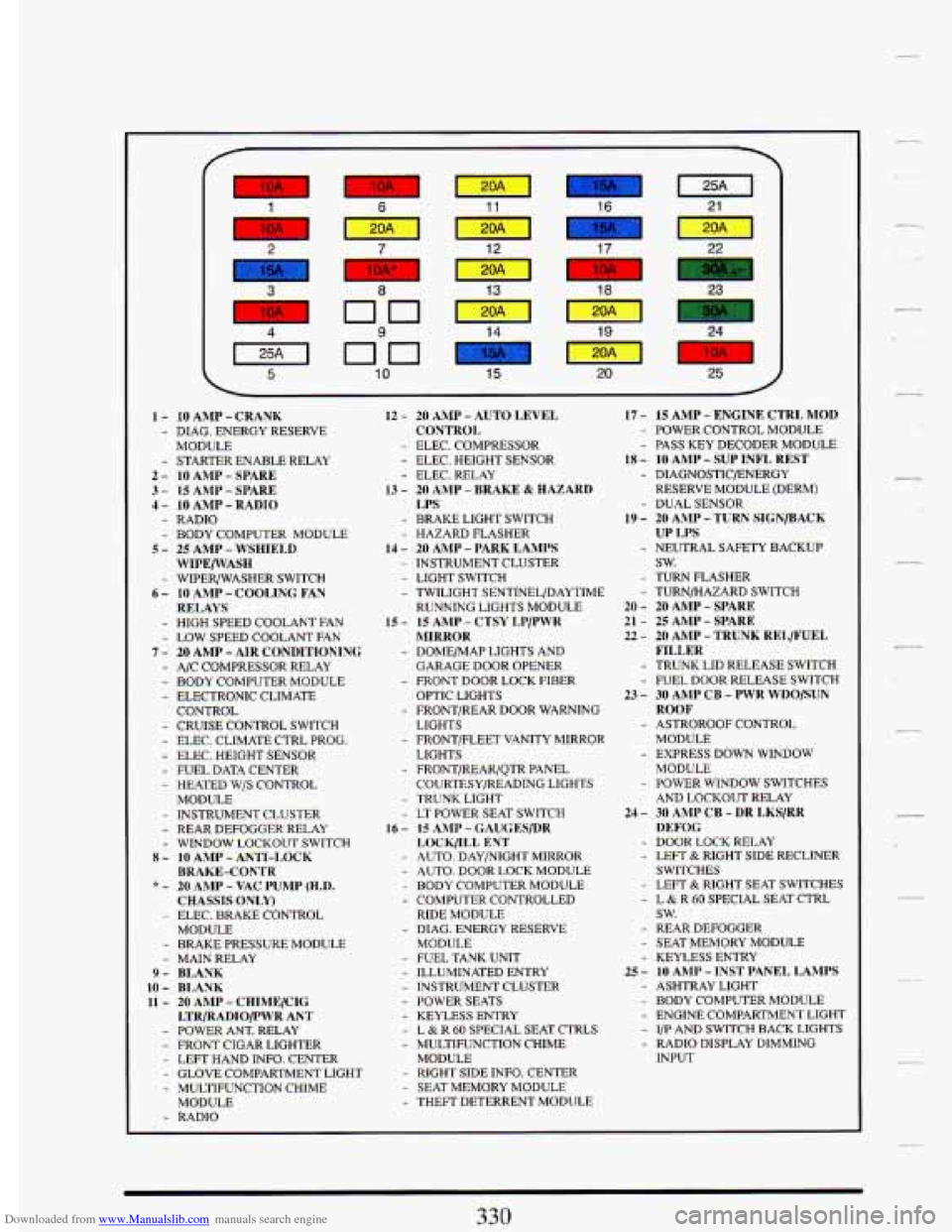

1 - 10 AMP - CRANK - DIAG. ENERGY
RESERVE
MODULE
- STARTER ENABLE RELAY 2 - 10 AMP - SPARE 3 - 15 AMP - SPARE 4 - 10 AMP - RADIO - RADIO - BODY COMPUTER MODULE 5 - 25 AMP - WSHIELD
WIPE/WASH
- WIPER/WASHER SWITCH 6 - 10 AMP - COOLING FAN
RELAYS
- HIGH SPEED COOLANT FAN - LOW SPEED COOLANT FAN 7 - 20 AMP - AIR CONDITIONIN(; - A/C COMPRESSOR RELAY - BODY COMPUTER MODULE - ELECTRONIC CLIMATE
CONTROL
- CRUISE CONTROL SWITCH - ELEC. CLIMATE CTRL PROG. - ELEC. HEIGHT SENSOR - FUEL DATA CENTER - HEATED WlS CONTROL
MODULE
- INSTRUMENT CLUSTER - REAR DEFOGGER RELAY - WINDOW LOCKOUT SWITCH 8 - 10 AMP - AhTI-LOCK
BRAKE-CONTR
* - 20 AMP - VAC PUMP (H.D. CHASSIS ONLY)
MODULE - ELEC. BRAKE CONTROL
- BR.4KE PRESSURE MODULE - MAIN RELAY 9- BLAVK 10 - BLANK 11 - 20 AMP - CHIME/ClG LTH/RADIO/PWK ANT - POWER ANT. RELAY - FRONT CIGAR LIGHTER - LEFT HAND INFO. CENTER - GLOVE COMPARTMENT LIGHT - MULTIFUNCTION CHIME
MODULE
- RADIO
12 - 20 AMP - AUTO LEVEL
CONTROL
- ELEC. COMPRESSOR - ELEC. HEIGHT SENSOR - ELEC. RELAY 13 - 20 AMP - BRAKE & HAZARD LPS - BRAKE LIGHT SWITCH - HAZARD FLASHER
- INSTRUMENT CLUSTER
- TWILIGHT SENTINEL/DAYTIME
RUNNING LIGHTS MODULE
MIRROR
GARAGE DOOR OPENER - FRONT DOOR LOCK FIBER
OPTIC LIGHTS
- FRONTIREAR DOOR WARNING
LIGHTS
- FRONT/FLEET VANITY MIRROR
LIGHTS
- FRONT/REAR/QTR PANEL
COURTESY1READING LIGHTS
- TRUNK LIGHT - LT POWER SEAT SWITCH
14 - 20 AMP - PARK LAMPS
- LIGHT SWITCH
15 - 15 AMP - CTSY LP/PWR
- DOME/MAP LIGHTS AND
16 - 15 AMP - GAUCES/DR
LUCK/ILL ENT
- AUTO. DAY/NIGHT MIRROR - AUTO. DOOR LOCK MODULE - BODY COMPUTER MODULE - COMPUTER CONTROLLED
RIDE MODULE
MODULE
- DIAG. ENERGY RESERVE
- FUEL TANK UNIT - ILLUMINATED ENTRY - INSTRUMENT CLUSTER - POWER SEATS - KEYLESS ENTRY - L & R GO SPECIAL SEAT CTRLS - MULTIFUNCTION CHIME
- RIGHT SIDE INFO. CENTER - SEAT MEMORY MODULE - THEFT DETERRENT MODIJLE MODULE
I7 - 15 AMP - ENGINE CTRL MOD - POWER CONTROL MODULE - PASS KEY
DECODER MODULE 18 - 10 AMI' - SUP INFL REST - DIAGNOSTIC/ENERGY
RESERVE MODULE (DERM)
- DUAL SENSOR 19 - 20 AhW - TURN SIGN/BACK UP LPS
sw. - NEUTRAL SAFETY BACKUP
- TURN FLASHER - TURN/HAZARD SWITCH 20 - 20 AMP - SPARE
21 - 25 AMP - SPARE 22 - 20 AMP - TRULVK RELWEL
FILLER
- TRUNK LID RELEASE SWITCH - FUEL DOOR RELEASE SWITCH 23 - 30 AMP CB - PWR WDO/SUN
ROOF
MODULE
MODULE
AND LOCKOUT RELAY
DEFOG
- ASTROROOF CONTROL
- EXPRESS DOWN WINDOW
- POWER WINDOW SWITCHES
24 - 30 AMP CB - DR LKS/RR
- DOOR LOCK RELAY - LEFT & RIGHT SIDE RECLINER
- LEFT & RIGHT SEAT SWITCHES - L & R 60 SPECIAL SEAT CTRL
- REAR DEFOGGER - SEAT MEMORY MODULE
SWITCHES
sw.
- KEYLESS
ENTRY 25 - 10 AMP - INST PANEL LAMPS - ASHTRAY LIGHT - BODY COMPUTER MODULE - ENGINE COMPARTMENT LIGHT - I/P AND SWITCH BACK LIGHTS - RADIO DISPLAY DIMMING
INPUT
330
Page 346 of 406

Downloaded from www.Manualslib.com manuals search engine LEFT HAND SIDE
RIGHT HAND SIDE
SPARE (30 AMP)
1GN
SW (60 AMP)
- RETAINED ACCESSORY POWER
- IGNITION SWITCH
BLWR (30 AMP)
- ELECTRONIC CLIMATE CONTROL
- POWER MODULE
- BLOWER CONTROL MODULE
ECM (20 AMP)
- BODY CONTROL MODULE (BCM)
- ELECTRONIC CONTROL MODULE
(ECM)
- PASS KEY DECODER MODULE
BOSE/SPARE (20 AMP)
- BOSE RADIO RELAY IF EQUIPPED
PWR LK SEATS RR DEF (50 AMP)
- POWER TO CB 24 (SEE FUSE
BLOCK)
HORN (40 AMP)
- POWER TO FUSES 1 AND 2 (SEE
FUSE BLOCK)
HTD W/S SPARE (20 AMP)
- HEATED WINDSHIELD IF
EQUIPPED
ABS PMP (40 AMP)
ABS MA
(30 AMP)
ELC
(40 AMP)
- ABS PUMP RELAY
- MAIN RELAY
- POWER TO FUSES 11 AND 12
(SEE FUSE BLOCK)

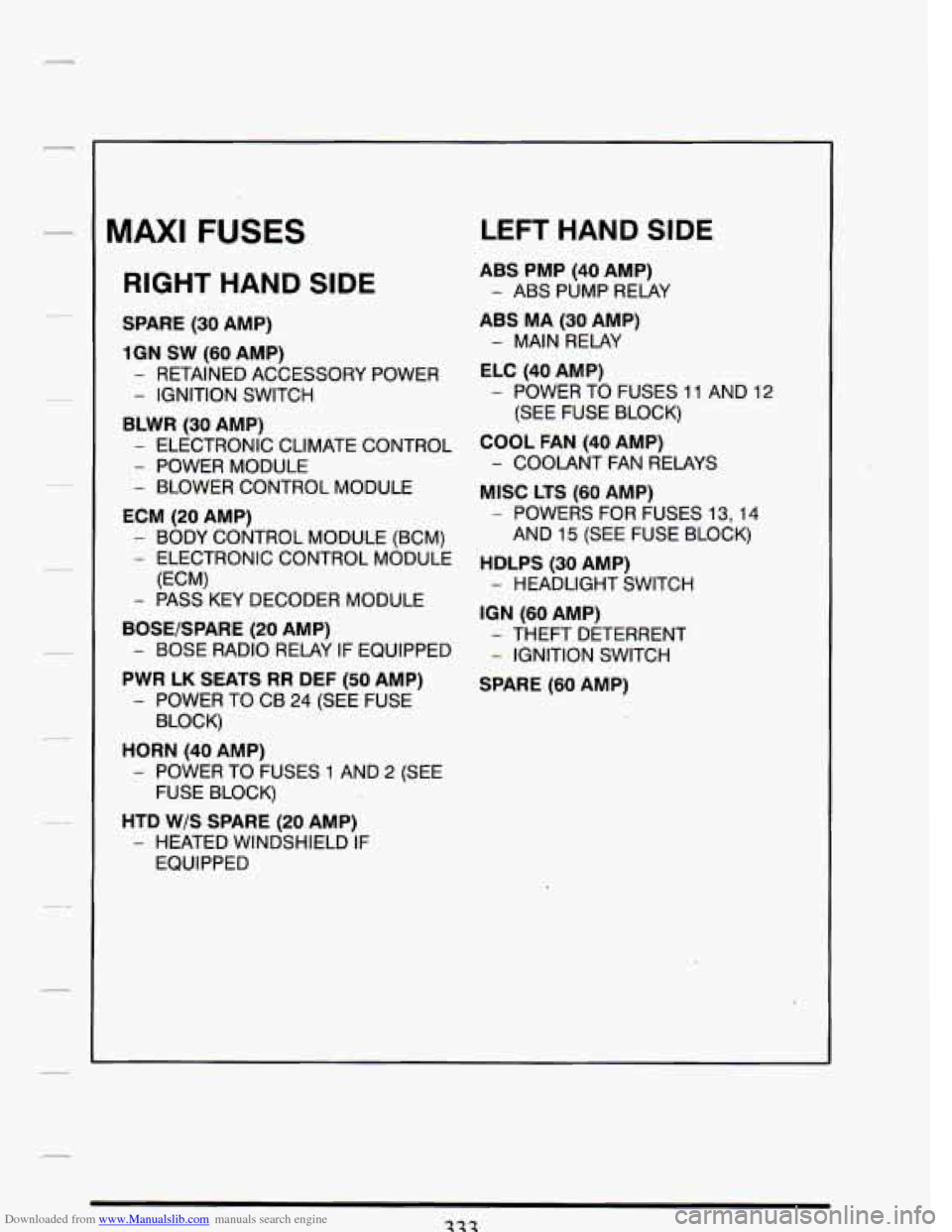

COOL FAN (40 AMP)
- COOLANT FAN RELAYS
MlSC LTS (60 AMP)
- POWERS FOR FUSES 13,14
AND 15 (SEE FUSE BLOCK)
HDLPS (30 AMP)
- HEADLIGHT SWITCH
IGN (60 AMP)
- THEFT DETERRENT
- IGNITION SWITCH
' SPARE (60 AMP)
333
