A CAUTION:
Air bags inflate with great force, faster than the blink of an eye.
If yoii’re too close to an inflating air bag, it could seriously
injure
you. Safety belts help keep you in position for an air bag
inflation in a crash. Always wear your safety belt, even with an
air bag, and sit as
far back as you can while still maintaining
control
of your vehicle,
Air Bag System Light
There is an air bag readiness light on the instrument panel, which shows
“Inflatable Restraint”. The system checks itself and the light tells you if
there
is a problem.
You will see this light
flash for a
few seconds
when you turn your
ignition to
“Run” or
“Start.” Then the light
should
go out, which
means the system
is
ready.
A CAUTION:
If the air bag readiness light doesn’t come on when you start
your vehicle, or stays on, or comes on when you are driving, your
air bag system may not work properly. Have your vehicle
serviced right
away.
29

Downloaded from www.Manualslib.com manuals search engine Should interference to this system occur, try this:
0 Check to determine if battery replacement is necessary. See the
instructions on battery replacement.
0 Check the distance. You may be too far from your vehicle. This
0 Check the location. Other vehicles or objects may be blocking the
product has
a maximum range.
signal.
See your Cadillac dealer or a qualified technician for service.
Changes or modifications to this system by other than an authorized
service facility could void authorization to use this equipment.
Operation
The driver’s door will unlock automatically when “UNLOCK” is pressed.
If “UNLOCK” is pressed twice, all doors will unlock. All doors will lock
when “DOOR” is pressed. The trunk will unlock
when the opened trunk -
symbol is pressed.
The Keyless Entry System allows a transmitter to be matched to as many
different vehicles as you own with this system. Each vehicle can
have only
two transmitters matched to it.
P-
The transmitter will arm the Theft Deterrent System whenever the doors
are closed and
you push the DOOR button. It will disarm the system
when you push the UNLOCK button.
-
,.
If your Cadillac is equipped with the Illuminated Entry System, you can
make it
work by pushing any button on the transmitter. The lights will
stay on for
20 seconds.
Matching Transmitter (s) To Your Vehicle
Each key chain transmitter is coded to prevent another transmitter mom
unlocking your vehicle.
If a transmitter is lost or stolen, a replacement --
can be purchased through your dealer. Remember to bring the remaining
transmitter with
you when you go to your dealer. When the dealer
matches the replacement transmitter to your vehicle, the remaining
transmitter must also be matched. Once the new transmitter is coded, the
lost transmitter will not unlock your vehicle.
-

Downloaded from www.Manualslib.com manuals search engine Always unlock a door with a key, or use the Keyless Entry System.
If you set
off the alarm by accident, unlock any door with your key.
You can also turn off the alarm by using the Keyless Entry System,
if you
have it. The alarm
won’t stop if you try to unlock a door any other way.
Unlocking
a door
any other way will set off the alarm.
How to Test The Alarm
Roll down your window and lock your vehicle using the power door
Reach in and unlock the door using the manual lock, and open the
If the alarm does not sound when it should, check to see if the horn
works.
The horn fuse may be blown. To replace the fuse, see “Fuses and
Circuit Breakers”
in the Index.
To reduce the possibility of theft, always arm the theft deterrent system
when leaving your vehicle.
PASS-KEY IIm
lock or the Keyless Entry System.
door. The horn
will sound and your headlights will flash.
(Personalized
I
Your vehicle is equipped with the PASS-Key I1
Automotive Security System) theft deterrent system. PASS-Key I1 is a
passive theft deterrent system.
This means you don’t have to do anything
different
to arm or disarm the system. It works when you insert or remove
~ ~~

Downloaded from www.Manualslib.com manuals search engine - the key from the ignition. PASS-Key TM uses a resistor pellet in the
ignition key that matches a decoder in your vehicle.
When the PASS-Key
11 TM system senses that someone is using the wrong
I_ key, it shuts down the vehicle’s starter and fuel systems. For about three
minutes, the starter won’t work and fuel won’t go to the engine. If
someone tries to start your vehicle again or uses another key during this
.- time, the vehicle will not start. This discourages someone from randomly
trying different keys with different resistor pellets
in an attempt to make a
match.
~ ~ .~ The ignition key must be clean and dry before it’s inserted in the ignition
or the engine may not start. If the engine does not start and the
“SECURITY” light comes on, the key may be dirty
or wet. Turn the
ignition
off.
Clean and dry the key. Wait about three minutes and try again. The
security light will remain on during this time. If the starter still won’t
and try the other ignition key. At this time, you may also want
to check
the fuse (see “Fuses and Circuit Breakers”
in the Index). If the starter
won’t work with the other key, your vehicle needs service.
If your vehicle
does start, the first ignition key may be faulty. See your Cadillac dealer or
a locksmith who can service the PASS-Key I1
TM .
. -.
~ work, and the key appears to be clean and dry, wait about three minutes
If you accidentally use a key that has a damaged or missing resistor pellet,
the starter won’t work and the security light
will flash. But you don’t have
to wait three minutes before trying one
of the other ignition keys.
~- See your Cadillac dealer or a locksmith who can service the Pass-Key I1 TM
to have a new key made.
-
If you’re ever driving and the “SECURITY” light comes on and stays on,
~- you will be able to restart your engine if you turn it off. Your PASS-Key I1 TM
system, however, is not working properly and must be serviced by your
Cadillac dealer. Your vehicle is
not protected by the PASS-Key I1 TM system.
while the security light stays
on as described. So you should service your
vehicle as soon as possible.
If you lose or damage a PASS-Key I1
TM ignition key, see your Cadillac
dealer or a locksmith who can service PASS-Key I1
TM to have a new key
made.
I_

Downloaded from www.Manualslib.com manuals search engine If a bulb is burned out, replace it to help avoid an accident. If the green
arrows don’t go on at all when you signal a turn, check the fuse (see
“Fuses”
in the Index) and for burned-out bulbs.
Operation of Lights
Although your vehicle’s lighting system (headlights, parking lights, fog
lamps, side marker lights and taillights) meet all applicable federal
lighting requirements, certain states and provinces may apply their own
lighting regulations that may require special attention before you operate
these lights. For example, some jurisdictions may require that you operate
your lower beam lights with fog lamps at all times, or that headlights be
turned on whenever you must use your windshield wipers. In addition,
most jurisdictions prohibit driving solely with parking lights, especially at
dawn
or dusk. It is recommended that you check with you own state or
provincial highway authority for applicable lighting regulations.
Headlight High-Low Beam
To change the
headlights
from low
beam to high or high
6-
low, pull the turn signai
lever all the way toward
you. Then release it.
-’
When the high beams
are
on, this blue light
on the instrument
7
panel also will be on.
94

Downloaded from www.Manualslib.com manuals search engine r J.
r
If this light comes on, it
means you're low
on
washer fluid.
- 'A CAUTION
mr
@ Driving without washer fluid'can be dangerous. A bad mud
splash can block~your risim. Yciu could hit another vehicle or
go off the road. Check j&u- washer fluid level often.
I In freezing weather, don't use your washer until the
windshield
is warmed. OtherwiSe the washer fluid can form
ice on the windshield, blQcking your vision.
97

Downloaded from www.Manualslib.com manuals search engine When one of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Pkase
follow
the manual’s advice. Waiting to do repairs can be costly -- and even
dangerous.
So please get to know your warning lights. They’re a big help.
Brake System Warning Light
Your Cadillac’s hydraulic brake system is divided into two parts. If one
part isn’t working, the other part can still work and stop you. For good
braking, though,
you need both parts working well.
If the warning light goes on, there could be a brake problem. Have your
brake system inspected right away.
This light shoula
come
on and turn off as you
start the vehicle. If it
doesn’t come on then,
have it fixed
so it will
be ready to warn you
if
there’s a problem.
This light will also come on when you set your parking brake, and will
- stay on if your parking brake doesn’t release fully. If it stays on after your
parking brake is fully released, it means you have a brake problem. If the
light comes on while driving, pull
off the road and stop carefully. You may
-_ notice that the pedal is harder to push. Or, the pedal may go closer to the
floor. It may take longer to stop.
If the light is still on, have the vehicle
towed for service.
(See “Towing Your Vehicle” in the Index.)
121

Downloaded from www.Manualslib.com manuals search engine - Engine Coolant Temperature Warning Light
r
This light tells you that
your engine coolant has overheated or your
radiator cooling fans
are not working. If you
have been operating
your vehicle under
normal driving
conditions, you should
pull
off the road, stop
your vehicle and turn
-1 the engine off as soon
as possible.
HOT COOLANT CAN BURN YOU BADLY!
In “Problems on the Road,” this manual shows what to do. See “Engine
Overheating” in the Index.
Engine Temperature Warning Light
I This light tells you that
your engine has overheated.
If you have been operating your vehicle under normal driving conditions,
you should pull
off the road, stop the car and turn the engine off as soon
as possible.
A warning chime should also sound if you drive with this light
on. The chime will continue to sound until the ignition is turned
“off” or
the light goes out.
As a check, the light should come on for a few seconds
when you start your engine.
125

Downloaded from www.Manualslib.com manuals search engine HOT COOLANT CAN BURN YOU BADLY!
In “Problems on the Road,” this manual shows what to do. See “Engine
Overheating” in the Index.
L
P
I
Charge Light
When you turn the key
to “Run,” this light will
come on briefly, to
show that your
alternator and battery
charging systems are
working.
If a light stays on, you need service, and you should take your Cadillac to
the dealer at once.
To save your battery until you get there, turn off all
accessories, and set your Electronic Climate Control system to “OFF.”
Service Engine SoonlService Vehicle Soon Lights
KGf NE
I I,
ZVICE
VEHICLE
So(
A computer monitors operation of your fuel, ignition and emission
control systems. This light should come on when the ignition is on, but
the engine
is not running, as a check to show you it is working..

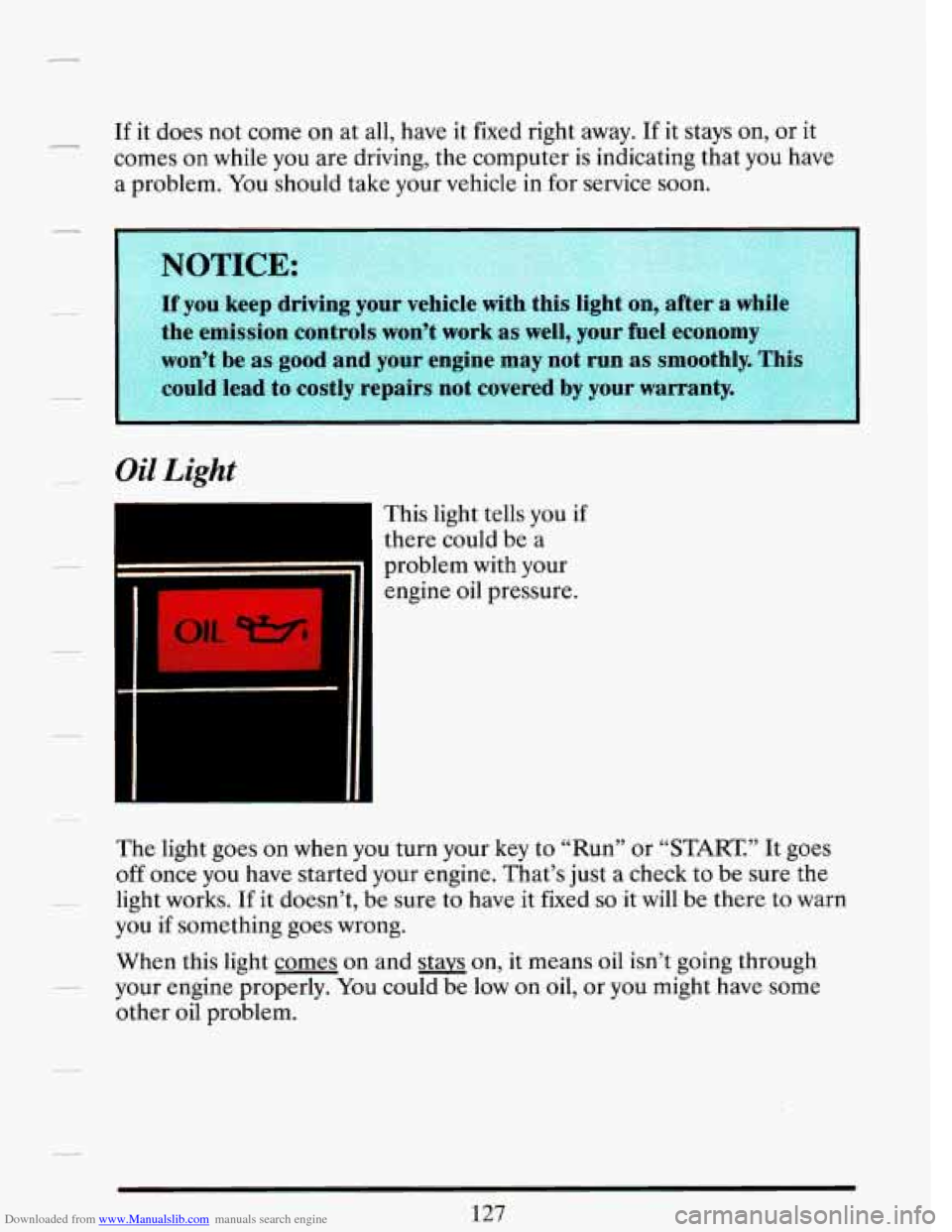

Downloaded from www.Manualslib.com manuals search engine If it does not come on at all, have it fixed right away. If it stays on, or it
comes on while you are driving, the computer is indicating that you have
a problem. You should take your vehicle in for service soon.
m
.-
Oil Light
This light tells you if
there could be a
problem with your
engine
oil pressure.
The light goes on when you turn your key to “Run” or
“START” It goes
off once you have started your engine. That’s just a check to be sure the
light works. If it doesn’t, be sure
to have it fixed so it will be there to warn
you if something goes wrong.
When this light comes on and stavs on, it means
oil isn’t going through
your engine properly. You could be
low on oil, or you might have some
other oil problem.
I:
