Hydroplaning is dangerous. So much water can build up under your tires
that they can actually ride
on the water. This can happen if the road is wet
enough and you’re going fast enough. When your vehicle
is hydroplaning,
it has little or no contact with the road.
Hydroplaning doesn’t happen often. But it can if your tires haven‘t much
tread or
if the pressure in one or more is low. It can happen if a lot of
water
is standing on the road. If you can see reflections from trees,
telephone poles,
or other vehicles, and raindrops ‘‘dimple’‘ the water‘s
surface, there could be hydroplaning.
Hydroplaning
usually happens at higher speeds. There just isn‘t a hard
and fast
rule about hydroplaning. The best advice is to slow down when it
is raining.
Some Other Rainy Weather Tips
0 Turn on your low beam headlamps -- not just your parking lamps -- to
help
make you more visible to others.
Besides slowing down, allow some extra following distance. And be
especially careful when you pass another vehicle. Allow yourself more
clear
room ahead, and be prepared to have your view restricted by
road spray.
Have good tires with proper tread depth. (See “Tires” in the Index.)
4-20

Downloaded from www.Manualslib.com manuals search engine c
. ... . . . . . , . .
:. . .
Run your engine only as long as you must. This saves fuel. When vou run
the engine, make it go a little faster than just idle. That is, push the
accelerator slightlv. This uses less fuel for the heat that you get and it
keeps the battew charged. You will need a well-charged battery to restart
the vehicle, and
possibly for signaling later on with your headlamps. Let
the heater run for awhile.
4-3 1

Downloaded from www.Manualslib.com manuals search engine HEADMP BULB RElMOVAL
Here is how to change the halogen L. headlamp bulb. Begin by lifting up on
the access cover.
. . .. . . . . . , .. . . . . . . .., . .. .... . . , ...,.. .. . .. ... .. - ..
.. . . . .. .. . .. ... ..
c
2. Disconnect thc socket from the harness by separating the 1ocking Y clip.
NOTICE: .-
Do not touch the glass portion of the new haiogen bulb! The oil
from your fingers will shorten the life of your new halogen bulb. -- -
.
6-33

Downloaded from www.Manualslib.com manuals search engine If you need to replace any of your wheels, wheel bolts. or wheel nuts.
replace them
only with new GM original equipment parts. This way, you
will be sure to have the right wheel, wheel bolts, and wheel nuts for your
Cadillac model.
... . , .. .
NOTICE:
The wrong wheel can also cause problems with bearing life,
brake cooling, speedometer/odometer calibration, headlamp
aim, bumper height, vehicle ground clearance. and tire or tire
chain
clearance to the body and chassis.
6-46

Downloaded from www.Manualslib.com manuals search engine Engine Corn
FUSE
PCM (BAT)
RTD (BAT)
NC COMP
HDLPS
STOP
LP
TURNIHAZ
DRL
DRL
HTD
WIS
IGN OFF
L HDLP LO
R HDLP LO
L HDLP HI
R HDLP
HI
IGN 3
COOLING FAN
TRANS/ECS
artment Fuse Block (Continued)
USAGE
Powertrain Contro! Module (PCM)
Road Sensing Suspension (RSS) Module
AIC Compressor Clutch
Headlamp Dimmer Switch: Headlamp Relay
"D" (Engine Comp.
Micro
Relay Center); DRL Headlamp Relay "E" (with Daytime
Running Lamps); Powers
C 13
Stop/BTSl/Cruise Switch; Stoplamp Switch Capacitor: Anti-Slip
Regulation (ASR)
5 Traction Control
Hazard Flasher: Turn Flasher
Relay; Turn Flasher Module
Daytime Running Lamps (Canada)
Left and Right Lo-Beam Headlamp (Canada)
Heated Windshield Control Module
Instrument hncl Cluster
Left Lo-Beam Headlamp
Right Lo-Rem Headlamp
Left Hi-Beam Headlamp
Right Hi-Beam Headlamp
Rear Defogger Relay: Elcctronic Level Control
(ELC): Heated
Windshield: Heater and
A/C Programmer; Cruise Control
Extended Travel Brake Switch: Powertrain Control Module (PCM);
Cooling Fan Relays I. 2 and 3: Front and Rear Heated Oxygen
Sensor
. .
Power Steering Pressure Switch; Exhaust Gas Recirculation (EGR)
Valve: Transaxle Shift Solenoids A & B: Evaporative Emission
Control So1cnoid;Powertrain Control Modulc
(PCM): Torque
Converter Clutch
Solenoid: TCC Brake Switch
..
.~ -
6-64
I
P

Downloaded from www.Manualslib.com manuals search engine Headlumps
The headlamp wiring has an individual fuse which is powered by a
MAXI'"' fuse. An clectrical ovcr1o;ld ill the headlamp wiring may cause
your headlamps to go off and remain off. You will necd to have your
C'adillac serviced immediately.
Windshield Wipers
The windshield wiper motor is powercd by a MAXI" fusc. An electrical
overload in the motor wiring may caw your wipers to stop working. If
this happens you will need to have your Cadillac serviced.
Power Windows and Other Power Options
Circuit hreakcrs in thc fusc panel protect the power windows and other
power accessories. When the current load is too heay (such as a switch
being held on with the window completely up), the circuit breaker opens
and closes, protecting the circuit until the problcm is fixed or the load is
removed.
6-69

Downloaded from www.Manualslib.com manuals search engine BULB CHART
Description Bulb No.
Ashtray Illumination ................................... 1445
Backup Lamps ........................................ 2057
Cornering
Lamp ....................................... 3156
Courtesy Reading Lamp ................................. 168
Glove Compartment Lamp ............................... 194
Headlamps, Composite
Inner High Beam ..................................... 9005
Outer Low Beam ..................................... 9006
License Plate Lamp ..................................... I94
Park and Thn Signal ................................ 3157 NA
Stop/Tail/Turn Signal ................................... 2057
Trunk Lamp .......................................... 1003
Underhood Lamp ....................................... 56 1
Vanity Mirror Illumination ............................... 123
Sidemarker Lamps ...................................... 194

Downloaded from www.Manualslib.com manuals search engine .
Armrest. Storage ................................... 2-15
Ashtrays .......................................... 2-71
Astroroof-Express Open ............................. 2-67
Audio Systems ...................................... 3-8
Auto-Dimming Rearview Mirror ...................... 2-62
Automatic Door Locks ............................... 2-5
Automatic Rearview Mirror .......................... 2-57
Automatic Pull-Down Feature ........................ 2-12
Automatic Transaxle ................................ 2-25
Chart .......................................... 6-72
Fluid .......................................... 6-17
Average Fuel Economy Display ....................... 2-83
Avg Mph Reset. Driver Information Center ............ 2-86
B
Battery ........................................... 6-30
Charge Light .................................... 2-76
No Charge Message .............................. 2-87
Power Loss ..................................... 6-30
Replacement. Keyless Entry ....................... 2-10
Volts High Message .............................. 2-87
Volts Low Message .............................. 2-88
Warnings .................................... 5.3. 5.5
BBB Auto Line ..................... See Owner Assistance
Blizzard
........................................... 4-30
Brakes
Adjustment
..................................... 6-29
Anti-Lock ....................................... 4-7
Fluid. Adding ................................... 6-26
Master Cylinder ................................. 6-26
Parking ........................................ 2-29
Pedal Travel .................................... 6-29
System Parts. Replacing ........................... 6-29
System Warning Light ............................ 2-77
Trailer ......................................... 4-38
Transaxle Shift Interlock (BTSI) ................... 2-33
Wear .......................................... 6-28
Braking. In Emergencies ............................ 4-10
Braking ............................................ 4-6
Break-Away Outside Mirror .......................... 2-63
“Break.1n. .. New Vehicle ............................ 2-20
Center High-Mounted Stop Lamp .................. 6-36
Bulb Replacement Chart ............................ 6-70
Headlamps ..................................... 6-32
Taillamps ....................................... 6-35
.
.
...
.
.
.
c
L
c
.
c
..
A
.
2
.
..
.

Downloaded from www.Manualslib.com manuals search engine s
P
r
r
r
r
r
i-
P
Fuse Block. Engine Compartment ..................... 6-62
Fuse Block. Rear Compartment ...................... 6-66
Fuse Panel ................................... 6.65. 6.66
Fuses and Circuit Breakers ........................... 6-62
G
Gage. Fuel ........................................ 2-82
Gasolines for Cleaner Air ............................. 6-3
Glass. Cleaning .................................... 6-53
Glove Box ......................................... 2-15
GVWR (Gross Vehicle Weight Rating) ................ 4-33
GAWR (Gross Axle Weight Rating) ................... 4-33
H
Halogen Bulbs ..................................... 6-31
Hazard Warning Flashers ............................. 5-1
Head Restraints ..................................... 1-5
Headlamps ........................................ 2-51
Bulb Replacement ............................... 6-32
High-Low Beam Changer ......................... 2-41
Wiper Activated ................................. 2-41
Wiring ......................................... 6-69
Hearing or Speech Impaired .......... See Owner Assistance
Heated Front Seat Feature
............................ 1-4
Heated Outside Rearview Mirror ................. 2.62, 3.6
Heated Windshield .................................. 3-7
Heating ............................................ 3-4
High Beam Lamps. How to Change ................... 2-41
Highway Hypnosis .................................. 4-24
Hill and Mountain Roads ............................ 4-25
Hitches. Trailer .................................... 4-38
HomeLink Universal Transmitter ..................... 2-68
Hood Release ...................................... 6-8
Horn ............................................. 2-38
Hydroplaning ...................................... 4-20
I
If You’re Stuck: In Sand. Mud. Ice or Snow ............. 5-34
Ignition Key Positions ............................... 2-20
Illuminated Entry System ............................. 2-7
Information Button. Driver Information Center ......... 2-85
Instrument Panel ................................... 2-73

Downloaded from www.Manualslib.com manuals search engine r
r I i i
f-
1 :
r t
. L
1 n .
f
I
i

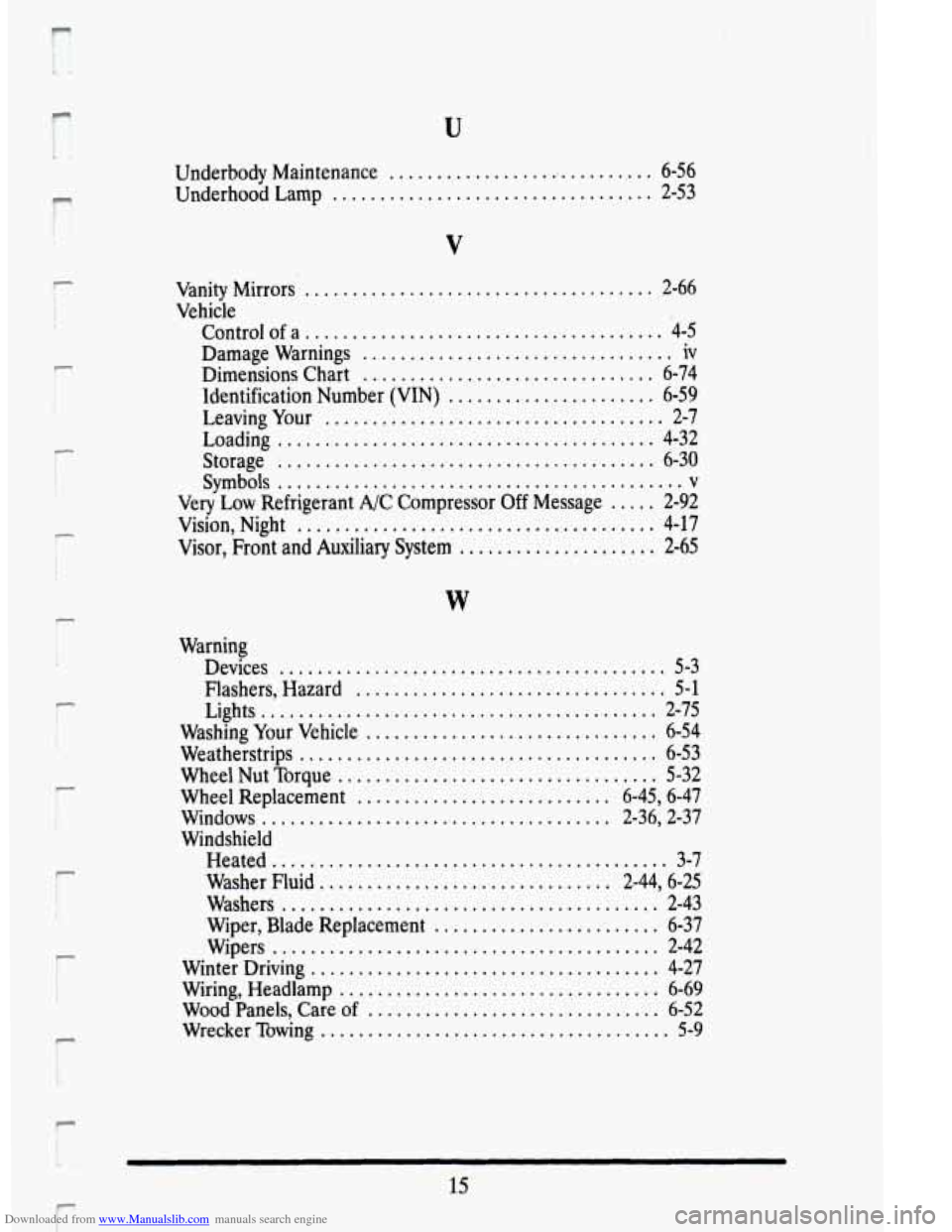

Underbody Maintenance ............................. 6-56
Underhood Lamp .................................. 2-53
V
Vanity Mirrors ..................................... 2-66
Vehicle
Control
of a ...................................... 4-5
Damage Warnings ................................. iv
Dimensions Chart
............................... 6-74
Leaving Your .................................... 2-7
Loading ........................................ 4-32
Storage ........................................ 6-30
Symbols ........................................... v
Very Low Refrigerant A/C Compressor Off Message ..... 2-92
Vision. Night ...................................... 4-17
Visor. Front and Auxiliary System ..................... 2-65
Identification Number (VIN) ...................... 6-59
Warning
Devices
......................................... 5-3
Flashers. Hazard ................................. 5-1
Lights .......................................... 2-75
Washing Your Vehicle ............................... 6-54
Weatherstrips ...................................... 6-53
Wheel Nut Torque .................................. 5-32
Wheel Replacement ........................... 6.45. 6.47
Windows ..................................... 2.36. 2.37
Windshield
Heated
.......................................... 3-7
Washer Fluid ............................... 2.44. 6.25
Washers ........................................ 2-43
Wiper. Blade Replacement ........................ 6-37
Wipers ......................................... 2-42
Winter Driving ..................................... 4-27
Wiring. Headlamp .................................. 6-69
Wood Panels. Care of ............................... 6-52
Wrecker Towing ..................................... 5-9
15
