Other Warning Devices
If you carry reflective triangles, you can set one up at
the side of the road about
300 feet (100 m) behind your
vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables
to start your
Cadillac. Please follow the steps below to do it safely.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by your
warranty.
Trying to
start your Cadillac by pushing or
pulling it won’t work and it could damage your
vehicle.
A CAUTION:
Batteries can hurt you. They can be dangerous
because:
They contain acid that can burn you.
They contain gas that can explode or ignite.
They contain enough electricity to burn you.
If you don’t follow these steps exactly, some or all
of these things can hurt you.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
I NOTICE: I
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
5-3

Downloaded from www.Manualslib.com manuals search engine 2.
3.
4.
Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching each other.
If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your Cadillac and the bad grounding could
damage the electrical systems.
Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter. Turn
off all lamps that aren’t needed as well
as radios. This will avoid
sparks and help save both
batteries. In addition,
it could save your radio!
Open the hoods and locate the batteries. Find the
positive
(+) and negative (-) terminals on each
battery.
A CAUTION:
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
i. Start by removing the red positive (+) terminal
cover.
LA
1 I

Downloaded from www.Manualslib.com manuals search engine c
P
c
L-
Battery
Every new Cadillac has a Delco Freedom@ battery. You
never have to add water to one of these. When it’s time
for a new battery, we recommend a Delco Freedom@
battery. Get one that has the replacement number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days
or more, take
off the black, negative (-) cable from
the battery.
This will help-keep your battery from
running down.
1 A CAUTION:
Batteries have acid that can burn you and gas
that can explode.
You can be badly hurt if you
aren’t careful. See
“Jump Starting” in the Index
for tips
on working around a battery without
getting hurt.
Contact your dealer
to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature’’ in the Index.
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your Cadillac dealer service department.
Halogen Bulbs
A CAUTION:
Halogen bulbs have pressurized gas inside and
can burst
if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.

Downloaded from www.Manualslib.com manuals search engine .... .

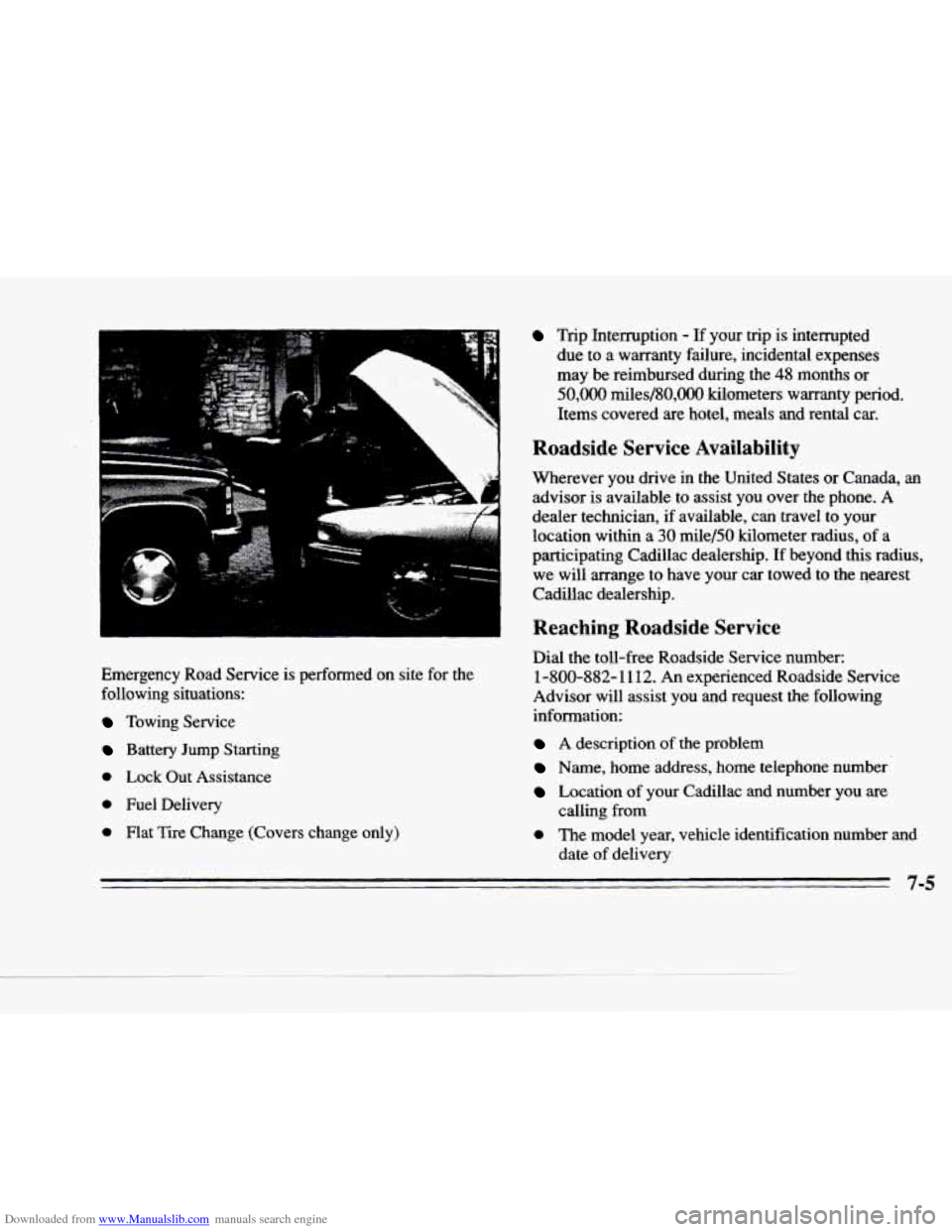

Emergency Road Service is performed on site for the
following situations:
Towing Service
Battery Jump Starting
0 Lock Out Assistance
0 Fuel Delivery
0 Flat Tire Change (Covers change only)
Trip Intemprlon - If your trip is interrupted
due
to a warranty failure, incidental expenses
may
be reimbursed during the 48 months or
50,000 miles/80,000 kilometers warranty period.
Items covered are hotel, meals and rental
car.
Roadside Service Availability
Wherever you drive in the United States or Canada, an
advisor is available to assist you over the phone. A
dealer technician, if available, can travel to your
location within a
30 mile/50 kilometer radius, of a
participating Cadillac dealership.
If beyond this radius,
we will arrange to have your
car towed to the nearest
Cadillac dealership.
Reaching Roadside Service
Dial the toll-free Roadside Service number: 1-800-882- 11
12. An experienced Roadside Service
Advisor will assist you and request the following infomation:
A description of the problem
Name, home address, home telephone number
Location of your Cadillac and number you are
0 The model year, vehicle identification number and calling from
date
of delivery
7-5

Downloaded from www.Manualslib.com manuals search engine e
.....
Section 8 Index
c
2-
.
.
A/C Off For Engine Protection Message ............ 2-76
AirBag
....................................... 1-20
How Does it Restrain .......................... 1-24
How it Works
................................ 1-22
Location
.................................... 1-22
Readiness Light
......................... 1.22. 2.64
Servicing
................................... 1-26
What Makes it Inflate
.......................... 1-24
What Will
You See After it Inflates ............... 1-25
When Should it Inflate ......................... 1-24
Aircleaner
.................................... 6-14
Air Conditioning Refrigerants ................ 6-64. 6-65
Alarm. Theft-Deterrent
.......................... 2- 12
Alignment and Balance. Tire
...................... 6-41
Aluminum Wheels, Cleaning
...................... 6-50
Antenna, Power
................................ 3-32
Antifreeze
..................................... 6-20
Anti-Lock Brakes
...................................... 4-6
Anti-Lockout Feature
............................ 2-6
Anti-Theft. Radio
.............................. 3-29
Appearance Care
............................... 6-44
Air Conditioning
................................ 3-5
Air
Control, Climate Control System ................. 3-2
Brake System Warning Light
................ 2-67. 4-6
Appearance Care Materials Chart .................. 6-52 Apply Brake to Shift Message
..................... 2-76
Arbitration Program
.............................. 7-8
Armrest. Storage
............................... 2-52
Ashtrays
...................................... 2-53
Assist Handles
................................. 2-55
Astroroof
..................................... 2-56
Audio Controls. Steering Wheel Touch Control
....... 3-29
Audio Equipment. Adding
........................ 3-30
Audio Systems
................................. 3-10
Automatic DoorLocks
................................... 2-4
Overdrive
................................... 2-21
Pull-Down Feature
............................ 2-11
Shifting
..................................... 2-19
Transaxle Fluid
............................... 6-17
Transaxle Operation
........................... 2-19
Battery ...................................... 6-29
Charging System Indicator Light
................. 2-65
Guard Storage
............................... 2-45
Inadvertent Power Saver
....................... 2-45
Jump Starting
................................. 5-3
No Charge Message ........................... 2-76
Replacement. Keyless Entry
..................... 2-8
Volts High Message
........................... 2-77
Volts
Low Message ........................... 2-77
-
8-1

Downloaded from www.Manualslib.com manuals search engine cy
c
c
Fluid Capacities ................................ 6-64
Foreign Countries. Fuel ........................... 6-3
French Language Manual -11
Front Storage Armrest ........................... 2-52
Front Towing .............................. 5.8. 5.11
Fuel
........................................... 6-2
Data Panel .................................. 2-73
DoorRelease ................................. 6- 4
Filling Your Tank .............................. 6-4
Gage ....................................... 2- 72
In Foreign Countries ........................... 6-3
Fuel Level Very Low Message ..................... 2-79
Fuses and Circuit Breakers ....................... 6-55
.. ..........................
Gage. Fuel ................................... 2-72
GAWR ....................................... 4-30 .
Gear Positions, Automatic Transaxle ................ 2- 19
GloveBox .................................... 2-52
Gross Axle Weight Rating ........................ 4-30
Gross Vehicle Weight Rating ...................... 4-30
Guide en FranGais 11
GVWR ....................................... 4-30
.. .................................
c
Halogen Bulbs ................................ 6-29
c
Hazara Warning Flashers .......................... 5- 1
Head Restraints ................................. 1-7
Headlamps .................................... 2-40
Bulb Replacement ............................ 6-30
Highbow Beam Changer ...................... 2-32
Wiring ..................................... 6-5 4
Hearing Impaired. Customer Assistance .............. 7-3
Heated Seats .................................... 1-4
Heated Windshield ............................... 3-7
Heating ........................................ 3-6
High-Beam Headlamps .......................... 2-32
Highway Hypnosis .............................. 4-23
Hill and Mountain Roads ......................... 4-23
Hitches. Trailer ................................. 4-35
Hood
Checking Things Under
......................... 6-6
Release ...................................... 6-7
Horn ......................................... 2-30
Hydraulic Brake Warning Lights ................... 2-65
Hydroplaning .................................. 4-19
Ignition Positions .............................. 2-15
Illuminated Entry ............................... 2-43
Illuminated Rear Seat Visor Vanity Mirror ........... 2-55
Illuminated Visor Vanity Mirrors ................... 2-55
Inadvertent Power Battery Saver ................... 2-45
Inflation. Tire .................................. 6-36
Instrument Panel ............................... 2-60
Brightness Control ............................ 2-43
Cluster ..................................... 2-62
Interior Lamps ................................. 2-43
Cleaning .................................... 6-47
.................................... J ack. Tire 5-28
Jump Starting ................................... 5-3
8-5 .
