key CADILLAC DEVILLE 2000 8.G Owners Manual

ii
Table of Contents
Keys and Door Locks
Remote Keyless Entry (RKE) System
Trunk Release
Automatic Transmission
Parking Brake
Windows
Tilt Wheel
Turn Signal/Multifunction Lever
Windshield Wipers
Cruise Control
Interior and Exterior Lamps
MirrorsStorage Compartments
Convenience Net
Accessory Power Outlets
OnStar® System (Option)
Sunroof (Option)
HomeLink® Transmitter (Option)
Instrument Panel, Warning Lights and Gages
Head-Up Display
Driver Information Center
Memory and Personalization/Personal Choice Feature
Oil Life Indicator Seats and Seat Controls
Safety BeltsAir Bag Systems
Child Restraints
Section
1
Section
2
Seats and Restraint Systems
Features and Controls

1-5 Memory Seat, Mirrors and Steering
Wheel (Option)
The controls for these
features are located on the
driver's door panel, and are
used to program and recall
previous settings.
Adjust the driver's seat (including the lumbar
adjustments), both the outside mirrors and steering
wheel to a comfortable position and then press the SET
button. Within five seconds, press button 1.
A second mirror, seating and steering wheel position can
be programmed by repeating the above steps and
pressing button 2. Each time a memory button is
pressed, a single beep will sound. Each time button 1 or
2 is pressed, the memory positions will be recalled. Two
personalized exit positions can be set by first recallingthe driving position (1 or 2), positioning the wheel and
seat in the desired exit positions and then pressing the
SET button and, within five seconds, pressing the EXIT
button. the exit position for either previously set driver
can be recalled by pressing the EXIT button.
If you use the remote keyless entry transmitter to enter
your vehicle, automatic seat and mirror movement will
occur. The numbers on the back of the transmitters,
1 and 2, correspond directly to the numbers on the
buttons on the door panel and each seat and mirror can
be programmed to suit driver 1 or 2.
When the key is placed in the ignition in the OFF
position or when the unlock button is pressed on the
transmitter, the seats and mirrors will automatically
adjust to the programmed position.
Programming for automatic mirror and/or seat
movement is done through the Driver Information
Center (DIC). You can choose to either select or not
select automatic seat and/or mirror movement using the
transmitter or by placing your key in the ignition. For
programming information, see ªMemory and
Personalization Featuresº in the Index.

1-23
The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it's more
likely that the fetus won't be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger's safety belt
properly, see ªDriver Positionº earlier in this section.
The right front passenger's safety belt works the same
way as the driver's safety belt
-- except for one thing. If
you ever pull the lap portion of the belt out all the way,
you will engage the child restraint locking feature. If
this happens, just let the belt go back all the way and
start again.
Air Bag Systems
This part explains the frontal and side impact air
bag systems.
Your vehicle has air bags
-- a frontal air bag for the
driver and another frontal air bag for the right front
passenger. Your vehicle also has a side impact air bag
for the driver and another side impact air bag for the
right front passenger. Your vehicle may also have a side
impact air bag for each of the two rear seat outboard
passenger positions.If your vehicle has side impact air bags for each of the
two rear seat outboard passenger positions, it will say
AIR BAG on each side of the rear seatback closest to
the door.Frontal air bags are designed to help reduce the risk of
injury from the force of an inflating frontal air bag. But
these air bags must inflate very quickly to do their job
and comply with federal regulations.

1-32
NOTICE:
If you damage the covering for the driver's or the
right front passenger's air bag, or the air bag
covering on the driver's, right front passenger's
or rear seatback, the bag may not work properly.
You may have to replace the air bag module in
the steering wheel, both the air bag module and
the instrument panel for the right front
passenger's air bag, or both the air bag module
and seatback for the side impact air bag. Do not
open or break the air bag coverings.
Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag systems in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
air bag systems. To purchase a service manual, see
ªService and Owner Publicationsº in the Index.
CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected, an air
bag can still inflate during improper service. You
can be injured if you are close to an air bag when
it inflates. Avoid yellow connectors. They are
probably part of the air bag systems. Be sure to
follow proper service procedures, and make sure
the person performing work for you is qualified
to do so.
The air bag systems do not need regular maintenance.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-7 Remote Keyless Entry System
2
-12 Trunk
2
-15 Theft
2
-16 Theft-Deterrent System
2
-18 PASS-Key
III
2
-20 New Vehicle ªBreak-Inº
2
-20 Ignition Positions
2
-22 Starting Your Engine
2
-24 Engine Coolant Heater (If Equipped)
2
-25 Automatic Transaxle Operation
2
-30 Parking Brake
2
-32 Shifting Into PARK (P)
2
-35 Shifting Out of PARK (P)
2
-36 Parking Over Things That Burn
2
-37 Engine Exhaust
2
-37 Running Your Engine While You're Parked
2
-38 Windows2
-39 Tilt Wheel and Telescopic Column
2
-40 Turn Signal/Multifunction Lever
2
-46 Exterior Lamps
2
-51 Interior Lamps
2
-53 Mirrors
2
-57 Storage Compartments
2
-60 Rear Power Sunshade (If Equipped)
2
-61 Cellular Telephone (Option)
2
-62 Sunroof (Option)
2
-63 HomeLink
Transmitter
2
-68 The Instrument Panel -- Your
Information System
2
-73 Warning Lights, Gages and Indicators
2
-87 Driver Information Center (DIC)
2
-102 Night Vision System (Option)
2
-106 Navigation (Option)
2
-107 Ultrasonic Rear Parking
Assist (URPA) (Option)

2-2
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. If they
turned the ignition to ON and moved the shift
lever out of PARK (P), that would release the
parking brake. Don't leave the keys in a vehicle
with children.

2-3
Master Key Valet Key
There is a master key that works all of the lock cylinders
(driver's door, trunk, ignition and glove box).
There is also a VALET key which only operates the
driver's door and the ignition.Both the master and VALET key have a transponder
embedded into the key for security and vehicle theft
deterrence. The keys also come with a bar code tag.
Keep the bar code tag in a safe place. If you lose your
key, you will be able to have a new one made using the
bar code tag. The replacement key must have a vehicle
theft deterrent system transponder embedded in it.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever lock
your keys inside. You may even have to damage
your vehicle to get in. So be sure you have
extra keys.

2-4

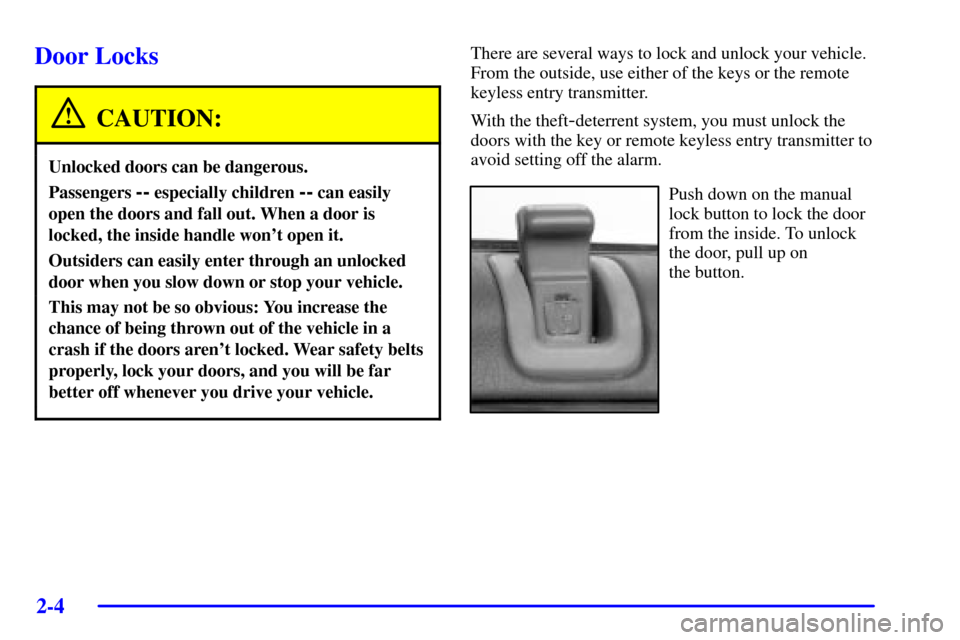

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use either of the keys or the remote
keyless entry transmitter.
With the theft
-deterrent system, you must unlock the
doors with the key or remote keyless entry transmitter to
avoid setting off the alarm.
Push down on the manual
lock button to lock the door
from the inside. To unlock
the door, pull up on
the button.

2-5
Central Door Unlocking System
Your vehicle has a central door unlocking mode and a
theft
-deterrent system. When unlocking the driver's
door, you can unlock the other doors by holding the key
in the turned position for a few seconds or by quickly
turning the door key twice in the lock cylinder.
Power Door Locks
Press the power door lock
button to lock or unlock all
the doors at once. The
power door lock buttons
located on the rear doors
can lock all the doors at
once, but cannot unlock
the doors.
Automatic Door Locks
Your vehicle is equipped with a default mode, so that
every time your doors are closed, the ignition is on and
you move the shift lever out of PARK (P), all the doors
will lock. The doors will unlock every time you stop the
vehicle and move the shift lever back into PARK (P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual or power
lock. When the door is closed again, it will not lock
automatically. Use the manual or power lock to lock the
door again. If you need to lock the doors before shifting
out of PARK (P), use the manual or power lock button
to lock the doors.
Programmable Automatic Door Locks
With the ignition in ON, the door locks can be
programmed through prompts displayed by the Driver
Information Center (DIC). These prompts allow the
driver to choose various lock settings. For programming
information, see ªMemory and Personalization
Featuresº in the Index.

2-6
Rear Door Security Locks
Your vehicle is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors of your
vehicle from the inside.
To use this lock:
1. Turn the knob on the passenger's side rear
door clockwise all the way down to the
ENGAGED position.
2. Close the door.
3. Turn the knob on the driver's side rear door
counterclockwise all the way down to the
engaged position.
The rear doors of your vehicle cannot be opened from
the inside when this feature is in use.When you want to open a rear door when the security
lock is on:
1. Unlock the door from the inside.
2. Then open the door from the outside.
To cancel the rear door lock:
1. Unlock the door and open it from the outside.
2. Turn the passenger's side rear door knob
counterclockwise all the way back to the
original position.
3. Turn the driver's side rear door knob clockwise all
the way back to the original position.
The rear door locks will now work normally.
Anti-Lockout Feature
Leaving your key in any ignition position with any door
open will disable the use of the power door lock buttons
as well as the lock button on the remote keyless entry
transmitter. If you close the doors, you can lock them
using the remote keyless entry transmitter. It is always
recommended that you remove the ignition key when
locking your vehicle.
Also, the anti
-lockout feature can be overridden by
holding the driver's power door lock button for three
seconds or longer.
