1-5 Memory Seat, Mirrors and Steering Wheel
(If Equipped)
The controls for these
features are located on the
driver's door panel, and are
used to program and recall
memory settings for the
driver's seating positions.
Use the following steps to program each button:
1. Adjust the driver's seat (including the seatback
recliner, lumbar, head restraint and shoulder belt
height adjustments), both outside mirrors and the
steering wheel to a comfortable position.
2. Press the SET button.3. Within five seconds, press button 1. A single beep
will sound through the driver's side front speaker to
let you know that the position has been stored.
A second mirror, seating and steering wheel position can
be programmed by repeating the above steps and
pressing button 2 (for driver 2). Each time a memory
button is pressed, a single beep will sound. Each time
button 1 or 2 is pressed and released while the vehicle
is in PARK (P), the memory positions will be recalled.
If the vehicle is not in PARK (P), the memory buttons
must be pressed and held to recall the stored positions.
If you use the remote keyless entry transmitter to enter
your vehicle, automatic seat and mirror movement will
occur. The numbers on the back of the transmitters,
1 and 2, correspond to the numbers on the buttons on
the door panel.
When the key is placed in the ignition in OFF if you
have entered the vehicle without using the remote
keyless entry transmitter, the seats and mirrors will
automatically adjust to the programmed position of
the last driver.
To stop recall movement of the memory feature at
any time, press one of the power seat controls or
memory buttons.

1-6
Two personalized exit positions can be set by first
recalling the driving position (by pressing 1 or 2), then
positioning the steering wheel and seat in the desired
exit positions and then pressing and releasing the
MEMORY SET button and, within five seconds,
pressing the EXIT button. With the vehicle in
PARK (P), the exit position for the last driver can be
recalled by pressing the EXIT button. The mirrors,
power lumbar and shoulder belt height positions will
not be stored or recalled for the exit positions.
Further programming for automatic seat and mirror
movement can be done using the Driver Information
Center (DIC). You can select or not select the following:

Automatic seat and mirror movement when the
vehicle is unlocked with the remote keyless entry
transmitter, or

automatic seat and mirror movement when a key is
placed in the ignition.
For programming information, see ªVehicle
Programming and Personalization Featuresº in
the Index.Heated Seats (If Equipped)
Your vehicle may have heated front and rear seats.
The buttons are located on the armrests. Press the
buttons to turn the feature on. Press them again to turn
off the heated seats. The feature will also shut off when
the ignition is turned to OFF.

1-27 How the Air Bag Systems Work
Where are the air bags?
The driver's frontal air bag is in the middle of the
steering wheel.
The right front passenger's frontal air bag is in the
instrument panel on the passenger's side.

1-29

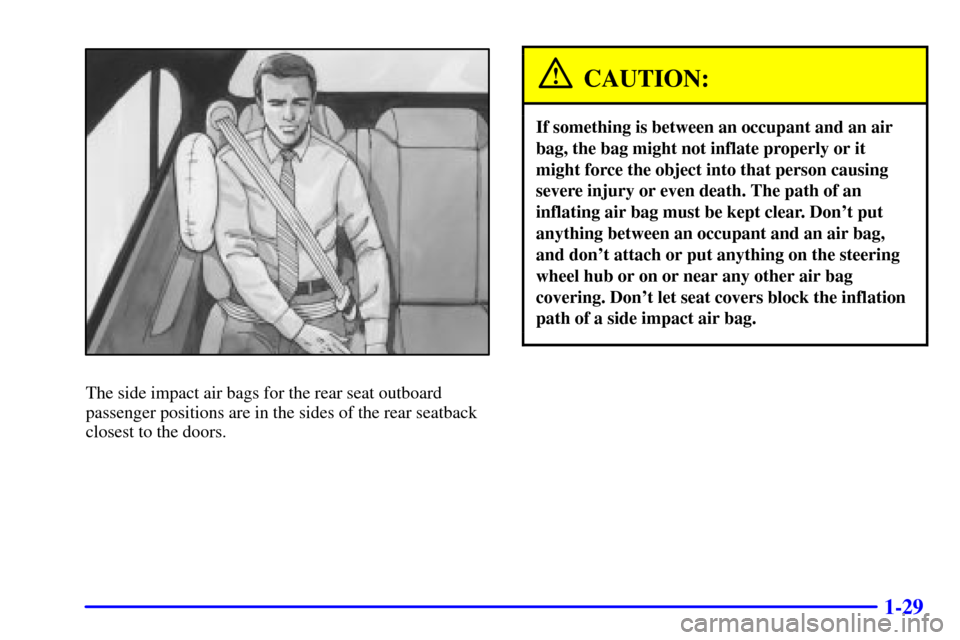

The side impact air bags for the rear seat outboard
passenger positions are in the sides of the rear seatback
closest to the doors.
CAUTION:
If something is between an occupant and an air
bag, the bag might not inflate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inflating air bag must be kept clear. Don't put
anything between an occupant and an air bag,
and don't attach or put anything on the steering
wheel hub or on or near any other air bag
covering. Don't let seat covers block the inflation
path of a side impact air bag.

1-31
In any particular crash, no one can say whether an air
bag should have inflated simply because of the damage
to a vehicle or because of what the repair costs were. For
frontal air bags, inflation is determined by the angle of
the impact and how quickly the vehicle slows down in
frontal and near
-frontal impacts. For side impact air
bags, inflation is determined by the location and severity
of the impact.
What makes an air bag inflate?
In an impact of sufficient severity, the air bag sensing
system detects that the vehicle is in a crash. For both
frontal and side impact air bags, the sensing system
triggers a release of gas from the inflator, which inflates
the air bag. The inflator, air bag and related hardware
are all part of the air bag modules inside the steering
wheel, instrument panel and the side of the front
seatbacks and behind the rear seatbacks closest to
the door.How does an air bag restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The air bag supplements the protection
provided by safety belts. Air bags distribute the force of
the impact more evenly over the occupant's upper body,
stopping the occupant more gradually. But the frontal air
bags would not help you in many types of collisions,
including rollovers, rear impacts, and many side
impacts, primarily because an occupant's motion is not
toward the air bag. Side impact air bags would not help
you in many types of collisions, including frontal or
near frontal collisions, rollovers, and rear impacts,
primarily because an occupant's motion is not toward
those air bags. Air bags should never be regarded as
anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near
-frontal
collisions for the driver's and right front passenger's
frontal air bags, and only in moderate to severe side
collisions for the side impact air bags.

1-32
What will you see after an air bag inflates?
After an air bag inflates, it quickly deflates, so quickly
that some people may not even realize the air bag
inflated. Some components of the air bag module
-- the
steering wheel hub for the driver's air bag, the
instrument panel for the right front passenger's bag, the
side of the seatback closest to the door for the side
impact air bags
-- will be hot for a short time. The parts
of the bag that come into contact with you may be
warm, but not too hot to touch. There will be some
smoke and dust coming from the vents in the deflated
air bags. Air bag inflation doesn't prevent the driver
from seeing or being able to steer the vehicle, nor does it
stop people from leaving the vehicle.
CAUTION:
When an air bag inflates, there is dust in the air.
This dust could cause breathing problems for
people with a history of asthma or other
breathing trouble. To avoid this, everyone in the
vehicle should get out as soon as it is safe to do so.
If you have breathing problems but can't get out
of the vehicle after an air bag inflates, then get
fresh air by opening a window or a door.
Your vehicle has a feature that will automatically unlock
the doors and turn the interior lamps on when the air
bags inflate (if battery power is available). You can lock
the doors again and turn the interior lamps off by using
the door lock and interior lamp controls.

1-33
In many crashes severe enough to inflate an air bag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from the
right front passenger air bag.

Air bags are designed to inflate only once. After an
air bag inflates, you'll need some new parts for your
air bag system. If you don't get them, the air bag
system won't be there to help protect you in another
crash. A new system will include air bag modules
and possibly other parts. The service manual for your
vehicle covers the need to replace other parts.

Your vehicle is equipped with an electronic frontal
sensor, which helps the sensing system distinguish
between a moderate frontal impact and a more
severe frontal impact. Your vehicle is also equipped
with a crash sensing and diagnostic module, which
records information about the frontal air bag system.The module records information about the readiness
of the system, when the system commands air bag
inflation and driver's safety belt usage at deployment
or in a near
-deployment crash. The module also
records speed, engine rpm, brake and throttle data.

Let only qualified technicians work on your air
bag systems. Improper service can mean that an
air bag system won't work properly. See your dealer
for service.
NOTICE:
If you damage the covering for the driver's or the
right front passenger's air bag, or the air bag
covering on the driver's, right front passenger's
or rear seatback, the bag may not work properly.
You may have to replace the air bag module in
the steering wheel, both the air bag module and
the instrument panel for the right front
passenger's air bag, or both the air bag module
and seatback for the side impact air bag. Do not
open or break the air bag coverings.

2-6
Master Key Valet Key
There is a master key that works all of the lock cylinders
(driver's door, trunk, ignition and glove box).
There is also a VALET key which only operates the
driver's door and the ignition.
Your vehicle has the PASS
-Key
III vehicle theft
system. Both the master and VALET key have a
transponder in the key head that matches a decoder in
the vehicle's steering column. If a replacement key or
any additional key is needed, you must purchase this key
from your dealer. The key will have PK3 stamped on it.Keep the bar code tag that came with the original keys.
Give this tag to your dealer if you need a new key made.
Any new PASS
-Key III key must be programmed
before it will start your vehicle. See ªPASS
-Key IIIº
in the Index for more information on programming your
new key.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.
In an emergency, contact Cadillac Roadside Assistance.
See ªRoadside Assistanceº in the Index.
If your vehicle is equipped with the OnStar system with
an active subscription and you lock your keys inside the
vehicle, OnStar may be able to send a command to
unlock your vehicle. See ªOnStarº in the Index for
more information.

2-11
Operation
(Lock): When you press
this symbol to lock the
doors, the parking lamps
will flash once and the horn
will sound. This arms the
theft
-deterrent system.
The parking lamps will not flash, however, if the manual
parking lamps are left on. Remote confirmation is not
operational if a door is open.
You can program your vehicle so the parking lamps
will not flash and the horn will not sound. For more
information, see ªLock/Unlock Confirmationº in
the Index.
(Unlock): When you press this symbol to unlock
the driver's door, the parking lamps on your vehicle will
flash twice. The parking lamps will not flash if they
have been turned on manually. Remote confirmation is
not operational if a door is open.Press this button again within one to five seconds
to unlock the other doors. It will also disarm the
theft
-deterrent system and turn on the interior
lamps at night.
You can program your vehicle so the parking lamps will
not flash. For more information, see ªLock/Unlock
Confirmationº in the Index.
(Panic Alarm): The remote keyless entry
transmitter comes equipped with an instant panic alarm.
To use the alarm, press the horn symbol when the
ignition is turned off. The horn will sound and the
exterior lamps will flash for up to 30 seconds. To stop
the instant panic alarm, press the symbol again or turn
the ignition to ON.
(Trunk): Press this button to open the trunk. The
valet lockout switch must be off for this feature to work.
The remote keyless entry transmitter can be used to
recall the memory settings for up to two drivers. For
more information, see ªVehicle Programming and
Personalization Featuresº and ªMemory Seat, Mirrors
and Steering Wheelº in the Index.

2-14
Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on AUTO and the temperature between
65F (18C) and 85F (29C). That will
force outside air into your vehicle. See
ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Trunk Lock Release
The trunk lock release
button is located to the left
of the steering wheel on the
instrument panel.
Press the button to open the trunk. To use this feature,
your vehicle must be in PARK (P) or NEUTRAL (N)
and the valet lockout switch must be off.
You can also press the button with the trunk symbol on
the remote keyless entry transmitter to open the trunk.
To disable this feature, see ªValet Lockout Switchº in
the Index.
