12. Tighten the wheel nuts
rmly in a crisscross
sequence as shown.
If your vehicle is equipped with wheel nut covers,
screw them on with your ngers, then tighten
one-quarter turn with the wheel wrench.
{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident.
CAUTION: (Continued)
CAUTION: (Continued)
Be sure to use the correct wheel nuts. If you
have to replace them, be sure to get new GM
original equipment wheel nuts. Stop
somewhere as soon as you can and have the
nuts tightened with a torque wrench to the
proper torque specication. See “Capacities
and Specications” in the Index for wheel nut
torque specication.
Notice:Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper torque
specication. See “Capacities and Specications” in
the index for the wheel nut torque specication.
Do not try to put a wheel cover on your compact spare
tire. It will not t. Store the wheel cover and lug nut caps
in the trunk until you have the at tire repaired or
replaced.
Notice:Wheel covers will not t on your compact
spare. If you try to put a wheel cover on the compact
spare, you could damage the cover or the spare.
5-94

Storing the Flat Tire and Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone. Store
all these in the proper place.
After you have put the compact spare tire on your
vehicle, you will need to store the at tire in your trunk.
Store the at tire as far forward in the trunk as
possible. Store the jack and wheel wrench in their
compartment in the trunk. For storage, the jack must be
raised until the screw end is ush with the edge of
the jack.
Storing the Spare Tire and Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone. Store
all these in the proper place.
The compact spare is for temporary use only. Replace
the compact spare tire with a full-size tire as soon
as you can. See the storage instructions label for
information on how to properly position and store the
compact spare tire.
5-95

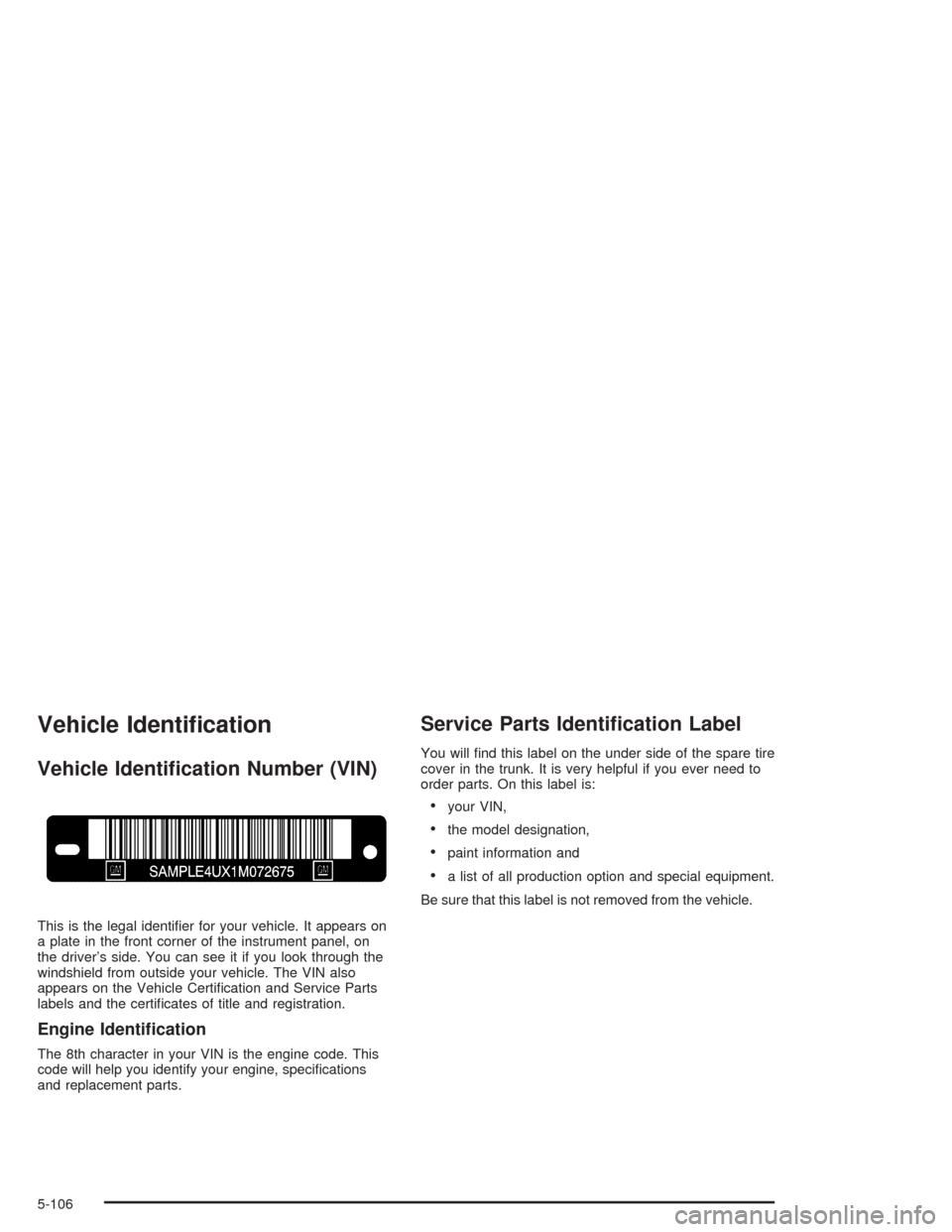

Vehicle Identication
Vehicle Identication Number (VIN)
This is the legal identier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on
the driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certication and Service Parts
labels and the certicates of title and registration.
Engine Identication
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specications
and replacement parts.
Service Parts Identication Label
You will nd this label on the under side of the spare tire
cover in the trunk. It is very helpful if you ever need to
order parts. On this label is:
your VIN,
the model designation,
paint information and
a list of all production option and special equipment.
Be sure that this label is not removed from the vehicle.
5-106

Relays Usage
39 Fuel Pump
40 Parking Lamps
41 Ignition 1
42 Park Brake A
43 Park Brake B
44 Park Shift Interlock
45 Reverse Lamps
46Retained Accessory Power for
Sunroof
47 Reverse Lockout
48 Suspension Dampers
49 Ignition 3
50 Fuel Tank Door Release
51 Interior Lamps
52 Trunk Release
53 Not Used
54 Lock, Cylinder
55 Automatic Level Control Compressor
58 Cigar Lighter
59 Rear DefogCircuit
BreakersUsage
56 Power Seats
57 Power Windows
The spare fuses and fuse puller are located in the
underhood fuse block. See “Underhood Fuse Block”
listed previously underFuses and Circuit Breakers
on page 5-108for more information.
5-114

Display Mode.................................................3-48
Diversity Antenna System...............................3-118
Doing Your Own Service Work........................... 5-4
Dolly Towing..................................................4-35
Door
Central Door Unlocking System....................... 2-9
Locks.......................................................... 2-8
Power Door Locks......................................... 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-10
Doors Lock in Gear.........................................3-83
Doors Unlock in PARK (P)................................3-86
Doors Unlock Key Off......................................3-86
Driver
Position, Safety Belt.....................................1-13
Driver Information Center (DIC).........................3-62
Climate Controls and Radio System
Personalization........................................3-73
DIC Controls and Displays............................3-62
DIC Vehicle Personalization..........................3-74
DIC Warnings and Messages........................3-65
Driver Unlock in PARK (P)................................3-84
Driver Unlock Key Off......................................3-85
Driver’s Name Set/Recall.................................3-88
Driving
At Night.....................................................4-17
City...........................................................4-22Driving (cont.)
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Freeway.....................................................4-23
Hill and Mountain Roads..............................4-26
In Rain and on Wet Roads...........................4-19
Winter........................................................4-28
Driving on Grades...........................................4-47
Driving on Snow or Ice....................................4-29
Driving Through Deep Standing Water...............4-21
Driving Through Flowing Water.........................4-21
Driving with a Trailer.......................................4-46
Dual Climate Control System............................3-32
E
Electrical System
Add-On Equipment.....................................5-107
Fuses and Circuit Breakers.........................5-108
Headlamp Wiring.......................................5-107
Power Windows and Other Power Options.......5-107
Removing the Rear Seat Cushion................5-110
Windshield Wiper Fuses.............................5-107
Emergency Trunk Release Handle.....................2-14
Emissions Inspection and Maintenance
Programs...................................................3-58
5

Tires (cont.)
Uniform Tire Quality Grading.........................5-81
Wheel Alignment and Tire Balance.................5-82
Wheel Replacement.....................................5-82
When It Is Time for New Tires......................5-79
To Use the Engine Coolant Heater....................2-28
Top Strap......................................................1-40
Top Strap Anchor Location...............................1-41
Torque Lock...................................................2-36
Total Weight on Your Vehicle’s Tires..................4-45
Towing
Recreational Vehicle.....................................4-33
Towing a Trailer..........................................4-41
Your Vehicle...............................................4-33
Traction
Continuous Variable Road Sensing Suspension
(CVRSS).................................................4-11
Control System (TCS).................................... 4-9
Control System Warning Light.......................3-53
Trailer Brakes.................................................4-45
Transaxle
Fluid, Automatic...........................................5-24
Transaxle Operation, Automatic.........................2-28
Transmission, Transaxle, Transfer Case Unit
Repair Manual............................................7-12Transportation Options...................................... 7-8
Trip Computer
Oil Life Indicator..........................................3-89
Trip Odometer................................................3-47
Trunk............................................................2-12
Trunk Lid Tie Down.........................................2-13
Trunk Lock Release........................................2-12
Turn and Lane-Change Signals.......................... 3-9
Turn Signal/Multifunction Lever........................... 3-9
Turn Signals When Towing a Trailer..................4-47
Twilight Sentinel
®............................................3-20
U
Ultrasonic Rear Parking Assist (URPA)...............3-28
Umbrella Holder..............................................2-53
Underhood Fuse Block...................................5-108
Understanding Radio Reception.......................3-115
Uniform Tire Quality Grading............................5-81
United States – Customer Assistance.................. 7-5
Used Replacement Wheels..............................5-83
Using Cleaner on Fabric..................................5-98
Using Digital Signal Processing (DSP)..............3-101
Using HomeLink
®...........................................2-49
16
