CADILLAC DEVILLE 2004 8.G Workshop Manual

{CAUTION:
A child in a child restraint in the center front
seat can be badly injured or killed by the right
front passenger’s air bag if it inates. Never
secure a child restraint in the center front seat.
It is always better to secure a child restraint in
the rear seat.
If you secure a forward-facing child restraint in
the right front passenger seat, always move
the front passenger seat as far back as it will
go. It is better to secure the child restraint in a
rear seat.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
restraint in this position.Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
Tilt the latch plate to adjust the belt if needed.
1-45

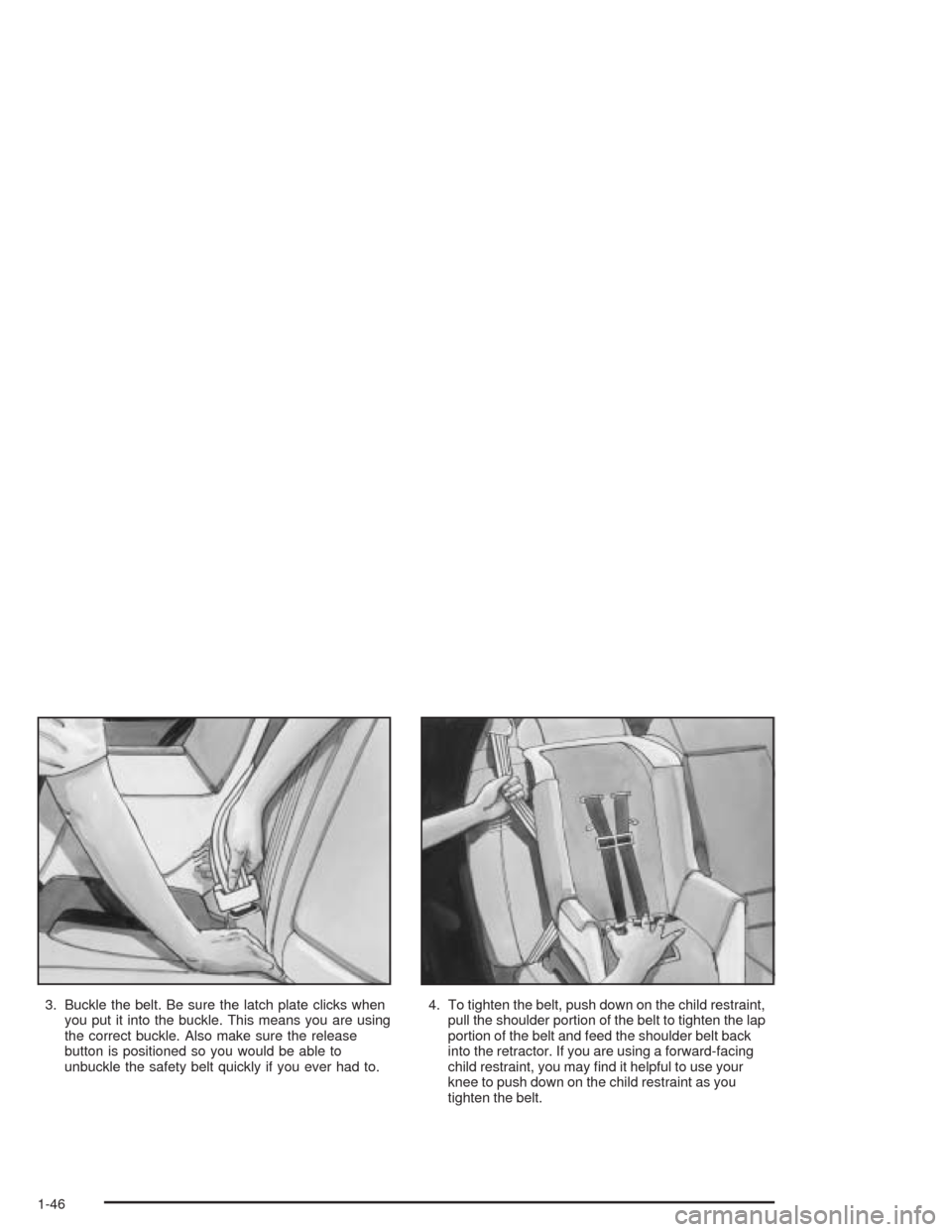

3. Buckle the belt. Be sure the latch plate clicks when
you put it into the buckle. This means you are using
the correct buckle. Also make sure the release
button is positioned so you would be able to
unbuckle the safety belt quickly if you ever had to.4. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the lap
portion of the belt and feed the shoulder belt back
into the retractor. If you are using a forward-facing
child restraint, you may nd it helpful to use your
knee to push down on the child restraint as you
tighten the belt.
1-46

5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
Securing a Child Restraint in the
Right Front Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-42. SeeTop Strap
on page 1-40, if the child restraint has one.Your vehicle has a right front passenger air bag.Never
put a rear facing child restraint in this seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s air bag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating air bag.
Always secure a rear-facing child restraint in a
rear seat.
A rear seat is a safer place to secure a forward-facing
child restraint.
If you need to secure a forward-facing child restraint in
the right front seat you will be using the lap-shoulder belt
to secure the child restraint in this position. Be sure to
follow the instructions that came with the child restraint.
1-47

Secure the child in the child restraint when and as the
instructions say.
1. Because your vehicle has a right front passenger
air bag, always move the seat as far back as it will
go before securing a forward-facing child restraint.
SeePower Seats on page 1-2.
2. Put the restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-48

5. Pull the rest of the lap belt all the way out of the
retractor to set the lock.6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. You may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-49

Air Bag Systems
This part explains the frontal and side impact air bag
systems.
Your vehicle has air bags – a frontal air bag for the
driver and another frontal air bag for the right front
passenger. Your vehicle also has a side impact air bag
for the driver and another side impact air bag for the
right front passenger. Your vehicle may also have a side
impact air bag for each of the two rear seat outboard
passenger positions.
If your vehicle has side impact air bags for each of the
two rear seat outboard passenger positions, it will
say AIR BAG on each side of the rear seatback closest
to the door.
Frontal air bags are designed to help reduce the risk of
injury from the force of an inating frontal air bag.
But these air bags must inate very quickly to do their
job and comply with federal regulations.
1-50

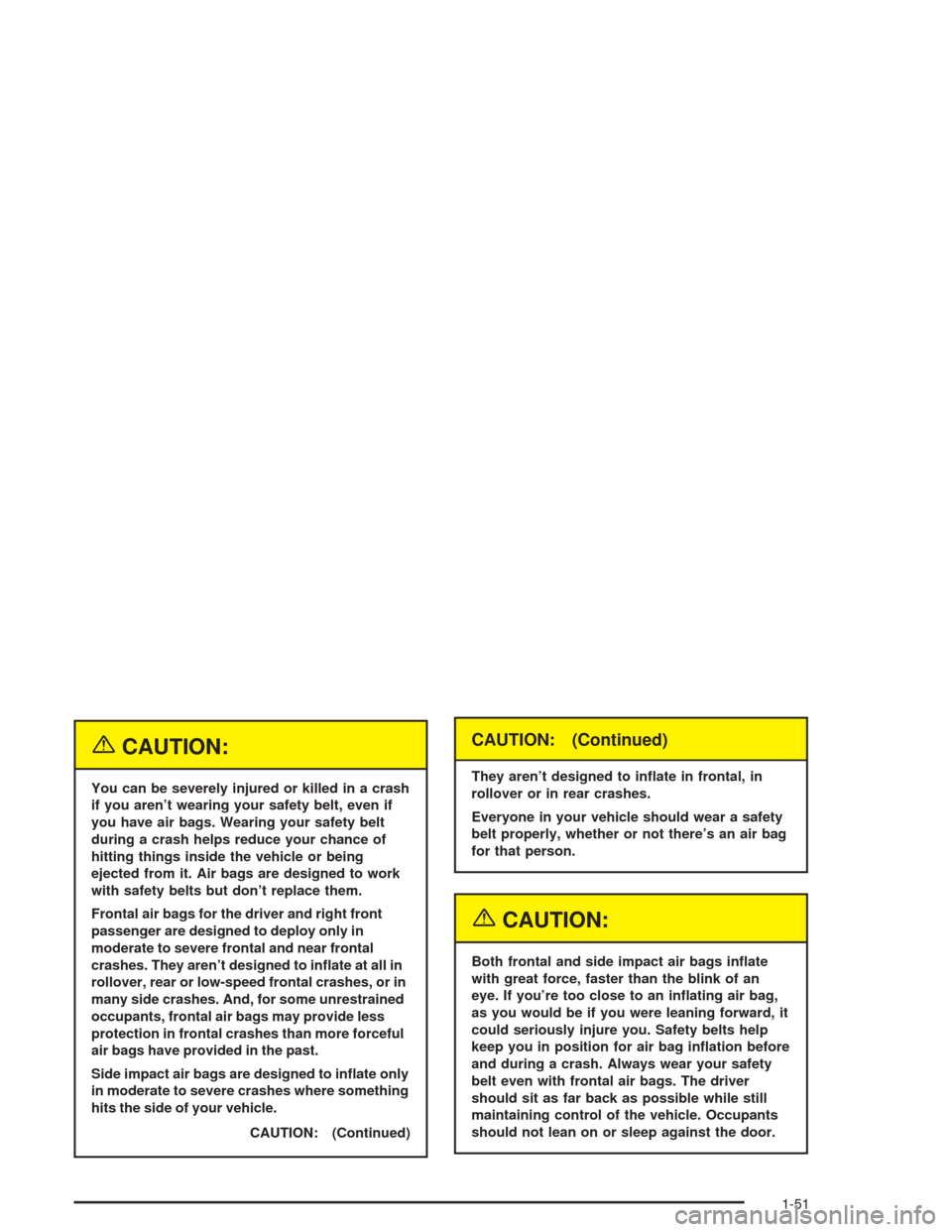

{CAUTION:
You can be severely injured or killed in a crash
if you aren’t wearing your safety belt, even if
you have air bags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Air bags are designed to work
with safety belts but don’t replace them.
Frontal air bags for the driver and right front
passenger are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They aren’t designed to inate at all in
rollover, rear or low-speed frontal crashes, or in
many side crashes. And, for some unrestrained
occupants, frontal air bags may provide less
protection in frontal crashes than more forceful
air bags have provided in the past.
Side impact air bags are designed to inate only
in moderate to severe crashes where something
hits the side of your vehicle.
CAUTION: (Continued)
CAUTION: (Continued)
They aren’t designed to inate in frontal, in
rollover or in rear crashes.
Everyone in your vehicle should wear a safety
belt properly, whether or not there’s an air bag
for that person.
{CAUTION:
Both frontal and side impact air bags inate
with great force, faster than the blink of an
eye. If you’re too close to an inating air bag,
as you would be if you were leaning forward, it
could seriously injure you. Safety belts help
keep you in position for air bag ination before
and during a crash. Always wear your safety
belt even with frontal air bags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
1-51

{CAUTION:
Anyone who is up against, or very close to,
any air bag when it inates can be seriously
injured or killed. Air bags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its air bag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
see the part of this manual called “Older
Children” or “Infants and Young Children.”There is an air bag readiness light on the instrument
panel, which shows the words AIR BAG or an air
bag symbol.
The system checks the air bag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAir Bag Readiness Light on page 3-50
for more information.United States
Canada
1-52

Where Are the Air Bags?
The driver’s frontal air bag is in the middle of the
steering wheel.The right front passenger’s frontal air bag is in the
instrument panel on the passenger’s side.
1-53

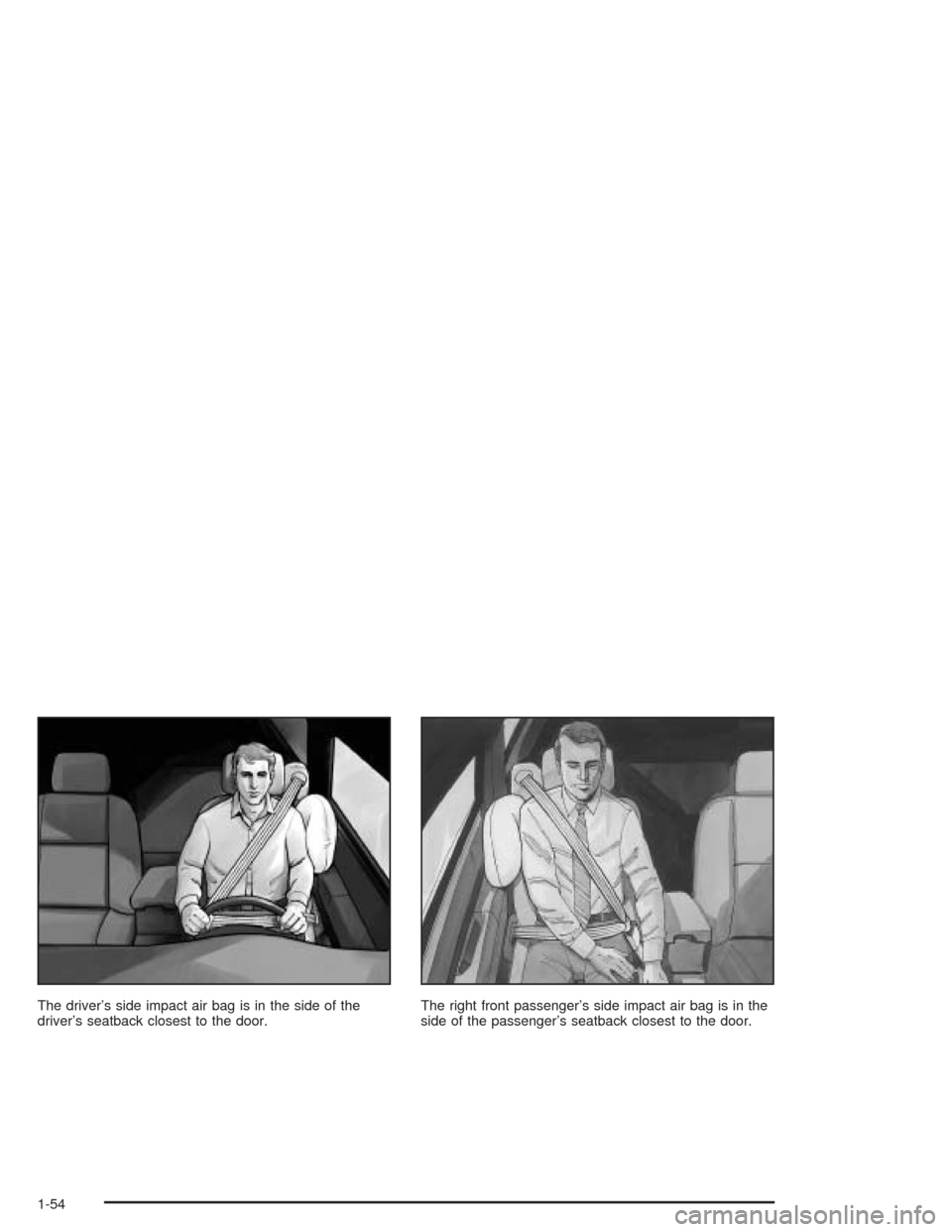

The driver’s side impact air bag is in the side of the
driver’s seatback closest to the door.The right front passenger’s side impact air bag is in the
side of the passenger’s seatback closest to the door.
1-54
