CADILLAC DTS 2011 1.G Owners Manual

Black plate (9,1)Cadillac DTS Owner Manual - 2011
Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name, part
number, or specification can be obtained from your
dealer.Usage Fluid/Lubricant
Engine Oil The engine requires engine oil
approved to the dexos™
specification.
Oils meeting this specification can
be identified with the dexos™
certification mark. Look for and use only
an engine oil that displays the dexos™
certification mark of the proper viscosity
grade. See Engine Oil on page 6‑15.
Engine
Coolant 50/50 mixture of clean, drinkable water
and use only DEX-COOL Coolant. See
Engine Coolant on page 6‑26.
Hydraulic
Brake System DOT 3 Hydraulic Brake Fluid
(GM Part No. U.S. 88862806, in
Canada 88862807).
Windshield Washer Optikleen
®Washer Solvent.
Parking Brake Cable Guides Chassis Lubricant (GM Part No.
U.S. 12377985, in Canada 88901242)
or lubricant meeting requirements of
NLGI #2, Category LB or GC-LB.
Usage
Fluid/Lubricant
Power
Steering
System GM Power Steering Fluid
(GM Part No. U.S. 89021184, in
Canada 89021186).
Automatic
Transmission DEXRON
®-VI Automatic Transmission
Fluid.
Key Lock
Cylinders Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Hood Latch Assembly,
Secondary
Latch, Pivots,
Spring Anchor,
and
Release Pawl Lubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293, in
Canada 992723) or lubricant meeting
requirements of NLGI #2, Category LB
or GC-LB.
Hood and
Door Hinges Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No.
U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
7-9

Black plate (10,1)Cadillac DTS Owner Manual - 2011
Maintenance Replacement Parts
Replacement parts identified here by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter Element 22676970A1627C
Engine Oil Filter 89017342PF61
Passenger Compartment Air Filter Element 25906375CF118C
Spark Plugs 1257153541–987
Wiper Blades
Driver Side ‐21.7 in (55.0 cm) 15931977—
Passenger Side ‐21.7 in (55.0 cm) 15931976—
7-10

Black plate (11,1)Cadillac DTS Owner Manual - 2011
Engine Drive Belt Routing
4.6L V8 Engines
7-11

Black plate (12,1)Cadillac DTS Owner Manual - 2011

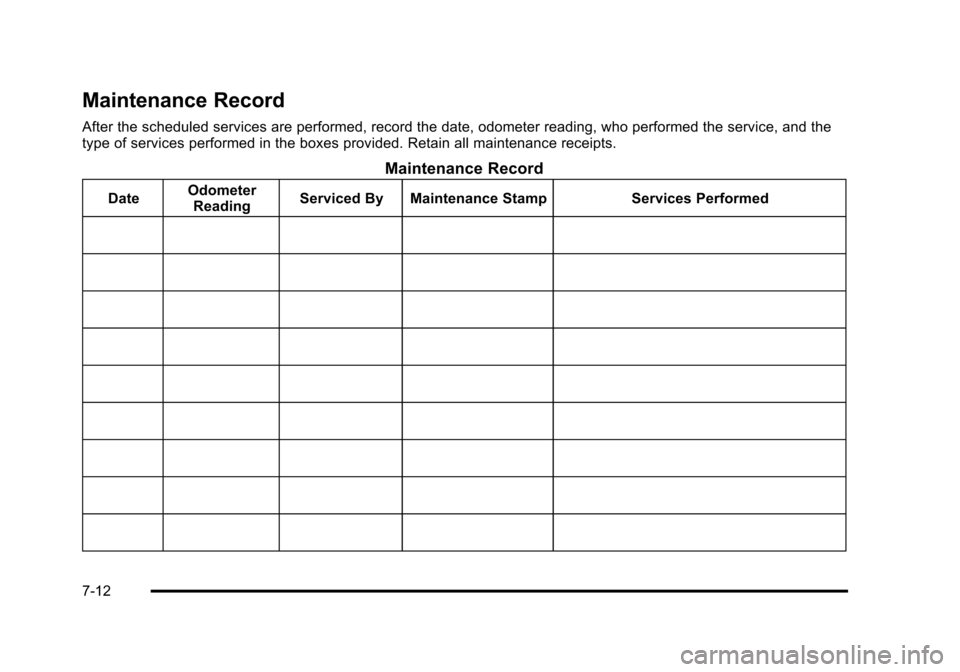

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Maintenance Stamp Services Performed
7-12

Black plate (13,1)Cadillac DTS Owner Manual - 2011

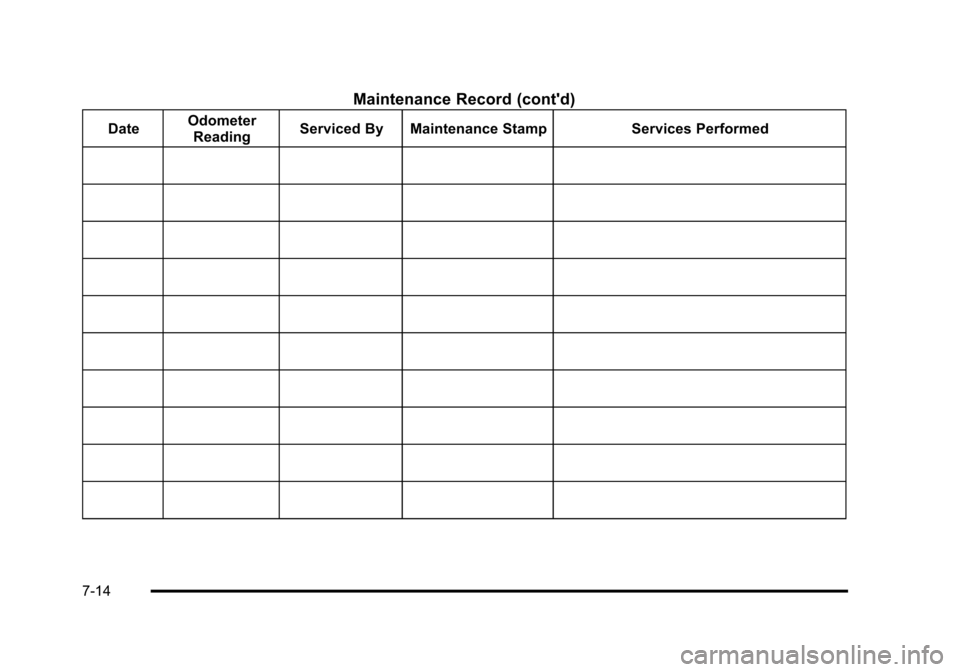

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Maintenance Stamp Services Performed
7-13

Black plate (14,1)Cadillac DTS Owner Manual - 2011

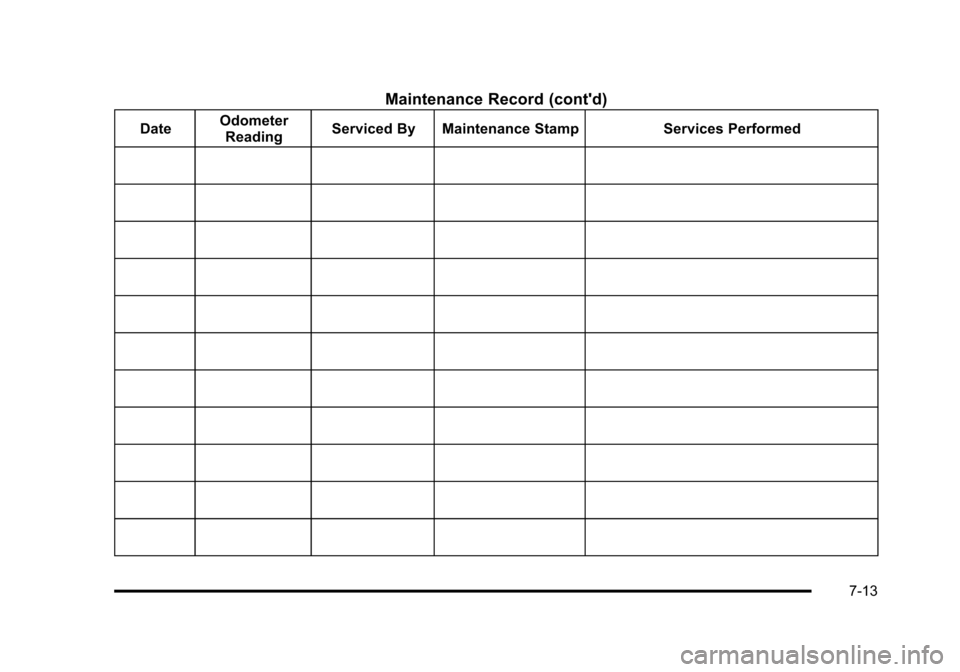

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Maintenance Stamp Services Performed
7-14

Black plate (1,1)Cadillac DTS Owner Manual - 2011
Section 8 Customer Assistance Information
Customer Assistance and Information. . . . . . . . . . .8-2
Customer Satisfaction Procedure . . . . . . . . . . . . . . . 8-2
Online Owner Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Customer Assistance for Text Telephone (TTY) Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . 8-6
GM Mobility Reimbursement Program . . . . . . . . . . . 8-7
Roadside Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Scheduling Service Appointments . . . . . . . . . . . . . 8-10
Courtesy Transportation Program . . . . . . . . . . . . . . 8-10
Collision Damage Repair . . . . . . . . . . . . . . . . . . . . . . 8-12 Reporting Safety Defects
. . . . . . . . . . . . . . . . . . . . . . . .8-14
Reporting Safety Defects to the United States Government . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
Reporting Safety Defects to the Canadian Government . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
Reporting Safety Defects to General Motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
Service Publications Ordering Information . . . . . 8-15
Vehicle Data Recording and Privacy . . . . . . . . . . . . .8-17
Event Data Recorders . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
OnStar
®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
Navigation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
Radio Frequency Identification (RFID) . . . . . . . . . 8-18
Radio Frequency Statement . . . . . . . . . . . . . . . . . . . 8-18
8-1

Black plate (2,1)Cadillac DTS Owner Manual - 2011
Customer Assistance and
Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important to your
dealer and to Cadillac. Normally, any concerns with the
sales transaction or the operation of the vehicle will be
resolved by the dealer's sales or service departments.
Sometimes, however, despite the best intentions of
all concerned, misunderstandings can occur. If your
concern has not been resolved to your satisfaction, the
following steps should be taken:
STEP ONE:Discuss your concern with a member of
dealership management. Normally, concerns can be
quickly resolved at that level. If the matter has already
been reviewed with the sales, service or parts manager,
contact the owner of the dealership or the general
manager. STEP TWO:
If after contacting a member of dealership
management, it appears your concern cannot be
resolved by the dealership without further help, in the
U.S., call the Cadillac Customer Assistance Center at
1‐800‐458‐8006. In Canada, call the Canadian Cadillac
Customer Communication Centre at 1-888-446-2000.
We encourage you to call the toll-free number in order
to give your inquiry prompt attention. Have the following
information available to give the Customer Assistance
representative:
.Vehicle Identification Number (VIN). This is
available from the vehicle registration or title, or the
plate at the top left of the instrument panel and
visible through the windshield.
.Dealership name and location.
.Vehicle delivery date and present mileage.
When contacting Cadillac, remember that your concern
will likely be resolved at a dealer's facility. That is why
we suggest following Step One first.
8-2

Black plate (3,1)Cadillac DTS Owner Manual - 2011
STEP THREE—U.S. Owners: Both General Motors
and your dealer are committed to making sure you are
completely satisfied with your new vehicle. However,
if you continue to remain unsatisfied after following the
procedure outlined in Steps One and Two, you can file
with the Better Business Bureau (BBB) Auto Line
®
Program to enforce your rights.
The BBB Auto Line Program is an out of court program
administered by the Council of Better Business Bureaus
to settle automotive disputes regarding vehicle repairs
or the interpretation of the New Vehicle Limited
Warranty. Although you may be required to resort to
this informal dispute resolution program prior to filing a
court action, use of the program is free of charge and
your case will generally be heard within 40 days. If you
do not agree with the decision given in your case, you
may reject it and proceed with any other venue for relief
available to you. You may contact the BBB Auto Line Program using the
toll-free telephone number or write them at the following
address:
BBB Auto Line Program
Council of Better Business Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
www.dr.bbb.org/goauto
This program is available in all 50 states and the District
of Columbia. Eligibility is limited by vehicle age, mileage
and other factors. General Motors reserves the right to
change eligibility limitations and/or discontinue its
participation in this program.
8-3

Black plate (4,1)Cadillac DTS Owner Manual - 2011
STEP THREE—Canadian Owners: In the event that
you do not feel your concerns have been addressed
after following the procedure outlined in Steps One
and Two, General Motors of Canada Limited wants
you to be aware of its participation in a no-charge
mediation/arbitration program. General Motors of
Canada Limited has committed to binding arbitration of
owner disputes involving factory-related vehicle service
claims. The program provides for the review of the facts
involved by an impartial third party arbiter, and may
include an informal hearing before the arbiter. The
program is designed so that the entire dispute
settlement process, from the time you file your
complaint to the final decision, should be completed
in approximately 70 days. We believe our impartial
program offers advantages over courts in most
jurisdictions because it is informal, quick, and free of
charge. For further information concerning eligibility in the
Canadian Motor Vehicle Arbitration Plan (CAMVAP), call
toll-free 1‐800‐207‐0685, or call the General Motors
Customer Communication Centre, 1‐800‐263‐3777
(English), 1‐800‐263‐7854 (French), or write to:
Mediation/Arbitration Program
c/o Customer Communication Centre
General Motors of Canada Limited
Mail Code: CA1‐163‐005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Your inquiry should be accompanied by the Vehicle
Identification Number (VIN).
8-4
