fuel reserve CADILLAC ELDORADO 1993 10.G Owners Manual

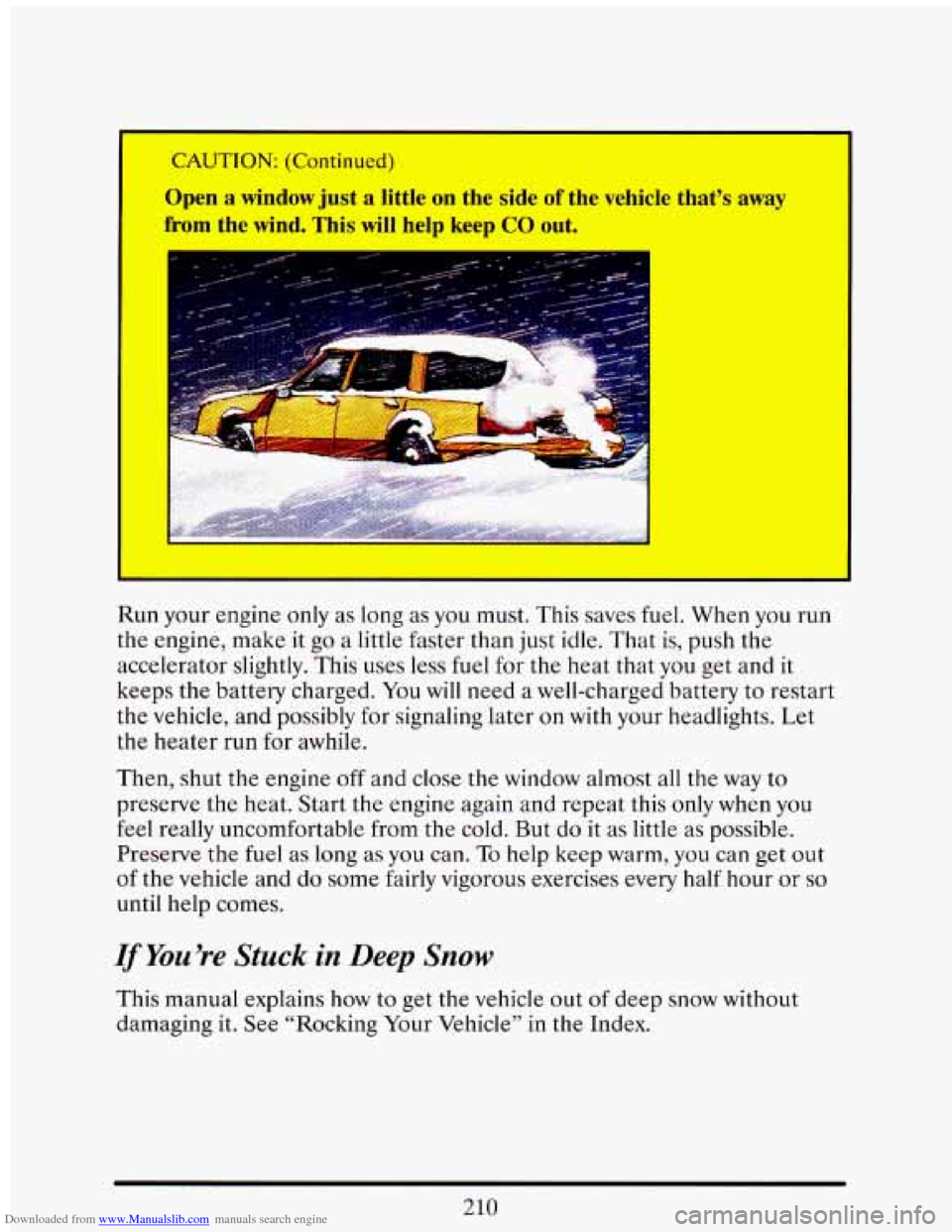

Downloaded from www.Manualslib.com manuals search engine Open a window just a little on the side of the vehicle that’s away
from the wind. This will help keep GO out.
Run your engine only as long as you must. This saves fuel. When you run
the engine, make it go a little faster than just idle. That is, push the
accelerator slightly. This uses less
fuel for the heat that you get and it
keeps the battery charged. You will need a well-charged battery to restart
the vehicle,
and possibly for signaling later on with your headlights. Let
the heater run for awhile.
Then, shut the engine off and close the window almost all the way to
preserve the heat. Start the engine again and repeat this only when you
feel really uncomfortable from the cold. But do
it as little as possible.
Preserve the fuel as long
as you can. To help keep warm, you can get out
of the vehicle and do some fairly vigorous exercises every half hour or so
until help comes.
VYou’re Stuck in Deep Snow
This manual explains how to get the vehicle out of deep snow without
damaging
it. See “Rocking Your Vehicle’’ in the Index.
210

Downloaded from www.Manualslib.com manuals search engine 1nrVc-I
SENSE
I I
BIII mc 1 m DRL
SUSPENSION RTD (BAT)
L HDLP LO
R HDLP LO L HDLP HI R HDLP HI
-1
COOL FAN TRANS/ECS
FUSE CENTER IDENTIFICATION I
ENGINE COMPARTMENT FUSE BLOCK
COIL 20A - 4.9L DISTRIBUTOR - 4.6L IGNITION CONTROL MODULE SIR 20A - DIAGNOSTIC ENERGY RESERVE MODULE
- ARMING SENSOR
- POWERTRAIN CONTROL MODULE (PCM) (DERM) SIR (AIR BAG)
PCM (IGN) 10A - PASSKeyB DECODER MODULE
INJ 10A
INJ 10A
IGN 10A
- FUEL INJECTORS 1,4,6,7
- FUEL INJECTORS 2,3,5,8
- A/C COMPRESSOR - ELECTROCHROMIC MIRROR - INSTRUMENT PANEL CLUSTER - DIAGNOSTIC ENERGY RESERVE MODULE
- KEYLESS ENTRY MODULE - CORNERING LIGHTS - CHIME MODULE - TWILIGHT SENTINEVDRL MODULE - BACKUP LIGHTS - BRAKE TRANSMISSION SHIFT INTERLOCK (DERM)
SIR (AIR BAG)
FUEL 20A
- FUELPUMP - POWERTRAIN CONTROL MODULE
PCM (BAT) 10A
A/C 1OA
HTD
W/S 10A
STOP LP 20A
TURN/HAZ 20A
- POWERTRAIN CONTROL MODULE (PCM)
- A/C COMPRESSOR
- HEATED WINDSHIELD
- STOP LIGHTS
- HAZARD LIGHTS - TURN SIGNAL LIGHTS DRL
1OA (CANADA)
DRL 1OA (CANADA)
SUSPENSION 10A
- DAYTIME RUNNING LIGHTS
- DAYTIME RUNNING LIGHTS
- ROAD SENSING SUSPENSION
- SPEED SENSITIVE SUSPENSION (4.9L)
- ROAD SENSING SUSPENSION (NORTHSTAR)
RTD (BAT) 20A
L HDLP LO 1 OA (EXPORT)
R HDLP LO 1OA (EXPORT)
L HDLP HI 10A (EXPORT)
R HDLP HI (EXPORT)
IGN
3 10A
- LEFT HEADLAMP LOW BEAM
- RT HEADLAMP LOW BEAM
- LEFT HEADLAMP HIGH BEAM
- RIGHT HEADLAMP HIGH BEAM
- HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER - ELECT. LEVEL CONTROL (ELC) - DEFOGGER RELAY “D”
- CRUISE CONTROL - POWERTRAIN CONTROL MODULE
- COOLING FANS - POWERTRAIN CONTROL MODULE (4.6L) - FRONT AND REAR HEATED OXYGEN
COOLING
FAN 10A
SENSOR (4.6L)
TRANS/ECS
1 OA
SOLENOID - EXHAUST GAS RECIRCULATION (EGR)
- POWERTRAIN CONTROL MODULE (PCM) - AUTOMATIC TRANSAXLE - EVAPORATIVE EMISSION CONTROL
SOLENOID
- OVERSPEED ALERT MODULE (EXPORT) - POWER STEERING PRESSURE SWITCH
329

Downloaded from www.Manualslib.com manuals search engine L
WIPER RAD (IGN) R DEFOG HTD MlRR IPC IBATT) THEFT ,
1-1 BI BI
REAR FOG FOG LP CNSL FAN CIGAR
-
L PRK LP R PRK LP RAD (BAT)
7' .I m m
TRUNK COMPARTMENT FUSE BLOCK
CRANK 10A - RAPhLLUMINATED ENTRY MODULE - DIAGNOSTIC ENERGY RESERVE MODULE
(DERM)
- STARTER
- CATALYTIC CONVERTER ALARM MODULE
ION 1 10A
(EXPORTI
- FUEL-LEVEL SENSOR - ELECTROCHROMIC MIRROR - THEFT DETERRENT MODULE - KEYLESS ENTRY MODULE - TURN SIGNAL LIGHTS - RAP/ILLUMINATED ENTRY MODULE
HDLP WASH 30A (EXPORT)
IPC (IGN) 10A
CNSL
SW 10A
- HEADLIGHT WASHER MODULE
- INSTRUMENT PANEL CLUSTER
- REAR BLOWER MOTOR - CONSOLE SWITCH
ABS 1OA - ELECTRONIC BRAKE CONTROL MODULE (4.9L) - ELECTRONIC BRAKE AND TRACTION CONTROL
MODULE (NORTHSTAR)
WIPER 30A
RAD (IGN) 1OA
R DEFOG 30A
HTD MlRR 10A
IPC (BATT) 1 OA
- INSTRUMENT PANEL CLUSTER
THEFT 10A
- PASS-Key@ DECODER MODULE - THEFT DETERRENT RELAY
HVACIDABIE 10A
- HEATER AND A/C PROGRAMMER
REAR FOG 10A (EXPORT)
FOG LP 1OA (4.6L)
CNSL FAN 1OA
- REAR BLOWER MOTOR
- WIPERhVASHER SWITCH
- REMOTE RADIO RECEIVER
- REAR DEFOGGER
- RIGHT AND LEFT POWER MIRROR-DEFOGGER
- THEFT DETERRENT MODULE
- RAP/ILLUMINATED ENTRY MODULE
- REAR FOG LIGHTS
- FOG LIGHTS
- REAR CIGAR LIGHTERS-SEVILLE ONLY
- CHIME MODULE
CIGAR
20A - FRONT CIGAR LIGHTER
BODY 2 10A
- POWER MIRROR SWITCH - RETAINED ACCESSORY POWER
- CONSOLE SWITCH - PANEL LIGHTS INHIBIT (EXPORT) - COURTESY LIGHTS - KEYLESS ENTRY MODULE
BODY
1 10A - POWER DOOR LOCKS - DOOR LOCK CYLINDER ILLUMINATION
- TRUNK LIGHT
- GLOVE BOX LIGHT - FOOTWELL LIGHTS - TWILIGHT SENTINEUDRL MODULE - HEADLIGHT SWITCH
READ LP 10A
- LEFT AND RIGHT VANITY MIRRORS - GARAGEDOOROPENER - FRONT AND REAR HEADER LIGHTS
L PRK LP 1OA - RADIO DIMMING - HEADLIGHT SWITCH - INSTRUMENT PANEL CLUSTER
- LEFT MARKER LIGHT
R PRK LP 10A
- LEFT TAIL/STOP/TURN LIGHTS
- LEFT PARWTURN LIGHT
- RIGHT MARKER LIGHTS - LICENSE LIGHTS - RIGHT PARWURN LIGHT - ENGINE COMPARTMENT LIGHT - RIGHT TAlL/STOP/TURN LIGHTS
RAD (BAT)
1 OA - REMOTE RADIO RECEIVER - RADIO CONTROL HEAD
ANTDRUNK 20A
- TRUNK PULL DOWN
ELC 20A
R HTD SEAT 10A
L HTD SEAT 10A - DRIVERS HEATED SEAT
- POWER ANTENNA
- ELECTRONIC LEVEL CONTROL
- PASSENGERS HEATED SEAT
332
