length CADILLAC ELDORADO 1998 10.G Owners Manual

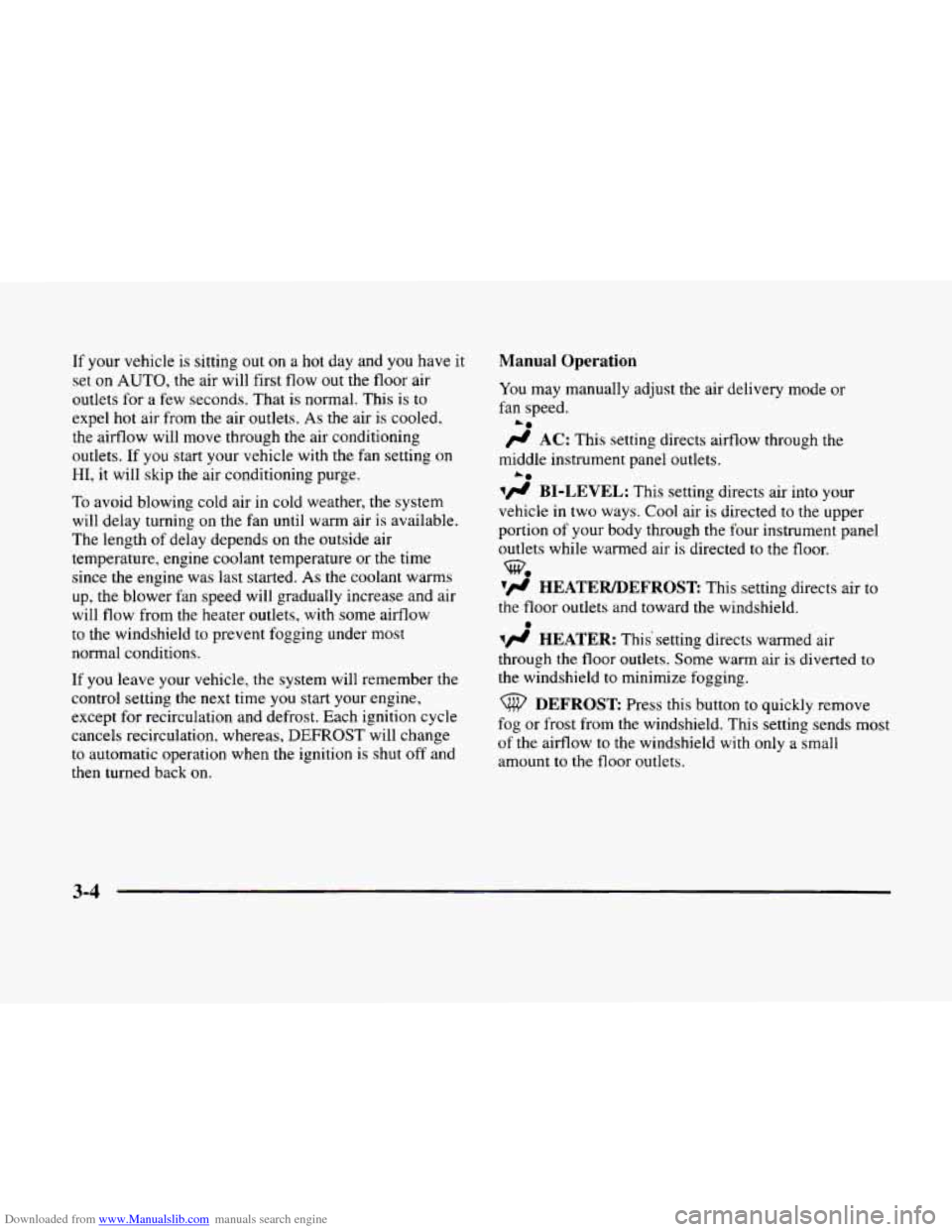

Downloaded from www.Manualslib.com manuals search engine If your vehicle is sitting out on a hot day and you have it
set on AUTO, the air will first flow out the floor air
outlets for a few seconds. That is normal. This
is to
expel hot air from the air outlets. As the air
is cooled,
the airflow will move through
the air conditioning
outlets. If you start your vehicle with the fan setting
on
HI, it will skip the air conditioning purge.
To avoid blowing cold air in cold weather, the system
will delay turning on the fan until warm air is available.
The length
of delay depends on the outside air
temperature, engine coolant temperature
or the time
since the engine was last started.
As the coolant warms
up,
the blower fan speed will gradually increase and air
will flow from the heater outlets, with some aifflow
to the windshield to prevent fogging under most
normal conditions.
If you leave your vehicle, the system will remember the
control setting the next time
you start your engine,
except for recirculation and defrost. Each ignition cycle
cancels recirculation, whereas,
DEFROST will change
to automatic operation when the ignition is
shut off and
then turned back on.
Manual Operation
You may manually adjust the air delivery mode or
fan speed.
/J AC: This setting directs airflow through the
A0
middle instrument panel outlets.
l# BI-LEVEL: This setting directs air into your
vehicle in two ways.
Cool air is directed to the upper
portion
of your body through the four instrument panel
outlets while warmed air is directed to the floor.
'fl HEATER/DEFROST: This setting directs air to
the floor outlets and toward the windshield.
I# HEATER: This'setting directs warmed air
through the
floor outlets. Some warm air is diverted to
the windshield to minimize fogging.
A0
w.
0
DEFROST Press this button to quickly remove
fog or frost from the windshield. This setting sends most
of the airflow to the windshield with only a small
amount
to the floor outlets.
3-4

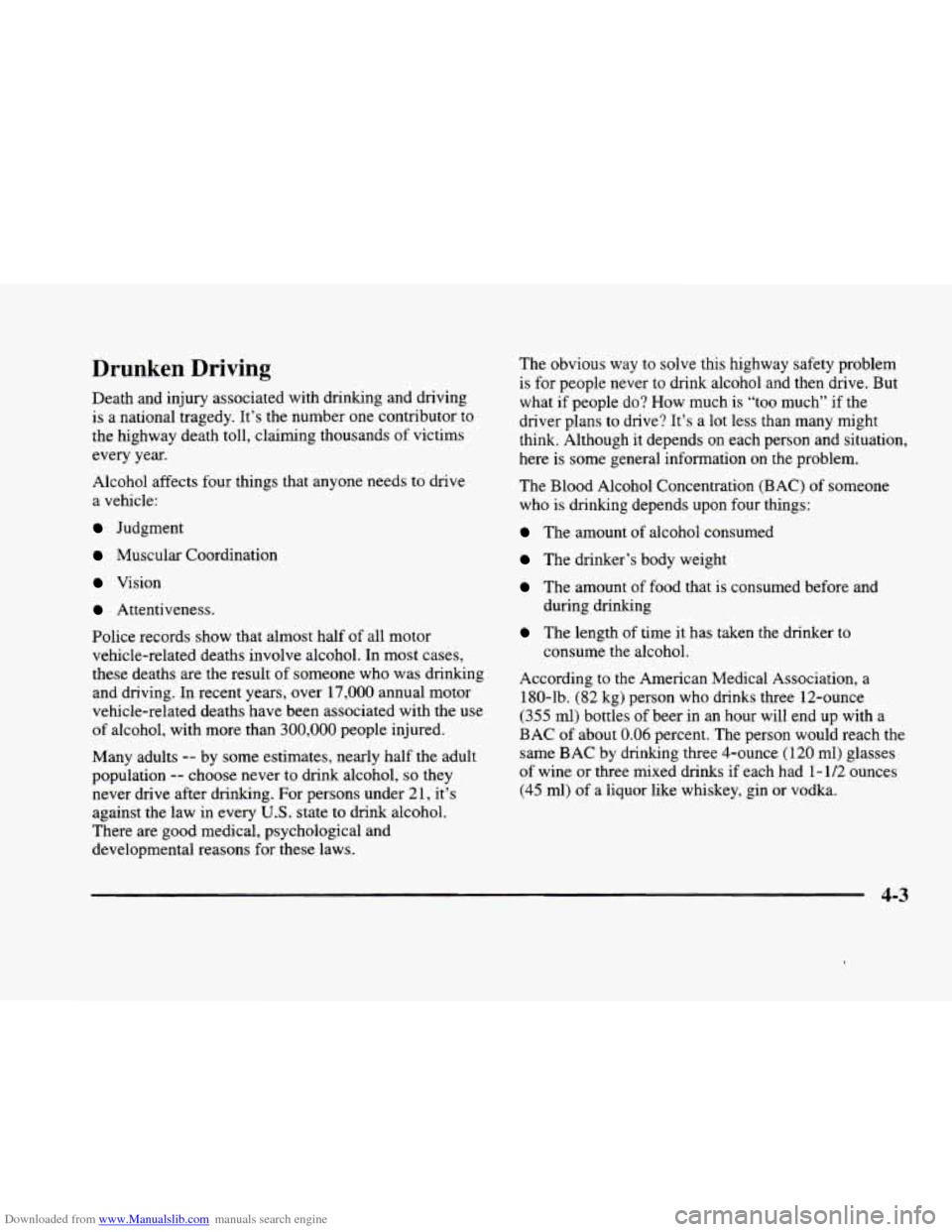

Downloaded from www.Manualslib.com manuals search engine Drunken Driving
Death and injury associated with drinking and driving
is a national tragedy. It’s the number one contributor to
the highway death toll, claiming thousands of victims
every
year.
Alcohol affects four things that anyone needs to drive
a vehicle:
Judgment
Muscular Coordination
Vision
Attentiveness.
Police records show that almost half
of all motor
vehicle-related deaths involve alcohol. In most cases,
these deaths
are the result of someone who was drinking
and driving.
In recent years, over 17,000 annual motor
vehicle-related deaths have been associated with the use
of alcohol, with more than
300,000 people injured.
Many adults
-- by some estimates, nearly half the adult
population
-- choose never to drink alcohol, so they
never drive after drinking. For persons under 21, it’s
against the law
in every U.S. state to drink alcohol.
There are good medical, psychological and
developmental reasons
for these laws. The
obvious
way to solve this highway safety problem
is for people never to drink alcohol and then drive. But
what if people do? How much is “too much”
if the
driver plans to drive? It’s a lot less than many might
think. Although it depends
on each person and situation,
here is some general information on the problem.
The Blood Alcohol Concentration (BAC) of someone
who
is drinking depends upon four things:
The amount of alcohol consumed
The drinker’s body weight
The amount of food that is consumed before and
during drinking
consume the alcohol.
The length of time it has taken the drinker to
According to the American Medical Association, a
180-lb. (82 kg) person who drinks three 12-ounce
(355 ml) bottles of beer in an hour will end up with a
BAC of about 0.06 percent. The person would reach the
same BAC by drinking three 4-ounce
(120 ml) glasses
of wine or three mixed drinks if each had 1
- 1/2 ounces
(45 ml) of a liquor like whiskey, gin or vodka.
4-3

Downloaded from www.Manualslib.com manuals search engine Windshield Wiper
Blade Replacement
It’s a good idea to clean or replace the wiper blade
assembly
on a regular basis or when worn. For proper
windshield wiper blade length and type, see “Normal
Maintenance Replacement
Parts” later in this section.
To replace the wiper blade assembly:
1. Turn the ignition key to ACCESSORY and turn the
wipers on. Position the wipers on the windshield
in
the “mid” wipe position. Then with the door open,
turn the key to
OFF.
2. Insert a screwdriver into the slot as shown and press
down to release the wiper blade assembly.
3. Align the wiper arm pin with the hole on the wiper
blade assembly and snap
it into place to install.
Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where
to obtain service, see
your Cadillac Warranty booklet for details.
6-38

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Number
Headlamps Composite Inner High Beam
....................... 9005
Outer Low Beam ....................... 9006
Front Turn Signal ..................... 2357 NA
Center High-Mounted Stoplamp (CHMSL) ... 1156
Rear Turn Signal and Taillamp ............. 2057
Capacities and Specifications
Displacement ......... 279 cubic inches (4 565 cc)
Engine Specifications
Type .......................... 4.6L DOHC V8
Eldorado ............................... Y
ETC .................................. 9
VIN Engine Code
Horsepower Eldorado
.............. 275 (bhp) @ 5600 rpm
ETC ................. 300 (bhp) @ 6000 rpm
205 (kWj @ 5600 rprn
224 (kWj @ 6000 rpm Torque
Eldorado
............. 300 (lb-ft) @ 4000 rpm
ETC ................ 295 (lb-ft) @ 4400 rpm
Firing Order
................... 1-2-7-3-4-5-6-8
407
(N-m)
@ 4000 rpm
400 (N-m) @ 4400 rpm
Thermostat Starts
To Open . . 177-184°F (81-85°C)
Capacities
Crankcase (Engine Oil
Transaxle (4T80-E) .......... 15 quarts (14.2 Lj
with Filter Change) ........... 7.5 quarts (7.1 L)
Engine Cooling System
........ 12.5 quarts ( 1 1.8 L)
R- 134a Refrigerant .............. 2 lbs. (0.91 kg)
Wheel Base
............... 108 inches (274.3 cm)
Length
................. 200.2 inches (508.6 cm)
Height
................... 53.6 inches ( 136.2 cm)
Fuel Tank
....... : ........... 20 gallons
(75.7 L)
Vehicle Dimensions
Width ................... 75.5 inches (191.8 cmj
Front Tread
............... 60.9 inches (154.7 cm)
6-64
