Page 80 of 380

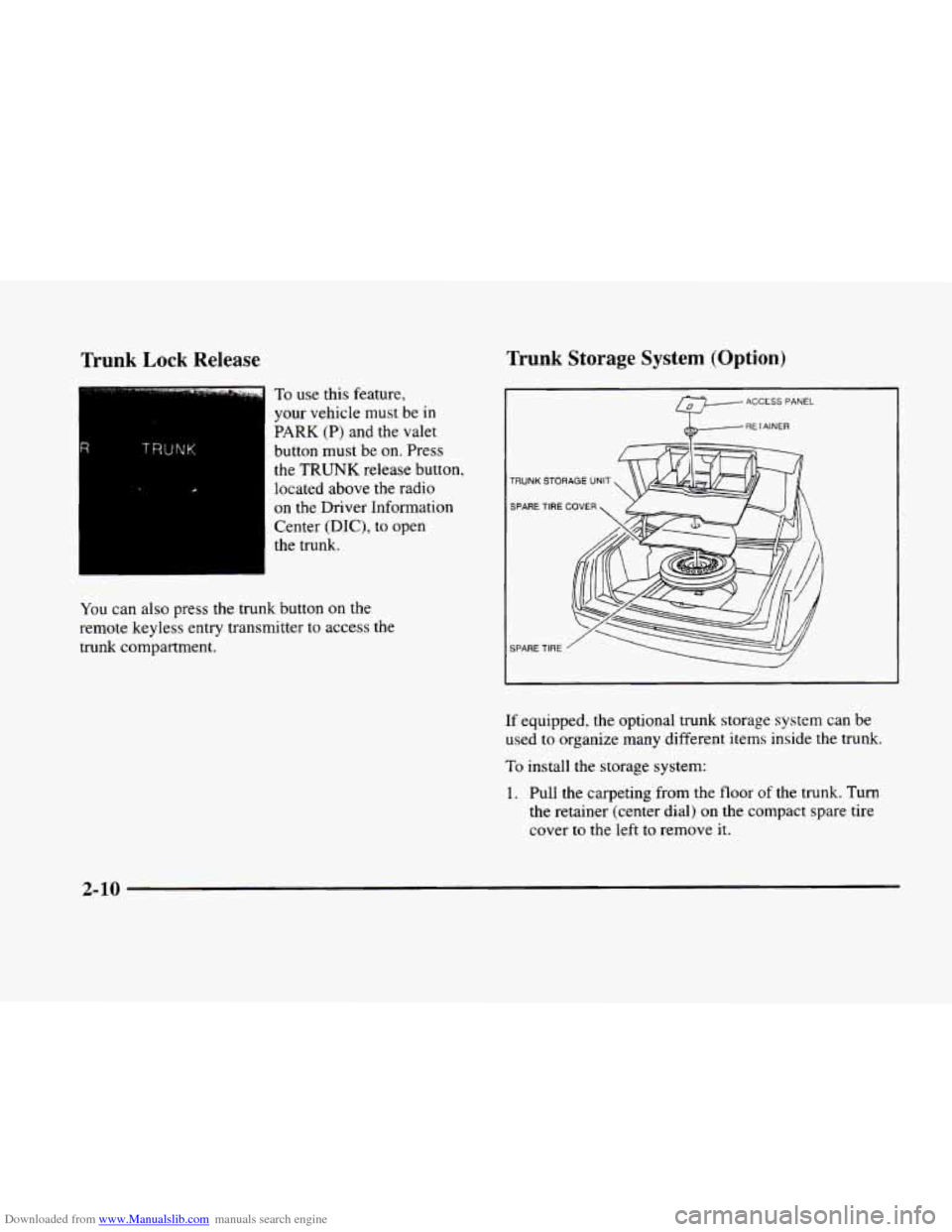

Downloaded from www.Manualslib.com manuals search engine Trunk Lock Release
R TRUNK I
To use this feature,
your vehicle must be in
PARK (P) and the valet
button must be on. Press
the TRUNK release button,
located above the radio
on the Driver Information
Center (DIC), to open
the trunk.
You can also press the trunk button on the
remote keyless entry transmitter to access the
trunk compartment.
Trunk Storage System (Option)
ACCESS PANEL
RETAINER
TRUNK STORAGE UNIT
SPARE TIRE
COVER
SPARE TIRE
I
If equipped, the optional trunk storage system can be
used to organize many different items inside the trunk.
To install the storage system:
1. Pull the carpeting from the floor of the trunk. Turn
the retainer (center dial) on the compact spare tire
cover
to the left to remove it.
2-10
Page 120 of 380
Downloaded from www.Manualslib.com manuals search engine Rear Storage Armrest (If Equipped)
Your vehicle may be equipped with a rear seat armrest
which includes an open storage compartment and
a dual
cupholder that unfolds for
use. To open, lift the front
edge. (This feature is available
on vehicles with leather
interiors
only.)
Convenience Net
The convenience net is located inside the back wall of
the trunk. Put small loads, like grocery bags, behind the
net. It can help keep them from falling over during
sharp turns or quick starts and stops.
The net is not for larger, heavier loads. Store them
in the
trunk as far forward as you can. When not using the net,
hook the net to the tabs securing it to the sill plate.
Ashtrays and Cigarette Lighter
Press on the cover, which is located below the climate
control system,
to reveal the front ashtray. To clean this
ashtray, pull
it out by gripping the sides.
To use the rear ashtray, lift the lid.
NOTICE: -
Don’t put papers or other flammable items
into your ashtrays. Hot cigarettes
or other
smoking materials could ignite them, causing
a damaging fire.
The cigarette lighter is located near the ashtray. Press
it all the way
in and release. It will pop back by itself
when it‘s ready to
light. You may also have a lighter
located at the rear seat air outlet.
Note that power to the cigarette lighter will shut
off
10 minutes after the ignition is turned off. This helps
to prevent battery drainage. For more information. see
“Inadvertent Battery Saver” earlier
in this section.
NOTICE:
~~
Don’t hold a cigarette lighter in with your hand
while it
is heating. If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make
it overheat, damaging the
lighter and the heating element.
2-50
Page 286 of 380
Downloaded from www.Manualslib.com manuals search engine The cap is behind a hinged door on the driver's side of
your vehicle.
The fuel door release
is
located on console and on
the Remote Keyless Entry
(RKE) transmitter.
An alternate fuel door
release is located inside
of
the trunk on the left hand
side. Pull it to release the
fuel door. While refueling, hang'the
cap
by the tether from the
hook
on the filler door.
To remove the cap, turn it slowly to the left
(counterclockwise). The cap has a spring in it;
if you let
go of the
cap too soon, it will spring back to the right.
6-6
Page 337 of 380
Downloaded from www.Manualslib.com manuals search engine Fuse
BODY 1
BODY 2
BODY 3
Usage
Road Sensing Suspension (RSS) Fuse
(ETC Only), Convenience Fuse, BATT
Fuse, Antenna Fuse, Passenger and
Driver Seat Belt Comfort Solenoids,
Trunk and Fuel Door Release
Solenoids and Relays, Door
Lock/Unlock Relays, Damper Relay
(ETC Only), Parking Lamp Relay,
Right and Left Park Fuse, Rear Fog
Lamp Relay (Export)
Defog Relay, Pull-Down Fuse, Right
and
Left Heated Seat Fuse, Electronic
Level Control (ELC) Fusemelay,
Antenna Fuse, Heated Mirror Fuse,
Heated Backlite Fuse, Electronic Level,
Control Breaker
Controlled Power Relay, Controlled
Power Back-up Relay, Cluster
Fuse,
Platform Zone Module (PZM) Fuse,
Radio Fuse,
DAB Relay, Trunk and
Fuel Door Release Relay, High-Beam
Relay, Comfort Fuse, AMP (Bose
Only) Fuse, Right and Left Bose Relay
Fuse Usage
INADVERT Inadvertent Power Relay, Interior
Lamps Fuse, Cigarette Lighter-
1 Fuse,
Courtesy Lamp Relay
LAMPS
IGN 1
Headlamps Fusemelay, High/Low
Beam Control Relay, Fog Lamp
Fuse,
DlU Fuse, Hazard Fuse, Mirror Fuse,
Inadvertent Power Relay, Right and
Left High-Beam Fuse, Right and Left
Low-Beam
Fuse, Stop Fuse, Fog Lamp
Relay, DRL Relay
Rear Ignition-
1 Relay, Wiper Fuse,
Relay Ignition-
1 Fuse, Supplemental
Inflatable Restraint (SIR) Fuse, Accessory Relay
WINDOWS Delayed Accessory Bus (DAB) Relay
SEATS
BATT
3
BATT 2
Horn Relay, Driver and Passenger
Lumbar IdOut Relays, Driver and
Passenger Up/Down Relays
Steering Column Ignition Switch
Steering Column Ignition Switch
6-57
Page 342 of 380
Downloaded from www.Manualslib.com manuals search engine Rear Compartment Fuse Block
The fuse block is located on the front wall of the trunk
(behind the rear seat) on the driver’s side. Loosen the
four trunk trim fasteners and pull the trim away from the
fuse block
to gain access.
Fuse
RSS
IGN 0-BODY
1 RLY ~~~ IGN 1 SIR ELC TU:: CO:;: n~nn~n~
0~~0~0~
0~~~00~
IGN 0-BODY COMFORT
HTO BACKLT HTD MIR HTD SEAT R HTD SEAT L PULL DOWN
ANTENNA , , RSS , lCONVENCl , BAn I I RSS , , RT PARK I I LT PPRK ,
RADIO’PHONE CLJSTER
Fuse
RLY IGNl*
SIR
ELC
TURN
CONSOLE
Usage
Cluster, Cruise in Stalk, PZM
SDM
Electronic Level Control (ELC)
Relay, ELC (AC) Compressor
Electronic Flasher,
Turn/Hazard Switch
Rear Zone Blower, Right and Left
Heated Seat Switches (Optional)
Usage
Road Sensing Suspension (RSS)
(ETC Only)
PRNDL, PZM, Cluster, Air
Control Module (ACM), Upper
Zone Motor, Lower Zone Motor
(Optional),
HVAC Solenoids,
Climate Control Panel Analog
Cluster (Console Shift Only), Rear
Defog Relay, ELC Relay
COMFORT CD
Player, Remote Keyless Entry
(RE), Controlled Power Relay,
Air Control Module (ACM),
PZM
AMP (Bose Right and
Left Hand Bose Relay,
Only) (Optional) Right and
Left Front Speakers (On
Door), Right and
Left Rear
Speakers, Bose Amplifier
PZM PZM
RADIOmHONE Radio Receiver, Radio Interface
Module
(RIM) (Bose Only),
Phone.
DAB Relay, Trunk Release
Relay. Fuel Door Release Relay,
HighLow-Beam Relay
6-62
Page 343 of 380
Downloaded from www.Manualslib.com manuals search engine Fuse
CLUSTER ACC
Usage
Steering Wheel Controls, Cluster
PZM, Electrochromic Mirror,
Rain Sensor (Optional
j.
Accessory Relay
HTD BACKLT Rear Window Defog
HTD MIR
HTD SEAT
R
HTD SEAT'L
PULL DOWN
ANTENNA
RSS
CONVENC Right
and Left Outside
Heated Mirror
Passenger Heated Seat
Relay (Optional)
Driver Heated Seat Relay
(Optional)
Trunk Pull-Down Motor
Power Mast Antenna
Road Sensing Suspension Module
(ETC Only)
Trunk Release Relay. Trunk
Release Solenoid,
Fuel Door
Release Relay. Fuel Filler Door
Release Solenoid, Door Lock
Relay, Left Front Door Motors,
PZM, Door Unlock Relay
Fuse
BATT
RSS
RT PARK
LT PARK
Usage
Driver and Passenger Seat Lumbar
Switch (Optional
jl. Driver and
Passenger Seat Belt Comfort
Solenoid, Memory Seat Module
CV-RTD (CV-RSS) (ETC Only)
Headlamp Switch, Right Front
Parking Lamp, Right Front and
Rear Sidemarker Lamps, Right
Park Position Lamp
(Export),
Right Turn/Stop/TTail Lamps, Rear
Fog Lamp Relay (Export), Right
and Left Rear Fog Lamps (Export)
Left Front and Rear Sidemarker
Lamps, Left Front Parking Lamp,
Left Park Position Lamp (Export),
Left Turn/Stopi'"ail Lamps, Right
and Left License Lamps,
Underhood
Lamp
* Do not alter OBD I1 related fuses or circuit breakers.
6-63
Page 368 of 380
Downloaded from www.Manualslib.com manuals search engine Hooks. Garment ................................ 2-51
Horn ......................................... 2-31
How to Reset the Oil Life Indicator ................. 6- 15
HVAC Steering Wheel Controls .................... 3-9
Hydraulic Brake Warning Lights ................... 2-62
Hydroplaning
.................................. 4-19
Ice Possible Message ........................... 2-75
Ignition Positions
............................... 2- 17
Illuminated Entry ............................... 2-43
Illuminated Visor Vanity Mirrors
................... 2-5 1
Inflation. Tire .................................. 6-39
Instrument Panel
............................... 2-56
Brightness Control
............................ 2-42
CleaningtheTop
............................. 6-49
Clusters
.................................... 2- 58
Interior Lamps
................................. 2-42
Jack. Tire
............................... 5.26. 5.27
Jump Starting
................................... 5-3
Keyless Entry System . Remote .................... 2-6
Keys .......................................... 2-2
Labels Certification
................................. 4-30
Service Parts Identification ..................... 6-55
Tire-Loading Information
...................... 4-30
Vehicle Identification Number
................... 6-55
Lamps ........................................ 2-39
Interior ..................................... 2-42
On Reminder ................................ 2-40
Panel
....................................... 2-42
Underhood
.................................. 6-11
Latches. Seatback
................................ 1-6
Leaving Your Vehicle
with the Engine Running ....... 2-27
Light Sensor. Twilight Sentinel
.................... 2-42
Lighter
....................................... 2-50
Leaving
Your Vehicle
............................. 2-6
Lights Air Bag Readiness
....................... 1.21. 2.61
Anti-Lock Brake System Warning
............ 2.64. . 4.7 _-
Brake System W&ing ......................... 2-62
Charging System Indicator ...................... 2-62
Engine Coolant Temperature Warning
............. 2-65
Oil Pressure ................................. 2-68
Parking Brake Indicator
........................ 2-63
Safety Belt Reminder'
...................... 1-7.2-61
Service Engine
Soon .......................... 2-66
Traction Control System Warning
............ 2-64. 4-9
Loading Your Vehicle
........................... 4-30
Locks
......................................... 2-4
Anti-Lockout Feature
.......................... 2-5
Automatic Door ............................... 2-5
Door
........................................ 2-4
PowerDoor
.................................. 2-5
Programmable Automatic Door
.............. 2-5 . 2-80
Trunk Release
................................ 2-10
LockAJnlock Confirmation
....................... 2-81
Low Refrigerant A/C Off Message ................. 2-75
Lumbar Controls
................................ 1-3
8-6
Page 370 of 380
Downloaded from www.Manualslib.com manuals search engine Power Accessory. Retained
........................... 2- 18
Antenna Mast Care
............................ 3-37
DoorLocks
................................... 2-5
Remote Control Mirror
........................ 2-47
Seat ......................................... 1-2
Steering
.................................... 4-10
Steering Fluid
................................ 6-26
Windows
................................... 2-31
Windows and Other Power Options
............... 6-56
Powerseat
..................................... 1-2
Lumbar Controls
.............................. 1-3
Memory Function
.............................. 1-3
Pregnancy, Use of Safety Belts .................... 1 - 19
Problems on the Road
............................ 5- 1
Program Pass Key Message
....................... 2-75
Programmable Automatic Door Locks
.......... 2-5. 2-80
Publications, Service and Owner
.............. 7-13, 7- 14
Pull-Down Feature, Automatic
.................... 2- 12
Radio Personalization
.......................... 3-32
Radio Reception
................................ 3-34
Radio Theft-Deterrent Feature
..................... 3-33
Radios
............................. 3.10.3.13. 3.18
Rain. Driving In
................................ 4- 18
Rainsense Wipers
............................... 2-34
RAP ......................................... 2-18
ReadingLamps
................................ 2-43
Rear Compartment Fuse Block
....................... 6-62
Outside Seat Position
.......................... 1-26
Seat Passengers
.............................. 1-26 Storage
Armrest
.............................. 2-50
Window Defogger
............................. 3-8
Towing
................................. 5.9. 5.13
Rear
Turn Signal Lamps/ Taillamp Bulb Replacement . . 6-37
Rearview Mirrors
.......................... 2.44. 2.45
Recirculation
................................... 3-5
Reclining Front Seatbacks
......................... 1-4
Refrigerants. Air Conditioning
.................... 6-65
Fuel Door Release
............................. 6-6
Keyless Entry
................................. 2-6
Trunk Release ................................ 2-10
Remote Recall Memory
.......................... 2-82
Remove Key Message
........................... 2-75
Bulbs
...................................... 6-64
Normal Maintenance Parts
...................... 6-65
Wheel
...................................... 6-45
Remote
Replacement
Replacing Safety Belts
............................ 1-48
Reporting Safety Defects
.................... 7- 12. 7-13
Restraints
Checking
................................... 1-48
Child
....................................... 1-33
Head
........................................ 1-5
Replacing Parts After a Crash
................... 1-48
Retained Accessory Power
........................ 2-18
Reverse. Automatic Transaxle
..................... 2-22
Right Front Passenger Position
.................... 1-20
RKE Personalization Features
..................... 2-81
Roadside Service ................................ 7-5
Rocking Your Vehicle ........................... 5-36
Rotation. Tires
................................. 6-40
8-8
Page 373 of 380
Downloaded from www.Manualslib.com manuals search engine Temperature ................................. 6-44
Traction
.................................... 6-44
Treadwe
ar ................................... 6-44
Uniform Quality Grading
....................... 6-43
Wear Indicators
.............................. 6-42
Wheel Replacement
........................... 6-45
When It's Time for New
....................... 6-42
Top Speed Fuel
Off Message ...................... 2-78
TopStrap
..................................... 1-38
TorqueLock
................................... 2-28
Torque, Wheel
Nut ......................... 5-32.6-64
TowingaTrailer
................................ 4-32
Towing Your Vehicle
............................. 5-8
Traction
Control System
................................ 4-9
Control System
Warning Light .............. 2-64, 4-9
EngagedMessage
............................. 2-78
OffMessage
................................. 2-78
Ready Message
.............................. 2-78
Suspended Message
........................... 2-78
Brakes
..................................... 4-36
Driving on Grades
............................ 4-37
Driving with
................................. 4-36
Hitches
..................................... 4-35
Maintenance When Towing ..................... 4-38
ParkingonHills
.............................. 4-38
Safety Chains
................................ 4-35
Tongueweight
............................... 4-34
Total Weight on Tires
.......................... 4-35
Trailer Towing
..................................... 4-32
Turnsignals
................................. 4-37
Weight
..................................... 3-33
Trans Fluid Reset Message ....................... 2-78
Transaxle Fluid Automatic
................................... 6-18
Transmission
Hot Idle Engine Message .............. 2-78
Transmitter. Universal
........................... 2-52
Transmitters. Remote Keyless Entry ................. 2-6
Transportation. Gold Key Courtesy
.................. 7-8
Trip Odometer ................................. 2-59
Trunk
Automatic
Pull-Down Feature ................... 2-12
LockRelease
................................ 2-10
Storage System
............................... 2-10
TrunkMounted CD Changer ...................... 3-28
TTYUsers
..................................... 7-4
Turn and Lane Change Signals
.................... 2-32
Turn Signal On Chime
........................... 2-32
Turn Signal On Message .................... 2-32.2-78
Turn SignalMultifunction Lever
................... 2-32
Turn Signals When Towing a Trailer ................ 4-37
Twilight Sentinel
............................... 2-41
OpenMessage
............................... 2-78
Underbody Maintenance
........................ 6-53
Universal Transmitter
............................ 2-52
8-11
