CADILLAC ELDORADO 2000 10.G Repair Manual

2-2
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. If they
turned the ignition to RUN and moved the shift
lever out of PARK (P), that would release the
parking brake. Don't leave the keys in a vehicle
with children.

2-3

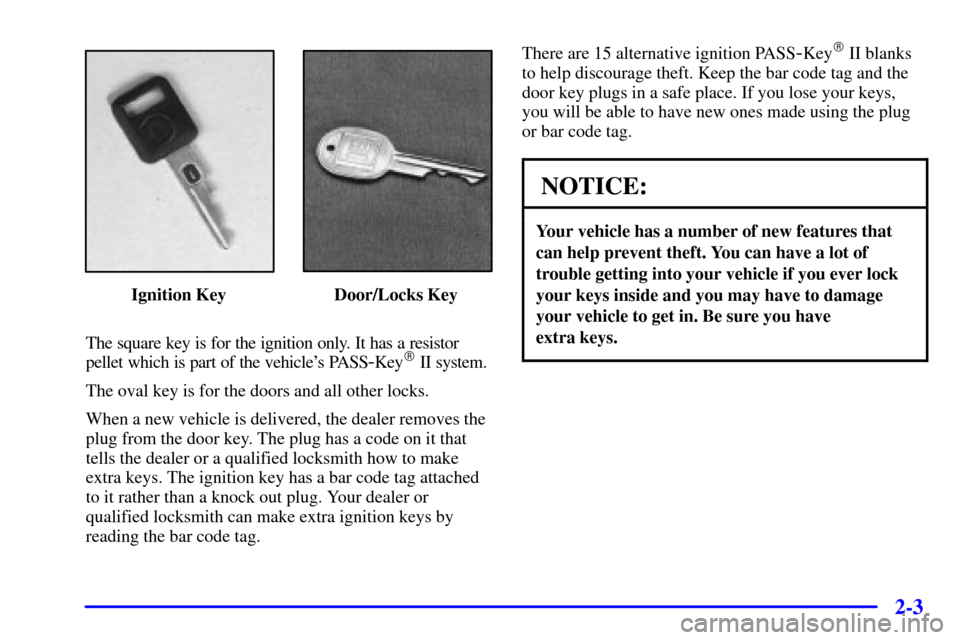

Ignition Key Door/Locks Key
The square key is for the ignition only. It has a resistor
pellet which is part of the vehicle's PASS
-Key
II system.
The oval key is for the doors and all other locks.
When a new vehicle is delivered, the dealer removes the
plug from the door key. The plug has a code on it that
tells the dealer or a qualified locksmith how to make
extra keys. The ignition key has a bar code tag attached
to it rather than a knock out plug. Your dealer or
qualified locksmith can make extra ignition keys by
reading the bar code tag.There are 15 alternative ignition PASS
-Key
II blanks
to help discourage theft. Keep the bar code tag and the
door key plugs in a safe place. If you lose your keys,
you will be able to have new ones made using the plug
or bar code tag.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever lock
your keys inside and you may have to damage
your vehicle to get in. Be sure you have
extra keys.

2-4
Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use either the door key or the Remote
Keyless Entry (RKE) transmitter.
If your vehicle is equipped with the theft
-deterrent system,
you must unlock the doors with the key or remote keyless
entry transmitter to avoid setting off the alarm.
Slide the manual lock lever down to lock the door from
the inside. To unlock the door, slide the lock lever up.
Central Door Unlocking System
Your vehicle will have this feature if it is equipped with
the theft
-deterrent system. When unlocking either door,
you can also unlock the other door by holding the key in
the turned position for a few seconds or by quickly
turning the door key twice in the lock cylinder.

2-5 Power Door Locks
Press the power door lock switch to lock or unlock both
doors at once.
Automatic Door Locks
Close your doors and turn on the ignition. Every time
you move the shift lever out of PARK (P), both doors
will lock. The doors will unlock every time you stop the
vehicle and move the shift lever back into PARK (P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual or powerdoor lock. When the door is closed again, it will not lock
automatically. Use the manual or power door lock to
lock the door again. If you need to lock the doors before
shifting out of PARK (P), use the manual or power
door lock.
Programmable Automatic Door Locks
(If Equipped)
With the ignition in RUN, the door locks can be
programmed through prompts displayed by the Driver
Information Center (DIC). These prompts allow the
driver to choose various lock settings. For programming
information, see ªMemory and Personalization
Featuresº in the Index.
Anti-Lockout Feature
Leaving your key in any ignition position with either
door open will disable the use of the power door lock
switches as well as the lock button on the remote keyless
entry transmitter. If you close the doors, you can lock
them using the remote keyless entry transmitter. It is
always recommended that you remove your ignition key
when locking your vehicle.
The anti
-lockout feature can be overridden by holding
the driver's power door lock switch for three seconds
or longer.

2-6 Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.
Remote Keyless Entry (RKE) System
With this feature, you can
lock and unlock the doors,
unlock the trunk, open the
fuel door and turn on your
vehicle's interior lamps
from about 10 feet (3 m)
away using the remote
keyless entry transmitter
supplied with your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
The average range of this system is about 10 feet (3 m).
At times you may notice a decrease in range. This is
normal for any remote keyless entry transmitter. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-7 Operation
When you press this button to unlock the driver's
door, the parking lamps on your vehicle will blink twice.
(You can program your vehicle so the parking lamps
will not flash. For more information, see ªLock/Unlock
Confirmationº in the Index.) Pressing it again within
five seconds will unlock the other doors. Pressing this
button will also disarm the theft
-deterrent system
(if equipped) and turn on the interior lamps at night.
When you press this button to lock the doors, the
parking lamps will blink once. (You can program your
vehicle so the parking lamps will not flash. For more
information, see ªLock/Unlock Confirmationº in the
Index.) This also arms the theft
-deterrent system
(if equipped).
Press this symbol to open the trunk.
(The VALET lockout button must be off.)
Press this button to open the fuel door.
(The VALET lockout button must be off.)
The remote keyless entry transmitter can also be used
to recall the memory seats for up to two drivers.
For more information, see ªMemory Seat and Mirrorsº
in the Index.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Once your dealer has
coded the new transmitter, the lost transmitter will not
unlock your vehicle. Each vehicle can have only up to
four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.

2-8

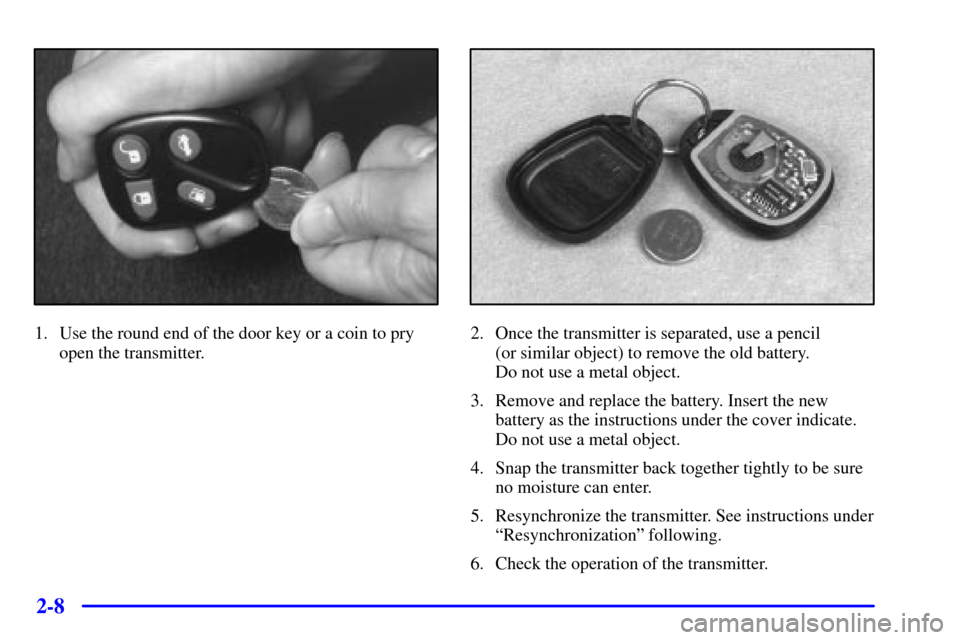

1. Use the round end of the door key or a coin to pry
open the transmitter.2. Once the transmitter is separated, use a pencil
(or similar object) to remove the old battery.
Do not use a metal object.
3. Remove and replace the battery. Insert the new
battery as the instructions under the cover indicate.
Do not use a metal object.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Resynchronize the transmitter. See instructions under
ªResynchronizationº following.
6. Check the operation of the transmitter.

2-9 Resynchronization
Pressing the remote keyless entry transmitter buttons
numerous times (approximately 250 times) out of the
vehicle's operating range may cause the transmitter
not to work. Replacing the battery and pressing the
transmitter buttons out of range will also cause the
transmitter not to work. If only the fuel door button
works, the transmitter needs to be resynchronized to the
receiver. Do this by pressing and holding both the
LOCK and UNLOCK buttons on the transmitter for
about eight seconds. You must be within range of
the vehicle.
Once the transmitter has been resynchronized, the horn
will chirp and the exterior lamps will flash once. The
system should now operate properly. See your dealer
for service if your transmitter doesn't work properly.
Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on AUTO and the temperature between
65F (18C) and 85F (29C). That will
force outside air into your vehicle. See
ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

2-10 Trunk Lock Release
To use this feature,
your vehicle must
be in PARK (P) or
NEUTRAL (N) and the
VALET lockout button
must be in the OFF
position. Press the TRUNK
button, located above the
radio on the Driver
Information Center (DIC),
to open the trunk.
You can also press the trunk button on the
remote keyless entry transmitter to access the
trunk compartment.
Trunk Lid Automatic Pull-Down Feature
CAUTION:
Your car may have an automatic pull-down
feature that helps close the trunk electronically.
Your fingers can be trapped under the trunk lid
as it goes down. Your fingers could be injured,
and you would need someone to help you free
them. Keep your fingers away from the trunk lid
as you close it and as it is going down.
With the automatic pull-down feature, you never have to
slam the trunk lid in order to close the trunk. Instead,
gently lower the trunk lid until it is nearly shut
-- the
automatic pull
-down unit will take over and lock the
trunk firmly.

2-11
A. Trunk Lid
B. Lever
If for some reason the trunk lid (A) will not close, it may
be because the trunk pull
-down unit was accidentally
bumped. Even though the trunk lid remains open, the
motor from the pull
-down unit has already cycled down.
If this happens, press the lever (B) on the trunk lid. The
pull
-down unit motor will reset itself, allowing the trunk
lid to close when lowered.
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition and transaxle. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
