fuse CADILLAC ELDORADO 2001 10.G Owners Manual

Fuel
Checking Fluids and Lubricants
GM Oil Life System™
Engine Air Cleaner/Filter
Brakes
Bulb ReplacementWindshield Wiper Blade Replacement
Tires and Wheels
Appearance Care
Electrical System/Fuses and Circuit Breakers
Capacities and Specifications
Normal Maintenance Replacement Parts
Table of Contents (cont'd)
Maintenance Schedule Service and Appearance Care
Section
6
Scheduled Maintenance
Owner Checks and Services
Periodic Maintenance InspectionsRecommended Fluids and Lubricants
Maintenance Records
See separate Maintenance Schedule Booklet
iv

ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important for
you and your
passengers
whenever your
vehicle is driven:
CHILD
RESTRAINT
TOP STRAP
ANCHOR
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle. Also see ªWarning Lights and Gagesº in the Index.

2-16
Remember, the theft-deterrent system won't activate if
you lock a door with a key or use the manual door lock.
It activates only if you use a power door lock switch or
the remote keyless entry transmitter.
To avoid activating the alarm by accident, do
the following:

Always unlock a door with a key or use the remote
keyless entry transmitter. (Pressing the unlock button
on the remote keyless entry transmitter disables the
theft
-deterrent system.) Unlocking a door any other
way will activate the alarm. Cycling the ignition
without disarming the theft
-deterrent system will
also activate the alarm.

The vehicle should be locked with the door key after
the doors are closed if you don't want to activate the
theft
-deterrent system.
If you activate the alarm by accident, unlock either door
with your key. You can also turn off the alarm by using
the unlock button of the remote keyless entry
transmitter. The alarm won't stop if you try to unlock a
door any other way.
Testing the Alarm
1. From inside the vehicle, roll down the window, then
get out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open,
lock the vehicle using the power door lock or the
remote keyless entry transmitter and close the door.
Wait 30 seconds until the SECURITY light goes off.
3. Reach in and unlock the door using the manual lock
and open the door. The horn will sound and the
headlamps will flash.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown.
To replace the fuse, see ªFuses and Circuit Breakersº in
the Index. If the fuse does not need to be replaced, you
may need to have your vehicle serviced.
To reduce the possibility of theft, always activate the
theft
-deterrent system when leaving your vehicle.

2-18
If the engine does not start and the STARTING
DISABLED REMOVE KEY message is displayed in
the Driver Information Center, your key should be
checked for damage. Starting may be attempted with
an undamaged key immediately. See your dealer or a
locksmith for key service.
If the STARTING DISABLE REMOVE KEY and
WAIT 3 MINUTES messages are displayed, the key
should be cleaned. After three minutes, try again.
A START CAR message will appear at this time. If the
engine still does not start, wait three minutes and try a
duplicate key. At this time, fuses should be checked
(see ªFuses and Circuit Breakersº in the Index). If the
engine does not start with the duplicate key, your vehicle
needs service. See your dealer for service.
If the THEFT SYSTEM PROBLEM, CAR MAY NOT
START message is displayed during vehicle operation,
a fault has been detected in the system. This means the
PASS
-Key II system is disabled and is not protecting
the vehicle. The vehicle usually restarts. See your dealer
for service.
If an ignition key is lost or damaged, see your dealer or
a locksmith to have a new key made.

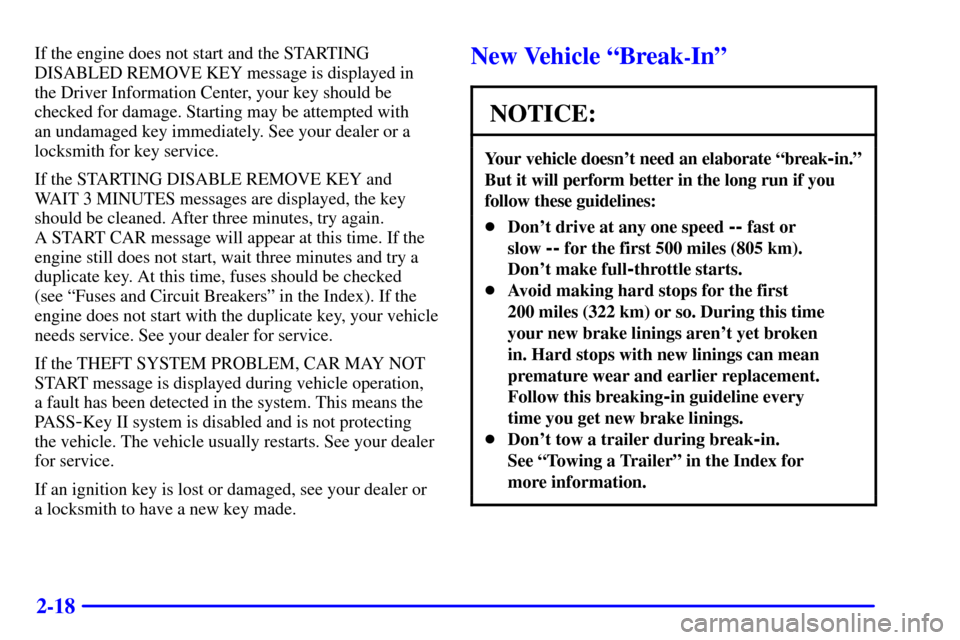

New Vehicle ªBreak-Inº
NOTICE:
Your vehicle doesn't need an elaborate ªbreak-in.º
But it will perform better in the long run if you
follow these guidelines:

Don't drive at any one speed -- fast or
slow
-- for the first 500 miles (805 km).
Don't make full
-throttle starts.

Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren't yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking
-in guideline every
time you get new brake linings.

Don't tow a trailer during break
-in.
See ªTowing a Trailerº in the Index for
more information.

2-34 Turn and Lane Change Signals
To signal a turn, move the lever all the way up or
down. The lever returns automatically when the turn
is complete.
An arrow located on the
instrument panel cluster will
flash in the direction of the
turn or lane change.
Raise or lower the lever until the arrow starts to flash to
signal a lane change. Hold it there until the lane change
is complete. The lever returns when it's released.
If the turn signal is left on, a warning chime will sound
and the Driver Information Center (DIC) will display
TURN SIGNAL ON (after driving about 1 mile
(1.6 km/h)) to remind you to turn it off.Arrows that flash rapidly when signaling for a turn or
lane change may be caused by a burned
-out signal bulb.
Other drivers won't see the turn signal.
Replace burned
-out bulbs to help avoid possible
accidents. Check the fuse (see ªFuses and Circuit
Breakersº in the Index) and for burned
-out bulbs if the
arrow fails to work when signaling a turn.
Headlamp High/Low Beam Changer
This light located on the
instrument panel panel will
be on when the high beam
headlamps are in use.
Pull the turn signal lever all the way toward you and
then release it to change the headlamps from low beam
to high or from high beam to low.

6-3

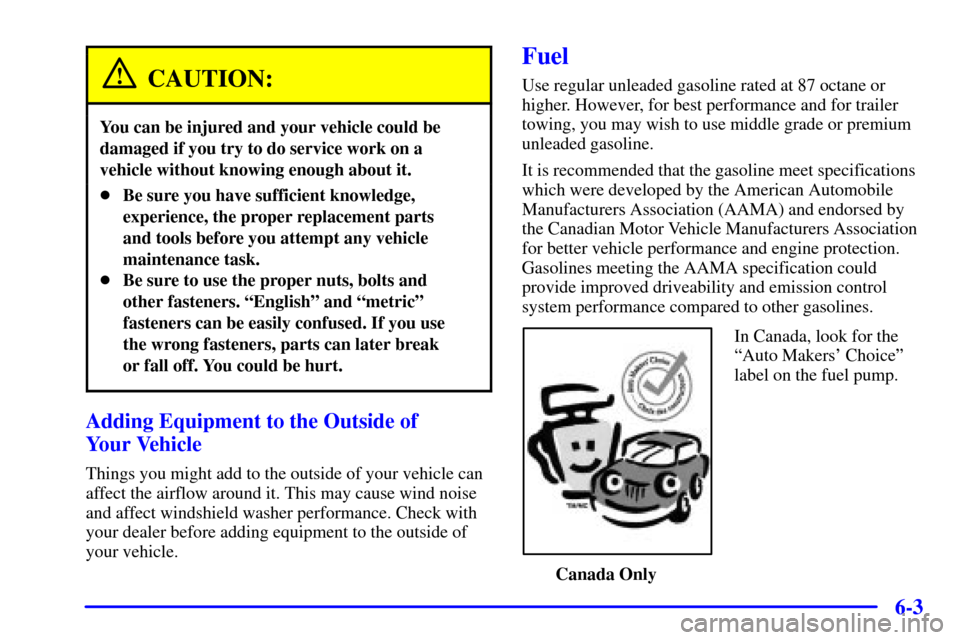

CAUTION:
You can be injured and your vehicle could be
damaged if you try to do service work on a
vehicle without knowing enough about it.

Be sure you have sufficient knowledge,
experience, the proper replacement parts
and tools before you attempt any vehicle
maintenance task.

Be sure to use the proper nuts, bolts and
other fasteners. ªEnglishº and ªmetricº
fasteners can be easily confused. If you use
the wrong fasteners, parts can later break
or fall off. You could be hurt.
Adding Equipment to the Outside of
Your Vehicle
Things you might add to the outside of your vehicle can
affect the airflow around it. This may cause wind noise
and affect windshield washer performance. Check with
your dealer before adding equipment to the outside of
your vehicle.
Fuel
Use regular unleaded gasoline rated at 87 octane or
higher. However, for best performance and for trailer
towing, you may wish to use middle grade or premium
unleaded gasoline.
It is recommended that the gasoline meet specifications
which were developed by the American Automobile
Manufacturers Association (AAMA) and endorsed by
the Canadian Motor Vehicle Manufacturers Association
for better vehicle performance and engine protection.
Gasolines meeting the AAMA specification could
provide improved driveability and emission control
system performance compared to other gasolines.
In Canada, look for the
ªAuto Makers' Choiceº
label on the fuel pump.
Canada Only

6-58

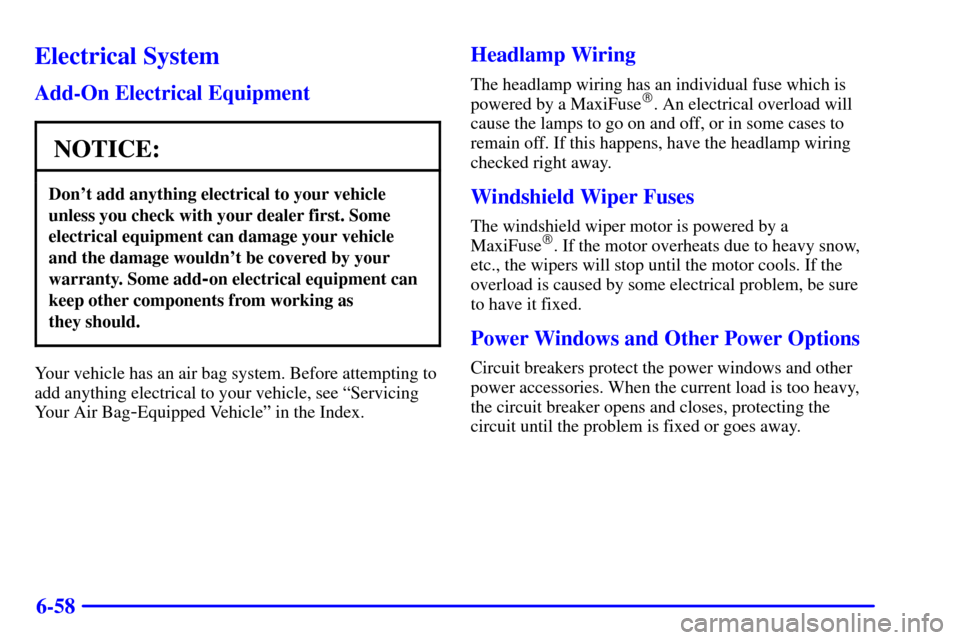

Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Headlamp Wiring
The headlamp wiring has an individual fuse which is
powered by a MaxiFuse
. An electrical overload will
cause the lamps to go on and off, or in some cases to
remain off. If this happens, have the headlamp wiring
checked right away.
Windshield Wiper Fuses
The windshield wiper motor is powered by a
MaxiFuse
. If the motor overheats due to heavy snow,
etc., the wipers will stop until the motor cools. If the
overload is caused by some electrical problem, be sure
to have it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.

6-59 MaxiFuse

/Relay Center
The MaxiFuses and relays are located next to the engine
compartment fuse block on the driver's side of the
engine. To access the compartment fuse block, remove
the shroud cover. If a MaxiFuse should blow, have your
vehicle serviced by your dealer immediately.
MaxiFuse
(8
-Way) Usage
BODY 1 Road Sensing Suspension (RSS)
Fuse (ETC Only), Convenience
Fuse, BATT Fuse, Antenna Fuse,
Passenger and Driver Seat Belt
Comfort Solenoids, Trunk and
Fuel Door Release Solenoids and
Relays, Door Lock/Unlock Relays,
Damper Relay (ETC Only),
Parking Lamp Relay, Right and
Left Park Fuse
BODY 2 Defog Relay, Pull
-Down Fuse,
Right and Left Heated Seat Fuses,
Electronic Level Control (ELC)
Relay, Heated Mirror Fuse,
Heated Backlite Fuse,
ELC Circuit Breaker

6-60
MaxiFuse
(8
-Way) Usage
BODY 3 Controlled Power Relay,
Controlled Power Back
-Up Relay,
Cluster Fuse, Passenger Zone
Module (PZM) Fuse, Radio Fuse,
RAP Relay, Trunk and Fuel Door
Release Relay, High
-Beam Relay,
Comfort Fuse, AMP Fuse
(Optional), Right and Left Bose
Relay (Optional)
INADVERT Inadvertent Power Relay, Interior
Lamps Fuse, Cigarette Lighter
-1
Fuse, Courtesy Lamp Relay
LAMPS Headlamps Fuse/Relay, High/Low
Beam Control Relay, Fog Lamp
Fuse, DRL Fuse, Hazard Fuse,
Mirror Fuse, Inadvertent Power
Relay, Right and Left High
-Beam
Fuse, Right and Left Low
-Beam
Fuse, Stoplamp Fuse, Fog Lamp
Relay, DRL RelayMaxiFuse
(8
-Way) Usage
IGN 1 Rear Ignition
-1 Relay, Wiper
Fuse, Relay Ignition
-1 Fuse,
Supplemental Inflatable Restraint
(SIR) Fuse, Accessory Relay
WINDOWS Retained Accessory
Power (RAP) Relay
SEATS Horn Relay, Driver and Passenger
Lumbar In/Out Relays,
Driver and Passenger Lumbar
Up/Down Relays

6-61
MaxiFuse
(6
-Way) Usage
BATT 3 Steering Column Ignition Switch
BATT 2 Steering Column Ignition Switch
IGN 1 Front Ignition
-1 Relay, Oxygen
Sensor 1 and 2 Fuse, Fuel Fuse,
Cruise Fuse, Fuel Pump Relay
BATT 1 Starter Relay and Solenoid,
Park/Reverse Fuse, Park Relay,
Powertrain Control Module
(PCM) Fuse, AC Compressor Fuse
and Relay, Fan Relays,
Reverse Relay
BRAKES Anti
-Lock Brake System (ABS)
Brake Modulator
COOL FNS Cooling Fan Relays 1 and 3Power
Distribution
BlockUsage
DRL Daytime Running Lamps (DRL)
HI/LO BEAM High and Low
-Beam Headlamps
HORN Horn
FOG LPS Fog Lamps
ACCESSORY Accessories
HEAD LPS Headlamps
Relays
INADVERT POWER RELAY
IGN 1 RELAY
STARTER RELAY
