6-31
What to Add
When you do need brake fluid, use only DOT
-3 brake
fluid. Use new brake fluid from a sealed container only.
See ªRecommended Fluids and Lubricantsº in the Index.
Always clean the brake fluid reservoir cap and the area
around the cap before removing it. This will help keep
dirt from entering the reservoir.
CAUTION:
With the wrong kind of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause a
crash. Always use the proper brake fluid.
NOTICE:

Using the wrong fluid can badly damage
brake system parts. For example, just a
few drops of mineral
-based oil, such as
engine oil, in your brake system can
damage brake system parts so badly that
they'll have to be replaced. Don't let
someone put in the wrong kind of fluid.

If you spill brake fluid on your vehicle's
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake
fluid on your vehicle. If you do, wash it off
immediately. See ªAppearance Careº in
the Index.

6-33 Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex.
Its many parts have to be of top quality and work
well together if the vehicle is to have really good
braking. Your vehicle was designed and tested with
top
-quality GM brake parts. When you replace parts of
your braking system
-- for example, when your brake
linings wear down and you need new ones put in
-- be
sure you get new approved GM replacement parts.
If you don't, your brakes may no longer work properly. For example, if someone puts in brake linings that
are wrong for your vehicle, the balance between your
front and rear brakes can change
-- for the worse.
The braking performance you've come to expect can
change in many other ways if someone puts in the
wrong replacement brake parts.
Battery
Your new vehicle comes with a maintenance free
ACDelco
battery. When it's time for a new battery,
get one that has the replacement number shown on the
original battery's label. We recommend an ACDelco
battery. See ªEngine Compartment Overviewº in the
Index for battery location.
WARNING: Battery posts, terminals and related
accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and
reproductive harm. Wash hands after handling.

6-58
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears
on a plate in the front corner of the instrument panel,
on the driver's side. You can see it if you look through
the windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code.
This code will help you identify your engine,
specifications and replacement parts.
Service Parts Identification Label
You'll find this label on the rear wall of the trunk on
the passenger's side. It's very helpful if you ever need
to order parts. On this label is:

your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.

6-60 MaxiFuse

/Relay Center
The MaxiFuses and relays are located next to the engine
compartment fuse block on the driver's side of the
vehicle. To access the compartment fuse block, remove
the shroud cover. If a MaxiFuse should blow, have your
vehicle serviced by your dealer immediately.
MaxiFuse
(8
-Way) Usage
BODY 1 Road Sensing Suspension (RSS)
Fuse (ETC Only), Convenience
Fuse, BATT Fuse, Antenna Fuse,
Passenger and Driver Seat Belt
Comfort Solenoids, Trunk and Fuel
Door Release Solenoids and Relays,
Door Lock/Unlock Relays, Damper
Relay (ETC Only), Parking Lamp
Relay, Right and Left Park Fuse
BODY 2 Defog Relay, Pull
-Down Fuse,
Right and Left Heated Seat Fuses,
Electronic Level Control (ELC)
Relay, Heated Mirror Fuse, Heated
Backlite Fuse, ELC Circuit Breaker
BODY 3 Controlled Power Relay, Controlled
Power Back
-Up Relay, Cluster
Fuse, Passenger Zone Module
(PZM) Fuse, Radio Fuse, RAP
Relay, Trunk and Fuel Door Release
Relay, High
-Beam Relay, Comfort
Fuse, AMP Fuse (Optional), Right
and Left Bose Relay (Optional)

6-63

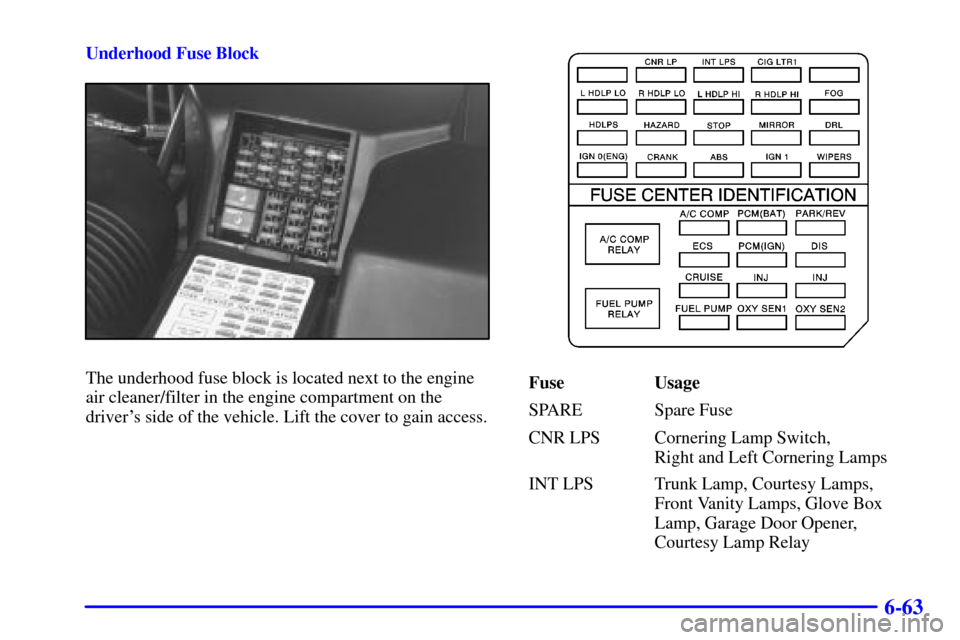

Underhood Fuse Block
The underhood fuse block is located next to the engine
air cleaner/filter in the engine compartment on the
driver's side of the vehicle. Lift the cover to gain access.Fuse Usage
SPARE Spare Fuse
CNR LPS Cornering Lamp Switch,
Right and Left Cornering Lamps
INT LPS Trunk Lamp, Courtesy Lamps,
Front Vanity Lamps, Glove Box
Lamp, Garage Door Opener,
Courtesy Lamp Relay

6-68
Replacement Bulbs
For any bulb not listed here contact your dealer.
Application Number
Headlamps Composite
Inner High Beam 9005. . . . . . . . . . . . . . . . . . . . . . .
Outer Low Beam 9006. . . . . . . . . . . . . . . . . . . . . . .
Front Turn Signal 3157 NA. . . . . . . . . . . . . . . . . . . . .
Center High
-Mounted Stoplamp (CHMSL) 1156. . . .
Rear Turn Signal and Taillamp 2057. . . . . . . . . . . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the
Maintenance Schedule booklet for more information.
Engine Specifications
Displacement 279 cubic inches (4 565 cc). . . . . . . . .
Type 4.6 L DOHC V8. . . . . . . . . . . . . . . . . . . . . . . . .
VIN Engine Code
Eldorado Y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ETC 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Torque
Eldorado 300 (lb
-ft) @ 4000 rpm . . . . . . . . . . . . . .
407 (N´m) @ 4000 rpm
ETC 295 (lb
-ft) @ 4400 rpm . . . . . . . . . . . . . . . . . .
400 (N´m) @ 4400 rpm
Firing Order 1
-2-7-3-4-5-6-8 . . . . . . . . . . . . . . . . . . .
Wheel Nut Torque
100 lb-ft (140 N´m)
Capacities
Transaxle (4T80-E) 15.0 quarts (14.2 L). . . . . . . . . .
Crankcase (Engine Oil with
Filter Change) 7.5 quarts (7.1 L). . . . . . . . . . . . . .
Engine Cooling System 12.5 quarts (11.8 L). . . . . . . .
Fuel Tank 19.0 U.S. gallons (71.9 L). . . . . . . . . . . . .
All capacities are approximate. When adding, be sure
to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

6-69
Air Conditioning
Refrigerant Capacity
If you do your own service work, you'll need the proper
service manual. See ªDoing Your Own Service Workº in
the Index for additional information. It is recommended
that service work on your air conditioning system be
performed by a qualified technician.
Air Conditioning
Refrigerant R
-134a 2.0 lbs. (1.0 kg). . . . . . . . . . . . .
Use Refrigerant Oil, R134a Systems
Normal Maintenance
Replacement Parts
Air Filter Element A1096C*. . . . . . . . . . . . . . . . . . . .
Engine Oil Filter PF
-58* . . . . . . . . . . . . . . . . . . . . . .
Spark Plugs PT16EPR
-C13* . . . . . . . . . . . . . . . . . . .
(GM part 12561466)
Gap: 0.050 inches (1.3 mm)
Windshield Wiper Blade
(Pin Type) 22 inches (56.5 cm). . . . . . . . . . . . . . . . .
AC Delco

part number.

Scheduled Maintenance
7-6Engine Oil Scheduled Maintenance
Change engine oil and filter as indicated by the
GM Oil Life System
(or every 12 months,
whichever occurs first). Reset the system.
Your vehicle has a computer system that lets you know
when to change the engine oil and filter. This is based
on engine revolutions and engine temperature, and not
on mileage. Based on driving conditions, the mileage
at which an oil change will be indicated can vary
considerably. For the oil life system to work properly,
you must reset the system every time the oil is changed.
When the system has calculated that oil life has
been diminished, it will indicate that an oil change is
necessary. A CHANGE ENGINE OIL message in
the Driver Information Center (DIC) will come on.Change your oil as soon as possible within the next
two times you stop for fuel. It is possible that, if you
are driving under the best conditions, the oil life system
may not indicate that an oil change is necessary for
over a year. However, your engine oil and filter must be
changed at least once a year and at this time the system
must be reset. It is also important to check your oil
regularly and keep it at the proper level.
If the system is ever reset accidentally, you must change
your oil at 3,000 miles (5 000 km) since your last oil
change. Remember to reset the oil life system whenever
the oil is changed. See ªOil Life Systemº in the Index
for information on resetting the system.
An Emission Control Service.

Scheduled Maintenance
7-9
7,500 Miles (12 500 km)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
15,000 Miles (25 000 km)
Inspect engine air cleaner filter if you are driving in dusty conditions.
Replace filter if necessary.
An Emission Control Service. (See footnote
.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
22,500 Miles (37 500 km)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

Scheduled Maintenance
7-10
30,000 Miles (50 000 km)
Inspect throttle body bore and valve plates for deposits, open the throttle valve
and inspect all surfaces. Clean as required.
An Emission Control Service. (See footnote
.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Replace engine air cleaner filter.
An Emission Control Service.
37,500 Miles (62 500 km)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
45,000 Miles (75 000 km)
Inspect engine air cleaner filter if you are driving in dusty conditions.
Replace filter if necessary.
An Emission Control Service. (See footnote
.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
