headlamp CADILLAC ELR 2016 Owners Manual

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
4 Introduction
3:Headlamp High/Low-Beam
Changer
(: Heated Steering Wheel
_:High Voltage
I: LATCH System Child
Restraints
*: Malfunction Indicator Lamp
::Oil Pressure
O:Power
/:Remote Vehicle Start
>: Safety Belt Reminders
g:StabiliTrak®Disable
7:Tire Pressure Monitor
i:Traction Control System (TCS)
Disable
a: Under Pressure
9:Vehicle Ready
M: Windshield Washer Fluid
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
In Brief 7
1.Air Vents 0169.
2. Exterior Lamp Controls 0156.
Turn Signal Lever. See Turn
and Lane-Change
Signals 0159.
3. Regen on Demand Paddles. See Regenerative
Braking 0197.
4. Instrument Cluster 0104.
Driver Information Center (DIC)
Display. See Driver Information
Center (DIC) 0132.
5. Power Button 0182.
6. Windshield Wiper/Washer 099.
7. Hazard Warning
Flashers 0159.
Lane Departure Warning
(LDW) 0220.
8. Charging Status Indicator (CSI). See Charging Status
Feedback 0223.
9. Light Sensor. See Automatic
Headlamp System 0158.
10. Infotainment 0163. 11. Glove Box Button. See
Glove
Box 095.
Parking Assist Button. See
Driver Assistance
Systems 0211.
12. Heated Front Seats 056.
13. Dual Automatic Climate Control
System 0164.
14. Instrument Panel Storage 095
(Out of View).
Wireless Charging 0103 (Out
of View) (Inside the Instrument
Panel Storage, If Equipped).
15. Shift Lever. See Electric Drive
Unit 0193.
16. Traction Control/Electronic
Stability Control 0198.
MODE Button. See Driver
Mode Control 0200 (If
Equipped).
17. Steering Wheel Controls 098.
Driver Information Center (DIC)
Controls. See Driver
Information Center (DIC) 0132.
18. Horn 099. 19.
Steering Wheel
Adjustment 098.
20. Cruise Control 0202.
Adaptive Cruise Control 0204
(If Equipped).
Forward Collision Alert (FCA)
System 0214 (If Equipped).
Heated Steering Wheel 098.
21. Hood Release. See Hood 0240.
22. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0113.
23. Instrument Panel Illumination
Control 0160.
24. Electric Parking Brake 0195.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
14 In Brief
Canada
The passenger sensing system will
turn off the front outboard
passenger frontal airbag and knee
airbag under certain conditions. No
other airbag is affected by the
passenger sensing system. See
Passenger Sensing System 070.
The passenger airbag status
indicator lights on the overhead
console when the vehicle is started.
See Passenger Airbag Status
Indicator 0112.
Mirror Adjustment
Exterior
Mirrors can be folded inward toward
the vehicle to prevent damage when
going through an automatic car
wash. Push the mirror outward to
return it to the original position.
See Folding Mirrors 046.
To adjust a mirror:
1. Move the selector switch to L (Left) or R (Right) to choose
the driver or passenger mirror.
2. Press the arrows on the control pad to move each mirror in the
desired direction.
3. Return the selector switch to the center position.
See Power Mirrors 045.
The rear window defogger also
heats the outside mirrors. See
Heated Mirrors 046.
Interior
Adjust the rearview mirror for a clear
view of the area behind the vehicle.
The mirror will automatically reduce
the glare of headlamps from behind.
The dimming feature comes on
when the vehicle is started. See
Automatic Dimming Rearview
Mirror 046.
Steering Wheel
Adjustment
Press the control to move the tilt
and telescoping steering wheel up
and down or forward and rearward.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
16 In Brief
Turn the control to the following
positions:
O:Turns off the exterior lamps.
The knob returns to the AUTO
position after it is released. Turn to
Oagain to reactivate the AUTO
mode. In Canada, the headlamps
will automatically reactivate when
the electric drive unit is shifted out
of P (Park).
AUTO : Automatically turns the
exterior lamps on and off,
depending on outside lighting.
;: Turns on the parking lamps
including all lamps, except the
headlamps.
5: Turns on the headlamps
together with the parking lamps and
instrument panel lights.
See Exterior Lamp Controls 0156
and Daytime Running Lamps
(DRL) 0158.
Windshield Wiper/Washer
With the ignition in ACC/
ACCESSORY or ON/RUN, move
the lever to select the wiper speed.
HI : Use for fast wipes.
LO : Use for slow wipes.
INT : Use this setting for intermittent
wipes or Rainsense™, if equipped.
For intermittent wipes, move the
windshield wiper lever to INT. Turn
the
xINT band up for more
frequent wipes or down for less
frequent wipes. If equipped with Rainsense, move
the windshield wiper lever to INT
and turn the
xINT band to adjust
the sensitivity to moisture.
. Turn the band up for more
sensitivity to moisture.
. Turn the band down for less
sensitivity to moisture.
. Move the windshield wiper lever
out of the INT position to
deactivate Rainsense.
To turn the Rainsense feature on or
off, see “Rainsense Wipers” under
Vehicle Personalization 0145.
OFF : Use to turn the wipers off.
1X : For a single wipe, briefly move
the lever down. For several wipes,
hold the lever down.
n L: Pull the lever toward you to
spray windshield washer fluid and
activate the wipers.
See Windshield Wiper/Washer 099.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
46 Keys, Doors, and Windows
If equipped, the vehicle may have
memory mirrors. SeeMemory
Seats 054.
Folding Mirrors
Manual Folding Mirrors
The mirrors can be folded inward
toward the vehicle to prevent
damage when going through an
automatic car wash. Push the mirror
outward to return it to the original
position.
Heated Mirrors
The heated outside rearview mirrors
turn on when the rear window
defogger is on.
1(Rear Window Defogger) :
Press to heat the mirror.
See “Rear Window Defogger” under
Dual Automatic Climate Control
System 0164.
Reverse Tilt Mirrors
If equipped with the memory
package, the passenger and/or
driver mirror tilts to a preselected
position when the vehicle is in
R (Reverse). This feature allows the
driver to view the curb when parallel
parking. The mirror(s) return to the
original position when the vehicle is
shifted out of R (Reverse), the
ignition is turned off, or if the vehicle
is driven in (R) Reverse above a
predetermined speed.
Turn this feature on or off through
vehicle personalization. See Vehicle
Personalization 0145.
Interior Mirrors
Interior Rearview Mirrors
Adjust the rearview mirror for a clear
view of the area behind the vehicle.
Do not spray glass cleaner directly
on the mirror. Use a soft towel
dampened with water.
Automatic Dimming
Rearview Mirror
The rearview mirror automatically
dims to reduce the glare of the
headlamps from behind. This
feature comes on when the vehicle
is started.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Instruments and Controls 99
Horn
Pressaon the steering wheel pad
to sound the horn.
The pedestrian safety signal
provides a momentary soft-note
horn sound. See Pedestrian Safety
Signal 099.
Pedestrian Safety Signal
Your vehicle is equipped with an
automatic sound generation and a
manual alert.
The automatic sound is generated
to indicate the vehicle’ s presence to
pedestrians. The sound changes if
the vehicle is speeding up or
slowing down. It is activated when
the vehicle is shifted into a forward
gear or R (Reverse), up to 30 km/h
(19 mph).
An alert can also be sounded
manually while driving, such as in
parking lots. Use this feature to alert
people who may not hear your
vehicle approaching. At speeds less than 64 km/h
(40 mph), to manually sound the
pedestrian safety signal:
1. Pull the turn signal lever all the way toward you momentarily.
See Exterior Lamp Controls
0 156 andHeadlamp High/
Low-Beam Changer 0158. The
high-beam headlamps and
indicator light will turn on, and
a soft-note alert will
momentarily sound. When the
turn signal lever is released,
the high-beam headlamps and
indicator light will turn off.
2. Repeat for additional activations of the pedestrian
safety signal.
Windshield Wiper/Washer
With the ignition in ACC/
ACCESSORY or ON/RUN, move
the windshield wiper lever to select
the wiper speed.
HI : Use for fast wipes.
LO : Use for slow wipes.
INT (Intermittent Wipes/Rainsense
Wipe Sensitivity Control) : Move
the windshield wiper lever to INT.
Turn the
xINT band on the wiper
lever to adjust the sensitivity. To turn
the Rainsense feature on or off, see
“Rainsense Wipers” underVehicle
Personalization 0145.
When Rainsense is turned off, move
the lever up to INT for intermittent
wipes, then turn the
xINT band
up for more frequent wipes or down
for less frequent wipes.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
100 Instruments and Controls
If the windshield wipers are in use
for about six seconds while driving,
the exterior lamps come on
automatically if the exterior lamp
control is in AUTO. The transition
time for the lamps coming on varies
based on wiper speed. See“Lights
On with Wipers” underAutomatic
Headlamp System 0158.
OFF : Use to turn the wipers off.
1X (Mist) : For a single wipe, briefly
move the wiper lever down. For
several wipes, hold the wiper
lever down.
Clear snow and ice from the wiper
blades and windshield before using
them. If frozen to the windshield,
carefully loosen or thaw them.
Damaged blades should be
replaced. See Wiper Blade
Replacement 0259.
Heavy snow or ice can overload the
wiper motor.
Wiper Parking
If the ignition is put in OFF while the
wipers are on LO, HI, or INT, they
will immediately stop. If the windshield wiper lever is then
moved to OFF before the driver
door is opened or within 10 minutes,
the wipers will restart and move to
the base of the windshield.
If the ignition is put in OFF while the
wipers are performing wipes due to
windshield washing or Rainsense,
the wipers continue to run until they
reach the base of the windshield.
The wiper arms can be moved
manually when the ignition is off for
replacing or cleaning under the
blades. The wiper arms will return to
their normal position when the
ignition is turned on.
Rainsense™
With Rainsense, a sensor near the
top center of the windshield detects
the amount of water on the
windshield and controls the
frequency of the windshield wiper.
Keep this area of the windshield
clear of debris to allow for best
system performance.
INT (Intermittent Wipes/Rainsense
Wipe Sensitivity Control) :
Move
the windshield wiper lever to INT.
Turn the
xINT band on the wiper
lever to adjust the sensitivity.
. Turn the band up for more
sensitivity to moisture.
. Turn the band down for less
sensitivity to moisture.
. Move the windshield wiper lever
out of the INT position to
deactivate Rainsense.
This feature can be turned on or off,
see “Rainsense Wipers” under
Vehicle Personalization 0145
Wiper Arm Assembly Protection
When using an automatic car wash,
move the windshield wiper lever to
OFF. This disables the automatic
Rainsense windshield wipers.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
120 Instruments and Controls
Vehicle Ready Light
The vehicle ready light comes on
whenever the vehicle is ready to be
driven.
High-Beam On Light
This light comes on when the
high-beam headlamps are in use.
SeeHeadlamp High/Low-Beam
Changer 0158.
IntelliBeam®Light
This light comes on when the
IntelliBeam system, if equipped, is
enabled.
See Exterior Lamp Controls 0156.
Lamps On Reminder
This light comes on when the
exterior lamps are in use. See
Exterior Lamp Controls 0156.
Cruise Control Light
The cruise control light is white
when the cruise control is on and
ready, and turns green when the
cruise control is set and active.
See Cruise Control 0202.
Adaptive Cruise Control Light
This light is white when the Adaptive
Cruise Control (ACC, if equipped) is
on and ready, and turns green when
the ACC is set and active. See
Adaptive Cruise Control 0204.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Instruments and Controls 139
TIGHTEN GAS CAP
This message displays when the
fuel cap is not on tight. Tighten the
fuel cap.
WAIT TO REFUEL
This message displays when the
fuel system is pressurized. You
must wait to refuel the vehicle until
this message goes off.
Key and Lock Messages
NO REMOTE KEY WAS
DETECTED PLACE KEY IN
TRANSMITTER POCKET THEN
START YOUR VEHICLE
This message displays when trying
to start the vehicle if an RKE
transmitter is not detected. The
transmitter battery may be weak.
See“Starting the Vehicle with a Low
Transmitter Battery” underRemote
Keyless Entry (RKE) System
Operation 031.
NO REMOTE DETECTED
This message displays when the
transmitter battery may be weak.
See “Starting the Vehicle with a Low
Transmitter Battery” underRemote
Keyless Entry (RKE) System
Operation 031.
NO REMOTE DETECTED
PRESS BRAKE TO RESTART
This message displays when
attempting to turn off the vehicle
and the RKE transmitter is no longer
detected. Restarting is allowed
without the RKE transmitter for
five minutes. Press the brake pedal
and start button to restart the
vehicle.
NUMBER OF KEYS
PROGRAMMED
This message displays when
programming new keys to the
vehicle.
REMOTE LEFT IN VEHICLE
This message displays when
leaving the vehicle with the RKE
transmitter still inside.
REPLACE BATTERY IN
REMOTE KEY
This message displays when the
battery in the RKE transmitter needs
to be replaced.
Lamp Messages
AUTOMATIC LIGHT CONTROL
ON/OFF
This message is displayed when the
automatic light control has been
turned on or off. See Automatic
Headlamp System 0158.
XX TURN INDICATOR FAILURE
When one of the turn signals is out,
this message displays to show
which bulb needs to be replaced.
See Bulb Replacement 0260 and
Replacement Bulbs 0261.
TURN SIGNAL ON
This message is displayed if the
turn signal has been left on. Turn off
the turn signal.
ProCarManuals.com

Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15

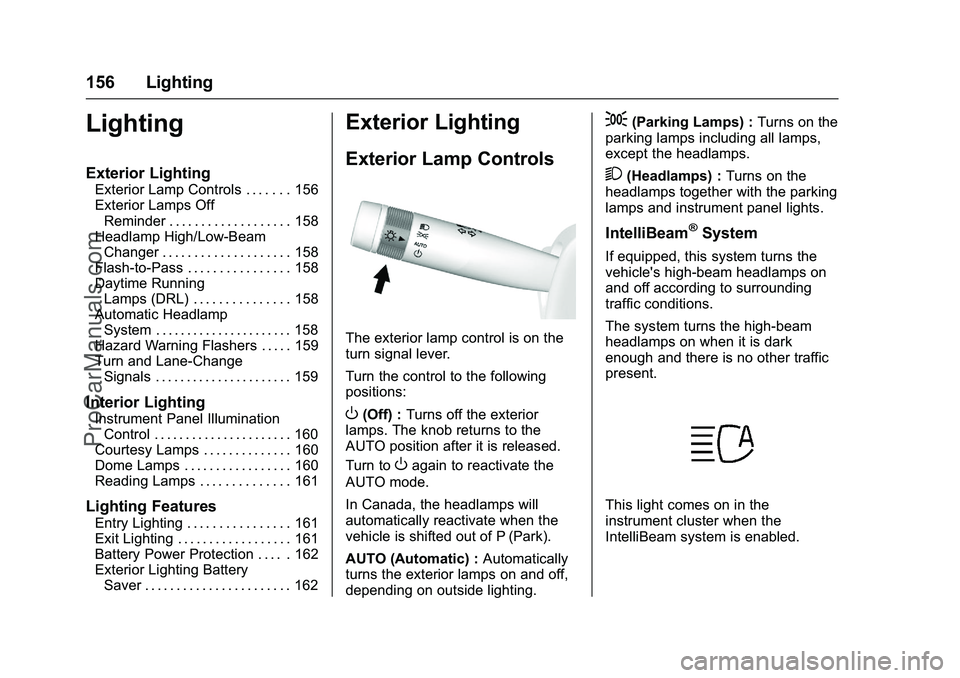

156 Lighting
Lighting
Exterior Lighting
Exterior Lamp Controls . . . . . . . 156
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 158
Headlamp High/Low-Beam Changer . . . . . . . . . . . . . . . . . . . . 158
Flash-to-Pass . . . . . . . . . . . . . . . . 158
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . 158
Automatic Headlamp System . . . . . . . . . . . . . . . . . . . . . . 158
Hazard Warning Flashers . . . . . 159
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . 159
Interior Lighting
Instrument Panel IlluminationControl . . . . . . . . . . . . . . . . . . . . . . 160
Courtesy Lamps . . . . . . . . . . . . . . 160
Dome Lamps . . . . . . . . . . . . . . . . . 160
Reading Lamps . . . . . . . . . . . . . . 161
Lighting Features
Entry Lighting . . . . . . . . . . . . . . . . 161
Exit Lighting . . . . . . . . . . . . . . . . . . 161
Battery Power Protection . . . . . 162
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . 162
Exterior Lighting
Exterior Lamp Controls
The exterior lamp control is on the
turn signal lever.
Turn the control to the following
positions:
O(Off) : Turns off the exterior
lamps. The knob returns to the
AUTO position after it is released.
Turn to
Oagain to reactivate the
AUTO mode.
In Canada, the headlamps will
automatically reactivate when the
vehicle is shifted out of P (Park).
AUTO (Automatic) : Automatically
turns the exterior lamps on and off,
depending on outside lighting.
;(Parking Lamps) : Turns on the
parking lamps including all lamps,
except the headlamps.
2(Headlamps) : Turns on the
headlamps together with the parking
lamps and instrument panel lights.
IntelliBeam®System
If equipped, this system turns the
vehicle's high-beam headlamps on
and off according to surrounding
traffic conditions.
The system turns the high-beam
headlamps on when it is dark
enough and there is no other traffic
present.
This light comes on in the
instrument cluster when the
IntelliBeam system is enabled.
ProCarManuals.com
