oil capacities CADILLAC ESCALADE 2002 2.G Owners Manual

Fuel
Checking Fluids and Lubricants
GM Oil Life System™
Engine Air Cleaner/Filter
Passenger Compartment Air Filter
Brakes
Bulb ReplacementWindshield Wiper Blade Replacement
Tires and Wheels
Appearance Care
Electrical System/Fuses and Circuit Breakers
Capacities and Specifications
Normal Maintenance Replacement Parts
Table of Contents (cont'd)
Maintenance Schedule Service and Appearance Care
Section
6
Scheduled Maintenance
Owner Checks and Services
Periodic Maintenance InspectionsRecommended Fluids and Lubricants
Maintenance Records
iv
Section
7

6-
6-1
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted to its appearance care.
6
-2 Service
6
-3 Fuel
6
-5 Fuels in Foreign Countries
6
-6 Filling Your Tank
6
-8 Filling a Portable Fuel Container
6
-8 Checking Things Under the Hood
6
-11 Engine Oil
6
-17 Engine Air Cleaner/Filter
6
-19 Passenger Compartment Air Filter
6
-20 Automatic Transmission Fluid
6
-24 Rear Axle
6
-24 All-Wheel Drive
6
-27 Engine Coolant
6
-30 Power Steering Fluid
6
-31 Windshield Washer Fluid6
-33 Brakes
6
-36 Battery
6
-37 Bulb Replacement
6
-48 Windshield Wiper Blade Replacement
6
-49 Tires
6
-58 Appearance Care
6
-58 Cleaning the Inside of Your Vehicle
6
-61 Cleaning the Outside of Your Vehicle
6
-65 GM Vehicle Care/Appearance Materials
6
-66 Vehicle Identification Number (VIN)
6
-67 Electrical System
6
-75 Replacement Bulbs
6
-76 Capacities and Specifications
6
-77 Normal Maintenance Replacement Parts

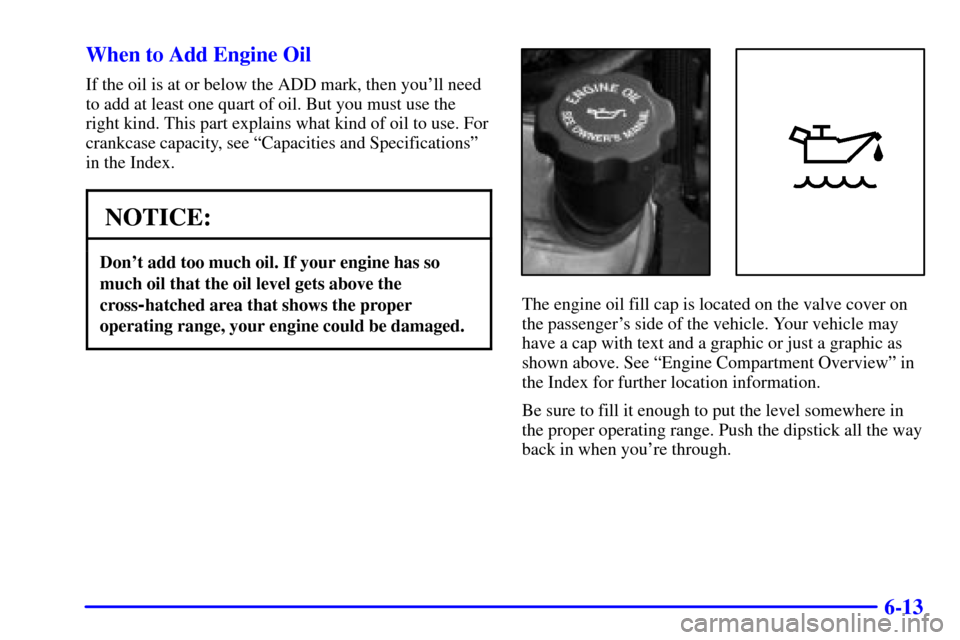

6-13 When to Add Engine Oil
If the oil is at or below the ADD mark, then you'll need
to add at least one quart of oil. But you must use the
right kind. This part explains what kind of oil to use. For
crankcase capacity, see ªCapacities and Specificationsº
in the Index.
NOTICE:
Don't add too much oil. If your engine has so
much oil that the oil level gets above the
cross
-hatched area that shows the proper
operating range, your engine could be damaged.The engine oil fill cap is located on the valve cover on
the passenger's side of the vehicle. Your vehicle may
have a cap with text and a graphic or just a graphic as
shown above. See ªEngine Compartment Overviewº in
the Index for further location information.
Be sure to fill it enough to put the level somewhere in
the proper operating range. Push the dipstick all the way
back in when you're through.

6-76
Capacities and Specifications
Please refer to ªRecommended Fluids and Lubricantsº in the Index for more information. See refrigerant charge label
under the hood for charge capacity information and requirements.
Engine Type VIN Code Spark Plug Gap
VORTEC 5300 V8 T 0.060 inches (1.52 mm)
VORTEC 6000 H.O. V8 N 0.060 inches (1.52 mm)
Wheels and Tires
Wheel Nut Torque 140 lb-ft (190 N´m)
Tire Pressure See the Certification/Tire
label on the rear edge of the
driver's door.
Cooling System Capacity
After refill, the level must be rechecked. See ªCooling
Systemº in the Index.
Engine Quantity
VORTEC 5300 V8 18.6 quarts (17.6 L)
VORTEC 6000 H.O. V8 19.0 quarts (18.0 L)
Crankcase Capacity
After refill, the level must be rechecked. Add enough
engine oil so that the fluid is within the proper operating
range. See ªEngine Oilº in the Index.
Engine VIN Quantity
VORTEC 5300 V8 T 6.0 quarts (5.7 L)
VORTEC 6000 H.O. V8 N 6.0 quarts (5.7 L)
Fuel Tank Capacity
26.0 U.S. gallons (98.4 L)
