Power steering CADILLAC ESCALADE 2005 2.G User Guide

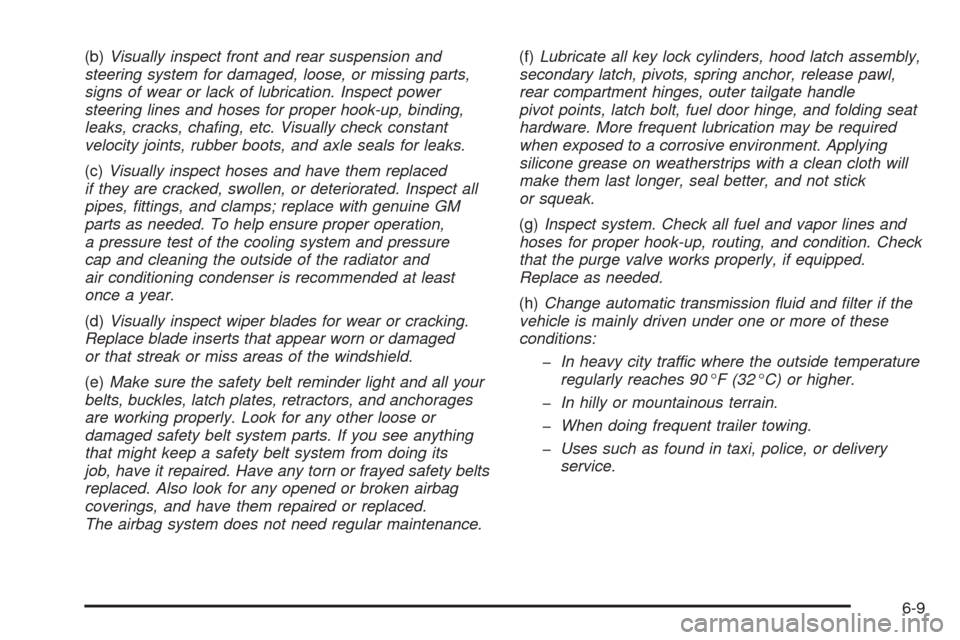

(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing parts,
signs of wear or lack of lubrication. Inspect power
steering lines and hoses for proper hook-up, binding,
leaks, cracks, chang, etc. Visually check constant
velocity joints, rubber boots, and axle seals for leaks.
(c)Visually inspect hoses and have them replaced
if they are cracked, swollen, or deteriorated. Inspect all
pipes, ttings, and clamps; replace with genuine GM
parts as needed. To help ensure proper operation,
a pressure test of the cooling system and pressure
cap and cleaning the outside of the radiator and
air conditioning condenser is recommended at least
once a year.
(d)Visually inspect wiper blades for wear or cracking.
Replace blade inserts that appear worn or damaged
or that streak or miss areas of the windshield.
(e)Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors, and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken airbag
coverings, and have them repaired or replaced.
The airbag system does not need regular maintenance.(f)Lubricate all key lock cylinders, hood latch assembly,
secondary latch, pivots, spring anchor, release pawl,
rear compartment hinges, outer tailgate handle
pivot points, latch bolt, fuel door hinge, and folding seat
hardware. More frequent lubrication may be required
when exposed to a corrosive environment. Applying
silicone grease on weatherstrips with a clean cloth will
make them last longer, seal better, and not stick
or squeak.
(g)Inspect system. Check all fuel and vapor lines and
hoses for proper hook-up, routing, and condition. Check
that the purge valve works properly, if equipped.
Replace as needed.
(h)Change automatic transmission uid and lter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
6-9

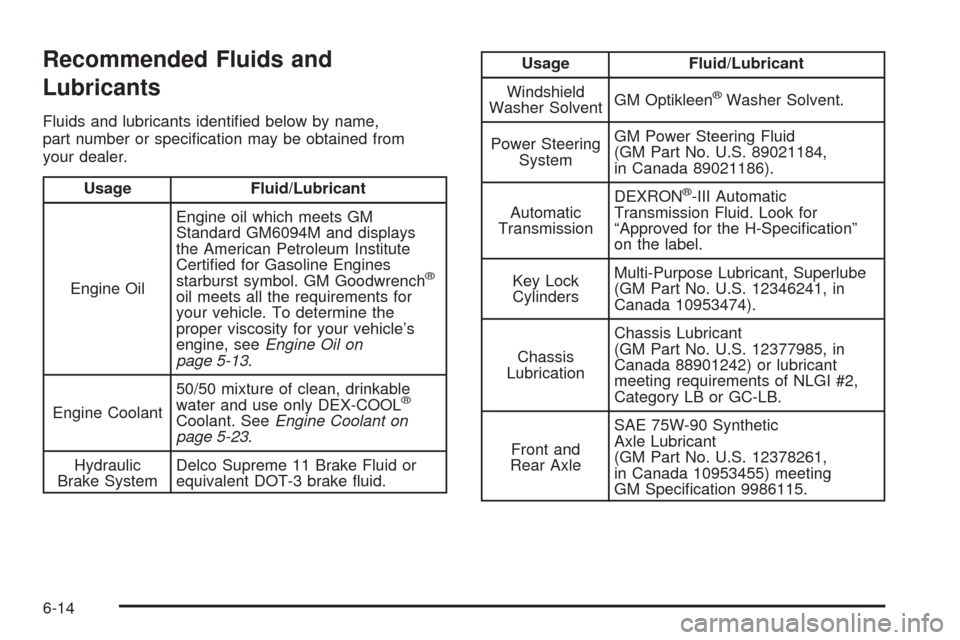

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM Goodwrench
®
oil meets all the requirements for
your vehicle. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on
page 5-13.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 5-23.
Hydraulic
Brake SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Usage Fluid/Lubricant
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Front and
Rear AxleSAE 75W-90 Synthetic
Axle Lubricant
(GM Part No. U.S. 12378261,
in Canada 10953455) meeting
GM Specication 9986115.
6-14

Driving (cont.)
Hill and Mountain Roads..............................4-36
In Rain and on Wet Roads...........................4-30
Recovery Hooks..........................................4-43
Rocking Your Vehicle to Get it Out.................4-42
Winter........................................................4-38
Dual Automatic Climate Control System.............3-22
DVD
Rear Seat Entertainment System...................3-84
E
Electrical System
Add-On Equipment.....................................5-106
Center Instrument Panel Fuse Block.............5-110
Fuses and Circuit Breakers.........................5-107
Instrument Panel Fuse Block.......................5-107
Power Windows and Other Power Options....5-107
Underhood Fuse Block...............................5-111
Windshield Wiper Fuses.............................5-106
Engine
Air Cleaner/Filter.........................................5-18
Battery.......................................................5-39
Check and Service Engine Soon Light............3-43
Coolant......................................................5-23
Coolant Heater............................................2-21
Coolant Temperature Gage...........................3-41
Engine Compartment Overview......................5-12Engine (cont.)
Exhaust.....................................................2-28
Fan Noise..................................................5-33
Oil .............................................................5-13
Oil Life System...........................................5-16
Overheated Protection Operating Mode...........5-28
Overheating................................................5-26
Starting......................................................2-19
Entry/Exit Lighting...........................................3-17
Event Data Recorders (EDR)............................. 7-9
Extender, Safety Belt.......................................1-46
Exterior Lamps...............................................3-14
F
Filter
Engine Air Cleaner......................................5-18
Finish Damage.............................................5-103
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-76
Flat Tire, Changing.........................................5-77
Flat Tire, Storing.............................................5-92
Fluid
Automatic Transmission................................5-21
Power Steering...........................................5-33
Windshield Washer......................................5-34
Fog Lamps....................................................3-16
Front Axle......................................................5-46
5

Passing.........................................................4-14
Passlock®......................................................2-17
Power
Accessory Outlets........................................3-21
Door Locks.................................................. 2-9
Electrical System.......................................5-107
Lumbar Controls........................................... 1-4
Retained Accessory (RAP)............................2-19
Seat............................................................ 1-3
Steering Fluid.............................................5-33
Windows....................................................2-15
Programmable Automatic Door Locks.................2-10
Q
Questions and Answers About Safety Belts.........1-31
R
Radios..........................................................3-69
Care of Your Cassette Tape Player...............3-103
Care of Your CD and DVD Player................3-104
Care of Your CDs and DVDs.......................3-104
CD Changer...............................................3-98
Navigation/Radio System, see
Navigation Manual....................................3-84
Radio with Cassette and CD.........................3-70Radios (cont.)
Rear Seat Audio..........................................3-96
Setting the Time..........................................3-70
Theft-Deterrent..........................................3-101
Understanding Reception............................3-102
Reading Lamps..............................................3-18
Rear Axle......................................................5-45
Rear Climate Control System............................3-29
Rear Door Security Locks................................2-12
Rear Heated Seats........................................... 1-9
Rear Safety Belt Comfort Guides......................1-44
Rear Seat Armrest..........................................2-42
Rear Seat Audio (RSA)....................................3-96
Rear Seat Entertainment System.......................3-84
Rear Seat Operation......................................... 1-8
Rear Seat Passengers, Safety Belts..................1-41
Rearview Mirror, Automatic Dimming with
OnStar
®, Compass and
Temperature Display....................................2-30
Reclining Seatbacks.......................................... 1-6
Recommended Fluids and Lubricants.................6-14
Recovery Hooks.............................................4-43
Recreational Vehicle Towing.............................4-49
Remote Keyless Entry System............................ 2-4
Remote Keyless Entry System, Operation............ 2-5
Removing the Flat Tire and Installing the
Spare Tire..................................................5-83
Removing the Spare Tire and Tools...................5-79
10
