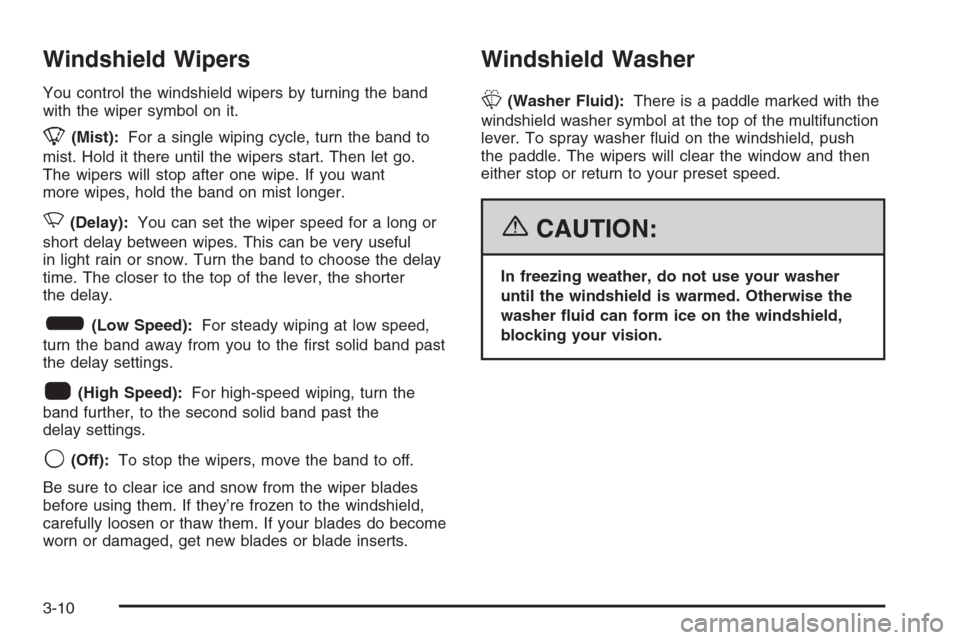

Windshield Wipers
You control the windshield wipers by turning the band
with the wiper symbol on it.
8(Mist):For a single wiping cycle, turn the band to
mist. Hold it there until the wipers start. Then let go.
The wipers will stop after one wipe. If you want
more wipes, hold the band on mist longer.
N(Delay):You can set the wiper speed for a long or
short delay between wipes. This can be very useful
in light rain or snow. Turn the band to choose the delay
time. The closer to the top of the lever, the shorter
the delay.
6(Low Speed):For steady wiping at low speed,
turn the band away from you to the rst solid band past
the delay settings.
1(High Speed):For high-speed wiping, turn the
band further, to the second solid band past the
delay settings.
9(Off):To stop the wipers, move the band to off.
Be sure to clear ice and snow from the wiper blades
before using them. If they’re frozen to the windshield,
carefully loosen or thaw them. If your blades do become
worn or damaged, get new blades or blade inserts.
Windshield Washer
L(Washer Fluid):There is a paddle marked with the
windshield washer symbol at the top of the multifunction
lever. To spray washer uid on the windshield, push
the paddle. The wipers will clear the window and then
either stop or return to your preset speed.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
3-10

Rear Window Wiper/Washer
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
If your vehicle has a rear
window washer/wiper, this
knob is located on the
instrument panel to the
left of the steering wheel.To turn the rear wiper on, turn the knob to either 1 or 2.
For long delayed wiping, turn the knob to 1. For short
delayed wiping, turn the knob to 2.
9(Off):To turn the wiper off, turn the knob to this
symbol.
=(Washer Fluid):To wash the window, press the
knob with this symbol.
The rear window washer uses the same uid bottle as
the windshield washer. However, the rear window
washer will run out of uid before the windshield washer.
If you can wash your windshield but not your rear
windows, check the uid level.
3-11

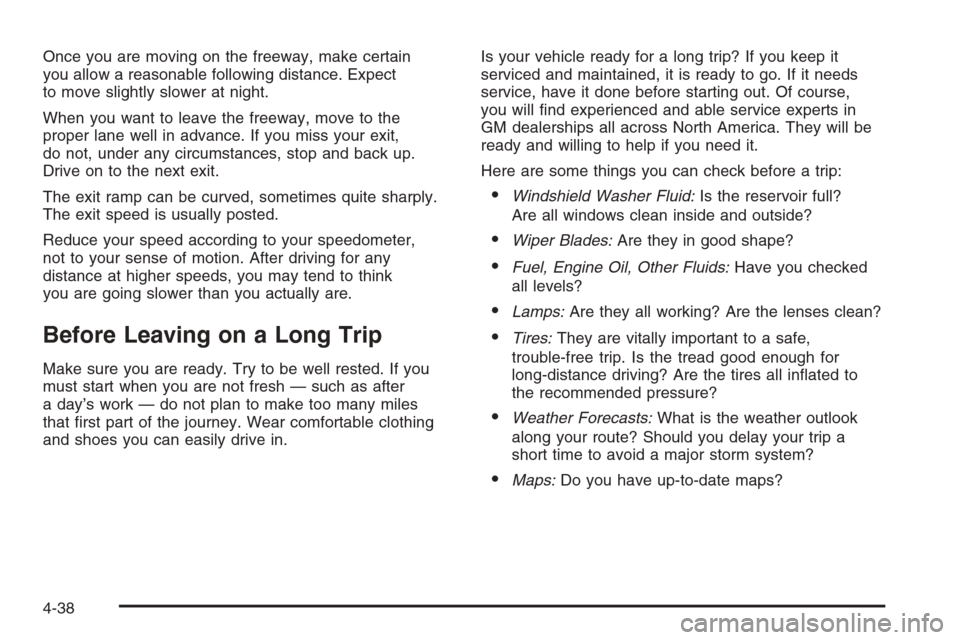

Once you are moving on the freeway, make certain
you allow a reasonable following distance. Expect
to move slightly slower at night.
When you want to leave the freeway, move to the
proper lane well in advance. If you miss your exit,
do not, under any circumstances, stop and back up.
Drive on to the next exit.
The exit ramp can be curved, sometimes quite sharply.
The exit speed is usually posted.
Reduce your speed according to your speedometer,
not to your sense of motion. After driving for any
distance at higher speeds, you may tend to think
you are going slower than you actually are.
Before Leaving on a Long Trip
Make sure you are ready. Try to be well rested. If you
must start when you are not fresh — such as after
a day’s work — do not plan to make too many miles
that rst part of the journey. Wear comfortable clothing
and shoes you can easily drive in.Is your vehicle ready for a long trip? If you keep it
serviced and maintained, it is ready to go. If it needs
service, have it done before starting out. Of course,
you will nd experienced and able service experts in
GM dealerships all across North America. They will be
ready and willing to help if you need it.
Here are some things you can check before a trip:
Windshield Washer Fluid:Is the reservoir full?
Are all windows clean inside and outside?
Wiper Blades:Are they in good shape?
Fuel, Engine Oil, Other Fluids:Have you checked
all levels?
Lamps:Are they all working? Are the lenses clean?
Tires:They are vitally important to a safe,
trouble-free trip. Is the tread good enough for
long-distance driving? Are the tires all inated to
the recommended pressure?
Weather Forecasts:What is the weather outlook
along your route? Should you delay your trip a
short time to avoid a major storm system?
Maps:Do you have up-to-date maps?
4-38

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-3
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of
Your Vehicle..............................................5-4
Fuel................................................................5-4
Gasoline Octane............................................5-4
Gasoline Specications....................................5-5
California Fuel...............................................5-5
Additives.......................................................5-5
Fuels in Foreign Countries...............................5-6
Filling the Tank..............................................5-6
Filling a Portable Fuel Container.......................5-8
Checking Things Under the Hood.....................5-8
Hood Release................................................5-9
Engine Compartment Overview.......................5-10
Engine Oil...................................................5-11
Engine Oil Life System..................................5-14
Engine Air Cleaner/Filter................................5-16
Automatic Transmission Fluid.........................5-19
Engine Coolant.............................................5-21
Coolant Surge Tank Pressure Cap..................5-24
Engine Overheating.......................................5-24
Overheated Engine Protection Operating Mode . . .5-26
Cooling System............................................5-27
Engine Fan Noise.........................................5-31Power Steering Fluid.....................................5-32
Windshield Washer Fluid................................5-33
Brakes........................................................5-34
Battery........................................................5-37
Jump Starting...............................................5-38
All-Wheel Drive..............................................5-43
Rear Axle.......................................................5-44
Front Axle......................................................5-45
Headlamp Aiming...........................................5-46
Headlamp Horizontal Aiming...........................5-47
Headlamp Vertical Aiming..............................5-48
Bulb Replacement..........................................5-49
High Intensity Discharge (HID) Lighting............5-49
Halogen Bulbs..............................................5-50
Headlamps..................................................5-50
Front Turn Signal, Sidemarker and Daytime
Running Lamps.........................................5-54
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps...................5-55
Replacement Bulbs.......................................5-56
Windshield Wiper Blade Replacement..............5-56
Tires..............................................................5-57
Tire Sidewall Labeling...................................5-58
Tire Terminology and Denitions.....................5-62
Ination - Tire Pressure.................................5-64
Section 5 Service and Appearance Care
5-1

Driving (cont.)
Off-Road ....................................................4-18
Recovery Hooks..........................................4-46
Rocking Your Vehicle to Get it Out.................4-46
Winter........................................................4-41
Dual Automatic Climate Control System.............3-24
DVD
Rear Seat Entertainment System...................3-86
E
Electrical System
Add-On Equipment.....................................5-106
Center Instrument Panel Fuse Block.............5-110
Fuses and Circuit Breakers.........................5-107
Instrument Panel Fuse Block.......................5-108
Power Windows and Other Power Options....5-107
Underhood Fuse Block...............................5-111
Windshield Wiper Fuses.............................5-107
Engine
Air Cleaner/Filter.........................................5-16
Battery.......................................................5-37
Check and Service Engine Soon Light............3-44
Coolant......................................................5-21
Coolant Heater............................................2-19
Coolant Temperature Gage...........................3-42
Drive Belt Routing.......................................6-16
Engine Compartment Overview......................5-10
Exhaust.....................................................2-26Engine (cont.)
Fan Noise..................................................5-31
Oil .............................................................5-11
Oil Life System...........................................5-14
Overheated Protection Operating Mode...........5-26
Overheating................................................5-24
Starting......................................................2-18
Entry/Exit Lighting...........................................3-19
Event Data Recorders (EDR)............................. 7-9
Extender, Safety Belt.......................................1-48
Exterior Lamps...............................................3-15
F
Filter
Engine Air Cleaner......................................5-16
Finish Damage.............................................5-103
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-9
Flat Tire........................................................5-78
Flat Tire, Changing.........................................5-78
Flat Tire, Storing.............................................5-92
Fluid
Automatic Transmission................................5-19
Power Steering...........................................5-32
Windshield Washer......................................5-33
Fog Lamps ....................................................3-18
Front Axle......................................................5-45
5

Q
Questions and Answers About Safety Belts.........1-33
R
Radios..........................................................3-69
Care of Your Cassette Tape Player...............3-104
Care of Your CD and DVD Player................3-105
Care of Your CDs and DVDs .......................3-105
CD Changer...............................................3-99
Navigation/Radio System, see Navigation
Manual...................................................3-86
Radio with Cassette and CD.........................3-71
Rear Seat Audio..........................................3-97
Setting the Time..........................................3-70
Theft-Deterrent..........................................3-102
Understanding Reception............................3-103
Reading Lamps..............................................3-19
Rear Axle......................................................5-44
Rear Climate Control System............................3-30
Rear Door Security Locks................................2-10
Rear Heated Seats.........................................1-11
Rear Outside Passenger Positions,
Safety Belts................................................1-42
Rear Safety Belt Comfort Guides......................1-46
Rear Seat Armrest..........................................2-44
Rear Seat Audio (RSA)....................................3-97Rear Seat Entertainment System.......................3-86
Rear Seat Operation......................................... 1-9
Rear Windshield Washer/Wiper.........................3-11
Rearview Mirror, Automatic Dimming with
Compass....................................................2-32
Rearview Mirror, Automatic Dimming with
OnStar®and Compass.................................2-28
Rearview Mirror, Automatic Dimming with
OnStar
®, Compass and Temperature Display . . . 2-29
Reclining Seatbacks.......................................... 1-6
Recommended Fluids and Lubricants.................6-13
Recovery Hooks.............................................4-46
Recreational Vehicle Towing.............................4-54
Remote Keyless Entry System............................ 2-4
Remote Keyless Entry System, Operation............ 2-5
Removing the Flat Tire and Installing the
Spare Tire..................................................5-83
Removing the Spare Tire and Tools...................5-80
Replacement Bulbs.........................................5-56
Reporting Safety Defects
Canadian Government..................................7-14
General Motors...........................................7-15
United States Government............................7-14
Restraint System Check
Checking the Restraint Systems....................1-89
Replacing Restraint System Parts
After a Crash..........................................1-90
Retained Accessory Power (RAP)......................2-17
Right Front Passenger Position, Safety Belts......1-42
10

W
Warning Lights, Gages and Indicators................3-32
Warnings
DIC Warnings and Messages........................3-54
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-6
Safety and Symbols......................................... iii
Vehicle Damage.............................................. iv
Wheels
Alignment and Tire Balance..........................5-75
Different Size..............................................5-73
Replacement...............................................5-76
Where to Put the Restraint...............................1-60
Windows.......................................................2-12
Power ........................................................2-13Windshield
Backglass, and Wiper Blades, Cleaning........5-102
Washer......................................................3-10
Washer Fluid..............................................5-33
Wiper Blade Replacement.............................5-56
Wiper Fuses.............................................5-107
Wipers.......................................................3-10
Windshield, Rear Washer/Wiper........................3-11
Winter Driving................................................4-41
X
XM™ Satellite Radio Antenna System..............3-106
Y
Your Vehicle and the Environment....................... 6-2
14
