Fuses Usage
1 Right Trailer Stop/Turn Lamp
2Electronic Stability Suspension
Control, Automatic Level Control
Exhaust
3 Left Trailer Stop/Turn Lamp
4 Engine Controls
5Engine Control Module,
Throttle Control
Fuses Usage
6 Trailer Brake Controller
7 Front Washer
8 Oxygen Sensors
9 Antilock Brakes System 2
10 Trailer Back-up Lamps
11 Driver Side Low-Beam Headlamp
12 Engine Control Module (Battery)
13Fuel Injectors, Ignition Coils
(Right Side)
14Transmission Control Module
(Battery)
15 Vehicle Back-up Lamps
16Passenger Side Low-Beam
Headlamp
17 Air Conditioning Compressor
18 Oxygen Sensors
19 Transmission Controls (Ignition)
20 Fuel Pump
21 Fuel System Control Module
22 Headlamp Washers
23 Rear Windshield Washer
24Fuel Injectors, Ignition Coils
(Left Side)
6-107

Fuses Usage
25 Trailer Park Lamps
26 Driver Side Park Lamps
27 Passenger Side Park Lamps
28 Fog Lamps
29 Horn
30Passenger Side High-Beam
Headlamp
31 Daytime Running Lamps
32 Driver Side High-Beam Headlamp
33 Daytime Running Lights 2
34 Sunroof
35Key Ignition System, Theft Deterrent
System
36 Windshield Wiper
37 SEO B2 Uptter Usage (Battery)
38 Electric Adjustable Pedals
39 Climate Controls (Battery)
40 Airbag System (Ignition)
41 Amplier
42 Audio SystemFuses Usage
43Miscellaneous (Ignition), Cruise
Control
44 Liftgate Release
45 Airbag System (Battery)
46 Instrument Panel Cluster
47 Not Used
48 Auxiliary Climate Control (Ignition)
49Center High-Mounted Stoplamp
(CHMSL)
50 Rear Defogger
51 Heated Mirror
52 SEO B1 Uptter Usage (Battery)
53Cigarette Lighter, Auxiliary Power
Outlet
54Automatic Level Control Compressor
Relay, SEO Uptter Usage
55 Climate Controls (Ignition)
56Engine Control Module, Secondary
Fuel Pump (Ignition)
6-108

J-Case Fuses Usage
57 Cooling Fan 1
58 Automatic Level Control Compressor
59 Heavy Duty Antilock Brake System
60 Cooling Fan 2
61 Antilock Brake System 1
62 Starter
63 Stud 2 (Trailer Brakes)
64 Left Bussed Electrical Center 1
65 Electric Running Boards
66 Heated Windshield Washer System
67 Four-Wheel Drive System
68Stud 1 (Trailer Connector
Battery Power)
69 Mid-Bussed Electrical Center 1
70 Climate Control Blower
71 Power Liftgate Module
72 Left Bussed Electrical Center 2Relays Usage
FAN HI Cooling Fan High Speed
FAN LO Cooling Fan Low Speed
FAN CNTRL Cooling Fan Control
HDLP LO/HID Hi Intensity Discharge Headlamp
FOG LAMP Front Fog Lamps
A/C CMPRSR Air Conditioning Compressor
STRTR Starter
PWR/TRN Powertrain
FUEL PMP Fuel Pump
PRK LAMP Parking Lamps
REAR DEFOG Rear Defogger
RUN/CRANK Switched Power
6-109

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids
and Lubricants on page 7-13for more information.
ApplicationCapacities
English Metric
Air Conditioning RefrigerantFor the air conditioning system refrigerant
charge amount, see the refrigerant caution
label located under the hood. See your
dealer for more information.
Cooling System 17.6 qt 16.7 L
Engine Oil with Filter 6.0 qt† 5.7 L†
Fuel Tank
Regular 26.0 gal 98.4 L
Extended 31.5 gal 119.2 L
Transmission Fluid (Pan Removal and Replacement) 6.0 qt 5.7 L
Transfer Case Fluid 1.5 qt 1.4 L
Wheel Nut Torque 140 lb ft 190Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended
in this manual. Recheck uid after lling.
†Oil lter should be changed at every oil change.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
6.2L V8 2 Automatic 0.040 in (1.01 mm)
6-110

Maintenance Schedule......................................7-2
Introduction...................................................7-2
Maintenance Requirements..............................7-2
Your Vehicle and the Environment....................7-2
Using the Maintenance Schedule......................7-3
Scheduled Maintenance...................................7-4
Additional Required Services............................7-6
Maintenance Footnotes...................................7-7Owner Checks and Services............................7-9
At Each Fuel Fill............................................7-9
At Least Once a Month.................................7-10
At Least Once a Year...................................7-10
Recommended Fluids and Lubricants...............7-13
Maintenance Replacement Parts.....................7-15
Maintenance Replacement Parts.....................7-15
Engine Drive Belt Routing..............................7-16
Maintenance Record.....................................7-16
Section 7 Maintenance Schedule
7-1

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Have you purchased the GM Protection Plan? The Plan
supplements the vehicle warranties. See the Warranty
and Owner Assistance booklet or your dealer/retailer for
details.
Maintenance Requirements
Notice:Maintenance intervals, checks, inspections,
replacement parts, and recommended uids and
lubricants as prescribed in this manual are
necessary to keep this vehicle in good working
condition. Any damage caused by failure to follow
scheduled maintenance might not be covered by
the vehicle warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
the vehicle in good working condition, but also helps
the environment. All recommended maintenance
is important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper
uid levels or the wrong tire ination can increase the
level of emissions from the vehicle. To help protect
the environment, and to keep the vehicle in good
condition, be sure to maintain the vehicle properly.
7-2

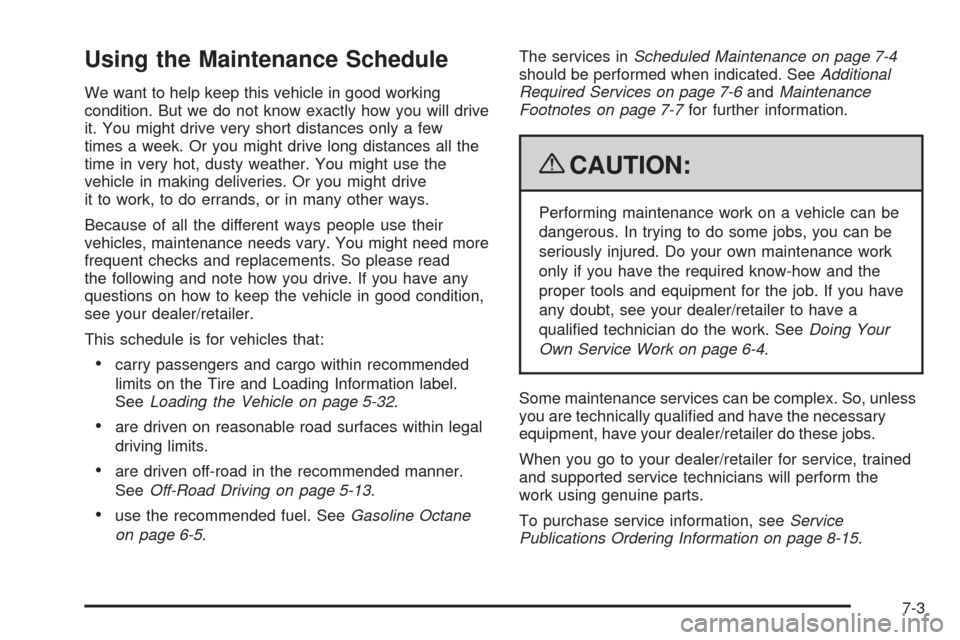

Using the Maintenance Schedule
We want to help keep this vehicle in good working
condition. But we do not know exactly how you will drive
it. You might drive very short distances only a few
times a week. Or you might drive long distances all the
time in very hot, dusty weather. You might use the
vehicle in making deliveries. Or you might drive
it to work, to do errands, or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You might need more
frequent checks and replacements. So please read
the following and note how you drive. If you have any
questions on how to keep the vehicle in good condition,
see your dealer/retailer.
This schedule is for vehicles that:
carry passengers and cargo within recommended
limits on the Tire and Loading Information label.
SeeLoading the Vehicle on page 5-32.
are driven on reasonable road surfaces within legal
driving limits.
are driven off-road in the recommended manner.
SeeOff-Road Driving on page 5-13.
use the recommended fuel. SeeGasoline Octane
on page 6-5.The services inScheduled Maintenance on page 7-4
should be performed when indicated. SeeAdditional
Required Services on page 7-6andMaintenance
Footnotes on page 7-7for further information.
{CAUTION:
Performing maintenance work on a vehicle can be
dangerous. In trying to do some jobs, you can be
seriously injured. Do your own maintenance work
only if you have the required know-how and the
proper tools and equipment for the job. If you have
any doubt, see your dealer/retailer to have a
qualied technician do the work. SeeDoing Your
Own Service Work on page 6-4.
Some maintenance services can be complex. So, unless
you are technically qualied and have the necessary
equipment, have your dealer/retailer do these jobs.
When you go to your dealer/retailer for service, trained
and supported service technicians will perform the
work using genuine parts.
To purchase service information, seeService
Publications Ordering Information on page 8-15.
7-3

Owner Checks and Services on page 7-9tells what
should be checked, when to check it, and what can easily
be done to help keep the vehicle in good condition.
The proper replacement parts, uids, and lubricants to
use are listed inRecommended Fluids and Lubricants
on page 7-13andMaintenance Replacement Parts
on page 7-15. When the vehicle is serviced, make sure
these are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of genuine
parts from your dealer/retailer.
Scheduled Maintenance
To maintain the ride, handling, and performance
of this vehicle, it is important that the rst tire
rotation service be performed when the vehicle
has 5,000 to 8,000 miles (8 000 to 13 000 km).
Check tires for ination pressures and wear. See
Tires on page 6-56. Rotate tires. SeeTire Inspection
and Rotation on page 6-68and “Tire Wear Inspection” in
At Least Once a Month on page 7-10.When the CHANGE ENGINE OIL SOON message
displays, service is required for the vehicle. Have
the vehicle serviced as soon as possible within the
next 600 miles (1 000 km). It is possible that, if driving
under the best conditions, the engine oil life system may
not indicate that vehicle service is necessary for over
a year. However, the engine oil and lter must be
changed at least once a year and at this time the system
must be reset. Your dealer/retailer has trained service
technicians who will perform this work using genuine
parts and reset the system.
If the engine oil life system is ever reset accidentally,
service your vehicle within 3,000 miles (5 000 km) since
the last service. Remember to reset the oil life system
whenever the oil is changed. SeeEngine Oil Life System
on page 6-18for information on the Engine Oil Life
System and resetting the system.
7-4

When the CHANGE ENGINE OIL SOON message
appears, the following services, checks, and inspections
are required:
❑Change engine oil and lter. SeeEngine Oil on
page 6-16. Reset oil life system. SeeEngine Oil
Life System on page 6-18.An Emission Control
Service.
❑Lubricate chassis components.See footnote #.
❑Visually check for any leaks or damage.
See footnote (j).
❑Inspect engine air cleaner lter or change indicator
(if equipped). If necessary, replace lter. See
Engine Air Cleaner/Filter on page 6-19.See
footnote (k).
❑Rotate tires and check ination pressures and wear.
SeeTire Inspection and Rotation on page 6-68and
“Tire Wear Inspection” inAt Least Once a Month
on page 7-10.❑Inspect brake system.See footnote (a).
❑Check engine coolant and windshield washer
uid levels and add uid as needed.
❑Perform any needed additional services. See
“Additional Required Services” in this section.
❑Inspect suspension and steering components.
See footnote (b).
❑Inspect engine cooling system.See footnote (c).
❑Inspect wiper blades.See footnote (d).
❑Inspect restraint system components.
See footnote (e).
❑Lubricate body components.See footnote (f).
❑Check transmission uid level and add uid
as needed.
7-5

Additional Required Services
The following services should be performed at the rst maintenance service after the indicated miles (kilometers)
shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage
or leaks.• •••••
Inspect exhaust system for loose
or damaged components.• •••••
Vehicles without a lter restriction
indicator: Replace engine air cleaner
lter. SeeEngine Air Cleaner/Filter
on page 6-19.•••
Change automatic transmission
uid and lter (severe service).
See footnote (h).•••
Change automatic transmission
uid and lter (normal service).•
Change transfer case uid (severe
service).See footnotes (m) and (n).•••
Change transfer case uid (normal
service).See footnote (m).•
7-6
