Driving and Operating 255
Trailer Brakes
A loaded trailer that weighs more
than 900 kg (2,000 lb) needs to have
its own brake system that is
adequate for the weight of the
trailer. Be sure to read and follow
the instructions for the trailer brakes
so they are installed, adjusted, and
maintained properly.
Since the vehicle is equipped with
StabiliTrak, the trailer brakes cannot
tap into the vehicle's hydraulic
system.
Trailer Wiring Harness
The seven-pin trailer connector is
mounted in the bumper. This
connector can be plugged into a
seven-pin universal heavy-duty
trailer connector available through
your dealer.
The seven-wire harness contains
the following trailer circuits:
.Yellow: Left Stop/Turn Signal
. Green/Violet: Right Stop/Turn
Signal
. Brown: Taillamps .
White: Ground
. Light Green: Back-up Lamps
. Red/Green: Battery Feed
. Dark Blue: Trailer Brake
If charging a remote (non-vehicle)
battery, press the Tow/Haul mode
button at the end of the shift lever.
This will boost the vehicle system
voltage and properly charge the
battery. If the trailer is too light for
Tow/Haul mode, turn on the
headlamps as a second way to
boost the vehicle system and
charge the battery.Electric Brake Control Wiring
Provisions
These wiring provisions are
included with the vehicle as part of
the trailer wiring package. These
provisions are for an electric brake
controller.
The harness should be installed by
your dealer or a qualified service
center.
Tow/Haul Mode
Pressing this button at the end of
the shift lever turns on and off the
Tow/Haul Mode.
This indicator light on the instrument
cluster comes on when the Tow/
Haul Mode is on.

Cadillac Escalade Owner Manual (GMNA-Localizing-MidEast-9369153) -
2016 - crc - 6/19/15
258 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 259
Accessories andModifications . . . . . . . . . . . . . . . . 259
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 260
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 260
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 261
Engine Oil . . . . . . . . . . . . . . . . . . . . 262
Engine Oil Life System . . . . . . . 264
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 265
Engine Air Cleaner/Filter . . . . . . 266
Cooling System . . . . . . . . . . . . . . 267
Engine Coolant . . . . . . . . . . . . . . . 268
Engine Overheating . . . . . . . . . . 270
Engine Fan . . . . . . . . . . . . . . . . . . . 272
Washer Fluid . . . . . . . . . . . . . . . . . 272
Brakes . . . . . . . . . . . . . . . . . . . . . . . 273
Brake Fluid . . . . . . . . . . . . . . . . . . . 274
Battery . . . . . . . . . . . . . . . . . . . . . . . . 275
Four-Wheel Drive . . . . . . . . . . . . . 276
Front Axle . . . . . . . . . . . . . . . . . . . . 276
Rear Axle . . . . . . . . . . . . . . . . . . . . 277
Starter Switch Check . . . . . . . . . 277 Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 277
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 278
Wiper Blade Replacement . . . . 278
Glass Replacement . . . . . . . . . . 279
Windshield Replacement . . . . . 279Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 280
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 280
LED Lighting . . . . . . . . . . . . . . . . . 280
License Plate Lamp . . . . . . . . . . 280
Replacement Bulbs . . . . . . . . . . . 281
Electrical System
Electrical System Overload . . . 281
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 282
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 282
Instrument Panel Fuse Block (Left) . . . . . . . . . . . . . . . . . 285
Instrument Panel Fuse Block (Right) . . . . . . . . . . . . . . . . . . . . . . 288
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 290
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 291 All-Season Tires . . . . . . . . . . . . . . 292
Winter Tires . . . . . . . . . . . . . . . . . . 292
Low-Profile Tires . . . . . . . . . . . . . 293
All-Terrain Tires . . . . . . . . . . . . . . . 293
Tire Pressure . . . . . . . . . . . . . . . . . 293
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . . 294
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 295
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 296
Tire Inspection . . . . . . . . . . . . . . . . 299
Tire Rotation . . . . . . . . . . . . . . . . . 299
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 300
Buying New Tires . . . . . . . . . . . . . 301
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 303
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 303
Wheel Replacement . . . . . . . . . . 303
Tire Chains . . . . . . . . . . . . . . . . . . . 304
If a Tire Goes Flat . . . . . . . . . . . . 304
Tire Changing . . . . . . . . . . . . . . . . 306
Full-Size Spare Tire . . . . . . . . . . 314
Jump Starting
Jump Starting . . . . . . . . . . . . . . . . 315
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 318

Cadillac Escalade Owner Manual (GMNA-Localizing-MidEast-9369153) -
2016 - crc - 6/19/15

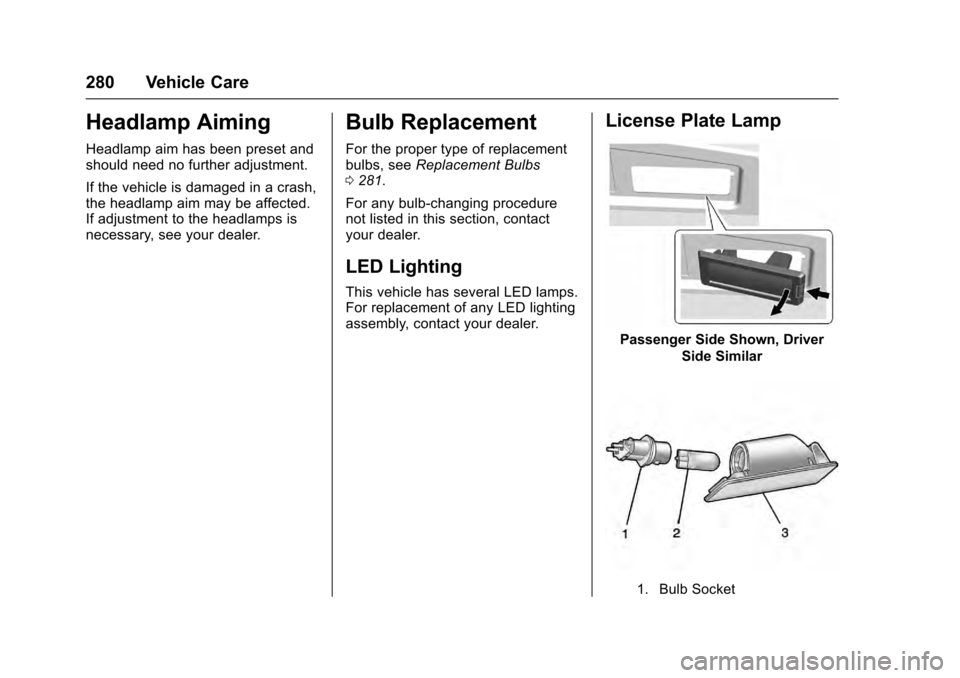

280 Vehicle Care
Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs
0 281.
For any bulb-changing procedure
not listed in this section, contact
your dealer.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
License Plate Lamp
Passenger Side Shown, Driver Side Similar
1. Bulb Socket

Cadillac Escalade Owner Manual (GMNA-Localizing-MidEast-9369153) -
2016 - crc - 6/19/15

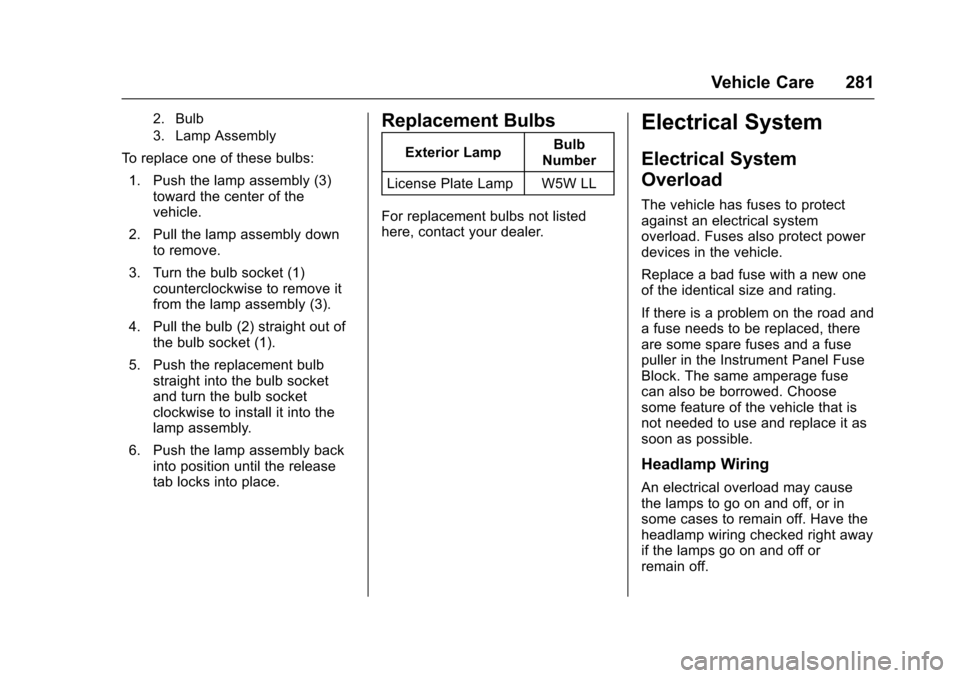

Vehicle Care 281
2. Bulb
3. Lamp Assembly
To replace one of these bulbs:1. Push the lamp assembly (3) toward the center of the
vehicle.
2. Pull the lamp assembly down to remove.
3. Turn the bulb socket (1) counterclockwise to remove it
from the lamp assembly (3).
4. Pull the bulb (2) straight out of the bulb socket (1).
5. Push the replacement bulb straight into the bulb socket
and turn the bulb socket
clockwise to install it into the
lamp assembly.
6. Push the lamp assembly back into position until the release
tab locks into place.
Replacement Bulbs
Exterior Lamp Bulb
Number
License Plate Lamp W5W LL
For replacement bulbs not listed
here, contact your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses to protect
against an electrical system
overload. Fuses also protect power
devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, there
are some spare fuses and a fuse
puller in the Instrument Panel Fuse
Block. The same amperage fuse
can also be borrowed. Choose
some feature of the vehicle that is
not needed to use and replace it as
soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.

Cadillac Escalade Owner Manual (GMNA-Localizing-MidEast-9369153) -
2016 - crc - 6/19/15
Vehicle Care 285
ItemUsage
89 Injector B –even
90 Oxygen sensor B
91 Throttle control
92 Engine control module relay
93 Horn
94 Fog lamps
95 High-beam headlamps
100 Oxygen sensor A
101 Engine control module
102 Engine control module/
Transmission
control module
103 Auxiliary interior heater
104 Starter
107 Aero shutter
109 Police upfitter 112 Starter relay Item
Usage
114 Front windshield washer
115 Rear window washer
116 Cooling fan left
121 Right HID headlamp
122 Left HID headlamp
123 Cooling fan right
Instrument Panel Fuse
Block (Left)
The left instrument panel fuse block
access door is on the driver side
edge of the instrument panel.
Pull off the cover to access the fuse
block.

Cadillac Escalade Owner Manual (GMNA-Localizing-MidEast-9369153) -
2016 - crc - 6/19/15
304 Vehicle Care
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
{Warning
Do not use tire chains. There is
not enough clearance. Tire chains
used on a vehicle without the
proper amount of clearance can
cause damage to the brakes,
suspension, or other vehicle
parts. The area damaged by the
tire chains could cause loss of
control and a crash. Use another
type of traction device only if its(Continued)
Warning (Continued)
manufacturer recommends it for
the vehicle's tire size combination
and road conditions. Follow that
manufacturer's instructions. To
avoid vehicle damage, drive
slowly and readjust or remove the
traction device if it contacts the
vehicle. Do not spin the wheels.
If traction devices are used, install
them on the rear tires.
If a Tire Goes Flat
It is unusual for a tire to blowout
while driving, especially if the tires
are maintained properly. If air goes
out of a tire, it is much more likely to
leak out slowly. But if there ever is a
blowout, here are a few tips about
what to expect and what to do:
If a front tire fails, the flat tire
creates a drag that pulls the vehicle
toward that side. Take your foot off
the accelerator pedal and grip the
steering wheel firmly. Steer to

Cadillac Escalade Owner Manual (GMNA-Localizing-MidEast-9369153) -
2016 - crc - 6/19/15
348 Index
Automatic (cont'd)Headlamp System . . . . . . . . . . . . 169
Level Control . . . . . . . . . . . . . . . . . 222
Transmission . . . . . . . . . . . . . . . . . 207
Transmission Fluid . . . . . . . . . . . 265
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 210
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 277
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 276
Axle, Rear . . . . . . . . . . . . . . . . . 272, 277
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . 275 Jump Starting . . . . . . . . . . . . . . . . . 315
Load Management . . . . . . . . . . . . 173
Power Protection . . . . . . . . . . . . . 174
Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . . 145
Blade Replacement, Wiper . . . . . 278
Blind Spot Mirrors . . . . . . . . . . . . . . . 47
Brake Parking, Electric . . . . . . . . . . . . . . 218
Pedal and AdjustableThrottle . . . . . . . . . . . . . . . . . . . . . . 200
System Warning Light . . . . . . . . 132
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 273 Antilock . . . . . . . . . . . . . . . . . . . . . . . 216
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 219 Brakes (cont'd)
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Parking . . . . . . . . . . . . . . . . . . . . . . . 217
System Messages . . . . . . . . . . . . 145
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 186
Break-In, New Vehicle . . . . . . . . . . 200
Bulb Replacement . . . . . . . . . . . . . . 281 Headlamp Aiming . . . . . . . . . . . . . 280
Headlamps . . . . . . . . . . . . . . . . . . . 280
License Plate Lamps . . . . . . . . . 280
Buying New Tires . . . . . . . . . . . . . . . 301
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 118
Capacities and Specifications . . . . . . . . . . . . . . . . . 342
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 206
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 38
Winter Driving . . . . . . . . . . . . . . . . 194
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . 110
Chains, Tire . . . . . . . . . . . . . . . . . . . . 304
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . 121
Charging System Light . . . . . . . . . 130 Check
Malfunction Indicator
Engine Light . . . . . . . . . . . . . . . . 130
Child Restraints Infants and Young Children . . . . . 91
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 96
Older Children . . . . . . . . . . . . . . . . . . 89
Securing . . . . . . . . . . . . . . . . . 104, 106
Systems . . . . . . . . . . . . . . . . . . . . . . . . 93
Child-View Mirror . . . . . . . . . . . . . . . . 48
Cigarette Lighter . . . . . . . . . . . . . . . . 122
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . 323
Interior Care . . . . . . . . . . . . . . . . . . 327
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . . 176
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Cluster, Instrument . . . . . . . . . . . . . 124
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 109
Compass . . . . . . . . . . . . . . . . . . . . . . . 118 Messages . . . . . . . . . . . . . . . . . . . . 146
Control
Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 220
Control of a Vehicle . . . . . . . . . . . . . 186

Cadillac Escalade Owner Manual (GMNA-Localizing-MidEast-9369153) -
2016 - crc - 6/19/15
350 Index
Engine (cont'd)Power Messages . . . . . . . . . . . . . 148
Running While Parked . . . . . . . . 207
Starting . . . . . . . . . . . . . . . . . . . . . . . 203
Entry Lighting . . . . . . . . . . . . . . . . . . . 173
Equipment, Towing . . . . . . . . . . . . . 254
Event Data Recorders . . . . . . . . . . 345
Exit Lighting . . . . . . . . . . . . . . . . . . . . 173
Exterior Lamp Controls . . . . . . . . . 166
Exterior Lamps Off Reminder . . . 168
F
Fan Engine . . . . . . . . . . . . . . . . . . . 272, 277
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . 13
Filter, Engine Air Cleaner . . . . . . . . . . . 266
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 168
Flashers, Hazard Warning . . . . . . 170
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 304
Changing . . . . . . . . . . . . . . . . . . . . . 306
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 330
Fluid Automatic Transmission . . . . . . 265
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 274
Four-Wheel DriveTransfer Case . . . . . . . . . . . . . . . 213
Washer . . . . . . . . . . . . . . . . . . . . . . . 272 Folding Mirrors . . . . . . . . . . . . . . . . . . 46
Forward Collision Alert
(FCA) System . . . . . . . . . . . . . . . . . 238
Four-Wheel Drive . . . . . . . . . . 213, 276
Front Automatic Braking (FAB) System . . . . . . . . . . . . . . . . . 240
Front Axle . . . . . . . . . . . . . . . . . . . . . . 276
Front Seats
Heated and Cooled . . . . . . . . . . . . . 60
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 Additives . . . . . . . . . . . . . . . . . . . . . 246
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 248
Filling the Tank . . . . . . . . . . . . . . . 247
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 127
Low Fuel Warning Light . . . . . . . 137
Management, Active . . . . . . . . . . 206
System Messages . . . . . . . . . . . . 148
Full-Size Spare Tire . . . . . . . . . . . . 314
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 282 Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 282
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 285, 288
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 290
G
Garage Door OpenerProgramming . . . . . . . . . . . . . . . . . 163
Gauges Engine Coolant
Temperature . . . . . . . . . . . . . . . . 127
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Odometer . . . . . . . . . . . . . . . . . . . . . 126
Speedometer . . . . . . . . . . . . . . . . . 126
Tachometer . . . . . . . . . . . . . . . . . . . 127
Trip Odometer . . . . . . . . . . . . . . . . 126
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 123
General Information
Service and Maintenance . . . . . 332
Towing . . . . . . . . . . . . . . . . . . . . . . . . 249
Vehicle Care . . . . . . . . . . . . . . . . . . 259
Glass Replacement . . . . . . . . . . . . . 279
Glove Box . . . . . . . . . . . . . . . . . . . . . . 109
H
Hazard Warning Flashers . . . . . . . 170
Head Restraints . . . . . . . . . . . . . . . . . 54
Head-up Display . . . . . . . . . . . . . . . . 141
Headlamps Aiming . . . . . . . . . . . . . . . . . . . . . . . . 280
Automatic . . . . . . . . . . . . . . . . . . . . . 169
Bulb Replacement . . . . . . . . . . . . 280

Cadillac Escalade Owner Manual (GMNA-Localizing-MidEast-9369153) -
2016 - crc - 6/19/15
Index 351
Headlamps (cont'd)Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 168
Flash-to-Pass . . . . . . . . . . . . . . . . . 168
High-Beam On Light . . . . . . . . . . 137
High/Low Beam Changer . . . . . 168
Lamps On Reminder . . . . . . . . . 138
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 62
Steering Wheel . . . . . . . . . . . . . . . .115
Heated and Cooled Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Heated Mirrors . . . . . . . . . . . . . . . . . . . 47
High-Beam On Light . . . . . . . . . . . . 137
High-Speed Operation . . . . . . . . . . 294
Hill and Mountain Roads . . . . . . . . 193
Hill Start Assist (HSA) . . . . . . . . . . 219
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 70
I
Ignition Positions . . . . . . . . . . . . . . . 201
IndicatorVehicle Ahead . . . . . . . . . . . . . . . . 134
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 91
Infotainment . . . . . . . . . . . . . . . . . . . . 175 Infotainment System . . . . . . . . . . . . 346
Instrument Cluster . . . . . . . . . . . . . . 124
Instrument Panel
Storage Area . . . . . . . . . . . . . . . . . 109
Interior Rearview Mirrors . . . . . . . . . 48
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting . . . . . . . . . . . . . . . . . . . 315
K
Key and Lock Messages . . . . . . . . 148
Keyless Entry Remote (RKE) System . . . . . . . . . 29
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
L
Lamps Cornering . . . . . . . . . . . . . . . . . . . . . 171
Daytime Running (DRL) . . . . . . 168
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 172
Exterior Controls . . . . . . . . . . . . . . 166
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 168
License Plate . . . . . . . . . . . . . . . . . 280
Malfunction Indicator . . . . . . . . . 130
Messages . . . . . . . . . . . . . . . . . . . . 149
On Reminder . . . . . . . . . . . . . . . . . 138 Lamps (cont'd)
Reading . . . . . . . . . . . . . . . . . . . . . . 172
Lane Change Alert (LCA) . . . . . . . 242
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 244
Lane Keep Assist (LKA) . . . . . . . . 244
Lane Keep Assist Light . . . . . . . . . 134
Lap-Shoulder Belt . . . . . . . . . . . . . . . 71
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . 103
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 96
LED Lighting . . . . . . . . . . . . . . . . . . . . 280
Level Control
Automatic . . . . . . . . . . . . . . . . . . . . . 222
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lighter, Cigarette . . . . . . . . . . . . . . . 122
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 173
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Illumination Control . . . . . . . . . . . 171
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 Airbag Readiness . . . . . . . . . . . . . 129
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 133
Brake System Warning . . . . . . . 132
