300 DRIVING AND OPERATING
Super Cruise Message Summary (cont'd)
Unavailable Sensor Can’t See Face Clearly.Cups, food, hands, or other objects are obscuring the
DAS view of the driver’s face.
.The steering column is pointed too high or low for the
DAS to see the driver. Adjust the steering column or the
seat if the message occurs frequently.
.Sun is shining into the Driver Attention System (DAS)
camera.
.Dawn or dusk sun glare is on the driver’s face.
Unavailable Looking Away From Road for Too Long The DAS system detects that the driver is not looking at the road.
Unavailable Driving Too Fast The vehicle is traveling faster than 137 km/h (85 mph). The maximum Super Cruise speed in curves will vary based
on how sharp the curve is. The vehicle will automatically
decrease speed if needed.
Unavailable Driving in Exit Lane The Super Cruise system has detected that the vehicle is in an exit lane.
Unavailable GPS Signal Lost
.There is poor reception in isolated areas.
.Reception is being blocked by buildings or other large
structures.
Unavailable You Have Taken Vehicle Control
.The brake pedal is being pressed.
.The Adaptive Cruise Control has been canceled or
turned off.
Unavailable Sensor Blocked Clear snow, ice, dirt, or other contaminants from the front and rear areas of the vehicle.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
DRIVING AND OPERATING 301

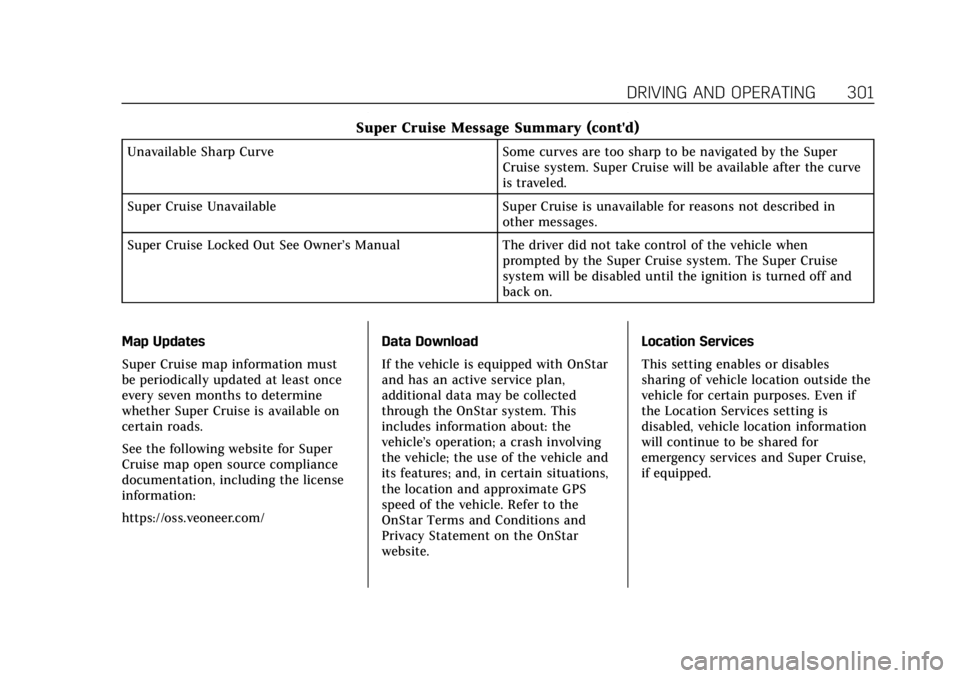

Super Cruise Message Summary (cont'd)
Unavailable Sharp CurveSome curves are too sharp to be navigated by the Super
Cruise system. Super Cruise will be available after the curve
is traveled.
Super Cruise Unavailable Super Cruise is unavailable for reasons not described in
other messages.
Super Cruise Locked Out See Owner’s Manual The driver did not take control of the vehicle when
prompted by the Super Cruise system. The Super Cruise
system will be disabled until the ignition is turned off and
back on.
Map Updates
Super Cruise map information must
be periodically updated at least once
every seven months to determine
whether Super Cruise is available on
certain roads.
See the following website for Super
Cruise map open source compliance
documentation, including the license
information:
https://oss.veoneer.com/ Data Download
If the vehicle is equipped with OnStar
and has an active service plan,
additional data may be collected
through the OnStar system. This
includes information about: the
vehicle’s operation; a crash involving
the vehicle; the use of the vehicle and
its features; and, in certain situations,
the location and approximate GPS
speed of the vehicle. Refer to the
OnStar Terms and Conditions and
Privacy Statement on the OnStar
website.Location Services
This setting enables or disables
sharing of vehicle location outside the
vehicle for certain purposes. Even if
the Location Services setting is
disabled, vehicle location information
will continue to be shared for
emergency services and Super Cruise,
if equipped.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
302 DRIVING AND OPERATING
System Care
The camera on the steering column
has a lens cover that may become
dirty over time and affect camera
performance. Clean the lens cover
with a soft cloth sprayed with glass
cleaner. Wipe the lens gently, then dry
it. Never use abrasive cloths/cleaners
or corrosive chemicals of any kind on
the lens cover.
Super Cruise uses the front radar,
front camera, and 360 degree cameras
for its operation. Clean surfaces are
required for Super Cruise operation.
SeeAdaptive Cruise Control (Advanced)
0 275, “Surround Vision Camera ”
under Assistance Systems for Parking
or Backing 0303, and Lane Keep Assist
(LKA) 0330 for care information.
Caution
The Super Cruise system is a highly
sophisticated system and should
only be serviced by technicians
with the proper training, tools, and
safety instructions, which your
(Continued)
Caution (Continued)
dealer has. Without proper training
and tools the vehicle may become
damaged.
Driver Assistance
Systems
This vehicle may have features that
work together to help avoid crashes or
reduce crash damage while driving,
backing, and parking. Read this entire
section before using these systems.
{Warning
Do not rely on the Driver
Assistance Systems. These systems
do not replace the need for paying
attention and driving safely. You
may not hear or feel alerts or
warnings provided by these
systems. Failure to use proper care
when driving may result in injury,
death, or vehicle damage. See
Defensive Driving0232.
(Continued)
Warning (Continued)
Under many conditions, these
systems will not:
.Detect children, pedestrians,
bicyclists, or animals.
.Detect vehicles or objects outside
the area monitored by the
system.
.Work at all driving speeds.
.Warn you or provide you with
enough time to avoid a crash.
.Work under poor visibility or bad
weather conditions.
.Work if the detection sensor is
not cleaned or is covered by ice,
snow, mud, or dirt.
.Work if the detection sensor is
covered up, such as with a
sticker, magnet, or metal plate.
.Work if the detection sensor
viewing zone is interrupted by an
installed accessory, such as a
bike rack, or hitch mounted
cargo carrier. (Continued)

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
DRIVING AND OPERATING 303
Warning (Continued)
.Work if the area surrounding the
detection sensor is damaged or
not properly repaired.
Complete attention is always
required while driving, and you
should be ready to take action and
apply the brakes and/or steer the
vehicle to avoid crashes.
Audible or Safety Alert Seat
Some driver assistance features alert
the driver of obstacles by beeping. To
change the volume of the warning
chime, see “Comfort and Convenience ”
under Vehicle Personalization 0140.
If equipped with the Safety Alert Seat,
the driver seat cushion may provide a
vibrating pulse alert instead of
beeping. To change this, see
“Collision/Detection Systems” under
Vehicle Personalization 0140.
Cleaning
Depending on vehicle options, keep
these areas of the vehicle clean to
ensure the best driver assistance
feature performance. Driver Information Center (DIC) messages
may display when the systems are
unavailable or blocked.
.Front and rear bumpers and the
area below the bumpers
.Front grille and headlamps
.Front camera lens in the front grille
or near the front emblem
.Front side and rear side panels
.Outside of the windshield in front of
the rearview mirror
.Side camera lens on the bottom of
the outside mirrors
.Rear side corner bumpers
.Rear Vision Camera above the
license plate
Radio Frequency
This vehicle may be equipped with
driver assistance systems that operate
using radio frequency. See Radio
Frequency Statement 0481.
Assistance Systems for
Parking or Backing
If equipped, the Rear Vision Camera
(RVC), Rear Park Assist (RPA), Front
and Rear Park Assist (FRPA),
Surround Vision, Reverse Automatic
Braking (RAB) and Backing Warning
System, Rear Cross Traffic Alert

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
304 DRIVING AND OPERATING
(RCTA), and Enhanced Automatic
Parking Assist (APA) may help the
driver park or avoid objects. Always
check around the vehicle when
parking or backing.
Rear Vision Camera (RVC)
When the vehicle is shifted into
R (Reverse), the RVC displays an
image of the area behind the vehicle
in the infotainment display. The
previous screen displays when the
vehicle is shifted out of R (Reverse)
after a short delay. To return to the
previous screen sooner, press Home or
Back on the infotainment system,
shift into P (Park), or reach a vehicle
speed of approximately 12 km/h
(8 mph) while in D (Drive). The rear
vision camera is above the license
plate.

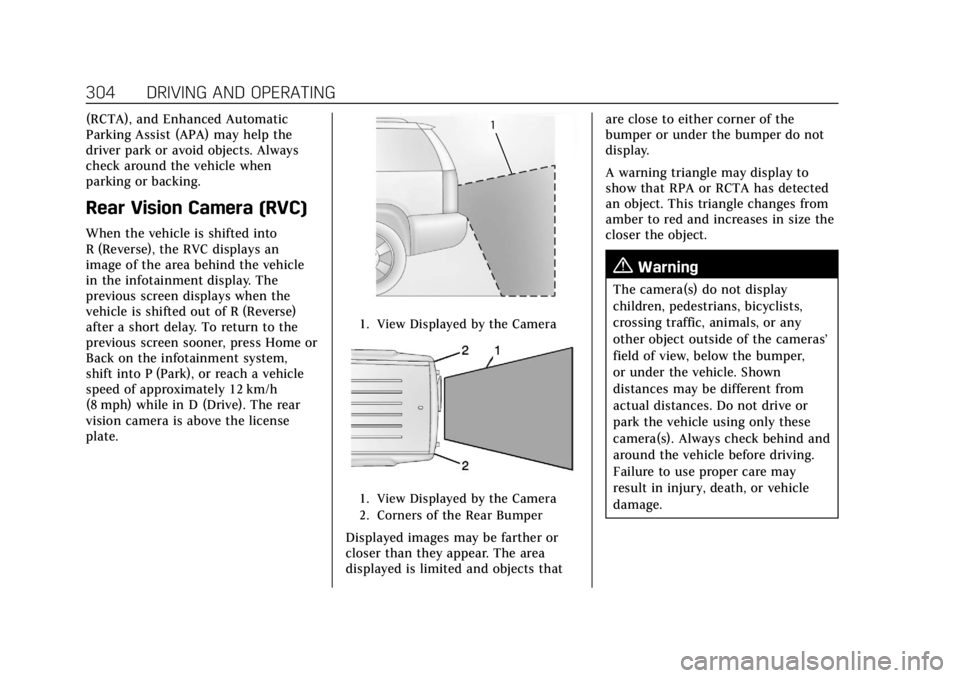

1. View Displayed by the Camera
1. View Displayed by the Camera
2. Corners of the Rear Bumper
Displayed images may be farther or
closer than they appear. The area
displayed is limited and objects thatare close to either corner of the
bumper or under the bumper do not
display.
A warning triangle may display to
show that RPA or RCTA has detected
an object. This triangle changes from
amber to red and increases in size the
closer the object.
{Warning
The camera(s) do not display
children, pedestrians, bicyclists,
crossing traffic, animals, or any
other object outside of the cameras’
field of view, below the bumper,
or under the vehicle. Shown
distances may be different from
actual distances. Do not drive or
park the vehicle using only these
camera(s). Always check behind and
around the vehicle before driving.
Failure to use proper care may
result in injury, death, or vehicle
damage.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
DRIVING AND OPERATING 305
Surround Vision System
If equipped the Surround Vision
system can display various views
surrounding the vehicle in the
infotainment display. See below for
camera view descriptions and more
information.
{Warning
The Surround Vision cameras have
blind spots and will not display all
objects near the corners of the
vehicle. Folding outside mirrors that
are out of position may not display
surround view correctly. Always
check around the vehicle when
parking or backing.
1. Views Displayed by the SurroundVision Cameras
2. Area Not Shown
1. Views Displayed by the Surround Vision Cameras
2. Area Not Shown
{Warning
The camera(s) do not display
children, pedestrians, bicyclists,
crossing traffic, animals, or any
other object outside of the cameras’
field of view, below the bumper,
or under the vehicle. Shown
distances may be different from
actual distances. Do not drive or
park the vehicle using only these
camera(s). Always check behind and (Continued)
Warning (Continued)
around the vehicle before driving.
Failure to use proper care may
result in injury, death, or vehicle
damage.
Camera Views
Touch the camera view buttons along
the bottom of the infotainment
display to access each view (if
equipped):
1. Front/Rear Standard View
Displays an image of the area in
front or behind the vehicle. To
select, touch Front/Rear

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
306 DRIVING AND OPERATING
Standard View on the
infotainment display when a
camera view is active.
When the hitch guidance is
selected, Rear Standard View will
remain visible across gear
changes, otherwise the view will
toggle between Front and Rear
Standard View based on gear
position.
If equipped, the front view
camera also displays when the
Park Assist system detects an
object within 30 cm (12 in).
To access this view when in a
forward gear above 12 km/h
(8 mph), select CAMERA on the
infotainment display and select
Rear Standard View. The view
will close after 8 seconds and
can be closed early by selecting
X, Home or Back.
2. Front/Rear Top-Down View
Displays a front or rear overhead
view of the vehicle. To view,
select Front/Rear Top-Down
View on the infotainment display
when the camera app is active.
3. Front/Rear side View
Displays a view that shows
objects next to the front or rear
sides of the vehicle. To select,
touch Front/Rear Side View on
the infotainment display when a
camera view is active. Touch the
button to toggle between front
and rear camera views. Park
Assist and RCTA overlays are not
available when Front/Rear Side
View is active.
4. Hitch View
Displays a zoomed-in view of the
hitch area to assist with aligning
the vehicle’s hitch ball with the
trailer coupler and monitoring
the trailer connection. To view,
select Hitch View on the
infotainment display when the
Camera App is active. To access
this view when in a forward gear
above 12 km/h (8 mph), select
CAMERA on the infotainment
display and select Hitch View.
The view will close after
eight seconds and can be closed
early by selecting X, Home or
Back. Shifting into P (Park) whilein this view will automatically
engage the Electric Parking
Brake (EPB).
5. Surround View
Displays an image of the area
surrounding the vehicle.
Surround View is displayed
alongside the currently selected
view when below 12 kph
(8 mph). Surround View is
disabled when above
12 kph (8 mph).
6. Camera App Guidance Lines
The Camera App supports three
possible guidance modes: No
Guidance, Vehicle Guidance and
Trailering Guidance. To change
guidance mode, select the
appropriate guidance icon.
Depending on the guidance
mode and view selected, different
guidance lines may appear.
A grayed-out icon indicates that
guidance lines are not available.
Certain views do not support
Guidance lines.
.Standard Guidance Lines are
available in Front/Rear
Standard Views, Front/Rear

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
DRIVING AND OPERATING 307
Top-Down Views and
Surround View when the
vehicle guidance mode is
selected. Standard Guidance
Lines show current and
intended vehicle path.
.Hitch Guidance Line is
available in Rear Standard
View when the Trailering
Guidance mode is selected.
Hitch Guidance displays a
single centered guidance line
on the infotainment display to
assist with aligning the
vehicle’s hitch with a trailer
coupler. Align the Hitch
Guidance Line with the trailer
coupler by continuously
steering the vehicle to keep
the guidance line centered on
the coupler when backing.
Park Assist overlays will not
display when the Hitch
Guidance Line is active.
.Rear Trailer Guidance Lines
are available in the Rear
Trailer View when the
Trailering Guidance mode is
selected and the rear trailer
camera calibration has beensuccessfully completed. Rear
Trailer Guidance Lines show
the intended path (yellow)
and the current path (blue) of
the trailer. The current path
guidance lines will converge
with the intended path
guidance lines.
7. Camera App Guidance Lines
Duplicate of item 6.
8. Interior Trailer View
Displays a view of the interior of
the trailer. The feature is
available when a trailer is
connected. The feature requires
user installation of an accessory
trailer camera on the interior of
the trailer per the accessory
trailer camera installation
instructions (see your dealer for
accessory trailer camera(s) and
information). To view, select
Interior Trailer View on the
infotainment display when the
Camera App is active. To access
this view when in a forward gear
above 12 km/h (8 mph), select
CAMERA on the infotainment
display and select Interior Trailer
View. The view will close after8 seconds and can be closed
early by selecting X, Home
or Back.
9. Transparent Trailer View
Displays a view that allows the
driver to virtually
“see through”
the trailer. The feature is
available when a compatible
trailer is connected, a valid
profile is selected and the vehicle
is not in Reverse. The feature
requires user installation of an
accessory trailer camera on the
rear exterior surface of the trailer
per the accessory trailer camera
installation instructions (see
your dealer for accessory trailer
camera(s) and information). To
view, select Transparent Trailer
View on the infotainment display
when the Camera App is active.
To access this view when in a
forward gear above 12 km/h
(8 mph), select CAMERA on the
infotainment display and select
Transparent Trailer View. The
view can be closed by selecting
X, Home or Back.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
308 DRIVING AND OPERATING
When the system is calibrated
and trailer position is known one
of three views will be shown;
Transparent Trailer View, Left
Transparent Trailer View or
Right Transparent Trailer View.
The Transparent Trailer View is
shown when the position of the
trailer is relatively straight
behind the vehicle. The Left or
Right Transparent Trailer view is
shown when the position of the
trailer is too far to the left or
right. When the system is not
calibrated or trailer position is
not known the Transparent
Trailer Picture-in-Picture View
will be shown.
10.Rear Trailer Views
.Rear Trailer View
Displays a view of the area
behind the trailer when a
trailer is connected. The
feature requires user
installation of an accessory
trailer camera on the rear
exterior surface of the trailer
per the accessory trailer
camera installation
instructions (see your dealerfor accessory trailer camera(s)
and information). To view,
select Rear Trailer View on
the infotainment display
when the Camera App is
active. To access this view
when in a forward gear above
12 km/h (8 mph), select
CAMERA on the infotainment
display and select Rear Trailer
View. The view can be closed
by selecting X, Home or Back.
.Rear Side View with Available
Articulation Functionality
Displays a rearward split view
of the left and right sides of
the vehicle and trailer, when a
trailer is connected. The view
will automatically pan to
show more of the left or right
side based on the position of
the trailer when a compatible
profile is configured and
selected via the Trailering
App. To view, select Rear Side
View with Available
Articulation Functionality on
the infotainment display
when the Camera App is
active. To access this view
when in a forward gear above
12 km/h (8 mph), select
CAMERA on the infotainment
display and select Rear Side
View with Available
Articulation Functionality.
The view can be closed by
selecting X, Home or Back.
.Picture-in-Picture Side View
Displays a rearward split view
of the left and right sides of
the vehicle and trailer with an
overlay view of the area
behind the trailer when a
trailer is connected. The
feature requires user
installation of an accessory
trailer camera on the rear
exterior surface of the trailer
per the accessory trailer
camera installation
instructions (see your dealer
for accessory trailer camera(s)
and information). To view,
select Picture-in-Picture Side
View on the infotainment
display when the Camera App
is active. To access this view
when in a forward gear above
12 km/h (8 mph), select

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
DRIVING AND OPERATING 309
CAMERA on the infotainment
display and select
Picture-in-Picture Side View.
The view can be closed by
selecting X, Home or Back.
Additional Views and Alerts
.Turn Signal Activated Views
Displays a rearward view of the left
or right side of the vehicle and
trailer when a trailer is connected.
Views are provided based on turn
signal activation with the right-side
view being shown when the right
turn signal is active and the left
side view being shown when the left
turn signal is active. The feature can
be enabled or disabled. See Vehicle
Personalization 0140. The view can
be closed early by selecting X,
Home or Back.
A Trailer Length Indicator Overlay is
available in the Turn Signal
Activated Views when the trailer is
relatively straight behind the vehicle
and a compatible profile is
configured and selected via the
Trailering App. The overlay will not
be visible when the position of the
trailer is too far to the left or right. The overlay can be enabled or
disabled. See
Vehicle Personalization
0 140.
.Jack-Knife Detection and Alert
The vehicle may be equipped with
Jack-Knife Detection. The system
will track the position of the trailer
relative to the vehicle. As the front
of the trailer approaches the rear of
the vehicle, a warning or an alert
will be displayed. A warning
indicates to the driver to proceed
with caution, an alert indicates that
a collision is imminent. Based on
vehicle equipment and user
settings, the visual warning or alert
may be accompanied by audible or
safety alert seat notifications. See
Vehicle Personalization 0140.
.Trailer Angle Indicator
The vehicle may be equipped with a
Trailer Angle Indicator. The Trailer
Angle Indicator gives the driver a
visual representation of the trailer’s
position relative to the vehicle.
(Available only in Reverse,
Guidelines On, Rear Trailering
Views).
{Warning
Use Hitch Guidance only to help
back the vehicle to a trailer hitch
or, when traveling above 12 km/h
(8 mph), to briefly check the status
of your trailer. Do not use for any
other purpose, such as making lane
change decisions. Before making a
lane change, always check the
mirrors and glance over your
shoulder. Improper use could result
in serious injury to you or others.
HD Surround Vision with Trailer
Camera Provisions
If equipped, this feature provides
additional views to aid in trailering/
towing. The system shows multiple
views in the infotainment display
using five cameras mounted around
the vehicle and up to two additional
accessory cameras that can be
mounted on or in a trailer. The front
camera is in the grille under the front
emblem, the side cameras are on the
bottom of the outside mirrors, the rear
camera is in the tailgate handle and
the bed camera is mounted on the
