Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
384 Vehicle Care
Different Size Tires and Wheels
If wheels or tires are installed that are a
different size than the original equipment
wheels and tires, vehicle performance,
including its braking, ride and handling
characteristics, stability, and resistance to
rollover may be affected. If the vehicle has
electronic systems such as antilock brakes,
rollover airbags, traction control, electronic
stability control, or All-Wheel Drive, the
performance of these systems can also be
affected.
{Warning
If different sized wheels are used, there
may not be an acceptable level of
performance and safety if tires not
recommended for those wheels are
selected. This increases the chance of a
crash and serious injury. Only use GM
specific wheel and tire systems developed
for the vehicle, and have them properly
installed by a GM certified technician.
See Buying New Tires 0382 and
Accessories and Modifications 0336.
Uniform Tire Quality Grading
The following information relates to the
system developed by the United States
National Highway Traffic Safety
Administration (NHTSA), which grades
tires by treadwear, traction, and
temperature performance. This applies
only to vehicles sold in the United
States. The grades are molded on the
sidewalls of most passenger car tires.
The Uniform Tire Quality Grading
(UTQG) system does not apply to deep
tread, winter tires, compact spare tires,
tires with nominal rim diameters of
10 to 12 inches (25 to 30 cm), or to some
limited-production tires.
While the tires available on General
Motors passenger cars and light trucks
may vary with respect to these grades,
they must also conform to federal
safety requirements and additional
General Motors Tire Performance
Criteria (TPC) standards. Quality grades can be found where
applicable on the tire sidewall between
tread shoulder and maximum section
width. For example:
Treadwear 200 Traction AA Temperature A
All Passenger Car Tires Must Conform to
Federal Safety Requirements In Addition
To These Grades.
Treadwear
The treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlled
conditions on a specified government
test course. For example, a tire graded
150 would wear one and one-half (1½)
times as well on the government course
as a tire graded 100. The relative
performance of tires depends upon the
actual conditions of their use, however,
and may depart significantly from the
norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
Vehicle Care 385
Traction
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on specified
government test surfaces of asphalt and
concrete. A tire marked C may have
poor traction performance. Warning:
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
Temperature
The temperature grades are A (the
highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled conditions
on a specified indoor laboratory test
wheel. Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade Ccorresponds to a level of performance
which all passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and A
represent higher levels of performance
on the laboratory test wheel than the
minimum required by law. Warning:
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, underinflation, or excessive
loading, either separately or in
combination, can cause heat buildup
and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
alignment and tire balancing are not
necessary on a regular basis. Consider an
alignment check if there is unusual tire wear
or the vehicle is significantly pulling to one
side or the other. Some slight pull to the
left or right, depending on the crown of the
road and/or other road surface variations such as troughs or ruts, is normal. If the
vehicle is vibrating when driving on a
smooth road, the tires and wheels may
need to be rebalanced. See your dealer for
proper diagnosis.
Wheel Replacement
Replace any wheel that is bent, cracked,
or badly rusted or corroded. If wheel nuts
keep coming loose, the wheel, wheel bolts,
and wheel nuts should be replaced. If the
wheel leaks air, replace it. Some aluminum
wheels can be repaired. See your dealer if
any of these conditions exist.
Your dealer will know the kind of wheel that
is needed.
Each new wheel should have the same
load-carrying capacity, diameter, width,
offset, and be mounted the same way as
the one it replaces.
Replace wheels, wheel bolts, wheel nuts,
or Tire Pressure Monitor System (TPMS)
sensors with new GM original equipment
parts.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
400 Vehicle Care
The discharged battery positive (+) terminal
is under a cover. Open the cover to expose
the terminal.1. Check the other vehicle. It must have a 12-volt battery with a negative ground
system.
Caution
If the other vehicle does not have a
12-volt system with a negative ground,
both vehicles can be damaged. Only use
a vehicle that has a 12-volt system with a
negative ground for jump starting.
2. If you have a vehicle with a diesel engine with two batteries, you should
know before you begin that, especially in
cold weather, you may not be able to
get enough power from a single battery
in another vehicle to start your diesel
engine. If your vehicle has more than
one battery, using the battery that is
closer to the starter will reduce electrical
resistance. This is located on the
passenger side, in the rear of the engine
compartment.
3. Get the vehicles close enough so the jumper cables can reach, but be sure the
vehicles are not touching each other. If they are, it could cause an unwanted
ground connection. You would not be
able to start your vehicle, and the bad
grounding could damage the electrical
systems.
To avoid the possibility of the vehicles
rolling, set the parking brake firmly on
both vehicles involved in the jump start
procedure. Put the automatic
transmission in P (Park) before setting
the parking brake. If you have a
four-wheel-drive vehicle, be sure the
transfer case is in a drive gear, not in
N (Neutral).
Caution
If any accessories are left on or plugged
in during the jump starting procedure,
they could be damaged. The repairs
would not be covered by the vehicle
warranty. Whenever possible, turn off or
unplug all accessories on either vehicle
when jump starting.
4. Turn the ignition off on both vehicles. Unplug unnecessary accessories plugged
into the accessory power outlets. Turn
off the radio and all the lamps that are not needed. This will avoid sparks and
help save both batteries. And it could
save the radio!
5. Open the hood on the other vehicle and locate the positive (+) and negative (−)
terminal locations on that vehicle.
{Warning
An electric fan can start up even when
the engine is not running and can injure
you. Keep hands, clothing, and tools
away from any underhood electric fan.
{Warning
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a flashlight if you need
more light.
Battery fluid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on
your skin, flush the place with water and
get medical help immediately.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
Vehicle Care 411
Caution (Continued)
transfer to the wipe or change the
appearance of the interior surface
when used.
.Do not use scented or gel-type hand
sanitizers. If hand sanitizer comes in
contact with interior surfaces of the
vehicle, blot immediately and clean
with a soft cloth dampened with a
mild soap and water solution.
Interior Glass
To clean, use a microfiber cloth fabric
dampened with water. Wipe droplets left
behind with a clean dry cloth. If necessary,
use a commercial glass cleaner after
cleaning with plain water.
Caution
To prevent scratching, never use abrasive
cleaners on automotive glass. Abrasive
cleaners or aggressive cleaning may
damage the rear window defogger.
Cleaning the windshield with water during
the first three to six months of ownership
will reduce tendency to fog.
Speaker Covers
Vacuum around a speaker cover gently, so
that the speaker will not be damaged. Clean
spots with water and mild soap.
Coated Moldings
Coated moldings should be cleaned.
.When lightly soiled, wipe with a sponge
or soft, lint-free cloth dampened with
water.
.When heavily soiled, use warm soapy
water.
Vinyl/Rubber
If equipped with vinyl floor and rubber floor
mats, use a soft cloth and/or brush
dampened with water to remove dust and
loose dirt. For more thorough cleaning, use
a mild soap and water solution.
{Warning
Do not use cleaners that contain silicone,
wax-based products, or cleaners that
increase gloss on vinyl/rubber floor and
mats. These cleaners can permanently
change the appearance and feel of the
vinyl/rubber and can make the floor (Continued)
Warning (Continued)
slippery. Your foot could slip while
operating the vehicle, and you could lose
control, resulting in a crash. You or
others could be injured.
Fabric/Carpet/Suede
Start by vacuuming the surface using a soft
brush attachment. If a rotating vacuum
brush attachment is being used, only use it
on the floor carpet. Before cleaning, gently
remove as much of the soil as possible:
.Gently blot liquids with a paper towel.
Continue blotting until no more soil can
be removed.
.For solid soils, remove as much as
possible prior to vacuuming.
To clean: 1. Saturate a clean, lint-free colorfast cloth with water. Microfiber cloth is
recommended to prevent lint transfer to
the fabric or carpet.
2. Remove excess moisture by gently wringing until water does not drip from
the cleaning cloth.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22

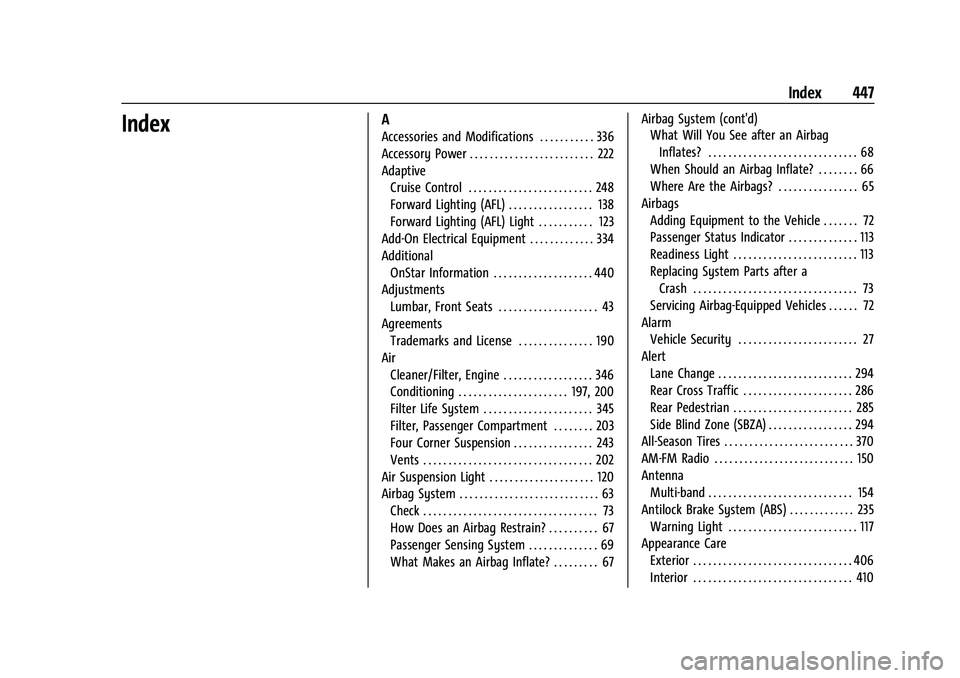

Index 447
IndexA
Accessories and Modifications . . . . . . . . . . . 336
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . 222
AdaptiveCruise Control . . . . . . . . . . . . . . . . . . . . . . . . . 248
Forward Lighting (AFL) . . . . . . . . . . . . . . . . . 138
Forward Lighting (AFL) Light . . . . . . . . . . . 123
Add-On Electrical Equipment . . . . . . . . . . . . . 334
Additional OnStar Information . . . . . . . . . . . . . . . . . . . . 440
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . . . . . . 43
Agreements Trademarks and License . . . . . . . . . . . . . . . 190
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . . . 346
Conditioning . . . . . . . . . . . . . . . . . . . . . . 197, 200
Filter Life System . . . . . . . . . . . . . . . . . . . . . . 345
Filter, Passenger Compartment . . . . . . . . 203
Four Corner Suspension . . . . . . . . . . . . . . . . 243
Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Air Suspension Light . . . . . . . . . . . . . . . . . . . . . 120
Airbag System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
How Does an Airbag Restrain? . . . . . . . . . . 67
Passenger Sensing System . . . . . . . . . . . . . . 69
What Makes an Airbag Inflate? . . . . . . . . . 67 Airbag System (cont'd)
What Will You See after an Airbag
Inflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
When Should an Airbag Inflate? . . . . . . . . 66
Where Are the Airbags? . . . . . . . . . . . . . . . . 65
Airbags Adding Equipment to the Vehicle . . . . . . . 72
Passenger Status Indicator . . . . . . . . . . . . . . 113
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 113
Replacing System Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Servicing Airbag-Equipped Vehicles . . . . . . 72
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 27
Alert Lane Change . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Rear Cross Traffic . . . . . . . . . . . . . . . . . . . . . . 286
Rear Pedestrian . . . . . . . . . . . . . . . . . . . . . . . . 285
Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . 294
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 370
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Antilock Brake System (ABS) . . . . . . . . . . . . . 235 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
448 Index
Apple CarPlay and Android Auto . . . . . . . . . .182
ArmrestStorage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Assistance Program, Roadside . . . . . . . . . . . . 430
Assistance Systems Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Parking and Backing . . . . . . . . . . . . . . . . . . . 274
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . . . . . . . . 32
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Emergency Braking (AEB) . . . . . . . . . . . . . . 289
Emergency Braking (AEB) Disabled
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Headlamp System . . . . . . . . . . . . . . . . . . . . . . 137
Parking Assist (APA) . . . . . . . . . . . . . . . . . . . 282
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 345
Vehicle Hold Light . . . . . . . . . . . . . . . . . . . . . . 117
Automatic Transmission
Manual Mode . . . . . . . . . . . . . . . . . . . . 229, 230
Automatic Vehicle Hold (AVH) . . . . . . . . . . . 237
Avoiding Untrusted Media Devices . . . . . . . .154
Axle Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356B
BatteryExterior Lighting Battery Saver . . . . . . . . 143
Load Management . . . . . . . . . . . . . . . . . . . . . 142
Power Protection . . . . . . . . . . . . . . . . . . . . . . 143
Battery - North America . . . . . . . . . . . . 354, 398
Blade Replacement, Wiper . . . . . . . . . . . . . . . 356
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 178, 179
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Pad Life System . . . . . . . . . . . . . . . . . . . . . . . 353
System Warning Light . . . . . . . . . . . . . . . . . . 115
Brake Pad Life System . . . . . . . . . . . . . . . . . . . 353
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Electric Brake Boost . . . . . . . . . . . . . . . . . . . . 235
Electric Parking Brake . . . . . . . . . . . . . . . . . . 236
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 Automatic Emergency (AEB) . . . . . . . . . . . 289
Reverse Automatic . . . . . . . . . . . . . . . . . . . . . 284
Braking System
Front Pedestrian (FPB) . . . . . . . . . . . . . . . . . 290
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . 219
Buckle To Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . 359 Bulb Replacement (cont'd)
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 359
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 382
C
Calibration Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
California
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . . . . . . 336
California Proposition 65 Warning . . . . . 1, 398
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 274
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . .2
Capacities and Specifications . . . . . . . . . . . . . 424
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 225
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 214
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Caution, Danger, and Warning . . . . . . . . . . . . . .2
Center Console
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386
Charging System Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
Index 449
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Child Restraints Infants and Young Children . . . . . . . . . . . . . 75
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 89
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . .19
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Cleaning Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . 197
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . 107
Collision Damage Repair . . . . . . . . . . . . . . . . . 433
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 444
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 446
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444 Connections
Connected Services . . . . . . . . . . . . . . . . . . . . 444
Control Traction and Electronic Stability . . . . . . . 238
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . 207
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . 146
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Coolant Engine Temperature Gauge . . . . . . . . . . . . 110
Engine Temperature Warning Light . . . . . 119
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197, 200
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Cornering Lamps . . . . . . . . . . . . . . . . . . . . . . . . . 140
Courtesy Transportation Program . . . . . . . . 432
Coverage Explanations . . . . . . . . . . . . . . . . . . . . 173
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 Adaptive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Super . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 429
Text Telephone (TTY) Users . . . . . . . . . . . . 429
Customer Information Publications Ordering Information . . . . . 435
Customer Satisfaction Procedure . . . . . . . . . 427 Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 433
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Data Collection
Infotainment System . . . . . . . . . . . . . . . . . . 438
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 437
Database Coverage Explanations . . . . . . . . . . 173
Daytime Running Lamps (DRL) . . . . . . . . . . . . 137
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . 207
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 446
Disabled Vehicle Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . 401
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . 206
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 18
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Drive Belt Routing, Engine . . . . . . . . . . . . . . . 426

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
450 Index
Drive SystemsFour-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . 355
Driver Assistance Systems . . . . . . . . . . . . . . . . . . . . 272
Information Center (DIC) . . . . . . . . . . . . . . . 124
Mode Control . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Mode Control Light . . . . . . . . . . . . . . . . . . . . 120
Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Driving Assistance Systems . . . . . . . . . . . . . . . . . . . . 287
Better Fuel Economy . . . . . . . . . . . . . . . . . . . 206
Characteristics and Towing Tips . . . . . . . . 305
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Distracted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Hill and Mountain Roads . . . . . . . . . . . . . . 213
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . 215
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . 209
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 208
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 215
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Dual Automatic Climate Control System . . . . 197
Dynamic Fuel Management . . . . . . . . . . . . . . 224E
Electric Brake Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Parking Brake Light . . . . . . . . . . . . . . . . . . . . . 116
Electrical Equipment, Add-On . . . . . . . . . . . . . . . . . . . . 334
System Overload . . . . . . . . . . . . . . . . . . . . . . 359
Electrical System Engine Compartment Fuse Block . . . . . . . 361
Fuses and Circuit Breakers . . . . . . . . . . . . . 360
Instrument Panel Fuse Block . . . . . . . . . . . 365
Rear Compartment Fuse Block . . . . . . . . . 367
Emergency
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 440
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . 346
Air Filter Life System . . . . . . . . . . . . . . . . . . 345
Check Light (Malfunction Indicator) . . . . . 114
Compartment Overview . . . . . . . . . . . . . . . . 339
Coolant Temperature Gauge . . . . . . . . . . . 110
Coolant Temperature Warning Light . . . . 119
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 347
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 426
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 344
Oil Pressure Gauge . . . . . . . . . . . . . . . . . . . . 109 Engine (cont'd)
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . 122
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Power Messages . . . . . . . . . . . . . . . . . . . . . . . 130
Running While Parked . . . . . . . . . . . . . . . . . 225
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Equipment, Towing . . . . . . . . . . . . . . . . . . . . . . . 313
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 437
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 224
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 62
Exterior
Lamp Controls . . . . . . . . . . . . . . . . . . . . . . . . . 134
Lamps Off Reminder . . . . . . . . . . . . . . . . . . . 136
Lighting Battery Saver . . . . . . . . . . . . . . . . . 143
F
FanEngine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
Filter Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 346
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Flashers, Hazard Warning . . . . . . . . . . . . . . . . 139
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .413

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
Index 451
FluidAutomatic Transmission . . . . . . . . . . . . . . . 345
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Forward Collision Alert (FCA) System . . . . . . . . . . . 287
Four Corner Air Suspension Light . . . . . . . . 120
Four Corner Air Suspension System . . . . . . 243
Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . 231, 355
Four-Wheel-Drive Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435
Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Heated and Ventilated Seats . . . . . . . . . . . . 47
Pedestrian Braking (FPB) System . . . . . . . 290
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Dynamic Management . . . . . . . . . . . . . . . . . 224
Economy, Driving for Better . . . . . . . . . . . 206
Filling a Portable Fuel Container . . . . . . . 304
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 303
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 302
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Low Fuel Warning Light . . . . . . . . . . . . . . . 122
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 302 Fuel (cont'd)
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 302
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Full-Size Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 398
Fuses Engine Compartment Fuse Block . . . . . . . 361
Fuses and Circuit Breakers . . . . . . . . . . . . . 360
Instrument Panel Fuse Block . . . . . . . . . . . 365
Rear Compartment Fuse Block . . . . . . . . . 367
G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . . 131Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Gauges Engine Coolant Temperature . . . . . . . . . . . 110
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . 109
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Transmission Temperature . . . . . . . . . . . . . 110
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 108
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Warning Lights and Indicators . . . . . . . . . 106
General Information
Service and Maintenance . . . . . . . . . . . . . . 414
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305 General Information (cont'd)
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . 357
Global Positioning System (GPS) . . . . . . . . . . 171
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430
Guidance Problems with the Route . . . . . . . . . . . . . . . 172
H
Hazard Warning Flashers . . . . . . . . . . . . . . . . 139
HD Radio Technology . . . . . . . . . . . . . . . . . . . . . 151
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Head-Up Display (HUD) . . . . . . . . . . . . . . . . . . . 127
HeadlampsAdaptive Forward Lighting (AFL) . . . . . . . 138
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 359
Daytime Running Lamps (DRL) . . . . . . . . . . 137
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
High-Beam On Light . . . . . . . . . . . . . . . . . . . 123
High/Low Beam Changer . . . . . . . . . . . . . . 136
Lamps On Reminder . . . . . . . . . . . . . . . . . . . 123
Leveling Control . . . . . . . . . . . . . . . . . . . . . . . 139
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16417396) - 2023 - CRC - 5/9/22
452 Index
Heated (cont'd)Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 98
Ventilated Front Seats . . . . . . . . . . . . . . . . . . 47
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197, 200
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . . 123
High-Speed Operation . . . . . . . . . . . . . . . . . . . 375
Hill and Mountain Roads . . . . . . . . . . . . . . . . . 213
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . 237
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
How to Wear Seat Belts Properly . . . . . . . . . .57
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197, 200
I
If the System Needs Service . . . . . . . . . . . . . . 173
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 219
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Indicator Pedestrian Ahead . . . . . . . . . . . . . . . . . . . . . . . 118
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Indicators
Warning Lights and Gauges . . . . . . . . . . . . 106
Infants and Young Children, Restraints . . . . .75
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 435
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 Infotainment
Using the System . . . . . . . . . . . . . . . . . . . . . . 147
Infotainment System . . . . . . . . . . . . . . . . . . . . 438 Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Inspection Multi-Point Vehicle . . . . . . . . . . . . . . . . . . . . 417
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . 107
Instrument Panel Overview . . . . . . . . . . . . . . . . .5
Interior Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . .32
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 144
J
Jump
Starting - North America . . . . . . . . . . . . . . . 398
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Operation . . . . . . . . . . . . . . . . . . . . . . . 8
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 370
LampsCornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Daytime Running (DRL) . . . . . . . . . . . . . . . . . 137
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 134
Exterior Lamps Off Reminder . . . . . . . . . . 136 Lamps (cont'd)
Exterior Lighting Battery Saver . . . . . . . . 143
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
High/Low Beam Changer . . . . . . . . . . . . . . 136
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Malfunction Indicator (Check
Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . . . . . 294
Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . . . . 298
Keep Assist Light . . . . . . . . . . . . . . . . . . . . . . . 117
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 59
LATCH System Replacing Parts after a Crash . . . . . . . . . . . 86
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
Leveling Control Headlamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Lighting Adaptive Forward . . . . . . . . . . . . . . . . . . . . . . 138
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Illumination Control . . . . . . . . . . . . . . . . . . . 140
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
